5KP Series
Axial Lead
Transient Voltage Suppressors
R-6/P600
5kp Series
Reverse Voltage: 5.0 to 440 V
Peak Pulse Power: 5000 W
Features
●
●
Glass passivated chip
5000 W peak pulse power capability with a
10/1000 μs waveform, repetitive rate (duty
cycle):0.01 %
Low leakage
Uni and Bidirectional unit
Excellent clamping capability
Very fast response time
RoHS compliant
Case: Molded plastic
Epoxy: UL 94V-0 rate flame retardant
●
●
●
●
●
1.000 [25.40]
MIN
DIA.
0.052 1.32
0.048 1.22
[ ]
Mechanical Data
●
●
●
0.360 9.14
0.340 8.64
[ ]
DIA.
0.360 9.14
0.340 8.64
Lead: Solderable per MIL-STD-202, method
208 guranteed
Polarity: Color band denotes cathode end
except Bipolar
Mounting position: Any
●
DO
WO
1.000 [25.40]
MIN
[ ]
Dimensions :
inch [ mm ]
●
Maximum Ratings(T
A
=25℃ unless otherwise noted)
Parameter
Peak power dissipation with a 10/1000μs waveform
(1)
Symbol
P
PP
I
PP
P
D
Value
5000
UNIT
W
A
W
A
V
°C
Peak pulse current wih a 10/1000μs waveform
(1)
Power dissipation on infinite heatsink at T
L
= 75 °C
Peak forward surge current, 8.3 ms single half sine-
(2)
wave unidirectional only
Maximum instantaneous forward voltage at 100 A for
unidirectional only
(3)
Operating junction and storage temperature range
Note:
See Next Table
8.0
500
3.5/5.0
–55 to +150
I
FSM
V
F
T
J
, T
STG
(1)Non-repetitive current pulse per Fig.5 and derated above T
A
= 25 °C per Fig.1
(2)Measured on 8.3 ms single half sine-wave or equivalent square wave, duty cycle = 4 pulses per minute maximum
(3)V
F
<3.5V for devices of V
BR
<200V and V
F
<5.0V for devices of V
BR
>201V
Page 1
东沃电子
DOWOSEMI
5KP Series
Ratings and Characteristics Curves (T
A
=25℃ unless otherwise noted)
Peak Pulse Derating in Percentage of Peak
Power or Current, (%)
AVERAGE FORWARD CURRENT, (A)
AMBIENT TEMPERATURE , (℃)
100
0
75
100
150
0
Peak Forward Surge Current, (A)
500
450
400
1
60
500
J
= T
J
max.
T
200
25
100
8.3 ms Single Half Sine-Wave
50
350
300
250
200
25
0
0
25
50
75
100
125
150
175
200
1
10
Number of Cycles at 60 Hz
100
Ambient Temperature ,T
A
(℃)

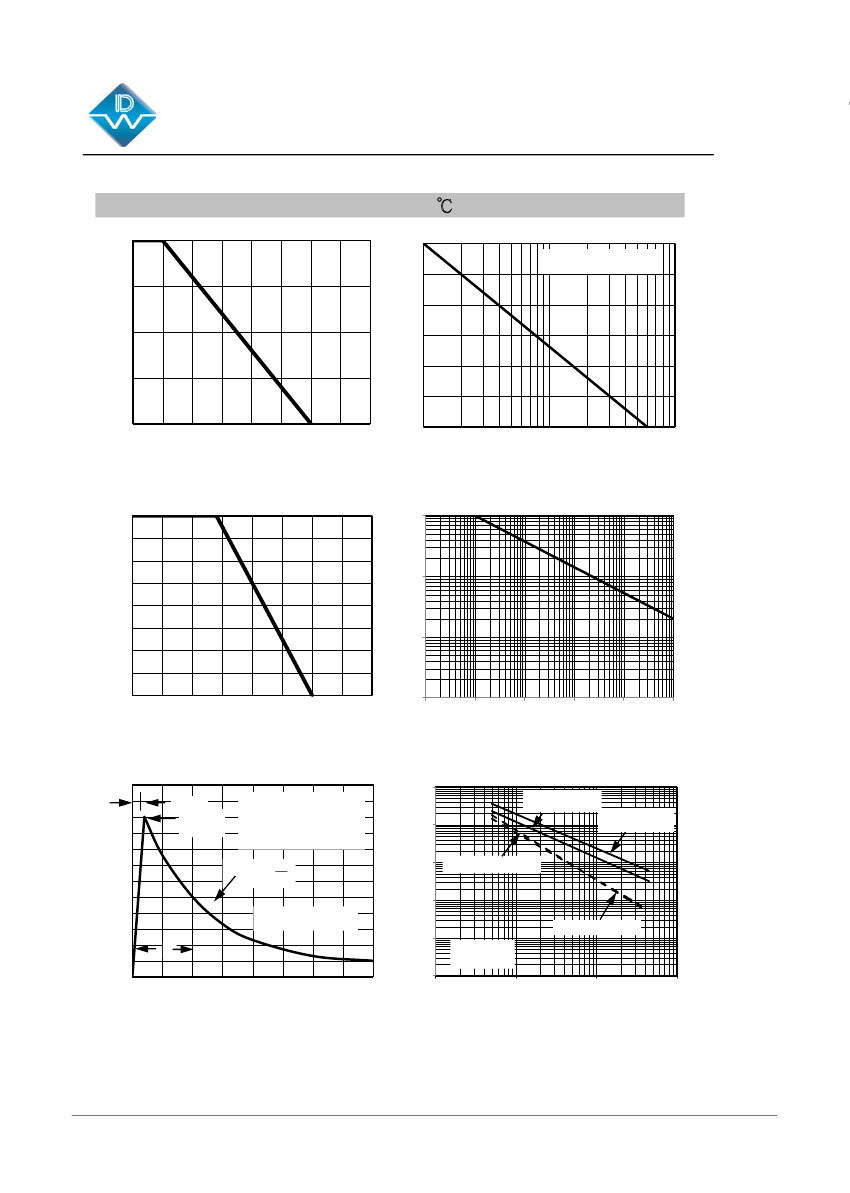

Fig. 1 - Pulse Derating Curve
8.0
100
Fig. 2 - Maximum Non-Repetitive
Surge Current
1
100
2
0
Steady State Power Dissipation, (W)
70
7.0
6.0
8
8
0
##
5.0
4.0
3.0
2.0
1.0
0.0
0
25
DO
WO
10000
10
1
50
75
100
125
150
175
200
0.1
0.1
1
10
100
1000
10000
Lead Temperature , T
L
(℃)
Pulse Width ,t
d
(μs)
Fig. 3 - Steady State Power Derating Curve
Fig. 4 - Peak Pulse Power Rating Curve
Bi-directional
@zero bias
100000
100
Peak Pulse Current , (% )
Tr=10μs
Peak Value
(Ipp)
50
td
0
0.2
100
0.5
Half Value = Ipp
76
1
2
50
33
1.5
10/1000 μsec.
Waveform
2
23
as defined by R.E.A.
3
13
4
10
1
2
Time , (ms)
3
T
J
= 25
°C
Pulse Width (td) is defined as the
point where the peak current
0
0
decays to 50 % of Ipp
5
10000
Junction Capacitance,C
J
(pF)
450
600
450
36000
5
Uni-directional
@zero bias
1000
23000 320
Uni-directional @V
RWM
5
400
55
400
63
Bi-directional @V
RWM
100
18000
5
10
14500
T
J
=25
°C
f=1.0MHz
1
1
10
100
1000
0
4
Reverse Breakdown Voltage,V
BR
(V)
Fig. 5 - Pulse Waveform
Fig. 6 - Typical Junction Capacitance
Page 2
东沃电子
DOWOSEMI
5KP Series
Maximum
Maximum
Working
Reverse
Reverse
Peak Reverse
Leakage I
R
Surge
Voltage
Current I
PP
V
RWM
@V
RWM
(V)
(A)
(uA)
5000
5000
2000
1000
250
150
50
20
15
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
5
6
7
7
8
8
9
9
10
11
12
13
14
15
16
17
18
19
20
22
24
26
28
30
33
36
40
43
45
48
51
54
58
60
64
70
75
78
80
85
90
100
110
120
130
140
543.5
485.4
446.4
416.7
387.6
367.6
347.2
324.7
294.1
274.7
251.3
232.6
215.5
204.9
192.3
181.2
171.2
162.4
154.3
140.8
128.5
118.8
110.1
103.3
93.8
86.1
77.5
72.0
68.8
64.6
60.7
57.4
53.4
51.7
48.5
44.2
41.3
39.7
38.6
36.5
34.2
30.9
28.2
25.9
23.9
22.0
Maximum
Clamping
Voltage V
C
@I
PP
(V)
9.2
10.3
11.2
12.0
12.9
13.6
14.4
15.4
17.0
18.2
19.9
21.5
23.2
24.4
26.0
27.6
29.2
30.8
32.4
35.5
38.9
42.1
45.4
48.4
53.3
58.1
64.5
69.4
72.7
77.4
82.4
87.1
93.6
96.8
103.0
113.0
121.0
126.0
129.6
137.0
146.0
162.0
177.0
193.0
209.0
226.8
Electrical Characteristics(T
A
=25℃ unless otherwise noted)
Part Number
(Uni)
5KP5.0A
5KP6.0A
5KP6.5A
5KP7.0A
5KP7.5A
5KP8.0A
5KP8.5A
5KP9.0A
5KP10A
5KP11A
5KP12A
5KP13A
5KP14A
5KP15A
5KP16A
5KP17A
5KP18A
5KP19A
5KP20A
5KP22A
5KP24A
5KP26A
5KP28A
5KP30A
5KP33A
5KP36A
5KP40A
5KP43A
5KP45A
5KP48A
5KP51A
5KP54A
5KP58A
5KP60A
5KP64A
5KP70A
5KP75A
5KP78A
5KP80A
5KP85A
5KP90A
5KP100A
5KP110A
5KP120A
5KP130A
5KP140A
Part Number
(Bi)
5KP5.0CA
5KP6.0CA
5KP6.5CA
5KP7.0CA
5KP7.5CA
5KP8.0CA
5KP8.5CA
5KP9.0CA
5KP10CA
5KP11CA
5KP12CA
5KP13CA
5KP14CA
5KP15CA
5KP16CA
5KP17CA
5KP18CA
5KP19CA
5KP20CA
5KP22CA
5KP24CA
5KP26CA
5KP28CA
5KP30CA
5KP33CA
5KP36CA
5KP40CA
5KP43CA
5KP45CA
5KP48CA
5KP51CA
5KP54CA
5KP58CA
5KP60CA
5KP64CA
5KP70CA
5KP75CA
5KP78CA
5KP80CA
5KP85CA
5KP90CA
5KP100CA
5KP110CA
5KP120CA
5KP130CA
5KP140CA
Breakdown Voltage V
BR
@I
T
Min (V)
6.40
6.67
7.22
7.78
8.33
8.89
9.44
10.00
11.10
12.20
13.30
14.40
15.60
16.70
17.80
18.90
20.00
21.10
22.20
24.40
26.70
28.90
31.10
33.30
36.70
40.00
44.40
47.80
50.00
53.30
56.70
60.00
64.40
66.70
71.10
77.80
83.30
86.70
88.80
94.40
100.00
111.00
122.00
133.00
144.00
155.00
Max (V)
7.00
7.37
7.98
8.60
9.21
9.83
10.40
11.10
12.30
13.50
14.70
15.90
17.20
18.50
19.70
20.90
22.10
23.30
24.50
26.90
29.50
31.90
34.40
36.80
40.60
44.20
49.10
52.80
55.30
58.90
62.70
66.30
71.20
73.70
78.60
86.00
92.10
95.80
97.60
104.00
111.00
123.00
135.00
147.00
159.00
171.00
I
T
(mA)
50
50
50
50
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
DO
WO
Page 3
东沃电子
DOWOSEMI
5KP Series
5kp
Electrical Characteristics(T
A
=25℃ unless otherwise noted)
Part Number
(Uni)
Part Number
(Bi)
Maximum
Maximum Maximum
Working
Reverse
Clamping
Peak Reverse Reverse
Breakdown Voltage V
BR
@I
T
Leakage I
R
Voltage V
C
Voltage
Surge
V
RWM
Current I
PP
@I
PP
@V
RWM
(A)
(V)
(V)
(uA)
Min (V) Max (V) I
T
(mA)
167.00
178.00
189.00
200.00
211.00
222.00
233.00
244.00
277.00
335.00
391.00
447.00
492.00
185.0
197.0
209.0
220.0
232.0
246.0
258.0
270.0
306.0
371.0
432.0
494.0
543.0
5
5
5
5
5
5
5
5
5
5
5
5
5
2
2
2
2
2
2
2
2
2
2
2
2
2
150
160
170
180
190
200
210
220
250
300
350
400
440
20.58
19.31
18.18
17.15
16.24
15.43
14.31
14.04
12.35
10.29
8.82
7.72
7.01
243.0
259.0
275.0
291.6
307.8
324.0
349.5
356.0
405.0
486.0
567.0
648.0
713.0
1. Suffix 'A ' denotes 5% tolerance device. Without 'A' denotes 10% tolerance device
2. Add suffix 'C 'or ' CA ' after part number to specify Bi-directional devices
3. For Bi-Directional devices having V
R
of 10 volts and under, the I
R
limit is double
Note:
DO
WO
5KP150A
5KP160A
5KP170A
5KP180A
5KP190A
5KP200A
5KP210A
5KP220A
5KP250A
5KP300A
5KP350A
5KP400A
5KP440A
5KP150CA
5KP160CA
5KP170CA
5KP180CA
5KP190CA
5KP200CA
5KP210CA
5KP220CA
5KP250CA
5KP300CA
5KP350CA
5KP400CA
5KP440CA
Page 4
