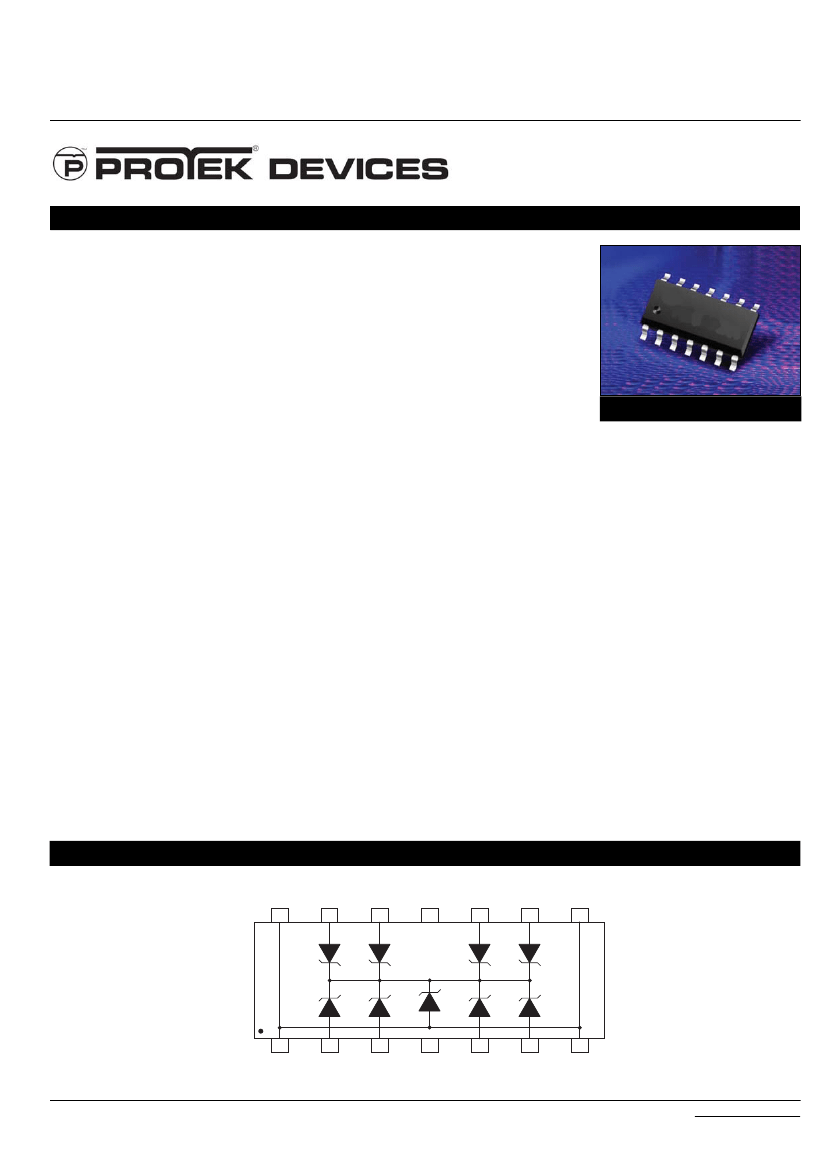

05084
PSMDA05C-8
thru
PSMDA24C-8
STANDARD CAPACITANCE TVS ARRAY
APPLICATIONS
✔
Multiple I/O Port Protection
✔
Board Level Interface Connection
✔
RS-232, RS-422 & RS-423
✔
Portable Electronics
IEC COMPATIBILITY
(EN61000-4)
✔
61000-4-2 (ESD): Air - 15kV, Contact - 8kV
✔
61000-4-4 (EFT): 40A - 5/50ns
✔
61000-4-5 (Surge): 12A, 8/20µs - Level 1(Line-Gnd) & Level 2(Line-Line)
SO-14
FEATURES
✔
450 Watts Peak Pulse Power per Line (tp=8/20µs)
✔
Bidirectional Configurations
✔
Monolithic Design
✔
Design for I/O Protection
✔
Available in Voltage Types Ranging From: 5V to 24V
✔
Protects Up to Eight(8) Lines
✔
ESD Protection > 40 kilovolts
✔
RoHS Compliant
MECHANICAL CHARACTERISTICS
✔
✔
✔
✔
Molded JEDEC SO-14 Package
Weight 0.15 grams (Approximate)
Available in Lead-Free Pure-Tin Plating(Annealed)
Solder Reflow Temperature:
Pure-Tin - Sn, 100: 260-270°C
✔
Consult Factory for Leaded Device Availability
✔
Flammability Rating UL 94V-0
✔
16mm Tape and Reel Per EIA Standard 481
✔
Marking: Logo, Part Number, Date Code & Pin One Defined By Dot on Top of Package
PIN CONFIGURATION
14
13
12
11
10
9
8
1
2
3
4
5
6
7
05084.R4 3/07
1
www.protekdevices.com
PSMDA05C-8
thru
PSMDA24C-8
SO-14 PACKAGE OUTLINE & DIMENSIONS
PACKAGE OUTLINE
-A-
SO-14
14
8
-B-
P
0.010” (0.25 MM)
M
B
M
1
7
7 PL
PACKAGE DIMENSIONS
DIM
MILLIMETERS
MIN
MAX
8.55
3.80
1.35
0.35
0.40
1.27 BSC
0.19
0.10
5.80
0.25
10.00
4.00
1.75
INCHES
MIN
MAX
0.386
0.150
0.054
0.014
0.393
0.157
0.068
0.019
0.049
D-
G
C
R X 45º
0º -
10º
-T-
K
0.010” (0.25 MM)
M
T B
S
A
B
C
D
F
G
J
K
P
R
NOTES
1.
2.
3.
4.
5.
6.
J
F
A
S
8 PL
0.49
0.016
1.25
1.27 BSC 0.05 BSC 0.05 BSC
0.008
0.009
0.25
0.004
0.009
0.25
0.229
6.20
0.244
0.50
0.010
0.019
MOUNTING PAD
0.050” TYP
0.030” ± 0.005”
- T - = Seating Plane and Datum Surface.
Dimensions “A” and “B” are Datum.
Dimensions “A” and “B” do not include mold protrusions.
Maximum mold protrusion is 0.015” (0.380 mm) per side.
Dimensioning and tolerances per ANSI Y14.5M, 1982.
Dimensions are exclusive of mold flash and metal burrs.
TAPE & REEL/BULK ORDERING NOMENCLATURE
1. Surface mount product is taped and reeled in accordance
with EIA-481.
2. Suffix-T7 = 7 Inch Reel - 1,000 pieces per 16mm tape,
i.e.,
PSMDA05C-8-T7.
3. Suffix-T13 = 13 Inch Reel - 2,500 pieces per 16mm tape,
i.e.,
PSMDA05C-8-T13.
4. Suffix - LF = Lead-Free, Pure-Tin Plating,
i.e.,
PSMDA05C-8-LF-T13.
5. No Suffix = Product Shipped in Tubes of 55 pcs per Tube.
Outline & Dimensions: Rev 1 - 11/01, 06006
0.160” ± 0.005”
0.245” MIN
0.045” ± 0.005”
COPYRIGHT © ProTek Devices 2007
SPECIFICATIONS: ProTek reserves the right to change the electrical and or mechanical characteristics described herein without notice (except JEDEC).
DESIGN CHANGES: ProTek reserves the right to discontinue product lines without notice, and that the final judgement concerning selection and specifications is
the buyer’s and that in furnishing engineering and technical assistance, ProTek assumes no responsibility with respect to the selection or specifications of such
products.
