Thick Film Chip Resistors
Thick Film Chip Resistors
Type:
ERJ XG, 1G, 2G, 3G, 6G,
8G, 14, 12, 12Z, 1T
Features
●
Small
size and lightweight
●
High reliability
Metal glaze thick film resistive element and three layers of electrodes
●
Compatible with placement machines
Taping packaging available
●
Suitable for both reflow and flow soldering
●
Reference Standards
IEC 60115-8, JIS C 5201-8, JEITA RC-2134C
●
AEC-Q200 qualified (Exemption ERJXG)
●
RoHS compliant
■
As for Packaging Methods, Land Pattern, Soldering Conditions and Safety Precautions,
Please see Data Files
Explanation of Part Numbers
●
ERJXGN,
1GN, 2GE, 3GE, 6GE, 8GE, 14, 12, 12Z, 1T Series, ±5 %
1
2
3
4
5
6
7
8
9
10
11
12
E
R
J
3
G
E
Y
J
1
0
2
V
Product Code
Thick Film
Chip Resistors
Size, Power Rating
Code Inch Power R.
XGN 01005 0.031 W
0.05 W
1GN 0201
0.1 W
2GE 0402
0.1 W
3GE 0603
6GE 0805 0.125 W
0.25 W
8GE 1206
0.5 W
14 1210
0.75 W
12 1812
0.75 W
12Z 2010
1W
1T 2512
Code
Y
½
Nil
Marking
Marking
Value Marking on
black side
No marking
Resistance Tolerance
Code
J
0
Tolerance
±5 %
Jumper
Code
Y
U
C
X
Y
Packaging Methods
Packaging
Pressed Carrier Taping
W8P2, 20,000 pcs.
Embossed Carrier Taping
W4P1, 40,000 pcs.
Part No.
ERJXGN
Resistance Value
The first two digits are significant figures of resistance and
the third one denotes number of zeros following.
Decimal Point is expressed by R as 4.7 = 4R7.
Jumper is expressed by R00.
Pressed Carrier Taping
2 mm pitch, 15,000 pcs. ERJ1GN
Punched Carrier Taping
2 mm pitch, 10,000 pcs.
Punched Carrier Taping
2 mm pitch, 20,000 pcs.
Punched Carrier Taping
4 mm pitch, 5,000 pcs.
ERJ2GE
V
½
Series XGN, 1GN and 2GE do not have value markings on the black side.
Please omit the letter "Y" from the part number for these series of parts.
The other part number factors will move up respectively.
U
ERJ3GE
ERJ6GE
ERJ8GE
ERJ14
Embossed Carrier Taping
ERJ12
4 mm pitch, 5,000 pcs.
ERJ12Z
Embossed Carrier Taping
ERJ1T
4 mm pitch, 4,000 pcs.
Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use.
Should a safety concern arise regarding this product, please be sure to contact us immediately.
08 Feb. 2019

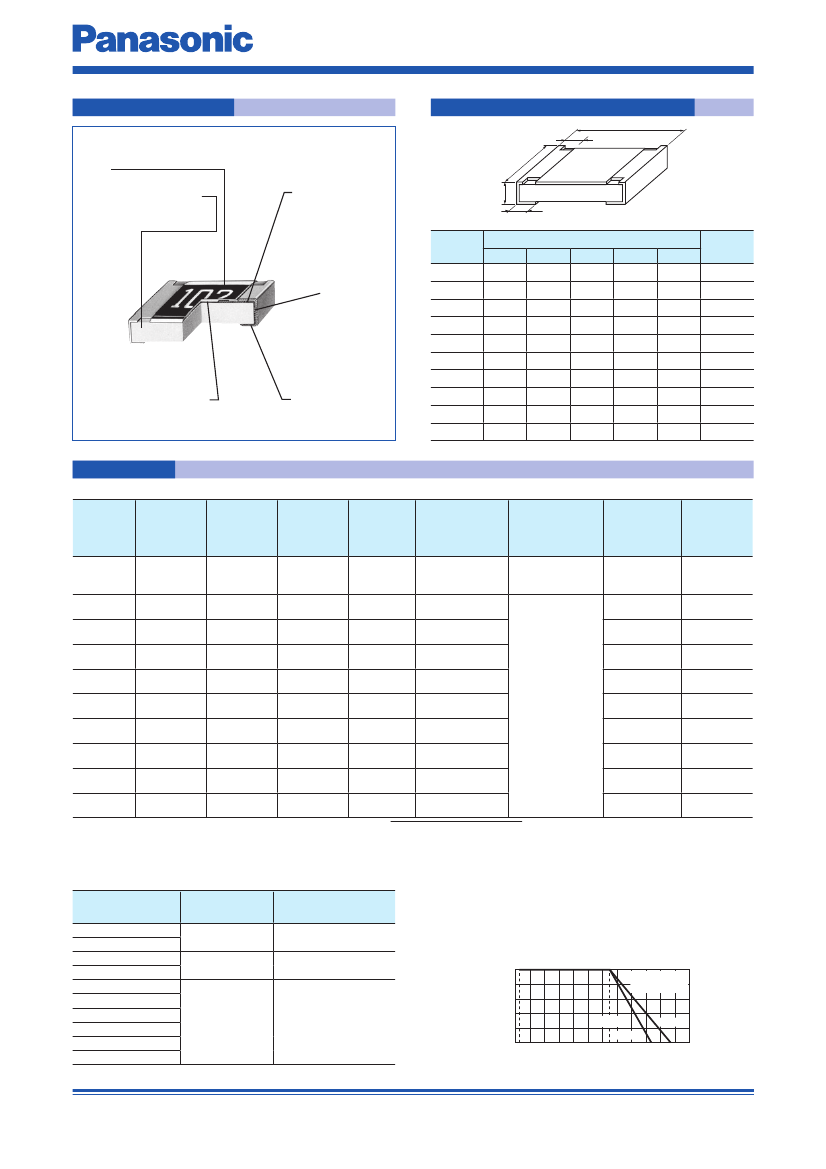

Thick Film Chip Resistors
Construction
Dimensions in mm (not to scale)
L
a
Protective coating
Alumina substrate
Electrode (Inner)
t
b
Part No.
ERJXG
Electrode
(Between)
ERJ1G
ERJ2G
ERJ3G
ERJ6G
ERJ8G
ERJ14
Thick film
resistive element
Electrode (Outer)
ERJ12
ERJ12Z
ERJ1T
Dimensions (mm)
L
0.40
±0.02
0.60
±0.03
1.00
±0.05
W
W
0.20
±0.02
0.30
±0.03
0.50
±0.05
a
0.10
±0.03
0.10
±0.05
0.20
±0.10
b
0.10
±0.03
0.15
±0.05
0.25
±0.05
t
0.13
±0.02
0.23
±0.03
0.35
±0.05
Mass (Weight)
(g/1000 pcs.)
0.04
0.15
0.8
2
4
10
16
27
27
45
1.60
±0.15
2.00
3.20
3.20
4.50
±0.20
+0.05
–0.20
±0.20
±0.20
0.80
+0.15
0.30
±0.20
–0.05
1.25
1.60
2.50
3.20
±0.10
+0.05
–0.15
±0.20
±0.20
0.30
±0.15
0.40
0.50
0.50
0.50
±0.20
±0.20
±0.20
±0.20
0.45
±0.10
0.60
0.60
0.60
0.60
±0.10
±0.10
±0.10
±0.10
0.40
0.50
0.50
0.50
±0.20
±0.20
±0.20
±0.20
5.00
±0.20
6.40
±0.20
2.50
±0.20
3.20
±0.20
0.60
±0.20
0.65
±0.20
0.60
±0.20
0.60
±0.20
0.60
±0.10
0.60
±0.10
Ratings
[For Resistor]
Power Rating
(3)
Limiting Element Maximum Overload Resistance
Part No.
Voltage
(1)
Voltage
(2)
at 70 °C
Tolerance
(inch size)
(W)
(V)
(V)
(%)
ERJXG
(01005)
(0201)
Resistance
Range
(Ω)
T.C.R.
(×10
–6
/°C)
Category
AEC-Q200
Temperature Range
Grade
(°C)
–
Grade 1
Grade 0
Grade 0
Grade 0
Grade 0
Grade 0
Grade 0
Grade 0
Grade 0
0.031
0.05
0.1
0.1
0.125
0.25
0.5
0.75
0.75
1
15
25
50
75
150
200
200
200
200
200
30
50
100
150
200
400
400
500
500
500
±5
±5
±5
±5
±5
±5
±5
±5
±5
±5
ERJ1G
ERJ2G
(0402)
(0603)
(0805)
(1206)
(1210)
<10
Ω
: –100 to +600
1 to 1 M (E24) 10
Ω
to 100
Ω
: ±300 –55 to +125
100
Ω
≤ : ±200
1 to 10 M (E24)
1 to 10 M (E24)
<10
Ω:
1 to 10 M (E24) –100 to +600
1 to 10 M (E24)
10
Ω
to 1 MΩ:
1 to 10 M (E24) ±200
1 to 10 M (E24)
1 to 10 M (E24) 1 MΩ<:
–400 to +150
1 to 10 M (E24)
1 to 1 M (E24)
–55 to +125
–55 to +155
–55 to +155
–55 to +155
–55 to +155
–55 to +155
–55 to +155
–55 to +155
–55 to +155
ERJ3G
ERJ6G
ERJ8G
ERJ14
ERJ12
(1812)
(2010)
ERJ12Z
ERJ1T
(2512)
(1) Rated Continuous Working Voltage (RCWV) shall be determined from RCWV=
√
Power Rating
×
Resistance Values, or Limiting Element Voltage listed above, whichever less.
(2) Overload Test Voltage (OTV) shall be determined from OTV=Specified Magnification (refer to performance)
×
RCWV or Maximum Overload Voltage listed above, whichever less.
(3) Use it on the condition that the case temperature is below the upper category temperature.
[For Jumper]
Part No.
Rated Current Maximum Overload Current
(1)
(inch size)
(A)
(A)
ERJXG (01005)
0.5
1
ERJ1G (0201)
ERJ2G (0402)
1
2
ERJ3G (0603)
ERJ6G (0805)
ERJ8G (1206)
ERJ14 (1210)
2
4
ERJ12 (1812)
ERJ12Z (2010)
ERJ1T (2512)
(1) Overload test current
Power Derating Curve
For resistors operated in ambient temperatures above
70 °C, power rating shall be derated in accordance
with the figure below.
–55 °C
100
80
70 °C
2G, 3G, 6G, 8G,
14, 12, 12Z, 1T
Rated Load (%)
60
40
XG, 1G
155 °C
20
125 °C
0
–60 –40 –20 0 20 40 60 80 100 120 140 160 180
Ambient Temperature (°C)
Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use.
Should a safety concern arise regarding this product, please be sure to contact us immediately.
08 Feb. 2019
Thick Film Chip Resistors
Perfomance
Test Item
Resistance
T. C. R.
Overload
Resistance to Soldering Heat
Rapid Change of
Temperature
High Temperature
Exposure
Damp Heat, Steady State
Load Life in Humidity
Endurance at 70 °C
Performance Requirements
Resistor type
Jumper type
Within Specified
50 mΩ or less
Tolerance
Within Specified
50 mΩ or less
T. C. R.
±2 %
±1 %
±1 %
±1 %
±1 %
±3 %
±3 %
50 mΩ or less
50 mΩ or less
50 mΩ or less
50 mΩ or less
50 mΩ or less
50 mΩ or less
50 mΩ or less
Test Conditions
20 °C
+25 °C/+155 °C (ERJXG, ERJ1G : +25 °C/+125 °C)
Rated Voltage
×
2.5, 5 s
Jumper type : Max. Overload Current, 5 s
270 °C, 10 s
–55 °C (30min.) / +155 °C (ERJXG, ERJ1G : +125 °C) (30min.),
100 cycles
+155 °C (ERJXG, ERJ1G : +125 °C) , 1000 h
60 °C, 90 % to 95 %RH, 1000 h
60 °C, 90 % to 95 %RH, Rated Voltage (Jumper type: Rated Current),
1.5 h ON/0.5 h OFF cycle, 1000 h
70 °C, Rated Voltage(Jumper type: Rated Current),
1.5 h ON/0.5 h OFF cycle, 1000 h
Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use.
Should a safety concern arise regarding this product, please be sure to contact us immediately.
08 Feb. 2019
Surface Mount Resistors Safety precautions
Safety Precautions (Common precautions for Surface Mount Resistors)
The following are precautions for individual products. Please also refer to the common precautions for Fixed Resistors
in this catalog.
1. Take measures against mechanical stress during and after mounting of Surface Mount Resistors (hereafter called the
resistors) so as not to damage their electrodes and protective coatings.
Be careful not to misplace the resistors on the land patterns. Otherwise, solder bridging may occur.
2. Keep the rated power and ambient temperature within the specified derating curve.
Some circuit boards, wiring patterns, temperatures of heat generated by adjacent components, or ambient
temperatures can become factors in the rise of the temperature of the resistors, regardless of the level of power
applied. Therefore, check the conditions before use and optimize them so as not to damage the boards and peripheral
components.
Make sure to contact us before using the resistors under special conditions.
3. If a transient load (heavy load in a short time) like a pulse is expected to be applied, check and evaluate the
operations of the resistors when installed in your products before use.
Never exceed the rated power. Otherwise, the performance and/or reliability of the resistors may be impaired.
4. Before using halogen-based or other high-activity flux, check the possible effects of the flux residues on the
performance and reliability of the resistors.
5. When soldering with a soldering iron, never touch the resistors'bodies with the tip of the soldering iron. When using a
soldering iron with a high temperature tip, finish soldering as quickly as possible (within three seconds at 350 °C max.).
6. As the amount of applied solder becomes larger, the mechanical stress applied to the resistors increases, causing
problems such as cracks and faulty characteristics. Avoid applying an excessive amounts of solder.
7. When the resistors' protective coatings are chipped, flawed, or removed, the characteristics of the resistors may be
impaired. Take special care not to apply mechanical shock during automatic mounting or cause damage during
handling of the boards with the resistors mounted.
8. Do not apply shock to the resistors or pinch them with a hard tool (e.g. pliers and tweezers). Otherwise, the resistors'
protective coatings and bodies may be chipped, affecting their performance.
9. Avoid excessive bending of printed circuit boards in order to protect the resistors from abnormal stress.
10. Do not immerse the resistors in solvent for a long time. Before using solvent, carefully check the effects of immersion.
11. Transient voltage
If there is a possibility that the transient phenomenon (significantly high voltage applied in a short time) may
occur or that a high voltage pulse may be applied, make sure to evaluate and check the characteristics of
Fixed Metal (Oxide) Film Resistors mounted on your product rather than only depending on the calculated
power limit or steady-state conditions to complete the design or decide to use the resistors.
12. Do not apply excessive tension to the terminals.
Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use.
Should a safety concern arise regarding this product, please be sure to contact us immediately.
02 Sep. 2014
Safety Precautions (Common precautions for Fixed Resistors)
• When using our products, no matter what sort of equipment they might be used for, be sure to make a written
agreement on the specifications with us in advance. The design and specifications in this catalog are subject
to change without prior notice.
• Do not use the products beyond the specifications described in this catalog.
• This catalog explains the quality and performance of the products as individual components. Before use, check
and evaluate their operations when installed in your products.
• Install the following systems for a failsafe design to ensure safety if these products are to be used in equipment
where a defect in these products may cause the loss of human life or other significant damage, such as damage to
vehicles (automobile, train, vessel), traffic lights, medical equipment, aerospace equipment, electric heating
appliances, combustion/gas equipment, rotating equipment, and disaster/crime prevention equipment.
½
Systems equipped with a protection circuit and a protection device
½
Systems equipped with a redundant circuit or other system to prevent an unsafe status in the event of a single fault
(1) Precautions for use
• These products are designed and manufactured for general and standard use in general electronic equipment
(e.g. AV equipment, home electric appliances, office equipment, information and communication equipment)
• These products are not intended for use in the following special conditions. Before using the products,
carefully check the effects on their quality and performance, and determine whether or not they can be used.
1. In liquid, such as water, oil, chemicals, or organic solvent
2. In direct sunlight, outdoors, or in dust
3. In salty air or air with a high concentration of corrosive gas, such as Cl
2
, H
2
S, NH
3
, SO
2
, or NO
2
4. Electric Static Discharge (ESD) Environment
These components are sensitive to static electricity and can be damaged under static shock (ESD).
Please take measures to avoid any of these environments.
Smaller components are more sensitive to ESD environment.
5. Electromagnetic Environment
Avoid any environment where strong electromagnetic waves exist.
6. In an environment where these products cause dew condensation
7. Sealing or coating of these products or a printed circuit board on which these products are mounted, with
resin or other materials
• These products generate Joule heat when energized. Carefully position these products so that their heat will
not affect the other components.
• Carefully position these products so that their temperatures will not exceed the category temperature range due
to the effects of neighboring heat-generating components. Do not mount or place heat-generating components
or inflammables, such as vinyl-coated wires, near these products.
• Note that non-cleaning solder, halogen-based highly active flux, or water-soluble flux may deteriorate the
performance or reliability of the products.
• Carefully select a flux cleaning agent for use after soldering. An unsuitable agent may deteriorate the performance
or reliability. In particular, when using water or a water-soluble cleaning agent, be careful not to leave water
residues. Otherwise, the insulation performance may be deteriorated.
(2) Precautions for storage
The performance of these products, including the solderability, is guaranteed for a year from the date of arrival
at your company, provided that they remain packed as they were when delivered and stored at a temperature
of 5 °C to 35 °C and a relative humidity of 45 % to 85 %.
Even within the above guarantee periods, do not store these products in the following conditions. Otherwise,
their electrical performance and/or solderability may be deteriorated, and the packaging materials (e.g. taping
materials) may be deformed or deteriorated, resulting in mounting failures.
1. In salty air or in air with a high concentration of corrosive gas, such as Cl
2
, H
2
S, NH
3
, SO
2
, or NO
2
2. In direct sunlight
<Package markings>
Package markings include the product number, quantity, and country of origin.
In principle, the country of origin should be indicated in English.
01 Sep. 2014
京公网安备 11010802033920号
EEWORLD
