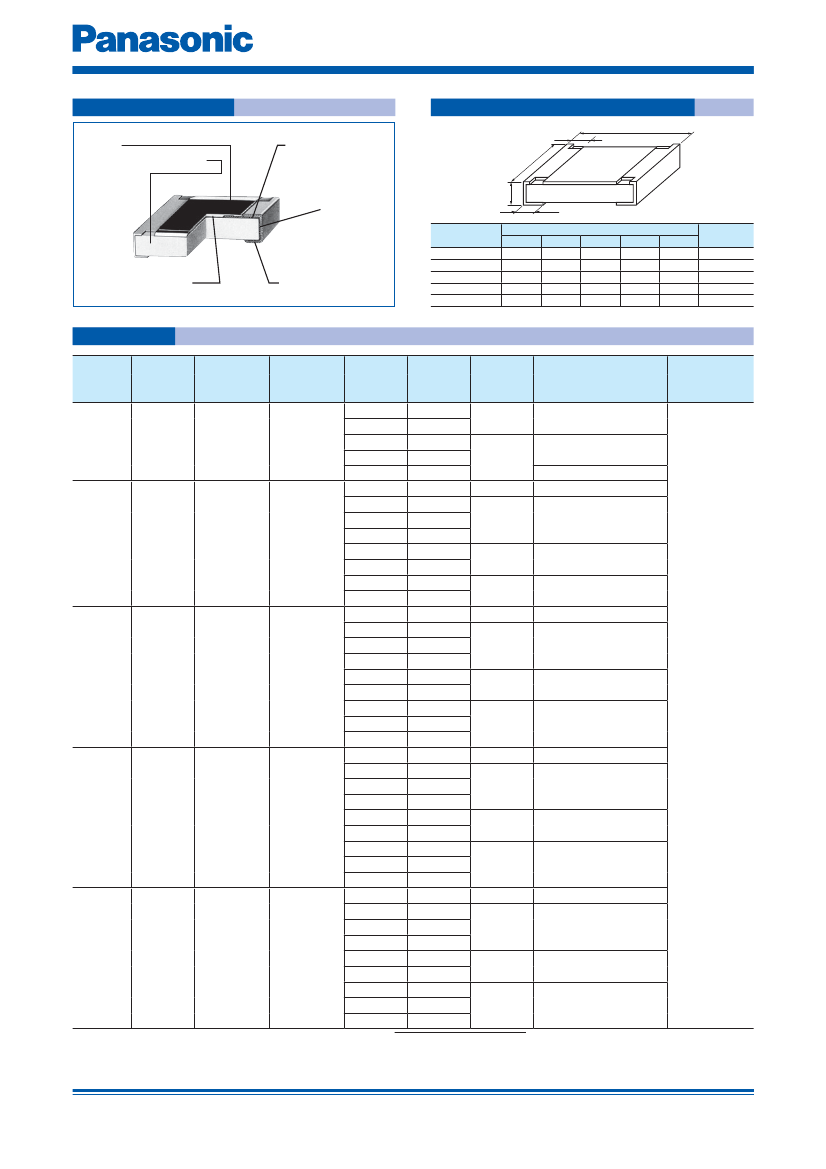

Metal Film (Thin Film) Chip Resistors, High Reliability Type

Metal Film (Thin Film) Chip Resistors,

High Reliability Type

Type:

ERA 1A, 2A, 3A, 6A, 8A

Features

reliability ................ Stable at high temperature and humidity

(85 °C 85 %RH rated load, Category temperature range : –55 °C to +155 °C)

●

High accuracy ............... Small resistance tolerance and Temperature Coefﬁcient of Resistance

●

High performance ......... Low current noise, excellent linearity

●

Reference Standard ...... IEC 60115-8, JIS C 5201-8, EIAJ RC-2133B

●

AEC-Q200 qualiﬁed

●

RoHS compliant

●

High

■

As for Packaging Methods, Land Pattern, Soldering Conditions and Safety Precautions,

Please see Data Files

Explanation of Part Numbers

●

E24

Series

Product Code

Metal Film

Chip Resistors

Size, Power Rating

Code Inch Power Rating

0.05 W

0201

0.063 W

0402

0.1 W

0603

0.125 W

0805

0.25 W

1206

Temperature Coefﬁcient

T.C.R.

Code

±10×10

–6

/°C

±15×10

–6

/°C

±25×10

–6

/°C

±50×10

–6

/°C

±100×10

–6

/°C

Resistance Tolerance

Code

Tolerance

±0.05 %

±0.1 %

±0.25 %

±0.5 %

Packaging Methods

Code

Packaging

Pressed Carrier Taping

2 mm pitch, 15000 pcs.

Punched Carrier Taping

2 mm pitch, 10000 pcs.

Punched CarrierTaping

4 mm pitch, 5000 pcs.

Part No.

ERA1A

ERA2A

ERA3A

ERA6A

ERA8A

Resistance Value

Consist of three ﬁgures for E24 series resistance value.

The ﬁrst two digits are signiﬁcant ﬁgures of resistance

and the third one denotes number of zeros following.

(example) 102 : 1k

●

E96

Series and other Resistance values

Product Code

Metal Film

Chip Resistors

Size, Power Rating

Code Inch Power Rating

0.05 W

0201

0.063 W

0402

0.1 W

0603

0.125 W

0805

0.25 W

1206

Temperature Coefﬁcient

T.C.R.

Code

±10×10

–6

/°C

±15×10

–6

/°C

±25×10

–6

/°C

±50×10

–6

/°C

±100×10

–6

/°C

Resistance Tolerance

Code

Tolerance

±0.05 %

±0.1 %

±0.25 %

±0.5 %

Packaging Methods

Code

Packaging

Pressed Carrier Taping

2 mm pitch, 15000 pcs.

Punched Carrier Taping

2 mm pitch, 10000 pcs.

Punched CarrierTaping

4 mm pitch, 5000 pcs.

Part No.

ERA1A

ERA2A

ERA3A

ERA6A

ERA8A

Resistance Value

Consist of four ﬁgures for E96 series resistance value.

The ﬁrst three digits are signiﬁcant ﬁgures of resistance

and the fourth one denotes number of zeros following.

(example) 1051 : 1.05k

note : Duplicated resistance values as E24 series part

numbers shall follow E24 part numbers.

(apply three digit resistance value)

Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use.

Should a safety concern arise regarding this product, please be sure to contact us immediately.

10 Feb. 2016
