EEFCX0D471R datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> capacitor> EEFCX0D471R

EEFCX0D471R: DescriptionCapacitance: 470uF Accuracy: ±20% Rated voltage: 2V; CategoryPassive components capacitor; File Size377KB，4 Pages; ManufacturerPanasonic; Websitehttp://www.panasonic.co.jp/semicon/e-index.html; Environmental Compliance

Download Datasheet Parametric View All

EEFCX0D471R Overview

Capacitance: 470uF Accuracy: ±20% Rated voltage: 2V

EEFCX0D471R Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	CHIP, ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
capacitance	470 µF
Capacitor type	ALUMINUM ELECTROLYTIC CAPACITOR
dielectric materials	ALUMINUM (SOLID POLYMER)
ESR	15 mΩ
high	1.9 mm
JESD-609 code	e3
leakage current	0.094 mA
length	7.3 mm
Installation features	SURFACE MOUNT
negative tolerance	20%
Number of terminals	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Package shape	RECTANGULAR PACKAGE
Package form	SMT
method of packing	BULK
polarity	POLARIZED
positive tolerance	20%
Rated (DC) voltage (URdc)	2 V
ripple current	2700 mA
size code	2917
surface mount	YES
Delta tangent	0.06
Terminal surface	Tin (Sn)
Terminal shape	WRAPAROUND
width	4.3 mm
Base Number Matches	1

Preview

Download Datasheet

View All

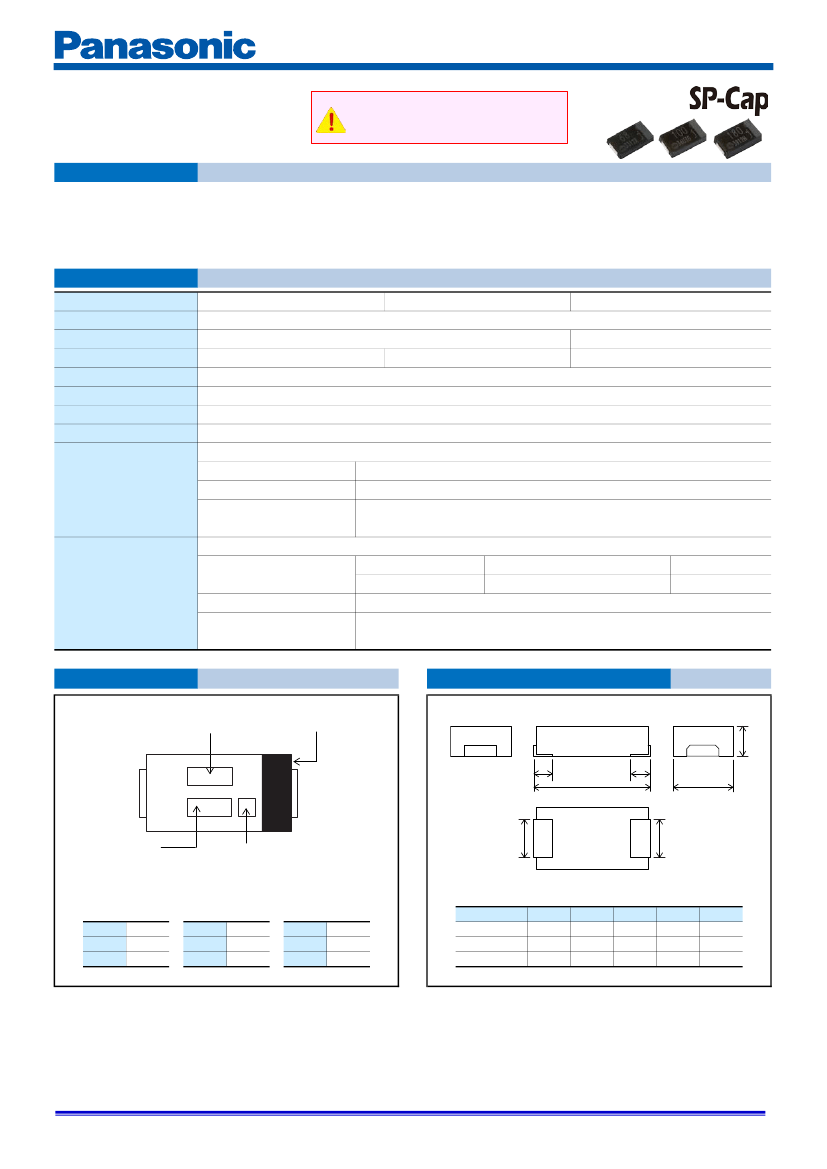

Conductive Polymer Aluminum Electrolytic Capacitors

Surface Mount Type

CS,CT,CX

Series

Features

●

High voltage (35 V.DC max.)

Low profile (Height 1.0 mm max.)

High ripple current (5600 mA r.m.s. max.)

RoHS compliance, Halogen free

CS, CT and CX series part numbers rated

10 V.DC or above are Not Recommended

For New Design.

Specifications

Series

Category temp. range

Rated voltage range

Nominal cap. range

Capacitance tolerance

DC leakage current

Dissipation factor (tan δ)

4.0 V.DC to 35 V.DC

10 μF to 120 μF

–55 ℃ to +105 ℃

2.0 V.DC to 35 V.DC

15 μF to 560 μF

15 μF to 180 μF

±20 % (120 Hz / +20 ℃)

I ≦ 0.1 CV(μA) [2.0 V.DC to 6.3 V.DC, 2 min], I ≦ 0.3 CV(μA) [10 V.DC to 35 V.DC, 2 min]

≦ 0.06 (120 Hz / + 20 ℃)

Rated voltage × 1.25 [2.0 V.DC to 16 V.DC], × 1.15 [20 V.DC to 35 V.DC]　 (15 ℃ to 35 ℃)

+105 ℃ ± 2 ℃, 2000 h, rated voltage applied

Capacitance change

Within ±20 % of the initial value

≦ 3 times of the initial limit : 2.0 V.DC to 6.3 V.DC

Within the initial limit : 10 V.DC to 35 V.DC

Surge voltage (V.DC)

Endurance

Dissipation factor（tan δ) ≦ 2 times of the initial limit

DC leakage current

+60 ℃, 90 %, 500 h, No-applied voltage

Damp heat

(Steady state)

2.0 V.DC to 2.5 V.DC 4.0 V.DC, 10 V.DC to 35 V.DC

6.3 V.DC

Capacitance change

of initial measurd value

+70 %, –20 %

+60 %, –20 %

+50 %, –20 %

Dissipation factor（tan δ) ≦ 2 times of the initial limit

DC leakage current

Within the initial limit : 2.0 V.DC to 6.3 V.DC

≦ 3 times of the initial limit : 10 V.DC to 35 V.DC

Marking

Capacitance（μF）

Dimensions (not to scale)

Polarity bar (Positive)

⊖

⊕

Lot No.

R. voltage code

Unit：½½

R. voltage code

2.0

2.5

4.0

6.3

Unit：V.DC

Series

±0.2

±0.1

7.3

4.3

2.4

1.1

1.4

1.9

±0.3

1.3

½ Externals of figure are the reference.

Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use.

Should a safety concern arise regarding this product, please be sure to contact us immediately.

03-Jun-19
