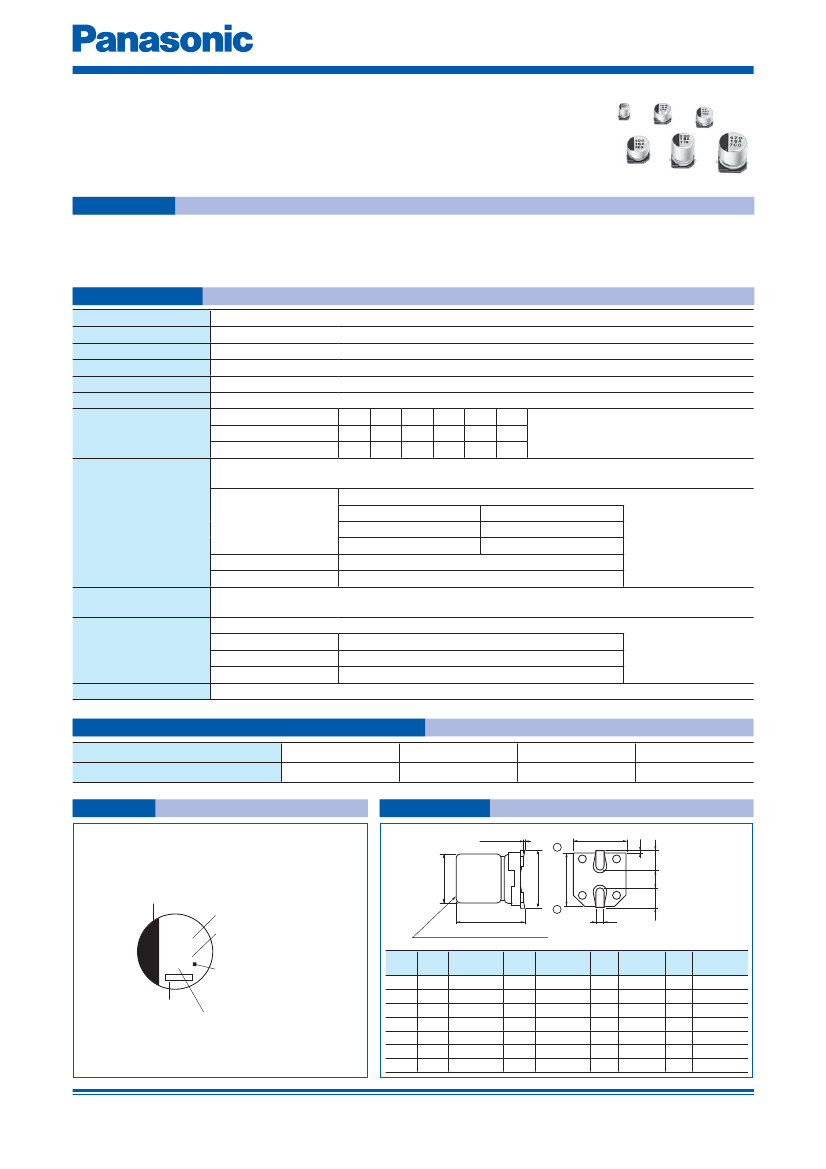

Aluminum Electrolytic Capacitors (SMD Type)
Surface Mount Type
Series :
S
Type :
V
High temperature Lead-Free reflow (suffix : A½)
Features
●
Endurance
: 85 °C 2000 h
●
Vibration-proof product is available upon request. (08 mm and larger)
●
RoHS compliant
Specifications
Category temperature range
Rated voltage range
Capacitance range
Capacitance tolerance
Leakage current
Dissipation factor (tan
d)
Characteristics
at low temperature
–40 °C to +85 °C
6.3 V.DC to 50 V.DC
1 µF to 1500 µF
±20 % (120 Hz/+20 °C)
I
<
0.01 CV or 3 (µA) After 2 minutes (Whichever is greater)
Please see the attached characteristics list
V.DC
6.3 10 16 25 35 50
Z(–25 °C)/Z(+20 °C)
4
3
2
2
2
2
(Impedance ratio at 120 Hz)
Z(–40 °C)/Z(+20 °C)
8
6
4
4
3
3
After applying rated working voltage for 2000 hours (Miniaturization product type 1000 hours)
at +85 °C±2 °C and then being stabilized at +20 °C, Capacitors shall meer the following limits.
Within ±20 % of the initial value
Size code
Cap. change
Capacitance change
D8 (06.3×7.7)
2000 hours ±25 %
1000 hours ±30 %
<
D (06.3) Miniature
<
200 % of the initial limit
tan
d
DC leakege current
Within the initial limit
After storage for 1000 hours at +85 °C±2 °C with no voltage applied and then being stabilized
at +20 °C, capacitors shall meet the limits specified in Endurance. (With voltage treatment)
After reflow soldering and then being stabilized at +20 °C, capacitors shall meet the following limits.
Capacitance change Within ±10 % of the initial value
tan
d
Within the initial limit
DC leakage current
Within the initial limit
AEC-Q200 compliant
Endurance
Shelf life
Resistance to
soldering heat
AEC-Q200
Frequency correction factor for ripple current
Frequency (Hz)
Correction factor
50, 60
0.70
120
1.00
1k
1.30
10 k to
1.70
Marking
Example : 6.3 V.DC 22 µF
Marking color : BLACK
Dimensions
–
B±0.2
H
K
(I)
( ) Reference size
(Unit : mm)
0.3 max.
0D±0.5
A±0.2
Negative polarity marking (–)
Capacitance (µF)
L
Pressure Relief (010 and larger)
W
22
6S
Lot number
Series indentification
(S) or (A)
Mark for Lead-Free
products
(Black dot)
Rated voltage (V.DC)
(6=6.3 V.DC)
Size
code
0D
B
4.0
C
5.0
D
6.3
D8
6.3
E
8.0
F
8.0
G 10.0
L
A, B
H.
I
1.8
2.2
2.6
2.6
3.4
3.4
3.5
W
0.65±0.1
0.65±0.1
0.65±0.1
0.65±0.1
0.65±0.1
0.90±0.2
0.90±0.2
(I)
+
(P)
P
1.0
1.5
1.8
1.8
2.2
3.1
4.6
K
0.35
+0.15
-0.20
+0.15
0.35
-0.20
0.35
+0.15
-0.20
0.35
+0.15
-0.20
0.35
+0.15
-0.20
0.70±0.20
0.70±0.20
4.3 5.5 max
5.4
+0.1
-0.2
+0.1
5.4
-0.2
5.3 6.5 max
5.4
+0.1
6.6 7.8 max
-0.2
7.7±0.3 6.6 7.8 max
6.2±0.3 8.3 9.5 max
10.2±0.3 8.3 10.0 max
10.2±0.3 10.3 12.0 max
Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use.
Should a safety concern arise regarding this product, please be sure to contact us immediately.
05
Mar. 2016
Aluminum Electrolytic Capacitors (SMD Type)
Characteristics list
Case size (mm)
Rated
Cap.
voltage (±20 %)
(V.DC) (µF)
22
33
47
100
6.3
330
470
1000
1500
22
33
47
100
10
220
330
470
1000
10
22
33
47
16
100
220
330
470
4.7
10
22
33
25
47
100
220
330
470
0D
4
4
5
5
6.3
6.3
8
8
10
10
4
4
5
5
5
6.3
6.3
8
8
8
10
10
4
4
5
5
5
6.3
6.3
8
6.3
8
8
10
8
10
4
4
5
5
6.3
5
6.3
6.3
8
6.3
8
8
10
8
10
10
L
5.4
5.4
5.4
5.4
5.4
7.7
6.2
10.2
10.2
10.2
5.4
5.4
5.4
5.4
5.4
5.4
7.7
6.2
10.2
10.2
10.2
10.2
5.4
5.4
5.4
5.4
5.4
5.4
5.4
6.2
7.7
10.2
10.2
10.2
10.2
10.2
5.4
5.4
5.4
5.4
5.4
5.4
5.4
5.4
6.2
7.7
10.2
10.2
10.2
10.2
10.2
10.2
Size
code
½
Specification
Ripple
current
tan
d
Endurance
(120 Hz) (120 Hz)
(hours)
(+85 °C) (+20 °C)
(mA r.m.s.)
29
0.30
2000
22
0.35
1000
46
0.30
2000
47
0.40
1000
71
0.30
2000
188
0.30
2000
300
0.35
2000
380
0.35
1000
700
0.35
2000
750
0.50
1000
28
0.30
1000
29
0.30
1000
43
0.22
2000
47
0.30
1000
50
0.30
1000
70
0.26
2000
173
0.22
2000
250
0.26
2000
390
0.26
2000
390
0.26
1000
400
0.26
2000
580
0.35
1000
28
0.16
2000
28
0.26
1000
39
0.16
2000
35
0.26
1000
39
0.26
1000
70
0.16
2000
70
0.26
1000
200
0.20
2000
162
0.20
2000
280
0.20
1000
320
0.20
1000
380
0.20
2000
350
0.26
1000
420
0.20
2000
22
0.14
2000
22
0.20
1000
28
0.14
2000
35
0.20
1000
55
0.14
2000
42
0.20
1000
65
0.14
2000
70
0.20
1000
91
0.16
1000
143
0.16
2000
180
0.16
2000
230
0.20
1000
310
0.16
2000
270
0.20
1000
340
0.16
2000
380
0.25
1000
Part No.
Reflow
Min. Packaging Q'ty
Taping
(pcs)
2000
2000
1000
1000
1000
900
1000
500
500
500
2000
2000
1000
1000
1000
1000
900
1000
500
500
500
500
2000
2000
1000
1000
1000
1000
1000
1000
900
500
500
500
500
500
2000
2000
1000
1000
1000
1000
1000
1000
1000
900
500
500
500
500
500
500
B
(B)
C
(C)
D
D8
E
(F)
G
(G)
(B)
(B)
C
(C)
(C)
D
D8
E
F
(F)
G
(G)
B
(B)
C
(C)
(C)
D
(D)
E
D8
(F)
(F)
G
(F)
G
B
(B)
C
(C)
D
(C)
D
(D)
(E)
D8
F
(F)
G
(F)
G
(G)
EEE0JA220AR
EEE0JA330WAR
EEE0JA470AR
EEE0JA101WAR
EEE0JA101AP
EEE0JA331XAP
EEE0JA331AP
EEE0JA471UAP
EEE0JA102AP
EEE0JA152UAP
EEE1AA220WAR
EEE1AA330WAR
EEE1AA330AR
EEE1AA470WAR
EEE1AA101WAR
EEE1AA101AP
EEE1AA221XAP
EEE1AA221AP
EEE1AA331AP
EEE1AA471UAP
EEE1AA471AP
EEE1AA102UAP
EEE1CA100AR
EEE1CA220WAR
EEE1CA220AR
EEE1CA330WAR
EEE1CA470WAR
EEE1CA470AP
EEE1CA101WAP
EEE1CA101AP
EEE1CA221XAP
EEE1CA221UAP
EEE1CA331UAP
EEE1CA331AP
EEE1CA471UAP
EEE1CA471AP
EEE1EA4R7AR
EEE1EA100WAR
EEE1EA100AR
EEE1EA220WAR
EEE1EA220AP
EEE1EA330WAR
EEE1EA330AP
EEE1EA470WAP
EEE1EA101UAP
EEE1EA101XAP
EEE1EA101AP
EEE1EA221UAP
EEE1EA221AP
EEE1EA331UAP
EEE1EA331AP
EEE1EA471UAP
(5)
(5)
(5)
(5)
(5)
(5)
(7)
(7)
(7)
(7)
(5)
(5)
(5)
(5)
(5)
(5)
(5)
(7)
(7)
(7)
(7)
(7)
(5)
(5)
(5)
(5)
(5)
(5)
(5)
(7)
(5)
(7)
(7)
(7)
(7)
(7)
(5)
(5)
(5)
(5)
(5)
(5)
(5)
(5)
(7)
(5)
(7)
(7)
(7)
(7)
(7)
(7)
½
Size code( ) : Miniaturization product
· Please refer to the page of “Reflow Profile” and “The Taping Dimensions”.
· When requesting vibration-proof product, please put the last “V” instead to “P”
Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use.
Should a safety concern arise regarding this product, please be sure to contact us immediately.
05
Mar. 2016
Aluminum Electrolytic Capacitors (SMD Type)
Characteristics list
Case size (mm)
Rated
Cap.
voltage (±20 %)
(V.DC) (µF)
4.7
10
22
33
35
47
100
220
330
1
2.2
3.3
4.7
10
22
50
33
0D
4
4
5
5
6.3
6.3
8
6.3
8
6.3
8
10
8
10
10
4
4
4
4
5
5
6.3
6.3
8
8
6.3
8
6.3
8
10
8
10
10
L
5.4
5.4
5.4
5.4
5.4
5.4
6.2
5.4
6.2
7.7
10.2
10.2
10.2
10.2
10.2
5.4
5.4
5.4
5.4
5.4
5.4
5.4
5.4
6.2
6.2
7.7
10.2
7.7
10.2
10.2
10.2
10.2
10.2
Size
code
½
Specification
Ripple
current
tan
d
Endurance
(120 Hz) (120 Hz)
(hours)
(+85 °C) (+20 °C)
(mA r.m.s.)
22
0.12
2000
22
0.16
1000
30
0.12
2000
36
0.16
1000
60
0.12
2000
60
0.16
1000
130
0.14
2000
70
0.16
1000
165
0.14
2000
132
0.14
2000
140
0.14
1000
210
0.14
2000
200
0.14
1000
310
0.14
2000
350
0.30
1000
10
0.12
2000
16
0.12
2000
16
0.12
2000
18
0.14
1000
23
0.12
2000
27
0.14
1000
35
0.12
2000
40
0.14
1000
120
0.12
2000
65
0.12
1000
65
0.14
2000
110
0.12
2000
105
0.14
2000
110
0.12
1000
130
0.12
2000
200
0.18
1000
250
0.12
2000
300
0.18
1000
Part No.
Reflow
Min. Packaging Q'ty
Taping
(pcs)
2000
2000
1000
1000
1000
1000
1000
1000
1000
900
500
500
500
500
500
2000
2000
2000
2000
1000
1000
1000
1000
1000
1000
900
500
900
500
500
500
500
500
47
100
220
B
(B)
C
(C)
D
(D)
E
(D)
E
D8
(F)
G
(F)
G
(G)
B
B
B
(B)
C
(C)
D
(D)
E
(E)
D8
F
D8
(F)
G
(F)
G
(G)
EEE1VA4R7AR
EEE1VA100WAR
EEE1VA100AR
EEE1VA220WAR
EEE1VA220AP
EEE1VA330WAP
EEE1VA330AP
EEE1VA470WAP
EEE1VA470AP
EEE1VA101XAP
EEE1VA101UAP
EEE1VA101AP
EEE1VA221UAP
EEE1VA221AP
EEE1VA331UAP
EEE1HA1R0AR
EEE1HA2R2AR
EEE1HA3R3AR
EEE1HA4R7WAR
EEE1HA4R7AR
EEE1HA100WAR
EEE1HA100AP
EEE1HA220WAP
EEE1HA220AP
EEE1HA330UAP
EEE1HA330XAP
EEE1HA330AP
EEE1HA470XAP
EEE1HA470UAP
EEE1HA470AP
EEE1HA101UAP
EEE1HA101AP
EEE1HA221UAP
(5)
(5)
(5)
(5)
(5)
(5)
(7)
(5)
(7)
(5)
(7)
(7)
(7)
(7)
(7)
(5)
(5)
(5)
(5)
(5)
(5)
(5)
(5)
(7)
(7)
(5)
(7)
(5)
(7)
(7)
(7)
(7)
(7)
½
Size code( ) : Miniaturization product
· Please refer to the page of “Reflow Profile” and “The Taping Dimensions”.
· When requesting vibration-proof product, please put the last “V” instead to “P”
Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use.
Should a safety concern arise regarding this product, please be sure to contact us immediately.
05
Mar. 2016
京公网安备 11010802033920号
EEWORLD
