EEEFK1K470P datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> capacitor> EEEFK1K470P

EEEFK1K470P: DescriptionCapacitance: 47uF Accuracy: ±20% Rated voltage: 80V; CategoryPassive components capacitor; File Size80KB，4 Pages; ManufacturerPanasonic; Websitehttp://www.panasonic.co.jp/semicon/e-index.html; Environmental Compliance

Download Datasheet Parametric View All

EEEFK1K470P Overview

Capacitance: 47uF Accuracy: ±20% Rated voltage: 80V

EEEFK1K470P Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Panasonic
package instruction	, 4141
Reach Compliance Code	compliant
ECCN code	EAR99
Factory Lead Time	17 weeks
Samacsys Description	Panasonic 47µF ±20% 700mΩ 80 V dc SMD Cylindrical Aluminium Electrolytic Capacitor
capacitance	47 µF
Capacitor type	ALUMINUM ELECTROLYTIC CAPACITOR
dielectric materials	ALUMINUM (WET)
high	10.2 mm
JESD-609 code	e6
leakage current	0.0376 mA
length	10.3 mm
Installation features	SURFACE MOUNT
negative tolerance	20%
Number of terminals	2
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
Package shape	CYLINDRICAL PACKAGE
Package form	SMT
method of packing	TR, EMBOSSED, 13 INCH
positive tolerance	20%
Rated (DC) voltage (URdc)	80 V
ripple current	200 mA
size code	4141
surface mount	YES
Delta tangent	0.08
Terminal surface	Tin/Bismuth (Sn/Bi)
Terminal shape	FLAT
width	10.3 mm

Preview

Download Datasheet

View All

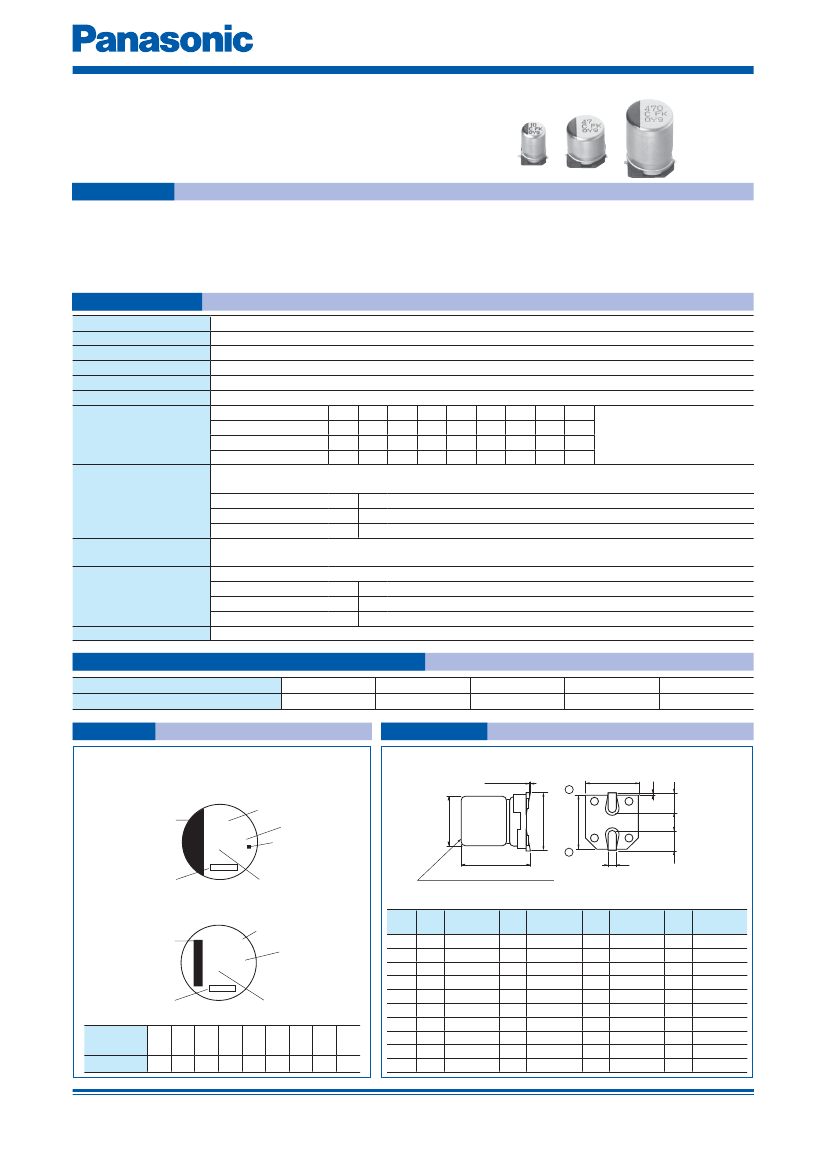

Aluminum Electrolytic Capacitors (SMD Type)

Surface Mount Type

Series :

Type :

Features

●

Endurance : 105 °C 2000 h to 5000 h

●

Low impedance (40 % to 60 % less than

FC series)

Miniaturized (30 % to 50 % less than FC series)

●

Vibration-proof product is available upon request. (08 mm and larger)

●

RoHS compliant

Specifications

Category temperature range

Rated voltage range

Capacitance range

Capacitance tolerance

Leakage current

Dissipation factor (tan

Characteristics

at low temperature

–55 °C to +105 °C

6.3 V.DC to 100 V.DC

3.3 µF to 6800 µF

±20 % (120 Hz/+20 °C)

0.01 CV or 3 (µA) After 2 minutes (Whichever is greater)

Please see the attached characteristics list

V.DC

6.3 10 16 25 35 50 63 80 100

Z(–25 °C)/Z(+20 °C) 2

(Impedance ratio at 120 Hz)

Z(–40 °C)/Z(+20 °C) 3

Z(–55 °C)/Z(+20 °C) 4

After applying rated working voltage for 2000 hours at +105 °C±2 °C and then being stabilized at +20 °C,

Capacitors shall meet the following limits. (

012.5

and sufﬁx “G” in

08×10.2, 010×10.2

are 5000 hours)

Capacitance change

Within ±30 % of the initial value (Sufﬁx “G” is 35 %)

200 % of the initial limit (Sufﬁx “G” is 300 %)

tan

DC leakage current

Within the initial limit

After storage for 1000 hours at +105 °C±2 °C with no voltage applied and then being stabilized

at +20 °C, capacitors shall meet the limits speciﬁed in Endurance (With voltage treatment)

After reﬂow soldering and then being stabilized at +20 °C, capacitors shall meet the following limits.

Capacitance change

Within ±10 % of the initial value

tan

Within the initial limit

DC leakage current

Within the initial limit

AEC-Q200 compliant

Endurance

Shelf life

Resistance to

soldering heat

AEC-Q200

Frequency correction factor for ripple current

Frequency (Hz)

Correction factor

50, 60

0.70

120

0.75

0.90

10 k

0.95

100 k to

1.00

Marking

Example : 6.3 V.DC 22 µF, 6.3 V.DC 3300 µF

Marking color : BLACK

010

Dimensions

0.3 max.

0D±0.5

A±0.2

–

B±0.2

Negative polarity

marking (–)

Lot number

Rated Voltage code

Pressure Relief (010 and larger)

( ) Reference size

(Unit : mm)

012.5

Negative polarity

marking (–)

3300

j FK

Capacitance (µF)

Series identiﬁcation

Lot number

Rated Voltage code

R. Voltage

6.3 10 16 25 35 50 63 80 100

(V.DC)

Code

j A C E V H J K 2A

Size

code

H13

J16

K16

4.0

5.0

6.3

8.0

10.0

12.5

16.0

18.0

5.8±0.3

7.7±0.3

6.2±0.3

10.2±0.3

13.5±0.5

16.5±0.5

A,B

4.3

5.3

6.6

8.3

10.3

13.5

17.0

19.0

5.5

6.5

7.8

9.5

10.0

12.0

15.0

19.0

21.0

max.

1.8

2.2

2.6

3.4

3.5

4.7

5.5

6.7

0.65±0.1

0.90±0.2

0.90±0.3

1.20±0.3

(I)

j FK

Series identiﬁcation

Mark for Lead-Free

products

(Black dot)

(P)

Capacitance (µF)

(I)

1.0

1.5

1.8

2.2

3.1

4.6

4.4

6.7

0.35

-+1.5

0.2

0.35

-+1.5

0.2

+1.5

0.35

- 0.2

0.35

-+1.5

0.2

+1.5

0.35

- 0.2

0.70±0.2

0.70±0.3

Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use.

Should a safety concern arise regarding this product, please be sure to contact us immediately.

Mar. 2016
