EEEHA1V470AP datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> capacitor> EEEHA1V470AP

EEEHA1V470AP: DescriptionCapacitance: 47uF Accuracy: ±20% Rated voltage: 35V; CategoryPassive components capacitor; File Size71KB，3 Pages; ManufacturerPanasonic; Websitehttp://www.panasonic.co.jp/semicon/e-index.html; Environmental Compliance

Download Datasheet Parametric View All

EEEHA1V470AP Overview

Capacitance: 47uF Accuracy: ±20% Rated voltage: 35V

EEEHA1V470AP Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	, 3333
Reach Compliance Code	compliant
ECCN code	EAR99
Is Samacsys	N
capacitance	47 µF
Capacitor type	ALUMINUM ELECTROLYTIC CAPACITOR
dielectric materials	ALUMINUM (WET)
high	10.2 mm
JESD-609 code	e3/e6
leakage current	0.01645 mA
length	10 mm
Installation features	SURFACE MOUNT
negative tolerance	20%
Number of terminals	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Package shape	CYLINDRICAL PACKAGE
Package form	SMT
method of packing	TAPE
polarity	POLARIZED
positive tolerance	20%
Rated (DC) voltage (URdc)	35 V
ripple current	98 mA
size code	3333
surface mount	YES
Delta tangent	0.14
Terminal surface	TIN/TIN BISMUTH
Terminal shape	FLAT
width	8.3 mm
Base Number Matches	1

Preview

Download Datasheet

View All

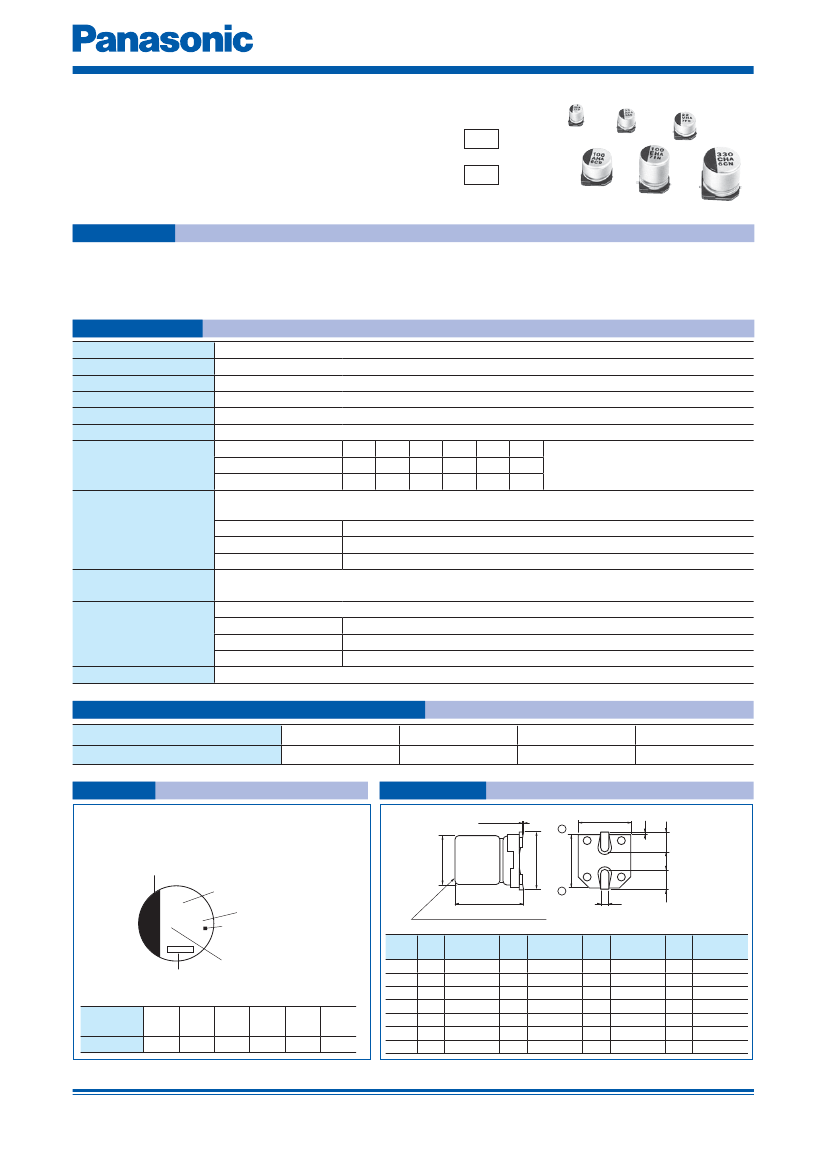

Aluminum Electrolytic Capacitors (SMD Type)

Hight-temperature

Surface Mount Type

assuranceize

Series :

Type :

↑

High temperature

Lead-Free reflow (suffix : A½)

Features

●

Endurance : 105 °C 1000

●

Vibration-proof product is

●

RoHS compliant

available upon request. (08 mm and larger)

Specifications

Category temperature range

Rated voltage range

Capacitance range

Capacitance tolerance

Leakage current

Dissipation factor (tan

Characteristics

at low temperature

–40 °C to +105 °C

6.3 V.DC to 50 V.DC

1 µF to 1500 µF

±20 % (120 Hz/+20 °C)

0.01 CV or 3 (µA) After 2 minutes (Whichever is greater)

Please see the attached characteristics list

V.DC

6.3 10

Z(–25 °C)/Z(+20 °C)

(Impedance ratio at 120 Hz)

Z(–40 °C)/Z(+20 °C)

After applying rated working voltage for 1000 hours at +105 °C±2 °C and then being stabilized at

+20 °C, capacitors shall meet the following limits.

Capacitance change Within ±30 % of the initial value

200 % of the initial limit

tan

DC leakage current Within the initial limit

After storage for 1000 hours at +105 °C±2 °C with no voltage applied and then being stabilized

at +20 °C, capacitors shall meet the limits speciﬁed in Endurance. (With voltage treatment)

After reﬂow soldering and then being stabilized at +20 °C, capacitors shall meet the following limits.

Capacitance change Within ±10 % of the initial value

tan

Within the initial limit

DC leakage current Within the initial limit

AEC-Q200 compliant

Endurance

Shelf life

Resistance to

soldering heat

AEC-Q200

Frequency correction factor for ripple current

Frequency (Hz)

Correction factor

50, 60

0.70

120

1.00

1.30

10 k to

1.70

Marking

Example : 6.3 V.DC 22 µF

Marking color : BLACK

Dimensions

–

B±0.2

(I)

( ) Reference size

(Unit : mm)

(P)

0.3 max.

0D±0.5

A±0.2

Negative polarity

marking (–)

j HA

Lot number

Capacitance (µF)

Series identiﬁcation

Mark for Lead-Free

products

(Black dot)

Rated voltage code

Pressure Relief (010 and larger)

R. Voltage

6.3

(V.DC)

Code

Size

A, B

code

4.0

5.4

+- 0.1

4.3 5.5 max.

0.2

5.0

5.4

+- 0.1

5.3 6.5 max.

0.2

+ 0.1

6.3

5.4

- 0.2

6.6 7.8 max.

6.3 7.7±0.3 6.6 7.8 max.

8.0 6.2±0.3 8.3 9.5 max.

8.0 10.2±0.3 8.3 10.0 max.

G 10.0 10.2±0.3 10.3 12.0 max.

1.8

2.2

2.6

3.4

3.5

0.65±0.1

0.90±0.2

1.0 0.35

+- 0.15

0.20

1.5 0.35

+- 0.15

0.20

1.8 0.35

+- 0.15

0.20

1.8 0.35

+- 0.15

0.20

2.2 0.35

+- 0.15

0.20

3.1 0.70±0.20

4.6 0.70±0.20

Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use.

Should a safety concern arise regarding this product, please be sure to contact us immediately.

Mar. 2016
