EEHZC1H121P datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> Patch type aluminum electrolytic capacitors> EEHZC1H121P

EEHZC1H121P: DescriptionCapacitance: 120uF Accuracy: ±20% Rated voltage: 50V Recommended model of Panasonic power supply solution; CategoryPassive components Patch type aluminum electrolytic capacitors; File Size61KB，2 Pages; ManufacturerPanasonic; Websitehttp://www.panasonic.co.jp/semicon/e-index.html

Download Datasheet Parametric Compare View All

EEHZC1H121P Overview

Capacitance: 120uF Accuracy: ±20% Rated voltage: 50V Recommended model of Panasonic power supply solution

EEHZC1H121P Parametric

Parameter Name	Attribute value
Capacitance	120uF
Accuracy	±20%
Rated voltage	50V
life span	4000Hrs @ 125℃
Appearance size(￠DxL,mm)	10x10.2
Operating temperature	-55℃ ~ +125℃

Preview

Download Datasheet

View All

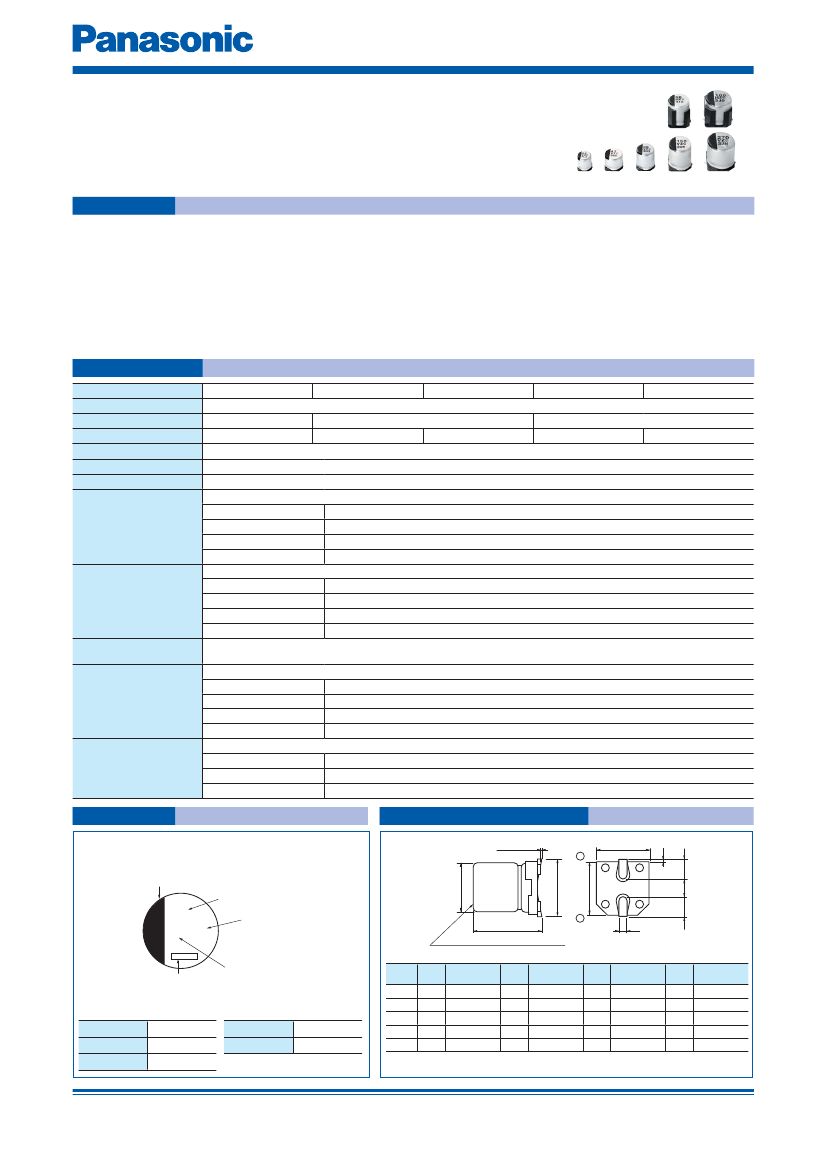

Conductive Polymer Hybrid Aluminum Electrolytic Capacitors

Surface Mount Type

Series :

Type :

High temperature Lead-Free reflow

Features

●

Endurance: 4000 h at 125 °C (High temperature / Long life)

●

Low ESR and high ripple current (85 % over, Lower ESR than current V-TP)

●

High-withstand voltage (25 V.DC to 80 V.DC), Low LC (0.01 CV or 3 μA)

●

Equivalent to conductive polymer type aluminum electrolytic capacitor

(There are little characteristics change by temperature and frequency)

●

Vibration-proof product is available upon request. (08 mm and larger)

●

AEC-Q200 compliant

●

RoHS directive compliant

Specifications

Size code

Category temp. range

–55 °C to +125 °C

Rated voltage range

25 V.DC to 50 V.DC

25 V.DC to 63 V.DC

25 V.DC to 80 V.DC

Nominal cap.range

10 μF to 33 μF

10 μF to 56 μF

22 μF to 100 μF

22 μF to 220 μF

33 μF to 330 μF

Capacitance tolerance

±20 % (120 Hz/+20 °C)

DC leakage current

0.01 CV or 3 (μA) After 2 minutes (whichever is greater)

Dissipation factor (tan

Please see the attached standard products list

125 °C, 4000 h, apply the rated ripple current without exceeding the rated voltage

Capacitance change Within ±30% of the initial value

Endurance 1

tan

200 % of the initial limit

E. S. R.

200 % of the initial limit

DC leakage current Within the initial limit

125 °C, 3000 h, apply the rated ripple current without exceeding the rated voltage

Capacitance change Within ±30% of the initial value

Endurance 2

tan

200 % of the initial limit

E. S. R.

300 % of the initial limit

DC leakage current Within the initial limit

After storage for 1000 hours at +125 °C±2 °C with no voltage applied and then being stabilized at +20 °C,

Shelf life

capacitors shall meet the limits speciﬁed in Endurance. (With voltage treatment)

85 °C, 85 % to 90 %, 2000 h, rated voltage applied

Capacitance change Within ±30% of the initial value

Damp heat (Load)

tan

200 % of the initial limit

E. S. R.

200 % of the initial limit

DC leakage current Within the initial limit

After reﬂow soldering and then being stabilized at +20 °C, capacitors shall meet the following limits.

Capacitance change Within ±10% of the initial value

Resistance to

soldering heat

tan

Within the initial limit

DC leakage current Within the initial limit

Marking

Example : 25 V.DC 33 μF

Marking color : BLACK

Dimensions (not to scale)

–

0D±0.5

B±0.2

(I)

( ) Reference size

(P)

0.3 max.

A±0.2

Negative polarity marking (–)

E ZC

Lot number

Capacitance (μF)

Series identiﬁcation

Pressure relief (010 and larger)

Size

code

(Unit : mm)

Rated voltage mark

25 V.DC

35 V.DC

50 V.DC

63 V.DC

80 V.DC

A, B

5.0 5.8±0.3 5.3

6.3 5.8±0.3 6.6

D8 6.3 7.7±0.3 6.6

8.0 10.2±0.3 8.3

G 10.0 10.2±0.3 10.3

the mounting speciﬁcation.

6.5 max.

7.8 max.

10.0 max.

12.0 max.

2.2

2.6

3.4

3.5

0.65±0.1

0.90±0.2

1.5

1.8

3.1

4.6

0.15

0.35

+ 0.20

0.15

0.35

+ 0.20

+ 0.15

0.35

- 0.20

0.70±0.2

The dimensions of the vibration-proof products, please refer to the page of

Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use.

Should a safety concern arise regarding this product, please be sure to contact us immediately.

05 Nov. 2016

EEHZC1H121P Related Products

	EEHZC1H121P	EEHZC1V271P	EEHZC1E221P	EEHZC1V151P	EEHZC1J560P
Description	Capacitance: 120uF Accuracy: ±20% Rated voltage: 50V Recommended model of Panasonic power supply solution	Capacitance: 270uF Accuracy: ±20% Rated voltage: 35V	Capacitance: 220uF Accuracy: ±20% Rated voltage: 25V	Capacitance: 150uF Accuracy: ±20% Rated voltage: 35V	Capacitance: 56uF Accuracy: ±20% Rated voltage: 63V
Is it Rohs certified?	-	conform to	conform to	-	conform to
Maker	-	Panasonic	Panasonic	-	Panasonic
package instruction	-	, 4141	, 3333	-	, 4141
Reach Compliance Code	-	compliant	compliant	-	compliant
ECCN code	-	EAR99	EAR99	-	EAR99
Factory Lead Time	-	12 weeks	12 weeks	-	12 weeks
Samacsys Description	-	Panasonic 270μF 35 V dc Aluminium Electrolytic Capacitor G, ZC Series 1000 h, 4000 h 10 x 10.2mm	Panasonic 220μF 25 V dc Aluminium Electrolytic Capacitor F, ZC Series 1000 h, 4000 h 8 x 10.2mm	-	Panasonic 56μF 63 V dc Aluminium Electrolytic Capacitor G, ZC Series 1000 h, 4000 h 10 x 10.2mm
capacitance	-	270 µF	220 µF	-	56 µF
Capacitor type	-	ALUMINUM ELECTROLYTIC CAPACITOR	ALUMINUM ELECTROLYTIC CAPACITOR	-	ALUMINUM ELECTROLYTIC CAPACITOR
diameter	-	10 mm	8 mm	-	10 mm
dielectric materials	-	ALUMINUM (SOLID POLYMER)	ALUMINUM (SOLID POLYMER)	-	ALUMINUM (SOLID POLYMER)
ESR	-	20 mΩ	27 mΩ	-	30 mΩ
leakage current	-	0.0945 mA	0.055 mA	-	0.03528 mA
length	-	10.2 mm	10.2 mm	-	10.2 mm
Installation features	-	SURFACE MOUNT	SURFACE MOUNT	-	SURFACE MOUNT
negative tolerance	-	20%	20%	-	20%
Number of terminals	-	2	2	-	2
Maximum operating temperature	-	125 °C	125 °C	-	125 °C
Minimum operating temperature	-	-55 °C	-55 °C	-	-55 °C
Package form	-	SMT	SMT	-	SMT
method of packing	-	TR, 15 INCH	TR, 15 INCH	-	TR, 15 INCH
polarity	-	POLARIZED	POLARIZED	-	POLARIZED
positive tolerance	-	20%	20%	-	20%
Rated (DC) voltage (URdc)	-	35 V	25 V	-	63 V
Guideline	-	AEC-Q200	AEC-Q200	-	AEC-Q200
ripple current	-	300 mA	240 mA	-	210 mA
size code	-	4141	3333	-	4141
surface mount	-	YES	YES	-	YES
Delta tangent	-	.12	.14	-	0.08
Terminal shape	-	FLAT	FLAT	-	FLAT
