32SEQP18M datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> capacitor> 32SEQP18M

32SEQP18M: DescriptionPin spacing (mm): 3.5 Capacitance: 18uF Accuracy: ±20% Rated voltage: 32V ESR series resistance: 50 mΩ @ 100kHz Rated ripple current: 2.5A @ 100kHz; CategoryPassive components capacitor; File Size50KB，2 Pages; ManufacturerPanasonic; Websitehttp://www.panasonic.co.jp/semicon/e-index.html; Environmental Compliance

Download Datasheet Parametric View All

32SEQP18M Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	32SEQP18M	-	-	View	Buy Now

32SEQP18M Overview

Pin spacing (mm): 3.5 Capacitance: 18uF Accuracy: ±20% Rated voltage: 32V ESR series resistance: 50 mΩ @ 100kHz Rated ripple current: 2.5A @ 100kHz

32SEQP18M Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
package instruction	RADIAL LEADED, ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
capacitance	18 µF
Capacitor type	ALUMINUM ELECTROLYTIC CAPACITOR
diameter	8 mm
dielectric materials	ALUMINUM (SOLID POLYMER)
ESR	50 mΩ
leakage current	0.115 mA
length	12 mm
Installation features	THROUGH HOLE MOUNT
negative tolerance	20%
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package shape	CYLINDRICAL PACKAGE
Package form	Radial
method of packing	Bulk
polarity	POLARIZED
positive tolerance	20%
Rated (DC) voltage (URdc)	32 V
ripple current	39.5 mA
surface mount	NO
Delta tangent	0.12
Terminal pitch	3.5 mm
Terminal shape	WIRE
Base Number Matches	1

Preview

Download Datasheet

View All

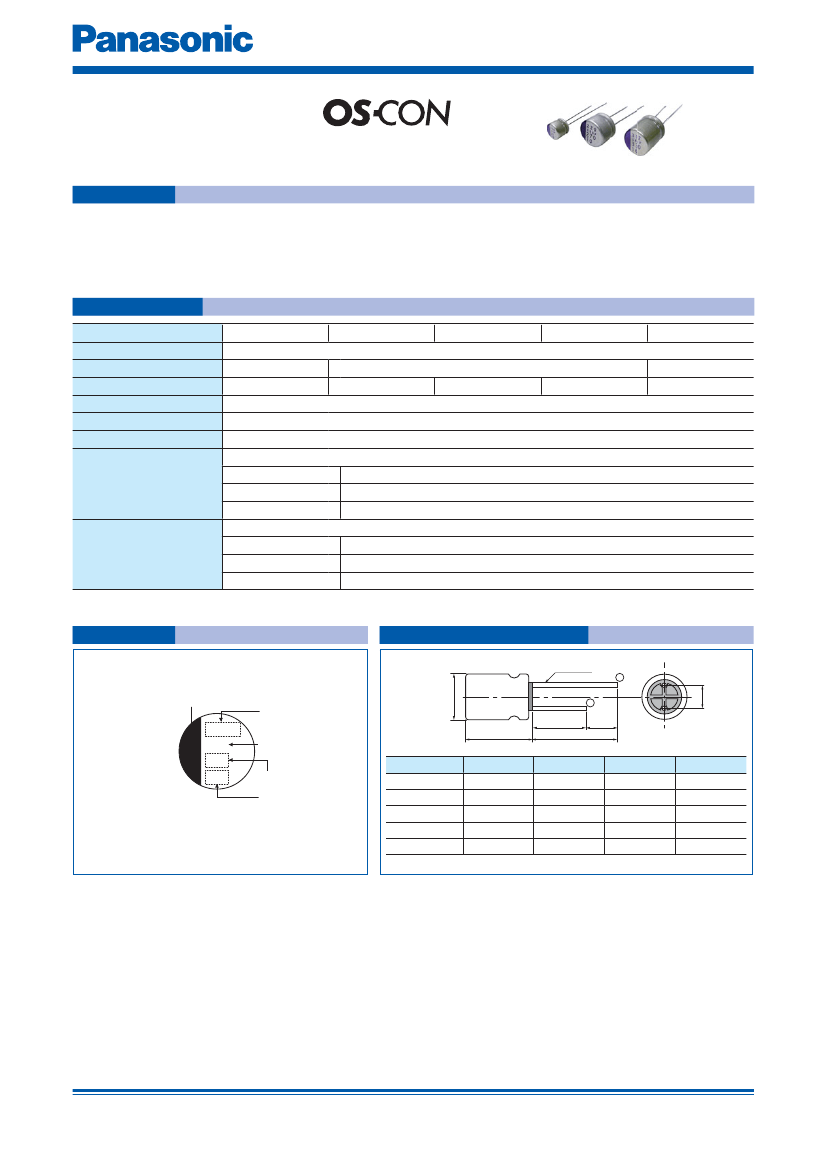

Conductive Polymer Aluminum Solid Capacitors

Radial Lead Type

Series :

SEQP

Features

●

High

voltage (32 V.DC max.)

●

125 °C 1000 h

●

RoHS compliance, Halogen free

Specifications

Size code

E12

F13

Category temperature range

–55 °C to +125 °C

Rated voltage range

4 V.DC to 20 V.DC

4 V.DC to 32 V.DC

4 V.DC to 20 V.DC

Rated capacitance range 22 µF to 150 µF 6.8 µF to 330 µF 15 µF to 680 µF

18 µF to 560 µF 150 µF to 1200 µF

Capacitance tolerance

±20 % (120 Hz / + 20 °C)

Leakage current

Please see the attached characteristics list

Dissipation factor (tan

Please see the attached characteristics list

+125 °C, 1000 h/+105 °C, 5000 h, rated voltage applied

Capacitance change Within ±20 % of the initial value

Endurance

tan

200 % of the initial limit

DC leakage current Within the initial limit

+60 °C, 90 % to 95 %, 1000 h, No-applied voltage

Capacitance change Within ±20 % of the initial value

Damp heat

(Steady State)

tan

150 % of the initial limit

DC leakage current Within the initial limit (after voltage processing)

Marking

Dimensions (not to scale)

Polarity marking (−)

Lot. No.

Series

–

Unit : mm

15 min. 4 min.

19 min.

Size code

R. Capacitance

R. Voltage

E12

F13

fD±0.5

6.3

8.0

10.0

8.0

10.0

L max.

6.0

7.0

8.0

12.0

13.0

F±0.5

2.5

3.5

5.0

3.5

5.0

fd±0.05

0.45

0.50

0.60

Externals of ﬁgure are the reference.

Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use.

Should a safety concern arise regarding this product, please be sure to contact us immediately.

01 Nov. 2015
