EEUFR1V471 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> Linear aluminum electrolytic capacitor> EEUFR1V471

EEUFR1V471: DescriptionCapacitance: 470uF Accuracy: ±20% Rated voltage: 35V Working life: 8000Hrs @ 105℃ Rated ripple current: 1.79A @ 100kHz Appearance size (￠DxL, mm): 10x16; CategoryPassive components Linear aluminum electrolytic capacitor; File Size91KB，5 Pages; ManufacturerPanasonic; Websitehttp://www.panasonic.co.jp/semicon/e-index.html

Download Datasheet Parametric View All

EEUFR1V471 Overview

Capacitance: 470uF Accuracy: ±20% Rated voltage: 35V Working life: 8000Hrs @ 105℃ Rated ripple current: 1.79A @ 100kHz Appearance size (￠DxL, mm): 10x16

EEUFR1V471 Parametric

Parameter Name	Attribute value
type	Lead type
Foot distance (mm)	5
Capacitance	470uF
Accuracy	±20%
Rated voltage	35V
ESR series resistor	28mΩ @ 100kHz
life span	8000Hrs @ 105℃
Rated ripple current	1.79A @ 100kHz
Appearance size(￠DxL,mm)	10x16
Operating temperature	-40℃ ~ +105℃

Preview

Download Datasheet

View All

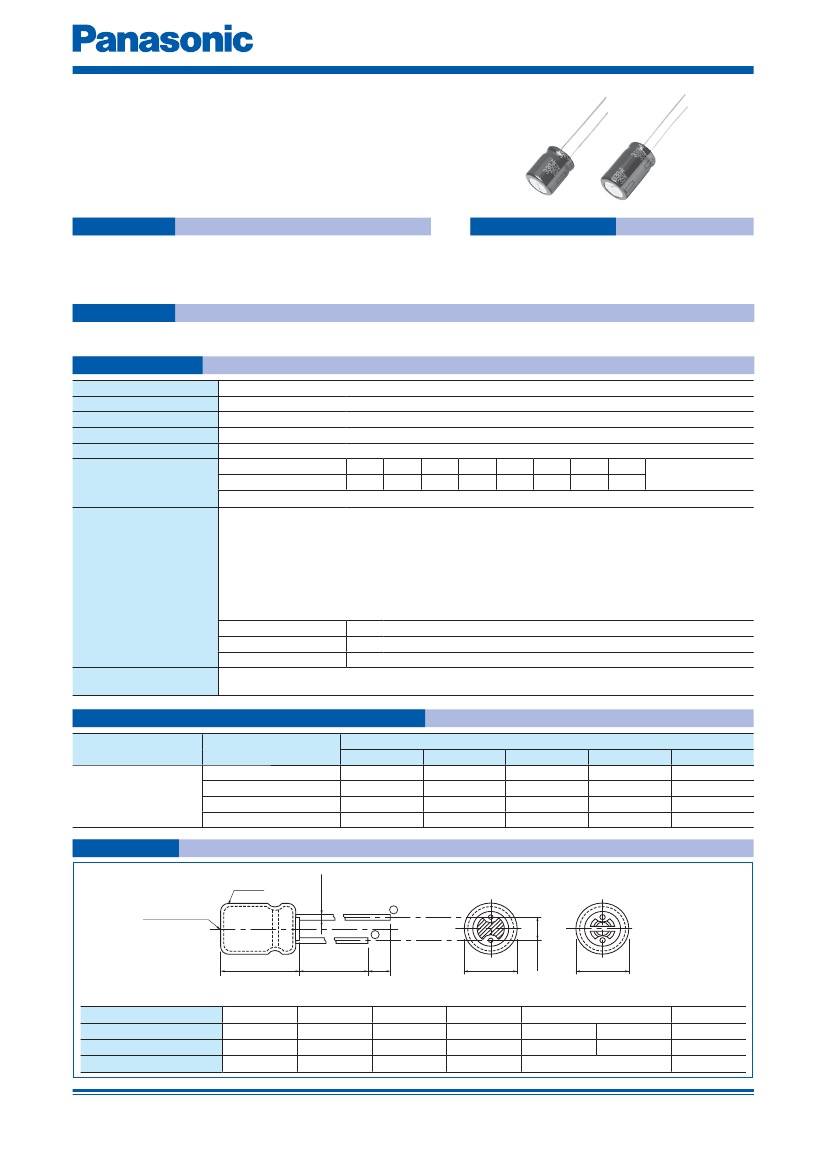

Aluminum Electrolytic Capacitors (Radial Lead Type)

Radial Lead Type

Series :

Type :

Features

●

Low ESR (Same as FM Series)

●

Endurance : 105 °C 5000 h to 10000

●

RoHS compliant

Country of origin

●

Malaysia

Attention

●

Not applicable for automotive

Specifications

Category temperature range

Rated voltage range

Capacitance range

Capacitance tolerance

Leakage current

Dissipation factor

(tan

–40 °C to +105 °C

6.3 V.DC to 100 V.DC

4.7 µF to 8200 µF

±20 % (120 Hz/+20 °C)

0.01 CV (µA) After 2 minutes

V.DC

6.3

100

(120 Hz/+20 °C)

tan

0.22 0.19 0.16 0.14 0.12 0.10 0.09 0.08

Add 0.02 per 1000 µF for products of 1000 µF or more.

After following life test with DC voltage and +105 °C±2 °C ripple current value applied. (The sum

of DC and ripple peak voltage shall not exceed the rated working voltage) when the capacitors

are restored to 20 °C, the capacitors shall meet the limits speciﬁed below.

Duration

05×11/ 06.3×11.2

: 5000 hours

08×11.5/ 010×12.5

: 6000 hours (½ Only EEUFR1V331U (010×12.5) 5000 hours)

08×15/ 010×16

: 8000 hours,

08×20

: 9000 hours

010×20

010×25/ 012.5×20

012.5×35/ 016×20

016×25

: 10000 hours

Capacitance change Within ±25 % of the initial value (6.3 V.DC to 10 V.DC : ±30 %)

tan

200 % of the initial limit

DC leakage current Within the initial limit

After storage for 1000 hours at +105 °C±2 °C with no voltage applied and then being stabilized

at +20 °C, capacitors shall meet the limits speciﬁed in Endurance. (With voltage treatment)

Endurance

Shelf life

Frequency correction factor for ripple current

Rated voltage (V.DC)

Capacitance (µF)

4.7

390

1200

330

1000

8200

0.45

0.60

0.65

0.75

120

0.55

0.70

0.75

0.80

Frequency (Hz)

0.75

0.85

0.90

0.95

10 k

0.90

0.95

0.98

1.00

100 k

1.00

6.3 to 100

Dimensions

Sleeve

Pressure relief

06.3

fd±0.05

010

–

F±0.5

14 min.

3 min.

0D±0.5

(Unit : mm)

16 : L±1.5

20 : L±2.0

—

0.5

2.0

6.3

—

0.5

2.5

—

0.6

3.5

—

0.6

5.0

12.5

12.5 to 25

30 to 35

0.6

0.8

5.0

—

0.8

7.5

Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use.

Should a safety concern arise regarding this product, please be sure to contact us immediately.

Mar. 2016
