For General Distribution
Issue No.
：
12-SWDW-H018
October 30, 2012
Date of Issue ：
Classification
： ■
New
□
Change
PRODUCT SPECIFICATION FOR APPROVAL
Product Description
Customers Part Number
Product Part Number
Country of Origin
Classification of Spec.
Applications
：
：
：
：
：
：

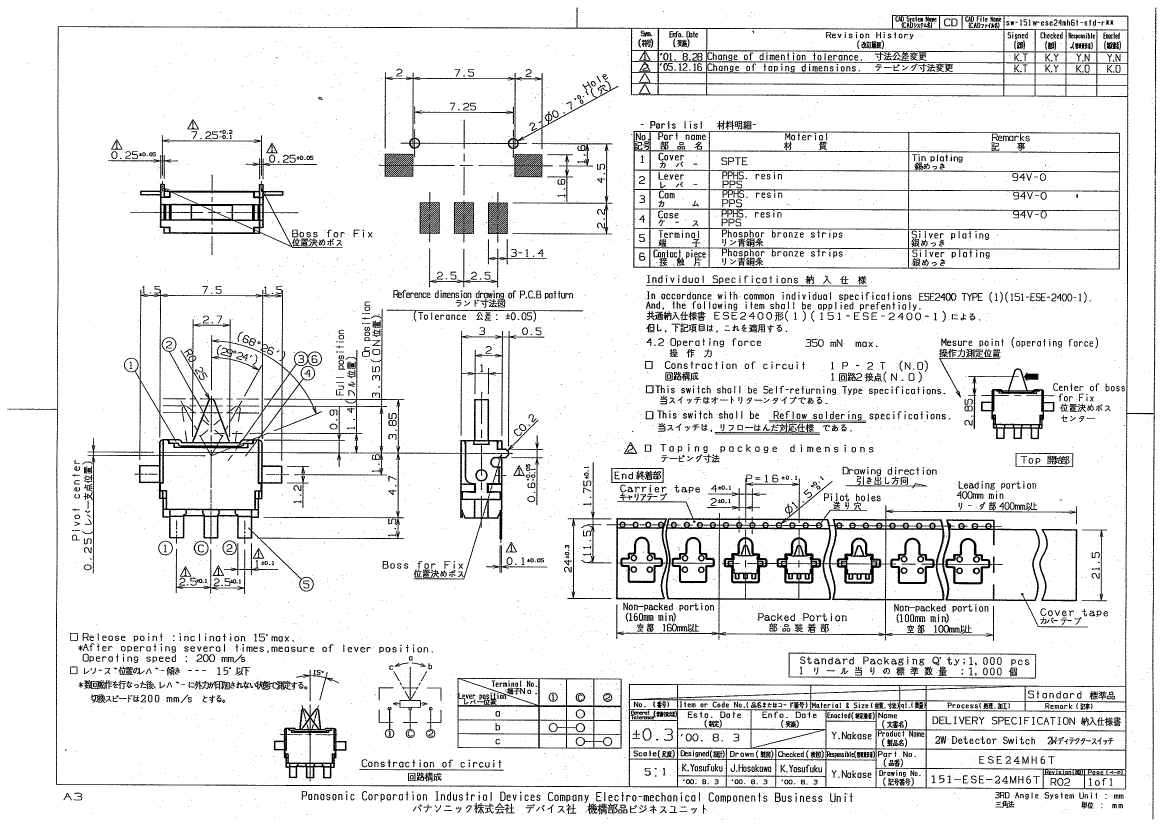

Detector Switch
ESE24MH6T
Japan
PRODUCT SPECIFICATION FOR APPROVAL
For distribution sales
* Please fill in and sign the below and return 1 copy to us
.
Approval No.
：
Approval Date
：
Executed by
：
(signature)
Title
Dept.
：
：
Electro-mechanical Components Business Unit
Industrial Devices Company, Panasonic Corporation
26-1-1 Doh Tsuruga, Fukui, Japan
Phone
：
+81-770-21-3625(Representative)
Prepared by
：
Monetary & Mechanical
Device Development team
Engineering Group-2
Contact Person
：
Signature
Name(Print)
HIROSHI OGAWA
Title
Team Leader of Engineering
Authorized by
：
Signature
Name(Print)
MASAHIDE ONISHI
Title
General Manager of Engineering
Title
Subject
COMMON PRODUCT SPECIFICATION FOR INFORMATION
Detector
Switch
Rule No. 2－1
151－SW－0134E (R3)
1. Notification Items
1.1
Law and the regulation which are applied
①This
product has not been manufactured with ozone depleting chemical controlled under the Montreal Protocol.
3
②This
product complies with the RoHS Directive (Restriction of the use of certain Hazardous Substance)
in electical and electronic equipment (DIRECTIVE 2011/65/EU).
③All
the materials used in this part are registered material under the Law Concerning the
Examination and Regulation of Manufacture etc. or Chemical Substances.
④Permission
must be obtained from the Japanese government if the product that is subject to the
"Foreign Exchange and Foreign Trade Law" is to be exported or taken out of Japan.
1.2 Application Limits
①This
product was designed and manufactured for general electronics devices household appliances,
office equipment, data and communication equipment.
For the following applications in which high reliability and safety are required, or for the applications in
which the failure or malfunction of the products may directly jeopardize life or cause threat
of personal asset, please contact us beforehand.
・Aircraft
and aerospace equipment, anti-disaster or anti-crime equipment, medical equipment,
transport equipment(automotives, trains, boat etc), high public information processing
devices or the other equipments or devices that are equivalent to the above mentioned.
2
Please give us prior notification when this product is used in the products or models other than those
specified in this specification. In the case where any problem occurs when this product is used in such
products or models without any prior notification to us, our guarantee may not cover such a problem.
②Although
we are exerting our best efforts to maintain the quality of these Products, we cannot guarantee
that they will never cause short circuiting and open circuitry, please do not use this switch for the function
that influences the life. Therefore, when designing an equipment or device with which the priority is
given to the safety, you will please carefully study the influences to the whole equipment of a single function
failure of a switch in advance to make out a fail-safe design providing necessary protective circuits.
1. Preparing a protective circuit or protective device to improve system safety, and
2. preparing a redundant circuit to improve system safety so that the single fault of a switch does
not cause a dangerous situation.
1
③Quality
coverage（Immunity）
½Please
use this product within the range of the specification described in
"Products Specification For Information".
½Please
acknowledge that our company and distributors cannot assume the responsibility at all beforehand
about the accident and others when notes described in accident when it uses it by
any chance outside the specification and "Application Notes" are not observed.
1.3 Handing of the delivery specification
・Writings
in this specification form are subject to change through precautions.
・This
specification form specify this item only. Please perform your approval test in the actual
application conditions beforehand.
・The
term of validity of this product specification shall be one year from the issue date.
In case more than one year past, please request us new specifications again before ordering this product.
・After
checking, put your receipt stamp or sign on the specification, and return one copy to us.
In case that we received your order without returning the specification, we understand that you have
approved the contents of the specification.
Sym
符号
1
2
3
Date
日付
’09.7.29
’11.11.1
’12.8.30
Revision
改訂履歴
½Addition
of spec.
（③Quality
coverage（Immunity）
½Addition
of spec.
（1.2 ①）
・Update
of EU RoHS Directive .
（1.1 ② ）
Signed
記 印
T.N
K.T
K.T
Chucked
検 印
T.T K.Y
K.Y H.O
T.I H.O
Panasonic Corporation
Title
Subject
COMMON PRODUCT SPECIFICATION FOR INFORMATION
Detector
Switch
Rule No. 2－2
151－SW－0134E (R3)
1.4 Manufacturing Sites
【ESE13，ESE16，ESE18，ESE21，ESE22，ESE23，ESE24，ESE58
Type】
The country of manufacture : Japan
Electro-mechanical Components Business Unit
Industrial Devices Company, Panasonic Corporation
【ESE11，ESE31
Type】
The country of manufacture : China / Japan
Panasonic Industrial Devices (Qingdao) Co., Ltd.
Electro-mechanical Components Business Unit
Industrial Devices Company, Panasonic Corporation
2.Summary
2.1 This specifications applies the detector switch.
2.2 This specifications is a constituent document of contract for business concluded between your company and
Panasonic Corporation.
2.3 Item not particularly specified in this specifications shall be in conformance with JIS Standards.
Panasonic Corporation
Title
標準書名
COMMON PRODUCT SPECIFICATION FOR INFORMATION
Rule No.11－1
共通納入仕様書
記号番号
Subject
ESE2400Type (1)
151－ESE-2400－1
品名
ESE2400
½
(1)
(R 6)
(Notes)
【1】
In case there are differences between the individual specifications and this specifications,
（注意）
priority shall be given to the individual specifications.
個別納入仕様書と本仕様書とで、矛盾が生じる項目は、個別納入仕様書を優先適用する。
【2】
Test conditions
…
Temperature ; 5
℃½35 ℃,
Humidity ; 45 %½85 %,
Atmospheric pressure ; 86 kPa½106 kPa.
試験条件 … 室温
5
℃½35 ℃，相対湿度
45 %½85 %，気圧 86 kPa½106 kPa
の状態で行う。
ITEM
SPECIFICATIONS
REMARKS
項 目
１.
Appearance
外
観
規
格
備
考
２.
３.
４.
１
２
３
４
There shall be no harmful plating defective, rust, cracking, chip and
deformation etc., on function.
機½を損なう、めっき不良、錆、傷、割れ、変½がないこと。
There shall be no noticeable deformation in the alignment of the terminals.
端子の並びには、変½のないこと。
Dimensions
In accordance with the individual specifications.
寸
法
個別納入仕様書による。
Marking
In accordance with the individual specifications.
表
示
個別納入仕様書に規定する個所に、定められた内容が明瞭に表示されて
いること。
MECHANICAL CHARACTERISTICS
機械的特性
Stroke
In accordance with the individual specifications.
ストローク
個別納入仕様書による。
Operating force
In accordance with the individual specifications.
個別納入仕様書による。
操½力
Operating
No abnormalities to apply following load on the tip of operating part for 15 s.
part strength
下記の力を操½部先端に
15
秒間加えて異常のないこと½
操½部強度
□
Operating direction
…
10 N
操½方向
□
Drawing direction
…
3 N
引張方向
□
Right direction against operating direction
…
3 N
操½方向と直角方向
Wobble of
1.0mm max．to apply load 300 mN on the tip of operating part.
operating part
操½部先端に、300
mN
の力を加えて
1.0 mm
以下であること。
操½部ガタ
Date
日付
’08.12. 1
’09.5.15
’09.7. 1
’10. 2. 4
Revision
改訂履歴
・Deletion
of spec.
仕様削除 【Sn-Pb
Eutectic solder
共晶はんだ】
（6.6
Solderability
はんだ付け性、6.7
Soldering heat
はんだ耐熱性 ）
・Addition
of spec.
仕様½加
（SPECIFICATION
OF TAPING PACKAGE
エンボステーピング仕様、Application
Notes
ご½用上の注意事項）
・Change
of spec.
仕様変更
（9.3
Peeling strength of cover tape
カバーテープの剥離強度）
Sym
符号
3
4
5
6
Signed
記 印
K.T
J.H
T.N
J.H
Chucked
検 印
K.Y Y.K
T.T K.Y
T.T K.Y
T.I Y.K
・Definitely
of specification.
仕様明確化 （6.1
Storage temperature
保存温度範囲 ）
・Change
of spec.
仕様変更
（7.Soldering
heat
：
Manual soldering
はんだ耐熱性：手はんだ）
Esta. Date
27．Aug．1998
制定日
Panasonic Corporation
パナ½ニック株式会社
Check
検 印
Y. Nakase
Check
検 印
T. Konja
Plan
担½者
J. Hosokawa
中瀬
近者
細川
Panasonic Corporation
パナ½ニック株式会社
