SE100B
QC2.0 Interface Module
General Description
SE100B is designed to support QuickCharge QC
2.0 (QC2.0) specifications. At the same time, it
also supports Apple, Samsung and BC1.2 DCP
(Dedicated Charging Port) compliant devices.
It is a low-cost solution to support QC2.0
functions, and various other DCP interfaces
devices. SE100B incorporates all necessary
functions to add QC2.0 capability to standard
Adaptor designs, Portable Battery designs, and
Car-charger designs.
SE100B supports the full output voltage range of
either Class A or Class B. Optionally Class B can
be inhibited for protecting the battery charger
Features
Fully supports Quick Charge 2.0
specification
Class A: 5 V, 9 V, and 12 V output voltage
Apple DCP support
Samsung DCP support
BC1.2 DCP support
USB battery charging specification revision
1.2 compatible
Automatic USB DCP shorting D+ to D- line
Default 5 V mode operation
Very low power consumption
Less than 1 mW at 5 V output
Supports Chinese Communications Industry
from accidental damage.
Standard YD/T 1591-2009
SE100B automatically detects whether a
connected Powered Device (PD) is QC2.0
capable before enabling output voltage
Applications
adjustment. If a PD that is not compliant to
QC2.0 is detected the SE100B disables output
Adaptors for smart phones, tablets,
voltage adjustment to ensure safe operation with
netbooks, digital cameras, and bluetooth
legacy 5 V only USB PDs.
accessories
Portable Battery Packs supporting QC2.0
functions
Pin Configuration
Car Cargers supporting QC2.0 functions
Other USB power output ports supporting
QC2.0 functions
Rev1.0
Preliminary and all contents are subject to change without prior notice.
© Seaward Electronics, Inc., • www.seawardinc.com • Page
1
9/4/2012
SE100B
QC2.0 Interface Module
Typical Application
Pin Description
NO.
1
2
3
4
5
6
7
8
Pin Name
GND
V1
V2
V3
D-
D+
R
BP
Pin Function Description
Ground
Open Drain input of output voltage adjustment switch.
Active for 9 V, 12 V, and 20 V output setting.
Open Drain input of output voltage adjustment switch.
Active for 12 V, and 20 V output setting.
Open Drain input of output voltage adjustment switch.
Active for 20 V output setting.
USB D- data line input.
USB D+ data line input.
Connected to internal band-gap reference. Provides reference current through
connected resistor.
Connection point for an external bypass capacitor for the internally generated supply
voltage.
Rev1.0
Preliminary and all contents are subject to change without prior notice.
© Seaward Electronics, Inc., • www.seawardinc.com • Page
2
9/4/2012
SE100B
QC2.0 Interface Module
Recommended Operating Conditions
Symbol
T
J
T
A
T
s
Parameter
Operating Junction Temperature
Operating Ambient Temperature
Storage Temperature
Lead Temperature (less than 15 seconds)
Maximum
-20 to 125
-20 to 85
-65 to150
260
Units
℃
℃
℃
℃
Electrical Characteristics
（Vcc=5V；
Symbol
V
BP
V
BP
（
reset
）
I
BPSC
Parameter
BYPASS Pin Voltage
Power-Up Reset Threshold
Voltage
BYPASS Pin Source Current
Tj=25℃ unless otherwise specified）
Test Conditions
Min
4
3.8
Typ
5
Max
Unit
V
V
V
BP
= 4.3 V, T
J
= 25
°CN1 = N2 = N3 = Off
I
BP
=3mA
5.0
1.22
140
μA
I
BP(SHUNT)
V
R
V
DAT(REF)
V
SEL(REF)
V
INH
I
DAT(SHORT)
T
GLITCH
T
GLITCH(V)
CHANGE
BYPASS Pin Shunt Voltage
REFERENCE Pin Voltage
Data Detect Voltage
Output
Voltage
Selection
5.3
1.27
0.325
2
5.6
1.32
V
V
V
V
Reference
12 V / 20 V Output Inhibit
Threshold
Data
Delay
D+ High Glitch Filter Time
Output Voltage Glitch Filter
Time
R
DM(DWN)
R
DS(ON)N1
R
DS(ON)N2
R
DS(ON)N3
R
DS(ON)N4
V
BP
-0.8
VOUT
≥
0.8 V
18
V
Lines
Short-Circuit
μs
1250
32
ms
ms
D- Pull-Down Resistance
Switch N1 On-Resistance
Switch N2 On-Resistance
Switch N3 On-Resistance
Switch N4 On-Resistance
Switch N5 On-Resistance
I
N1
=200μA
I
N2
=200μA
I
N3
=200μA
I
N4
=200μA
V
I
N1
=200μA，
D+
≤3.6V
19.53
300
300
300
300
60
KΩ
Ω
Ω
Ω
Ω
Ω
R
DSN5
Rev1.0
Preliminary and all contents are subject to change without prior notice.
© Seaward Electronics, Inc., • www.seawardinc.com • Page
4
9/4/2012
SE100B
QC2.0 Interface Module
Typical Performance Characteristics

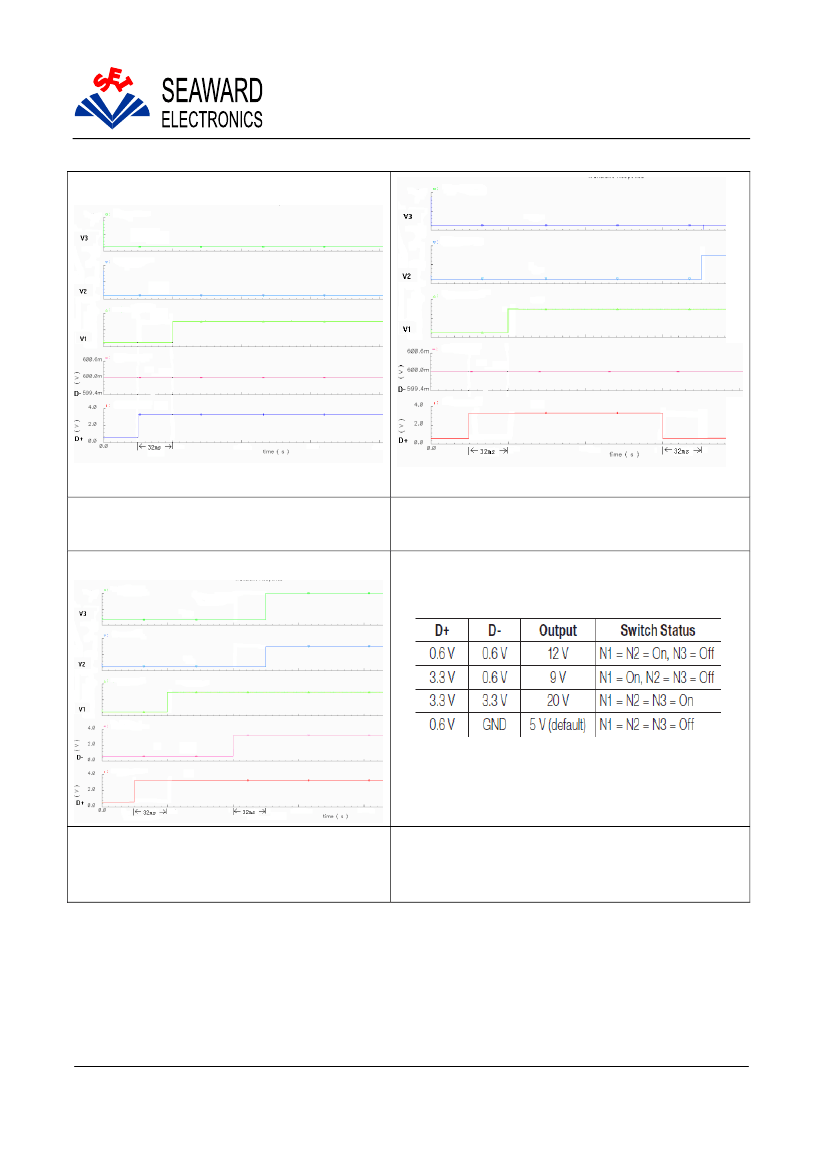

握手完成后，D+,D-输入 0.6V；D+由 0.6V 握手完成后， D-输入 0.6V； V1/V2 打开
升到 3.3V，V1 打开
握手完成后，D+，D-输入 0.6V;D+由 0.6 升
到 3.3V，V1 打开，D-由 0.6 升到 3.3V，
V1/V2/V3 打开
Rev1.0
Preliminary and all contents are subject to change without prior notice.
© Seaward Electronics, Inc., • www.seawardinc.com • Page
5
9/4/2012
