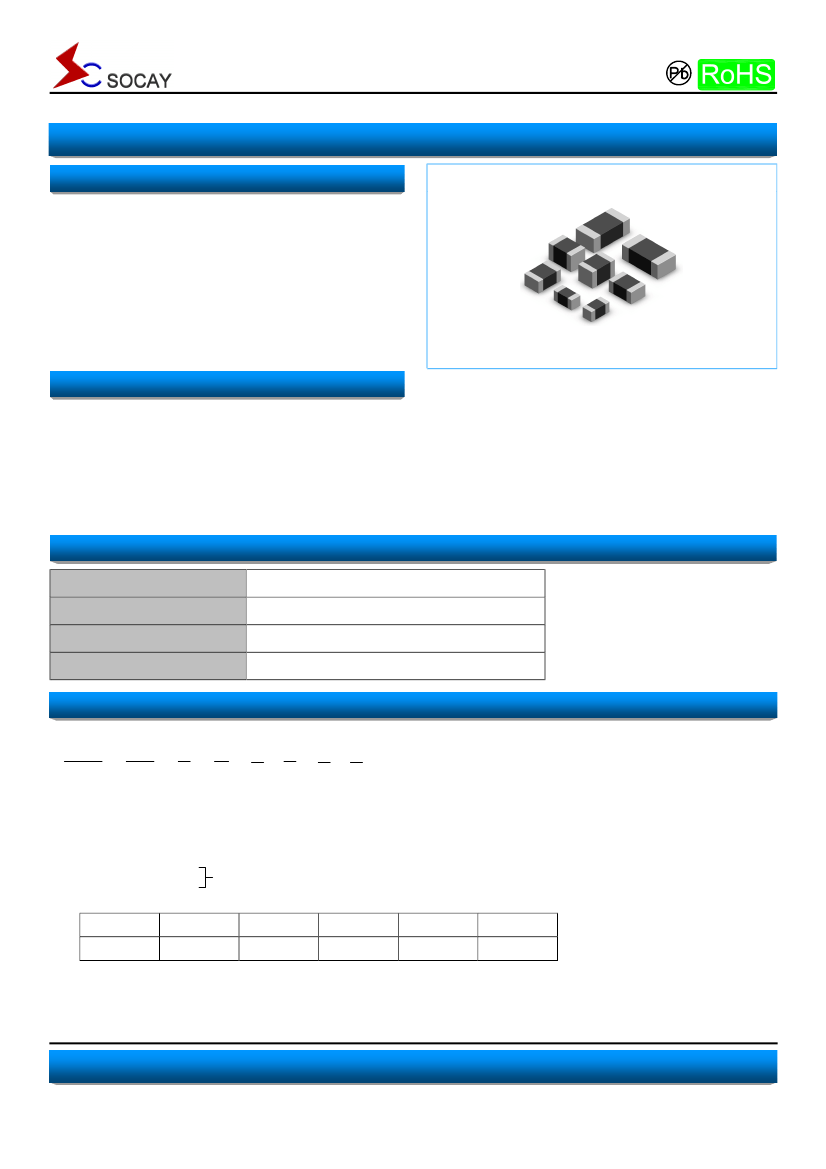

Chip Ferrite Bead
SCGB-S Series
Features
u
u
u
u
u
u
u
Monolithic inorganic material construction
Closed magnetic circuit avoids crosstalk
SMD Type & suitable for reflow and wave soldering
Available in various sizes
Excellent solderability and heat resistance
High reliability
Effectively filtering capability over a wide range of
frequency
Applications
Filtering between analog and digital circuitry, clock generation
circuitry, I/O interconnects, isolation between RF noisy circuits
and logic devices susceptible to functional degradation, power
supply filtering to prevent conducted RF energy from corrupting
the power generation circuitry, high frequency EMI prevention
of computer, printers, VCRs, TVs and portable telephones.
General Technical Data
Operating temperature range
Storage Condition
Storage Time
Soldering method
-40 ~ +125ºC
Less than 40℃ and 70% RH
6 months(Size:1005), 12 months(Size:1608 above)
Reflow or Wave Soldering
Part Numbering
SCGB
(1)
1
2
3
4
5
6
1608
(2)
S
(3)
60
(4)
1
(5)
E
(6)
P
(7)
F
(8)
Series Name
Size Code: the first two digitals : length(mm), the last two digitals : width(mm)
Material Code
Impedance(Ω),
±25%
Fixed Decimal Point
Rated Current Cod
A=50mA
G=400mA
B=80mA
H=500mA
C=100mA
I=600mA
D=150mA
J=700mA
E=200mA
K=800mA
F=300mA
e.g.: 600=60
Ω,
121=120Ω
7
8
Packaging: P - Embossed paper tape, 7" reel
T - Embossed plastic tape, 7" reel
Soldering : Green Parts: S- Soldering Lead-Free
F- Lead-Free for whole chip
SOCAY Electronics Co., Ltd.
Revision February 13, 2014
www.socay.com
1/7
@ SOCAY Electronics Co., Ltd. 2014
Specifications are subject to change without notice.
Please refer to www.socay.com for current information.
Chip Ferrite Bead
SCGB-S Series
Electrical Characteristics
SCGB1005-S Series
Part Number
SCGB1005S100FPF
SCGB1005S200FPF
SCGB1005S300FPF
SCGB1005S400FPF
SCGB1005S600FPF
SCGB1005S700FPF
SCGB1005S121FPF
SCGB1005S241EPF
SCGB1005S301EPF
SCGB1005S471EPF
SCGB1005S601EPF
SCGB1005S102EPF
Impedance (Ω)
±25%
10
20
30
40
60
70
120
240
300
470
600
1000
Test Freq.
(MHz)
100
100
100
100
100
100
100
100
100
100
100
100
DCR (Ω)
(Max.)
0.10
0.20
0.25
0.30
0.35
0.35
0.40
0.70
0.80
1.00
1.00
1.50
Rated Current
(mA)
300
300
300
300
300
300
300
200
200
200
300
200
SCGB1608-S Series
Part Number
SCGB1608S100IPF
SCGB1608S300IPF
SCGB1608S600IPF
SCGB1608S800IPF
SCGB1608S121IPF
SCGB1608S181FPF
SCGB1608S221FPF
SCGB1608S301FPF
SCGB1608S471FPF
SCGB1608S601EPF
SCGB1608S102CPF
Impedance (Ω)
±25%
10
30
60
80
120
180
220
300
470
600
1000
Test Freq.
(MHz)
100
100
100
100
100
100
100
100
100
100
100
DCR (Ω)
(Max.)
0.05
0.08
0.10
0.10
0.15
0.30
0.30
0.35
0.40
0.45
0.60
Rated Current
(mA)
600
600
600
600
600
300
300
300
300
200
100
SOCAY Electronics Co., Ltd.
Revision February 13, 2014
www.socay.com
2/7
@ SOCAY Electronics Co., Ltd. 2014
Specifications are subject to change without notice.
Please refer to www.socay.com for current information.
Chip Ferrite Bead
SCGB-S Series
Electrical Characteristics (Continue)
SCGB2012-S Series
Part Number
SCGB2012S300KPF
SCGB2012S400KPF
SCGB2012S600KPF
SCGB2012S800KPF
SCGB2012S121KPF
SCGB2012S221HPF
SCGB2012S301HPF
SCGB2012S601HPF
SCGB2012S102FPF
SCGB2012S202EPF
Impedance (Ω)
±25%
30
40
60
80
120
220
300
600
1000
2000
Test Freq.
(MHz)
100
100
100
100
100
100
100
100
100
100
DCR (Ω)
(Max.)
0.05
0.05
0.15
0.15
0.15
0.20
0.20
0.30
0.35
0.50
Rated Current
(mA)
800
800
800
800
800
500
500
500
300
200
SCGB3216-S Series
Part Number
SCGB3216S310KTF
SCGB3216S500KTF
SCGB3216S700KTF
SCGB3216S121ITF
SCGB3216S601HTF
SCGB3216S102HTF
SCGB3216S122HTF
SCGB3216S152ETF
SCGB3216S202ETF
Impedance (Ω)
±25%
31
50
70
120
600
1000
1200
1500
2000
Test Freq.
(MHz)
100
100
100
100
100
100
100
50
30
DCR (Ω)
(Max.)
0.05
0.08
0.10
0.15
0.30
0.40
0.40
0.50
0.50
Rated Current
(mA)
800
800
800
600
500
500
500
200
200
SCGB3225-S Series
Part Number
SCGB3225S600KTF
SCGB3225S900KTF
Impedance (Ω)
±25%
60
90
Test Freq.
(MHz)
100
100
DCR (Ω)
(Max.)
0.30
0.30
Rated Current
(mA)
800
800
SOCAY Electronics Co., Ltd.
Revision February 13, 2014
www.socay.com
3/7
@ SOCAY Electronics Co., Ltd. 2014
Specifications are subject to change without notice.
Please refer to www.socay.com for current information.
Chip Ferrite Bead
SCGB-S Series
Electrical Characteristics (Continue)
SCGB4516-S Series
Part Number
SCGB4516S800KTF
SCGB4516S151KTF
Impedance (Ω)
±25%
80
150
Test Freq.
(MHz)
100
100
DCR (Ω)
(Max.)
0.10
0.30
Rated Current
(mA)
800
800
SCGB4532-S Series
Part Number
SCGB4532S700KTF
SCGB4532S800KTF
SCGB4532S121KTF
Impedance (Ω)
±25%
70
80
120
Test Level：250 mV
l
HP4291B
RF IMPEDANCE / MATERIAL ANALYZER
Test Instruments：
l
l
l
HP4338A/B MILLIOHM METER
Agilent 8720ES S-PARAMETER NETWORK ANALYZER
HP6632B SYSTEM DC POWER SUPPLY
Test Freq.
(MHz)
100
100
100
DCR (Ω)
(Max.)
0.40
0.40
0.40
Rated Current
(mA)
800
800
800
** For special part number which is not shown in the above table, please refer to appendix.
SOCAY Electronics Co., Ltd.
Revision February 13, 2014
www.socay.com
4/7
@ SOCAY Electronics Co., Ltd. 2014
Specifications are subject to change without notice.
Please refer to www.socay.com for current information.
Chip Ferrite Bead
SCGB-S Series

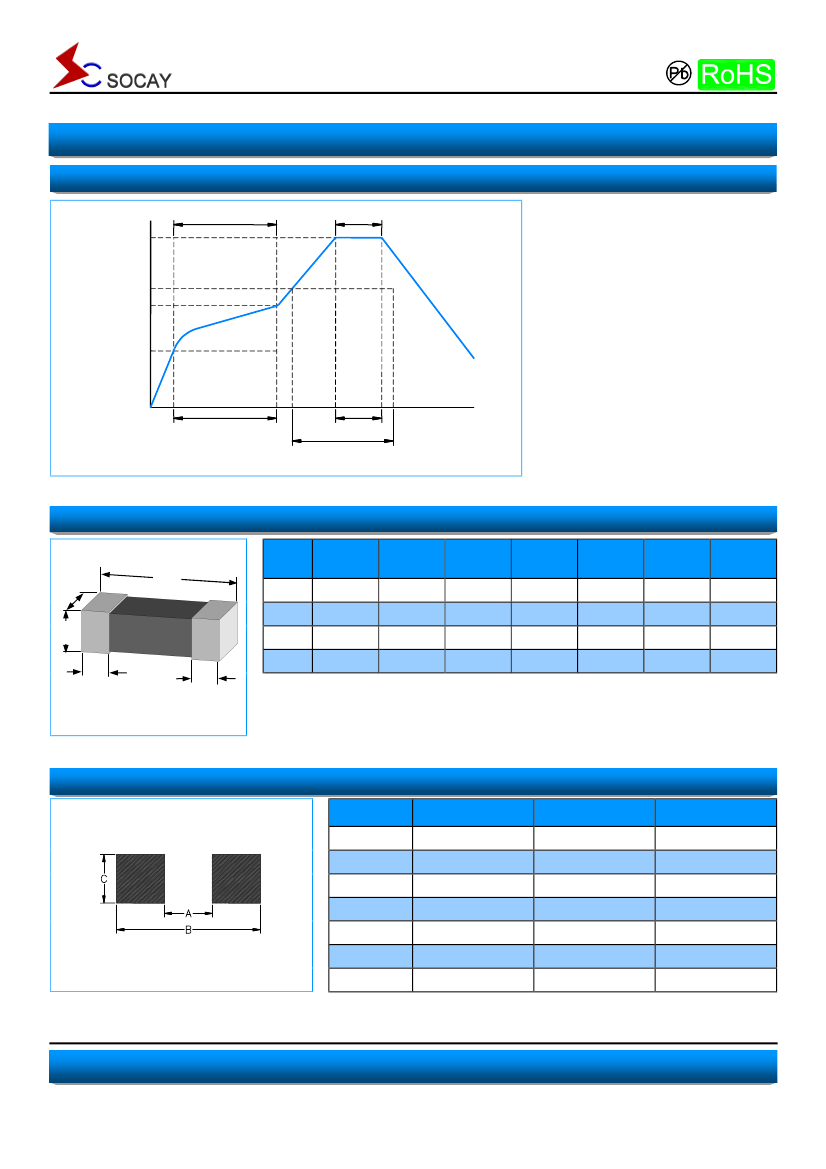

Recommended Soldering Conditions
