3490-0-15-01-02-80-10-0

Description
PCB Terminal
CategoryThe connector    terminals
File Size118KB,1 Pages
ManufacturerMill-Max
Websitehttps://www.mill-max.com
Download Datasheet Parametric Compare View All

3490-0-15-01-02-80-10-0 Overview

PCB Terminal

3490-0-15-01-02-80-10-0 Parametric

Parameter NameAttribute value
Is it lead-free?Contains lead
Is it Rohs certified?incompatible
MakerMill-Max
Reach Compliance Codecompli
ECCN codeEAR99
Manufacturer's serial number3490
terminal genderFEMALE
Terminal and terminal strip typesPCB TERMINAL
Base Number Matches1
PR
E
CI

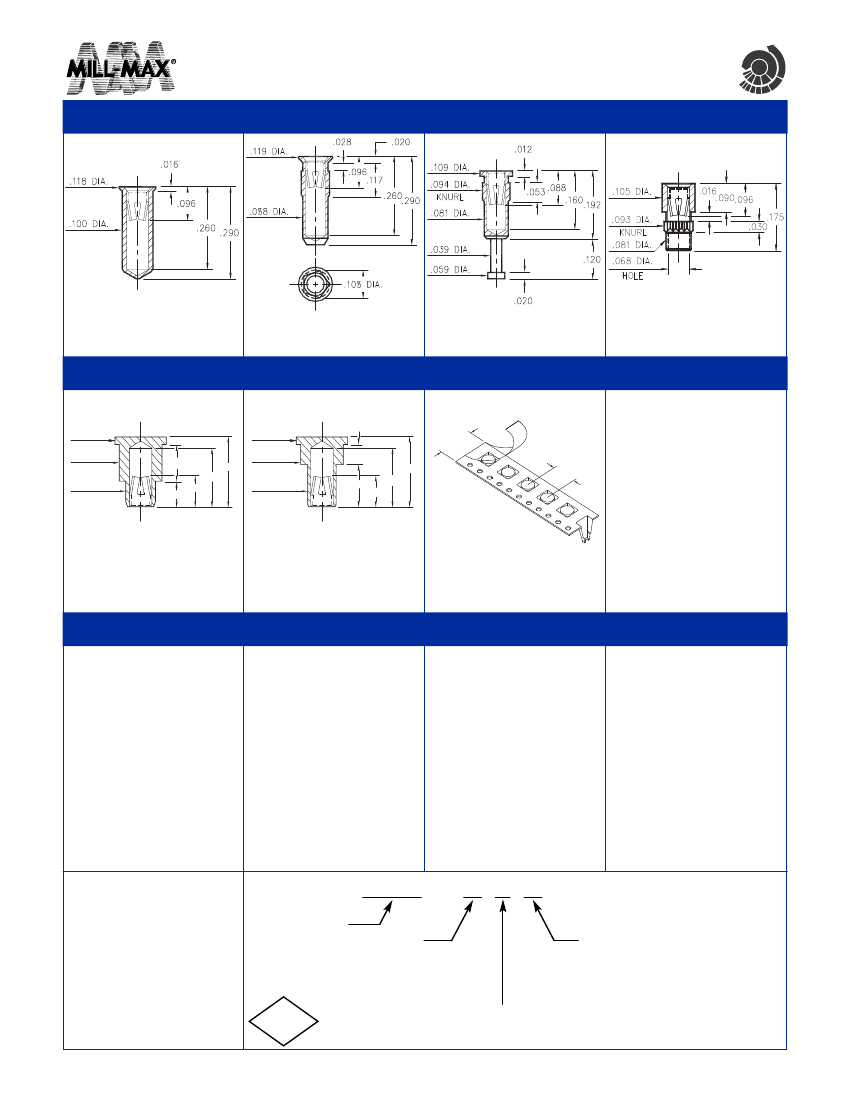

PIN RECEPTACLES
for .040” - .050” diameter pins
M
ON
S
I
CHI
A
PINS
NE
D
0355
0354
3490
3808
0355-0-15-XX-02-XX-10-0
Solder mount in .102 min.
mounting hole
0354-0-15-XX-02-XX-10-0
Pentagonal press-fit in .104 min.
plated thru hole
3490-0-15-XX-02-XX-10-0
Press-fit in .091 mounting hole
3808-0-15-XX-02-XX-10-0
Press-fit in .090 mounting hole
9184
.156 DIA.
.130 DIA.
.090 DIA.
.070
.100
.160
.083
9222
.156 DIA.
.120 DIA.
.190
.080 DIA.
.125
.083
.173
.055
.200
MM
MM
9184-0-15-XX-02-XX-40-0
Bottom entry, surface mount
.092 min. plated thru hole.
Also available on carrier tape,
Order as: 9184-0-57-XX-02-XX-40-0
9222-2-15-XX-02-XX-40-0
Bottom entry, surface mount
.082 min. plated thru hole
Also available on carrier tape,
Order as: 9222-2-57-XX-02-XX-40-0
Carrier tape format for
9184 & 9222.
1,500 pieces per 13” reel
SPECIFICATIONS
SHELL MATERIAL:
Brass Alloy 360, 1/2 Hard
CONTACT MATERIAL:
Beryllium Copper Alloy 172, HT
DIMENSION IN INCHES
TOLERANCES ON:
LENGTHS:
±.005
DIAMETERS: ±.002
ANGLES:
± 2°
ORDER CODE: XXXX - X - 15 - XX - 02 - XX - XX - 0
BASIC PART #
SPECIFY SHELL FINISH:
01
200μ” TIN/LEAD OVER NICKEL
80
200μ” TIN OVER NICKEL (RoHS)
15
10μ” GOLD OVER NICKEL (RoHS)
2002/95/EC
SPECIFY CONTACT FINISH:
01
200μ” TIN/LEAD OVER NICKEL
80
200μ” TIN OVER NICKEL (RoHS)
27
30μ” GOLD OVER NICKEL (RoHS)
RoHS
CONTACT
#02
CONTACT (DATA ON PAGE 225)
w w w. m i l l - m a x . c o m
156
516-922-6000
