Wire Wound Magnetically Shielded SMD Power Inductor
ASPI-6045S
FEATURES:
•
•
•
•
Shielded magnetics, low radiation
Large Terminal surface for good PCB bonding
Low DCR, High Energy storage, suitable for large currents
Ideal for a variety of DC-DC converter inductor applications
Pb
RoHS/RoHS II compliant
6.0 x 6.0 x 4.5mm
APPLICATIONS:
•
•
•
•
Partable communication equipment
OA equipment
LCD, DVD, modem, set-top box
DC/DC converters
ELECTRICAL SPECIFICATIONS:
Abracon P/N:
Operating Temperature
Storage Temperature
Part Number
ASPI-6045S-
Inductance Code
Units
Symbol
ASPI-6045S-R82
ASPI-6045S-1R0
ASPI-6045S-1R2
ASPI-6045S-1R5
ASPI-6045S-1R8
ASPI-6045S-2R2
ASPI-6045S-2R3
ASPI-6045S-2R7
ASPI-6045S-3R0
ASPI-6045S-3R3
ASPI-6045S-3R6
ASPI-6045S-4R3
ASPI-6045S-4R7
ASPI-6045S-5R1
ASPI-6045S-5R6
ASPI-6045S-6R2
ASPI-6045S-6R8
ASPI-6045S-7R5
ASPI-6045S-8R2
ASPI-6045S-9R1
ASPI-6045S-100
ASPI-6045S-120
ASPI-6045S-150
ASPI-6045S-180
ASPI-6045S-220
ASPI-6045S-270
ASPI-6045S-300
ASPI-6045S-330
ASPI-6045S-360
ASPI-6045S-390
ASPI-6045S-430
ASPI-6045S-470
ASPI-6045S-510
Inductance
μH
L
0.82
1
1.2
1.5
1.8
2.2
2.3
2.7
3
3.3
3.6
4.3
4.7
5.1
5.6
6.2
6.8
7.5
8.2
9.1
10
12
15
18
22
27
30
33
36
39
43
47
51
ASPI-6045S Series
-40ºC to +125ºC
-10ºC to +40ºC and 70% R.H.
L Tolerance
−
N, M
N
N
N
N
N
N
N
N
N
N
N
M
M
M
M
M
M
M
M
M
M
M
M
M
M
M
M
M
M
M
M
M
M
DC Resistance
(±30%)
Ω
DCR
0.008
0.011
0.01
0.012
0.012
0.014
0.021
0.015
0.02
0.021
0.021
0.023
0.026
0.026
0.029
0.031
0.031
0.034
0.043
0.043
0.048
0.058
0.068
0.081
0.089
0.102
0.132
0.137
0.173
0.18
0.2
0.2
0.207
Saturation
Current
A
Isat
10.35
9.85
8.35
8.80
7.60
6.75
6.00
5.75
5.60
5.90
5.25
4.45
4.97
4.40
4.15
4.43
3.90
3.50
3.90
3.35
3.20
2.80
2.50
2.20
2.05
1.90
1.70
1.65
1.62
1.50
1.63
1.40
1.35
Temperature
Rise Current
A
Irms
5.90
5.14
5.40
4.95
4.95
4.60
3.50
4.30
3.80
3.70
3.70
3.50
3.30
3.30
3.15
3.00
3.00
2.90
2.60
2.60
2.45
2.20
2.05
1.85
1.80
1.65
1.50
1.45
1.40
1.25
1.20
1.20
1.15
Min. Self resonant
frequency
MHz
SRF
140
100
100
65
74
52
60
38
35
32
28
23
24
23
23
26
20
18
21
17
15
13
12
10
10
9.2
7.8
7.8
7.8
7.8
7.7
6.4
6.4
Marking
−
−
R82
1R0
1R2
1R5
1R8
2R2
2R3
2R7
3R0
3R3
3R6
4R3
4R7
5R1
5R6
6R2
6R8
7R5
8R2
9R1
100
120
150
180
220
270
300
330
360
390
430
470
510
REVISED: 06/22/2016
ABRACON IS
ISO9001-2008
CERTIFIED
5101 Hidden Creek Lane Spicewood TX 78669
Phone: 512-371-6159 | Fax: 512-351-8858
For terms and conditions of sale please visit:
www.abracon.com
Wire Wound Magnetically Shielded SMD Power Inductor
ASPI-6045S
Part Number
ASPI-6045S-
Inductance Code
Units
Symbol
ASPI-6045S-560
ASPI-6045S-620
ASPI-6045S-680
ASPI-6045S-750
ASPI-6045S-820
ASPI-6045S-910
ASPI-6045S-101
ASPI-6045S-121
ASPI-6045S-151
ASPI-6045S-221
ASPI-6045S-331
Inductance
μH
L
56
62
68
75
82
91
100
120
150
220
330
L Tolerance
−
−
M
M
M
M
M
M
M
M
M
M
M
DC Resistance
(±30%)
Ω
DCR
0.221
0.235
0.289
0.305
0.341
0.359
0.433
0.484
0.58
0.834
1.27
Saturation
Current
A
Isat
1.30
1.25
1.20
1.15
1.05
1.00
0.95
0.85
0.80
0.70
0.57
Pb
RoHS/RoHS II compliant
6.0 x 6.0 x 4.5mm
Temperature
Rise Current
A
Irms
1.10
1.10
1.00
0.95
0.90
0.85
0.80
0.77
0.70
0.59
0.57
Min. Self resonant
frequency
MHz
SRF
6.4
6.4
6.4
5
4.9
4.9
4.2
4.2
4.2
3.5
2.8
Marking
−
−
560
620
680
750
820
910
101
121
151
221
331
Test Conditions:
a. Ambient Temperature: 20± 15
o
C
b. Relative Humidity: 65%±20%
c. Air Pressure: 86KPa to 106KPa
Inductance (L): ZM2355 LCR meter or equivalent
Direct Current Resistance (DCR): HIOKI 3540 or equivalent
Saturation Current (Isat): Saturation current meter
Isat: Based on inductance change (∆ L/Lo :∆ -30%)
Temperature rise current (Irms): Electric Power, Electric current meter, Thermometer
Irms: Based on temperature rise (∆ T : 40
o
C TYP. )

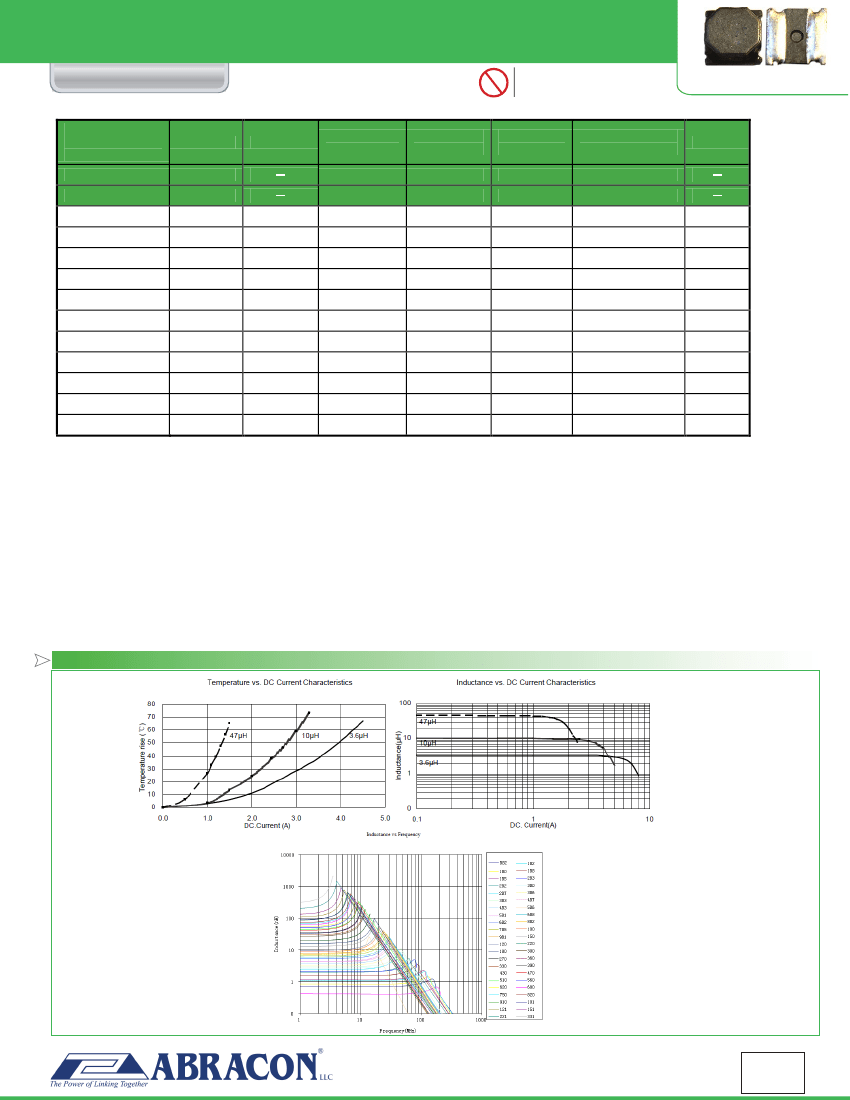

ELECTRICAL CHARACTERISTICS CURVES
5101 Hidden Creek Lane Spicewood TX 78669
Phone: 512-371-6159 | Fax: 512-351-8858
For terms and conditions of sale please visit:
www.abracon.com
REVISED: 06/22/2016
ABRACON IS
ISO9001-2008
CERTIFIED
Wire Wound Magnetically Shielded SMD Power Inductor
ASPI-6045S
PART IDENTICATION:
Pb
RoHS/RoHS II compliant
6.0 x 6.0 x 4.5mm
ASPI-6045S -
-
Inductance Code
Please refer to the
table above
Tolerance
M: ±20% *
N: ±30% *
*M for 4.3µH~330µH
*N for 0.82µH~3.6µH
T: Tape and Reel
(1,500kpcs / reel)
Packaging

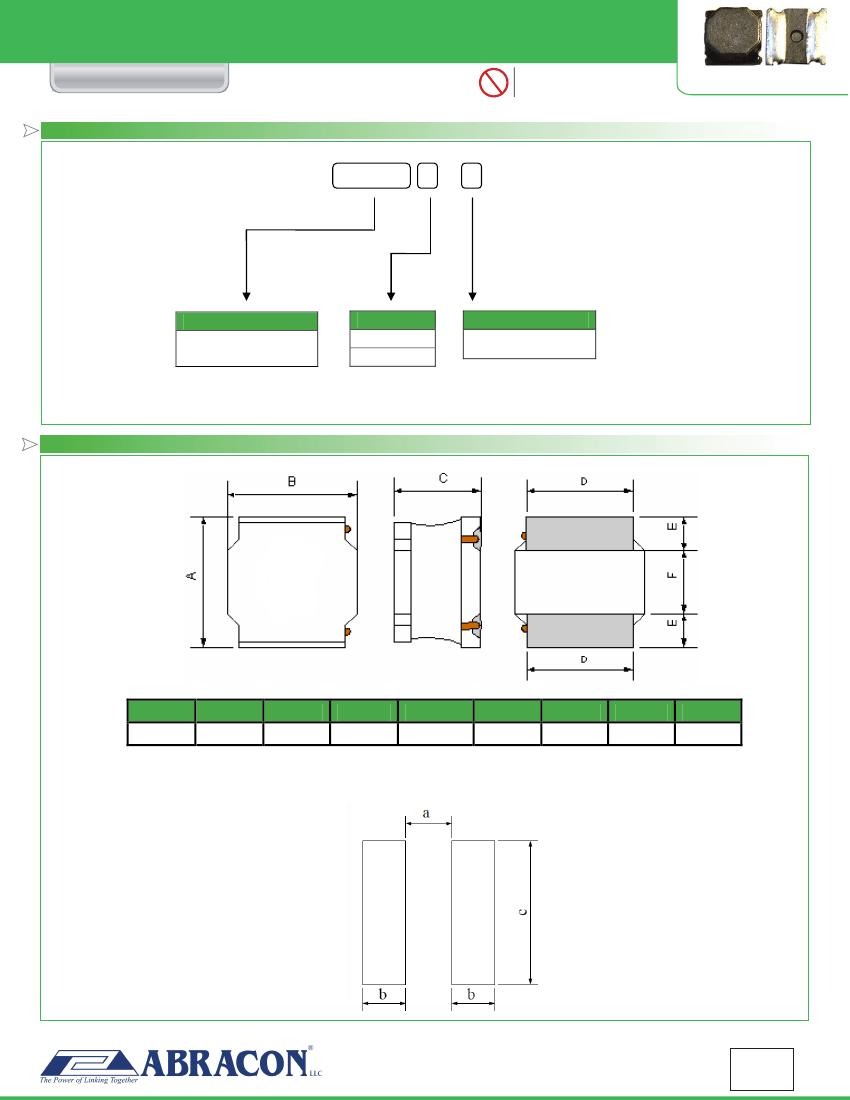

OUTLINE DIMENSIONS:
A
6.0±0.3
B
6.0±0.3
C Max.
4.5Max.
D
4.9±0.3
E
1.55±0.3
F
2.9±0.3
a Typ.
2.8Typ.
b Typ.
1.7Typ.
c Typ.
5.7Typ
Recommended Land Pattern
5101 Hidden Creek Lane Spicewood TX 78669
Phone: 512-371-6159 | Fax: 512-351-8858
For terms and conditions of sale please visit:
www.abracon.com
REVISED: 06/22/2016
ABRACON IS
ISO9001-2008
CERTIFIED
Wire Wound Magnetically Shielded SMD Power Inductor
ASPI-6045S

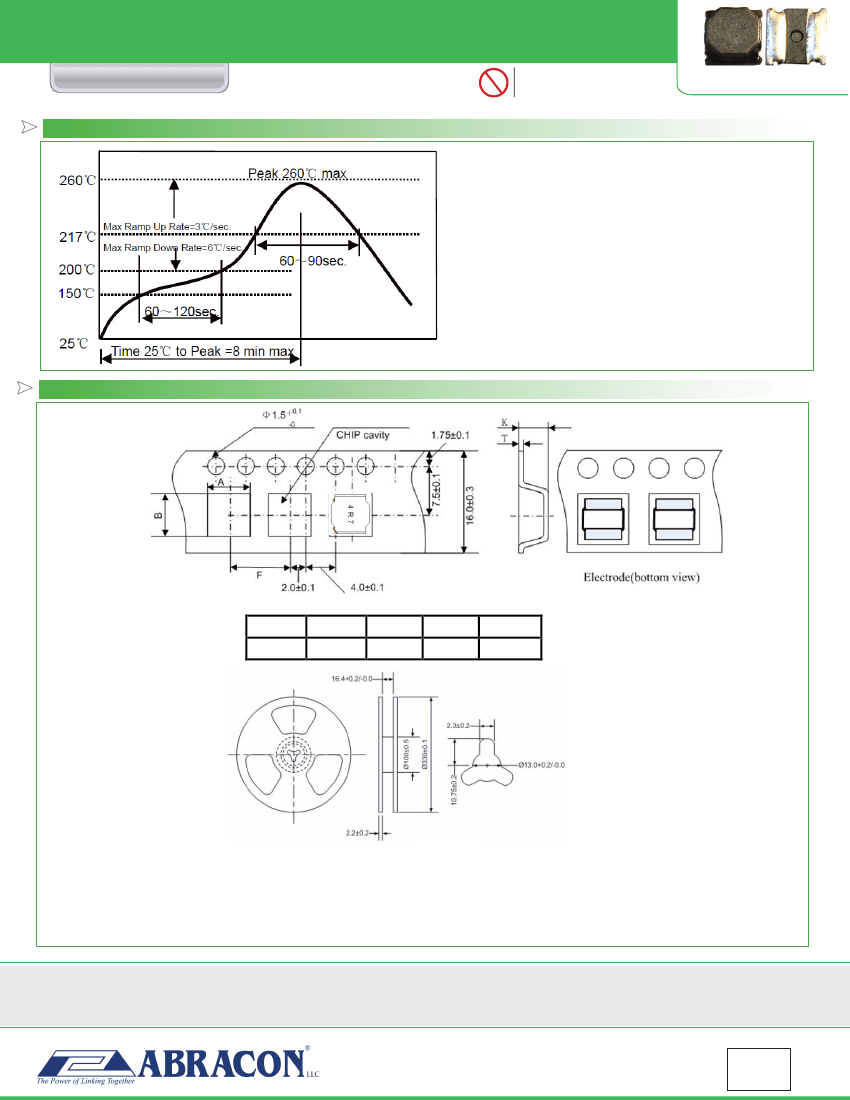

REFLOW PROFILE
∆
∆
∆
∆
∆
∆
1~2 °C /sec. Ramp
Pre-heating: 150~190°C /120±30sec.
Time above 240°C : 20~60sec
Peak temperature: 260°C Max/10sec.
Solder paste: Sn/3.0Ag/0.5Cu
Max.2 times for re-flowing
Pb
RoHS/RoHS II compliant
6.0 x 6.0 x 4.5mm
TAPE & REEL:
Packing
T: 1,500pcs / reel
A
6.20±0.10
B
6.25±0.10
F
8.0±0.10
K
4.7±0.10
T
0.40±0.03
Storage Conditions
a.
b.
c.
d.
To maintain the solderability of terminal electrodes and to keep the packing material in good condition, temperature and
humidity in the storage area should be controlled.
Recommended conditions: -10
o
C ~ 40
o
C, 70% RH (Max.)
Even under ideal storage conditions, solderability of products electrodes may decrease as time passes. For this reason, product
should be used with one year from the time of delivery.
In case of storage over 6 months, solderability shall be checked before actual usage.
Dimension:
mm
ATTENTION:
Abracon Corporation’s products are COTS – Commercial-Off-The-Shelf products; suitable for Commercial, Industrial and, where designated, Automotive Applications.
Abracon’s products are not specifically designed for Military, Aviation, Aerospace, Life-dependant Medical applications or any application requiring high reliability where component
failure could result in loss of life and/or property. For applications requiring high reliability and/or presenting an extreme operating environment, written consent and authorization from
Abracon Corporation is required. Please contact Abracon Corporation for more information.
