Revision of March 2018
AirMatrix
®
Surface Mount Fuses
AF Series, 1206 Size

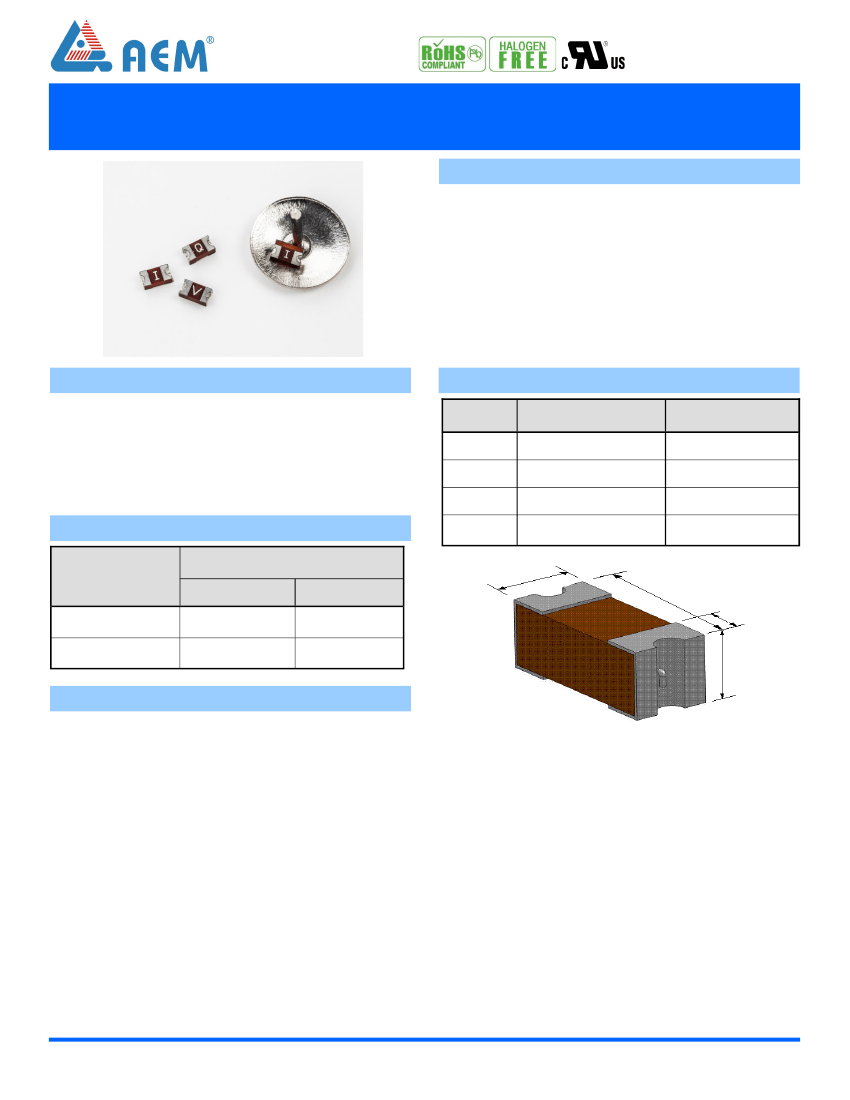

Features:
•
•
•
•
•
•
•
Fast acting at 250% overload current level
Excellent inrush current withstanding capability
Extremely thin body for space saving
Much safer with wire-in-air design
Fiberglass enforced epoxy fuse body
Copper termination with nickel and tin plating
Operating temperature range:
-55°C
to +125 °C (with de-
rating)
•
100% lead-free
Application Fields:
•
•
•
•
•
Notebook, Ultrabook
Backlight Driver
DC/DC Converter
Low voltage lighting power
Automotive electronics
Shape and Dimensions:
Unit
L
W
T
Inch
0.126 ± 0.008
0.063 + 0.012
/
-0.004
0.042 ± 0.006
0.033 ± 0.012
mm
3.20 ± 0.20
1.60 + 0.30 /
-0.20
1.08 ± 0.15
0.85 ± 0.30
Clearing Time Characteristics:
Clearing Time at 25°C
%
of Current Rating
Min.
100%
250%
4 hour
5 seconds
Max.
B
W
L
B
T
Agency Approval:
Recognized Under the Components Program of Underwriters
Laboratories. File Number: E232989
Website:
www.aemchina.com & www.aemcomponents.com
Revision of March 2018
AirMatrix
®
Surface Mount Fuses
AF Series, 1206 Size
Ordering Information:
Part Number
Current Rating
(A)
1.50
1.60
2.00
2.50
3.00
3.15
3.50
4.00
5.00
6.30
7.00
8.00
10.0
12.0
15.0
Marking
( White )
G
T
I
J
65
AF1206F3.00TM
AF1206F3.15TM
AF1206F3.50TM
AF1206F4.00TM
AF1206F5.00TM
AF1206F6.30TM
AF1206F7.00TM
AF1206F8.00TM
AF1206F10.0TM
AF1206F12.0TM
AF1206F15.0TM
K
V
L
M
N
O
P
R
Q
X
Y
32
50A@32VDC
50A@65VDC
0.022
0.020
0.018
0.016
0.013
0.010
0.0092
0.0084
0.0050
0.0041
0.0035
1.9
2.2
2.6
3.3
5.4
8.9
10.4
13.5
11.2
15.0
24.5
Voltage Rating
(VDC)
Interrupting
Rating
Nominal DCR
(Ω)
0.050
0.043
0.032
0.028
Nominal I
2
t
(A
2
s)
0.37
0.52
0.88
1.1
AF1206F1.50TM
AF1206F1.60TM
AF1206F2.00TM
AF1206F2.50TM
1. Resistance is measured at
≤10%
of rated current and 25℃ ambient.
2. Melting l
2
t is calculated at 0.001 second pre-arcing time.
Website:
www.aemchina.com & www.aemcomponents.com
Revision of March 2018
AirMatrix
®
Surface Mount Fuses
AF Series, 1206 Size

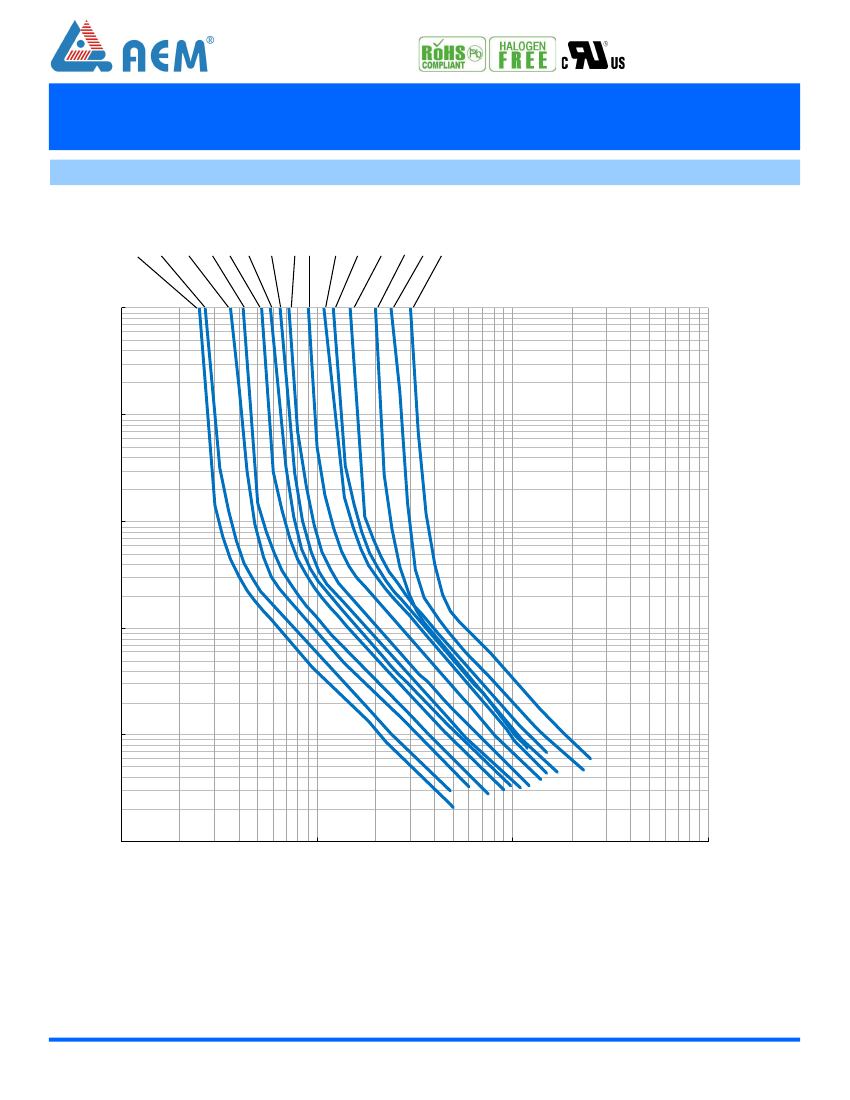

Average Pre-arcing Time Curves:
1.50 A
1.60 A
2.00 A
2.50 A
3.00 A
3.15 A
3.50 A
4.00A
5.00A
6.30A
7.00A
8.00A
10.0A
12.0A
15.0A
10
1
Pre-arcing Time (s)
0.1
0.01
0.001
0.0001
1
10
100
1000
Current (A)
Website:
www.aemchina.com & www.aemcomponents.com
Revision of March 2018
AirMatrix
®
Surface Mount Fuses
AF Series, 1206 Size

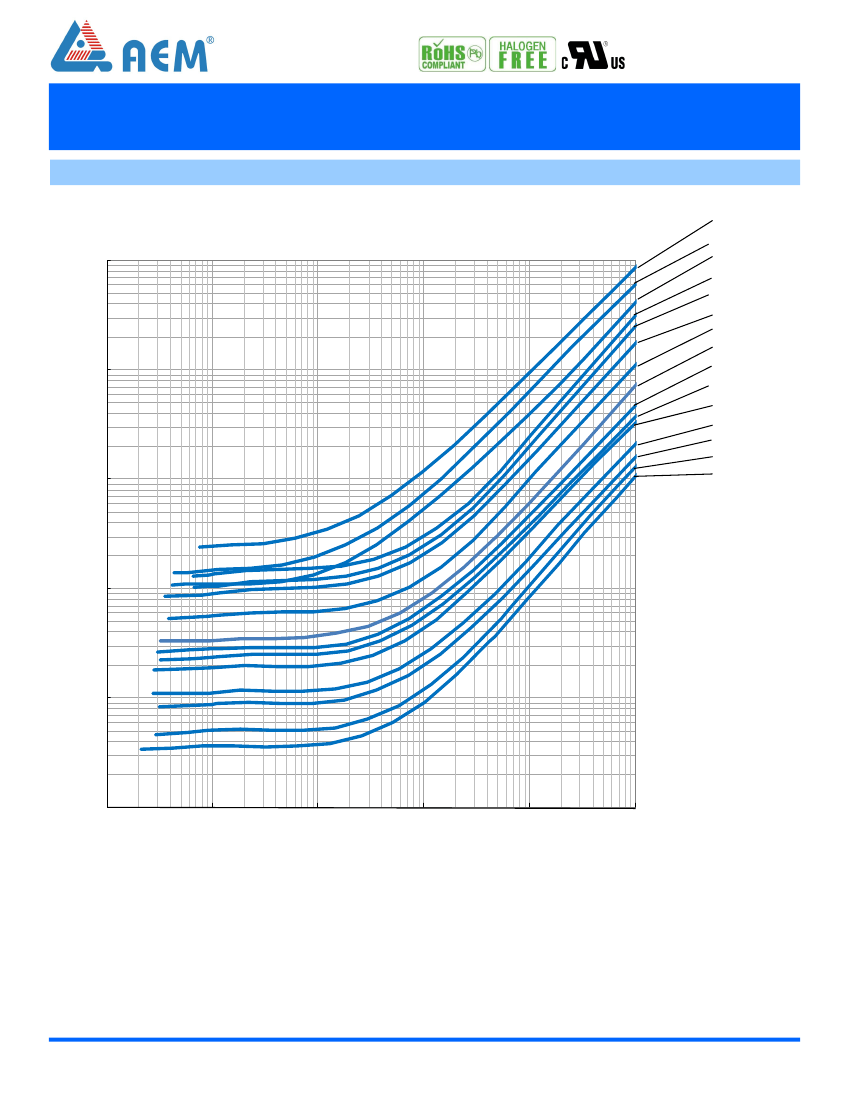

Average I
2
t vs. t Curves:
15.0A
12.0A
10.0A
8.00A
7.00A
6.30A
5.00A
4.00A
3.50A
3.15A
3.00A
2.50A
2.00A
1.60A
1.50A
10000
1000
I
2
t (A
2
s)
100
10
1
0.1
0.0001
0.001
0.01
0.1
1
10
Time (s)
Website:
www.aemchina.com & www.aemcomponents.com
Revision of March 2018
AirMatrix
®
Surface Mount Fuses
Product Identification:
AF2 1.00 V125 T M
(1)
(2)
(3) (4) (5)
(1) Series Code:
AF2
(2) Current Rating Code:
1.00—1.00A
(3) Voltage Rating Code:
V125—125VDC
(4) Package Code:
T
-
Tape & Reel, B
-
Bulk
(5) Marking Code:
M
-
With Marking
AF 1206 F 2.00 T M
(1)
(2) (3) (4) (5) (6)
(1) Series Code:
AF—AF Series, MF—MF Series
(2) Size Code:
Standard EIA Chip Sizes
(3) Time/Current Characteristic:
F
(4) Current Rating:
2.00—2.00A
(5) Package Code:
T
-
Tape & Reel, B
-
Bulk
(6) Marking Code:
M
-
With Marking

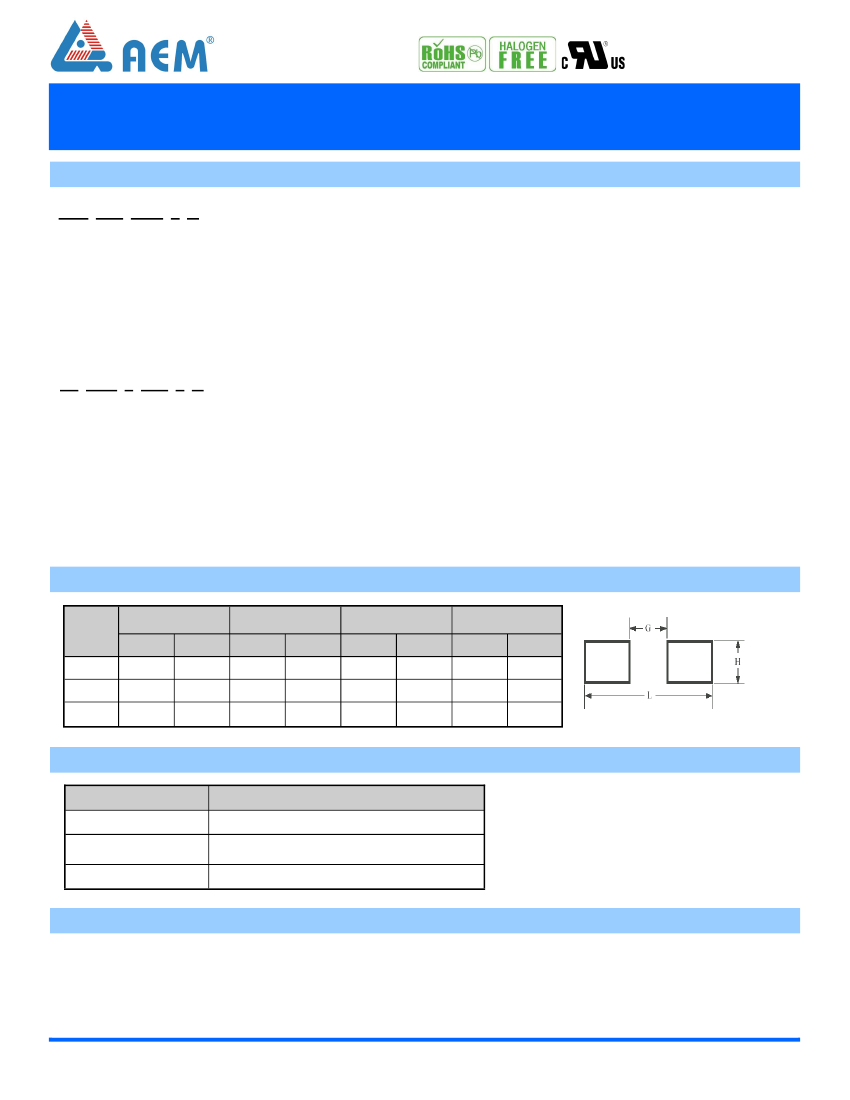

Recommended Land Pattern:
AF2
Inch
L
G
H
0.338
0.118
0.124
mm
8.60
3.00
3.15
AF1206
Inch
0.173
0.059
0.071
mm
4.40
1.50
1.80
MF2410
Inch
0.338
0.118
0.110
mm
8.60
3.00
2.80
MF1210
Inch
0.170
0.070
0.110
mm
4.40
1.70
2.70
Packaging:
Chip Size
2410 (6125)
1210
(3225)
1206 (3216)
Parts on 7 inch (178 mm) Reel
2,000
2,500
3,500
Storage:
The maximum ambient temperature shall not exceed 35°C . Storage temperatures higher than 35°C could result in the deformation
of packaging materials.
The maximum relative humidity recommended for storage is 75%. High humidity with high temperature can accelerate the oxidation
of the solder plating on the termination and reduce the solderability of the components.
Sealed vacuum foil bags with desiccant should only be opened prior to use.
Website:
www.aemchina.com & www.aemcomponents.com
