AirMatrix
®

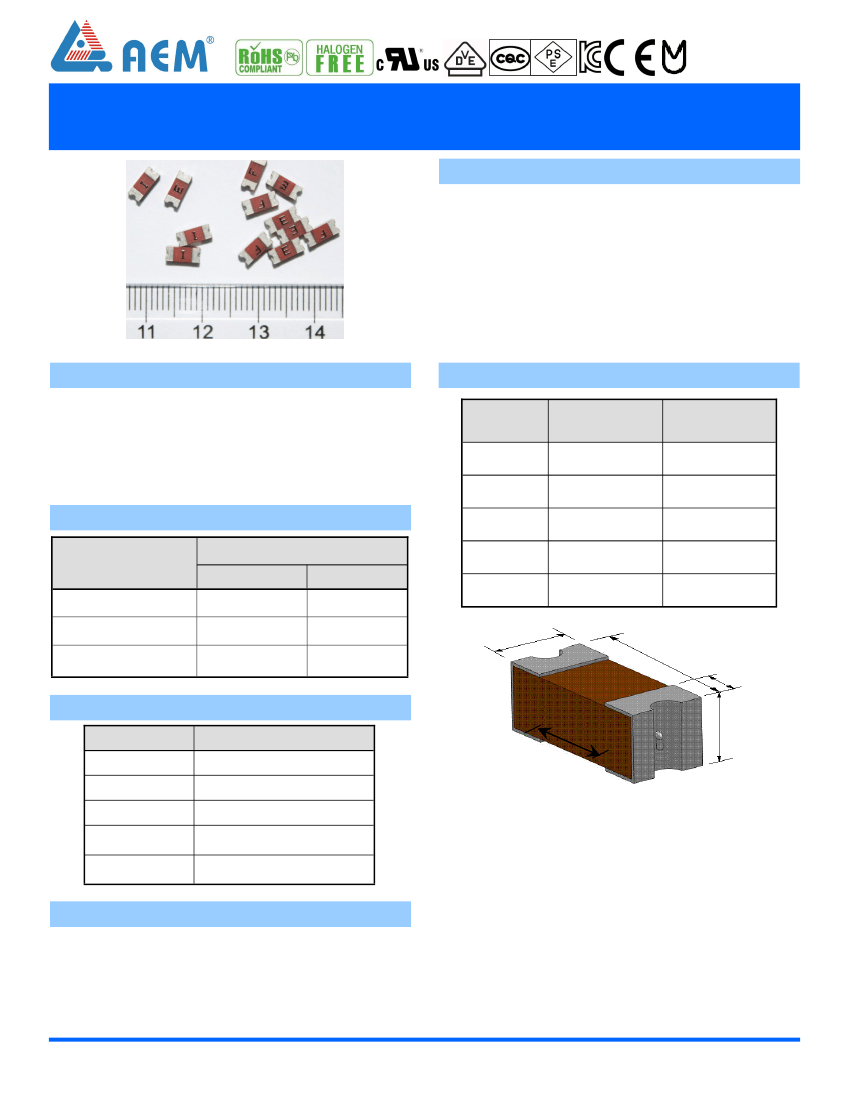

Surface Mount Fuses
MF Series, 2410 Size
Features:
Application Fields:
Lighting: Ballast, LED Drivers
Power: Chargers, Adapters, Power Boards
Medical Equipment
Indutrial Equipment
White Goods
Extremely small size with 250 VAC rating
Surface mount fuses in AC applications
Excellent inrush current withstanding capability
Fiberglass enforced epoxy fuse body
Copper termination with nickel and tin plating
100% lead-free
Operating temperature range: -55° to +125 ° (with de-
C
C
rating)
Compliant with IEC 60127-4
Shape and Dimensions:
Inch
L
W
H
BW
P
W
0.240 ± 0.006
0.098 ± 0.006
0.085 ± 0.008
0.053 ± 0.015
≥ 0.118
mm
6.10 ± 0.15
2.49 ± 0.15
2.16 ± 0.20
1.35 ± 0.38
≥ 3.00

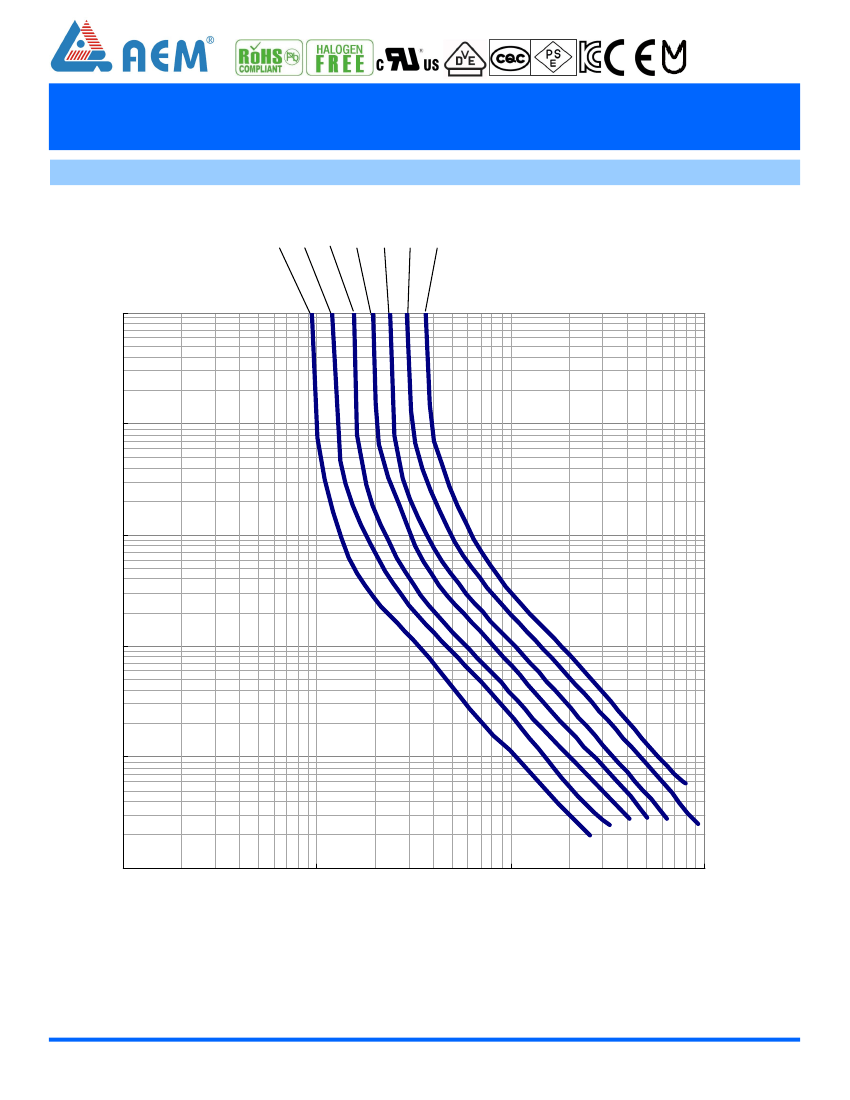

Clearing Time Characteristics:
%
of Current Rating
125%
200%
1000%
0.001 seconds
Clearing Time at 25°
C
Min.
1 hour
120 seconds
0.01 seconds
Max.
L
BW
Agency Approval:
Agency
UL
CQC
KC
PSE
VDE
File No.
E232989
CQC11012065956
SU05038-12001/12002
PSE12020434
40034853
P
H
Patents:
Patent numbers “ZL200810092353.3”, “ZL200910007157.6”,
“ZL201120450579.3”, “ZL201120536307.5”,
“ZL201220063222.4”, “ZL201110123326.X”.
Website:
www.aemchina.com & www.aemcomponents.com
54
Rev. Feb. 16
AirMatrix
®
Surface Mount Fuses
MF Series, 2410 Size
Ordering Information:
Part Number
MF2410F0.500TM
MF2410F0.630TM
MF2410F0.800TM
MF2410F1.000TM
MF2410F1.250TM
MF2410F1.600TM
MF2410F2.000TM
Current
Rating
(A)
0.50
0.63
0.80
1.00
1.25
1.60
2.00
Voltage
Rating
(VAC)
250
250
250
250
250
250
250
100 A @ 250
VAC
50 A @ 125
VDC
Interrupting
Ratings
Nominal
DCR (Ω)
0.206
0.148
0.109
0.084
0.065
0.049
0.038
Voltage Drop
Max. (mV)
166
144
139
129
128
127
123

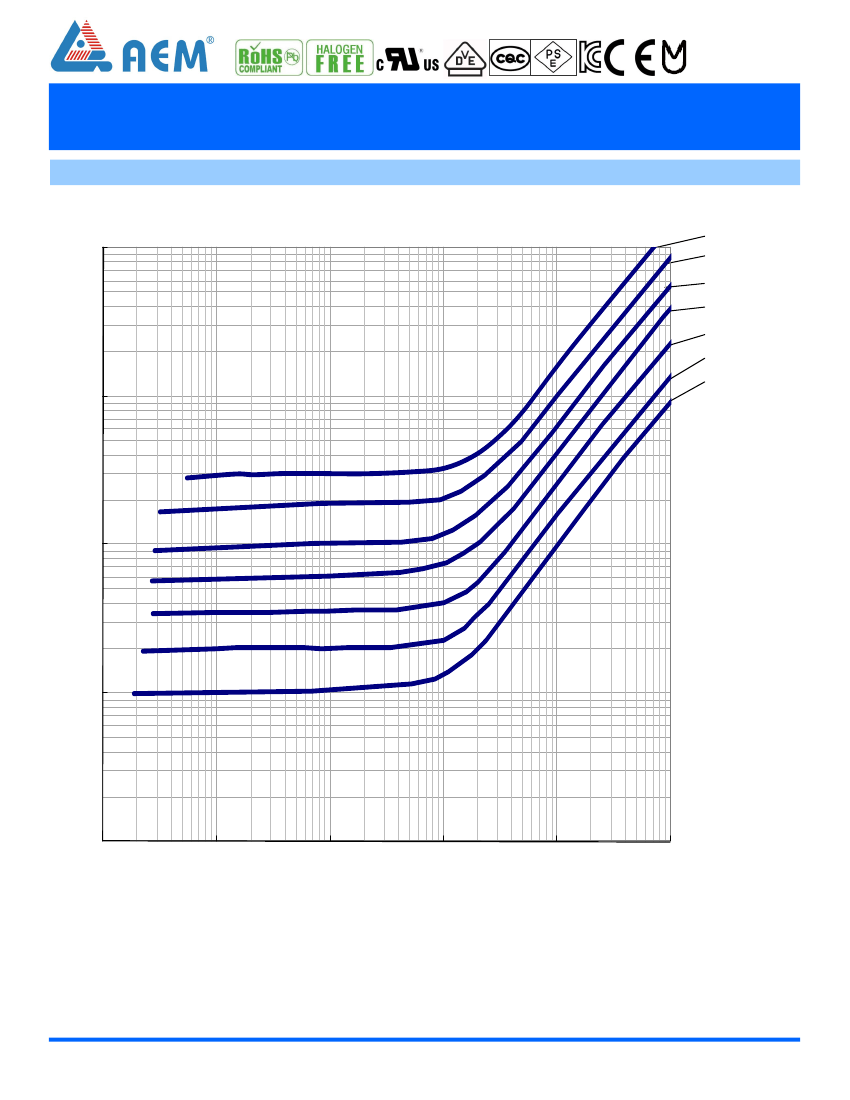

Nominal I
2
t
(A
2
s)
0.11
0.20
0.35
0.62
1.00
1.80
3.00
Marking
( Black )
C
S
H
E
F
T
I
Notes:
- Resistance is measured at
≤10%
of rated current and 25℃ ambient.
- Voltage drop is measured at 100% of rated current.
- Melting l
2
t is calculated at 0.001 second pre-arcing time.
55
Website:
www.aemchina.com & www.aemcomponents.com
