AirMatrix
®
Surface Mount Fuses
MF Series, 1210 Size
Features:
•
•
•
•
•
•
•
•
Typical Application:
•
•
•
•
•
Lighting and Driver
Low Voltage Power and Charger
Application
Industrial Equipment
White Goods
Extremely small size with VAC rating
Surface mount fuses in AC applications
Excellent inrush current withstanding capability
Operating temperature range:
-55°C
to +125°C (with de-
rating)
Fiberglass enforced epoxy fuse body
Copper termination with nickel and in plating
Halogen free, RoHS compliant
100% lead-free

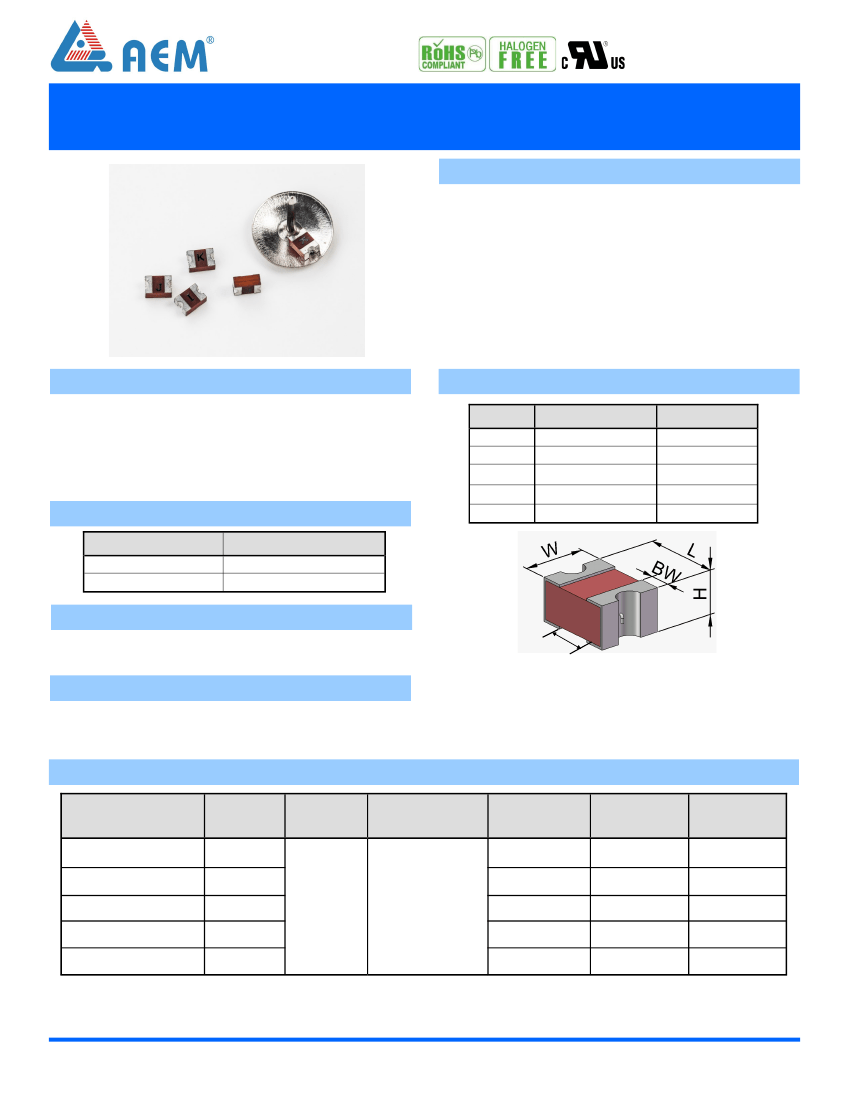

Shape and Dimensions:
Unit
L
W
H
BW
P
Inch
0.126 + 0.016/-0
0.098 ± 0.008
0.063 ± 0.008
0.033 ± 0.012
≥0.063
mm
3.20 + 0.40/-0
2.50 ± 0.20
1.60 ± 0.20
0.85 ± 0.30
≥1.6

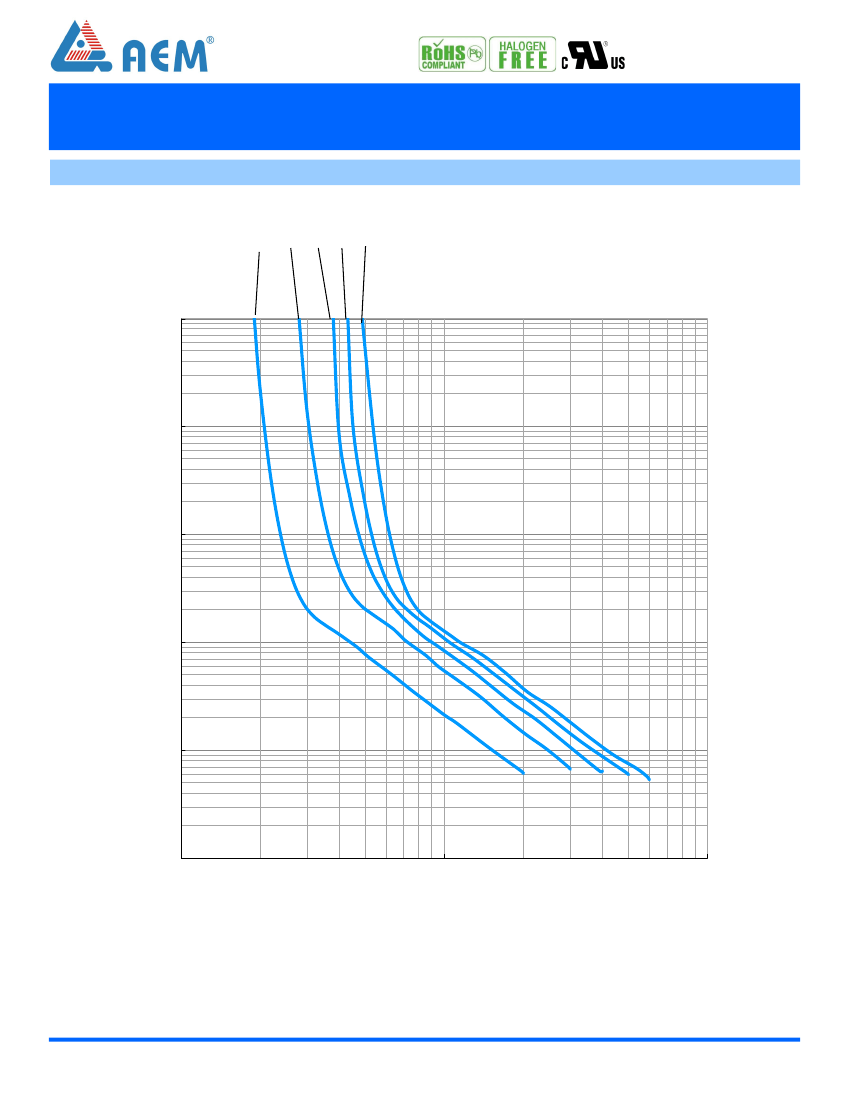

Clearing Time Characteristics:
% of current rating
100%
250%
Clearing time at 25°C
4 hours min.
5 seconds max.
Agency Approval:
Recognized Under the Components Program of UL.
File Number: E232989.
P
Patents:
Patent numbers “ZL200810092353.3”, “ZL200910007157.6”,
“ZL201120450579.3”, “ZL201120536307.5”,
“ZL201220063222.4”, “ZL201110123326.X”.
Ordering Information:
Part Number
MF1210F1.00TM
MF1210F1.50TM
MF1210F2.00TM
MF1210F2.50TM
MF1210F3.00TM
Current
Rating
(A)
1.00
1.50
2.00
2.50
3.00
125
100 A @ 125 VAC
100 A @ 65 VDC
Voltage
Rating
(VAC)
Interrupting
Ratings
Nominal Cold
DCR (Ω)
1
0.079
0.050
0.037
0.033
0.028

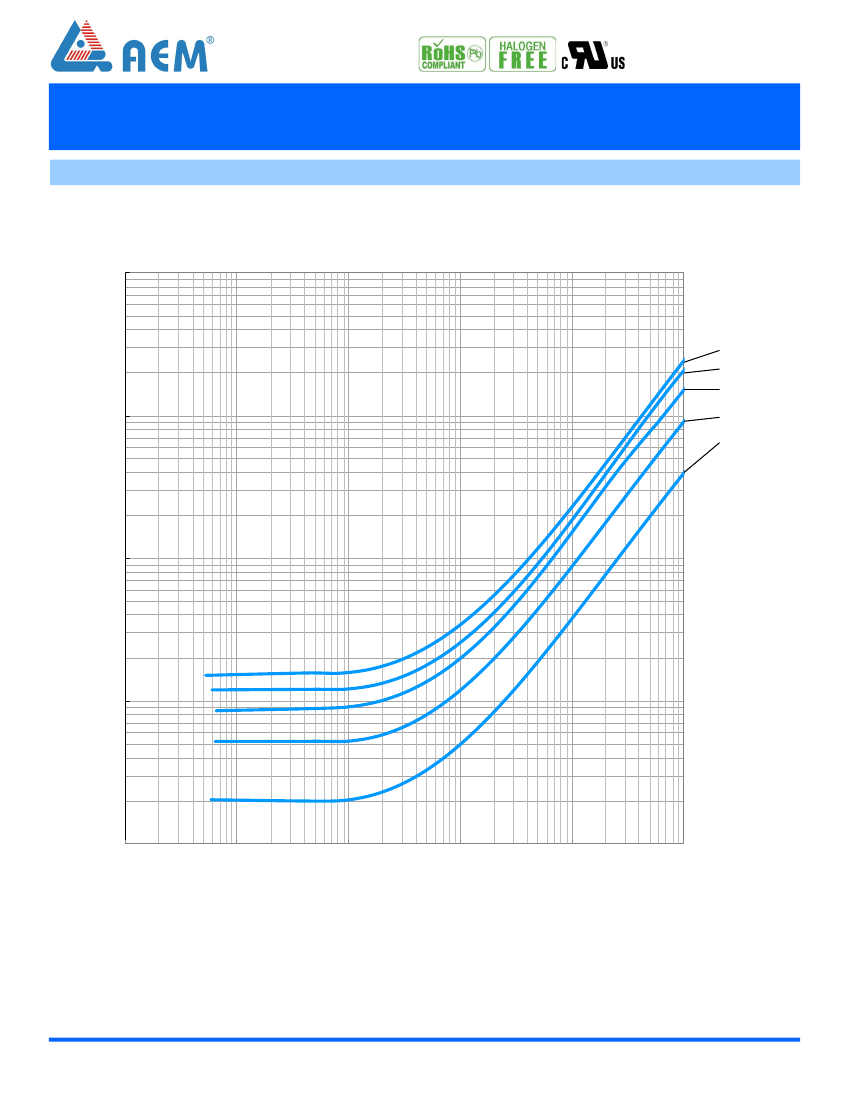

Nominal I
2
t
(A
2
s)
2
0.2
0.5
0.9
1.2
1.5
Marking
(Black)
E
G
I
J
K
Notes:
-
Resistance is measured at
≤10%
of rated current and 25℃ ambient.
-
I
2
t is measured at 0.001s.
Website:
www.aemchina.com & www.aemcomponents.com
Revision of March 2018
ESD Suppressors
Quick Index:
Series
GcDiode® ESD Suppressors
Surface Mount
ESD Suppressors
PeDiode® ESD Suppressors
ESD Suppressor Array
ESD Protection Diode
Surface Mount
TVS Diodes
Ultra Low Capacitance ESD
Protection Diode
ESD Protection Diode Array
Size
0603, 0402
0402
1004
0201
0402
0402
1004
Capacitance (1 GHz)
0.25 pF (typical)
0.05 pF (typical)
0.1 pF (typical)
3 pF (typical)
10 pF (typical)
0.3 pF (typical)
0.25 pF (typical)
Page
66
69
73
77
79
81
83
Website:
www.aemchina.com & www.aemcomponents.com
Revision of March 2018
AirMatrix
®
Surface Mount Fuses
Product Identification:
AF2 1.00 V125 T M
(1)
(2)
(3) (4) (5)
(1) Series Code:
AF2
(2) Current Rating Code:
1.00—1.00A
(3) Voltage Rating Code:
V125—125VDC
(4) Package Code:
T
-
Tape & Reel, B
-
Bulk
(5) Marking Code:
M
-
With Marking
AF 1206 F 2.00 T M
(1)
(2) (3) (4) (5) (6)
(1) Series Code:
AF—AF Series, MF—MF Series
(2) Size Code:
Standard EIA Chip Sizes
(3) Time/Current Characteristic:
F
(4) Current Rating:
2.00—2.00A
(5) Package Code:
T
-
Tape & Reel, B
-
Bulk
(6) Marking Code:
M
-
With Marking

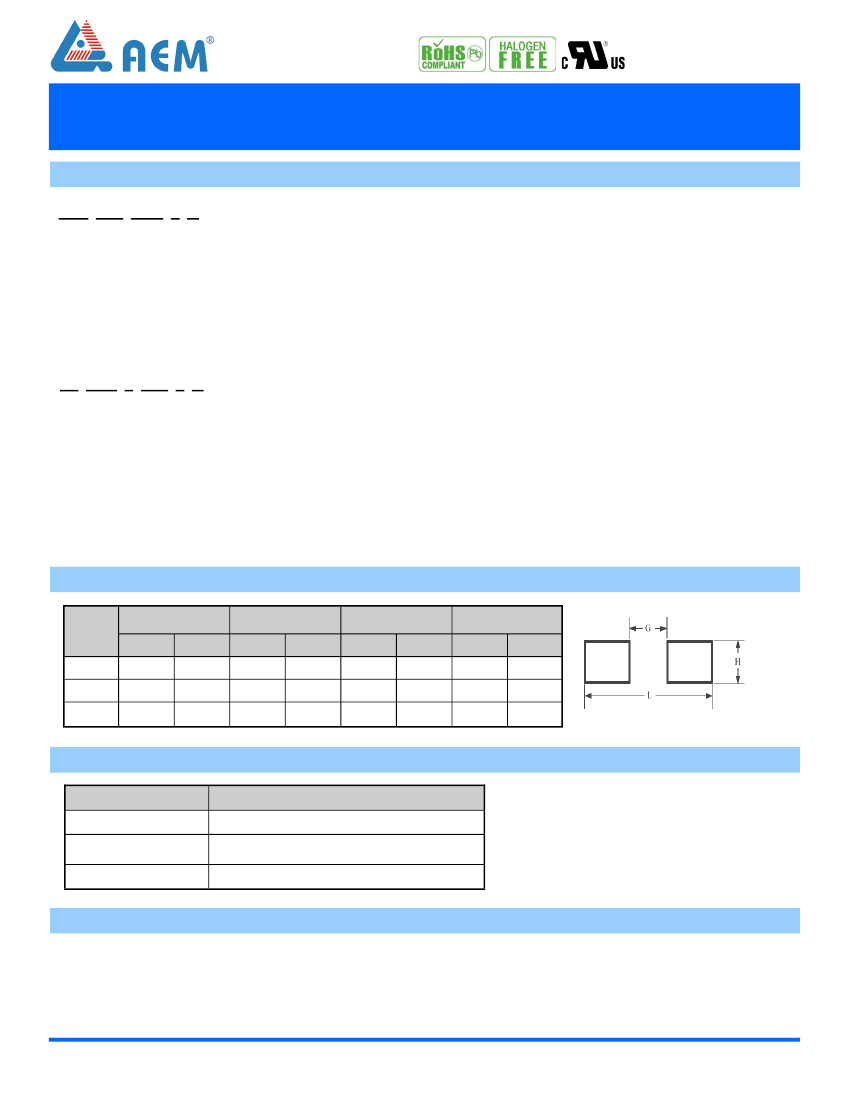

Recommended Land Pattern:
AF2
Inch
L
G
H
0.338
0.118
0.124
mm
8.60
3.00
3.15
AF1206
Inch
0.173
0.059
0.071
mm
4.40
1.50
1.80
MF2410
Inch
0.338
0.118
0.110
mm
8.60
3.00
2.80
MF1210
Inch
0.170
0.070
0.110
mm
4.40
1.70
2.70
Packaging:
Chip Size
2410 (6125)
1210
(3225)
1206 (3216)
Parts on 7 inch (178 mm) Reel
2,000
2,500
3,500
Storage:
The maximum ambient temperature shall not exceed 35°C . Storage temperatures higher than 35°C could result in the deformation
of packaging materials.
The maximum relative humidity recommended for storage is 75%. High humidity with high temperature can accelerate the oxidation
of the solder plating on the termination and reduce the solderability of the components.
Sealed vacuum foil bags with desiccant should only be opened prior to use.
Website:
www.aemchina.com & www.aemcomponents.com
