AirMatrix
®
Surface Mount Fuses
AF Series, 2410 Size
Features:
Application Fields:
Power Supply, e.g. DC/DC converters, DC/AC inverters,
Backlight drivers , etc.
Consumer Electronics, e.g. LCD TVs, PDP, DVDs, PCM ,
etc.
Communication Technology, e.g. Telecom systems,
Networking, Modems, Routers, Changers, Base stations ,
etc.
Office Automation Electronics
IT Products, e.g. LCD monitors, Notebooks, PC servers,
etc.
Fast acting at 200% overload current level
Excellent inrush current withstanding capability
Fiberglass enforced epoxy fuse body
Copper or copper alloy composite fuse link
Copper termination with nickel and tin plating
Halogen free, RoHS compliant and 100% lead-free
Operating temperature range: -55°C to +125°C (with de-
rating)

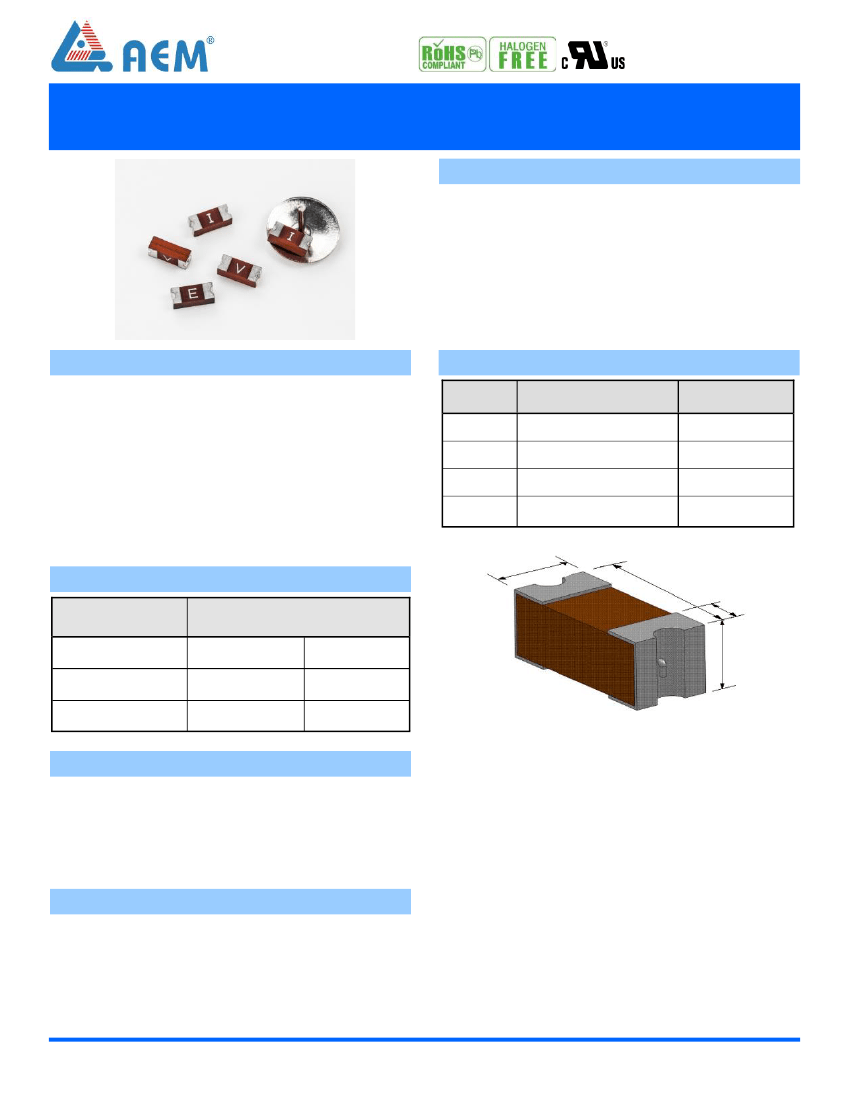

Shape and Dimensions:
Unit
L
W
T
B
Inch
0.240 ± 0.006
0.098 ± 0.006
0.085 ± 0.008
0.053 ± 0.015
mm
6.10 ± 0.15
2.49 ± 0.15
2.16 ± 0.20
1.35 ± 0.38
W
Clearing Time Characteristics:
%
of Current Rating
100%
200%(0.50~10.0 A)
200%(12.0~20.0 A)
L
B
Clearing Time at 25°C
4 hours min.
0.01 seconds min.
0.01 seconds min.
5 seconds max.
20 seconds max.
T
Agency Approval:
Recognized Under the Components Program of
Underwriters Laboratories. File Number: E232989
PSE Certificate No: NBK180711-JP13710
TUV File Number: 50209083
CQC No.: CQC11012065955
Patents:
Patent numbers “ZL200810092353.3”, “ZL200910007157.6”,
“ZL201120450579.3”, “ZL201120536307.5”,
“ZL201220063222.4”, “ZL201110123326.X”.
55
Website:
www.aemchina.com & www.aemcomponents.com
Revision of January 2018
AirMatrix
®
Surface Mount Fuses
Product Identification:
AF2 1.00 V125 T M
(1)
(2) (3) (4) (5)
(1) Series Code:
AF2
(2) Current Rating Code:
1.00—1.00A
(3) Voltage Rating Code:
V125—125VDC
(4) Package Code:
T - Tape & Reel, B - Bulk
(5) Marking Code:
M - With Marking
AF 1206 F 2.00 T M
(1) (2) (3) (4) (5) (6)
(1) Series Code:
AF—AF Series, MF—MF Series
(2) Size Code:
Standard EIA Chip Sizes
(3) Time/Current Characteristic:
F
(4) Current Rating:
2.00—2.00A
(5) Package Code:
T - Tape & Reel, B - Bulk
(6) Marking Code:
M - With Marking
Recommended Land Pattern:
AF2
Inch
L
G
H
0.338
0.118
0.124
mm
8.60
3.00
3.15
AF1206
Inch
0.173
0.059
0.071
mm
4.40
1.50
1.80
MF2410
Inch
0.338
0.118
0.110
mm
8.60
3.00
2.80
MF1210
Inch
0.170
0.070
0.110
mm
4.40
1.70
2.70
Packaging:
Chip Size
2410 (6125)
1210
(3225)
1206 (3216)
Parts on 7 inch (178 mm) Reel
2,000
2,500
3,500
Storage:
The maximum ambient temperature shall not exceed 35°C . Storage temperatures higher than 35°C could result in the deformation
of packaging materials.
The maximum relative humidity recommended for storage is 75%. High humidity with high temperature can accelerate the oxidation
of the solder plating on the termination and reduce the solderability of the components.
Sealed vacuum foil bags with desiccant should only be opened prior to use.
The products should not be stored in areas where harmful gases containing sulfur or chlorine are present.
Website:
www.aemchina.com & www.aemcomponents.com
