SKPS Series - Basic information
Contact Resistance Type (Surface Mount Type) SKPS
Series
Type
Operating force
Operating direction
Travel
Operating life
(5mA 5V DC)
Initial contact resistance
Series type
Operating temperature range
Rating (max.)
Rating (min.)
Electrical
performance
Surface mount
3N
Top push
1.05mm
300,000 cycles
100mΩ max.
Soft feeling type
-40℃ to +90℃
50mA 16V DC
10μA 1V DC
Insulation resistance 100MΩ min. 100V DC for 1min.
Voltage proof
250V AC for 1min.
10 to 55 to 10Hz/min., the amplitude is 1.5mm for all the
frequencies, in the 3 direction of X, Y and Z for 2 hours
respectively
-40℃ 1,000h
90℃ 1,000h
60℃, 90 to 95%RH 1,000h
2,000
2,000
Durability
Vibration
Environmental
performance
Cold
Dry heat
Damp heat
Minimum order unit Japan
(pcs.)
Export

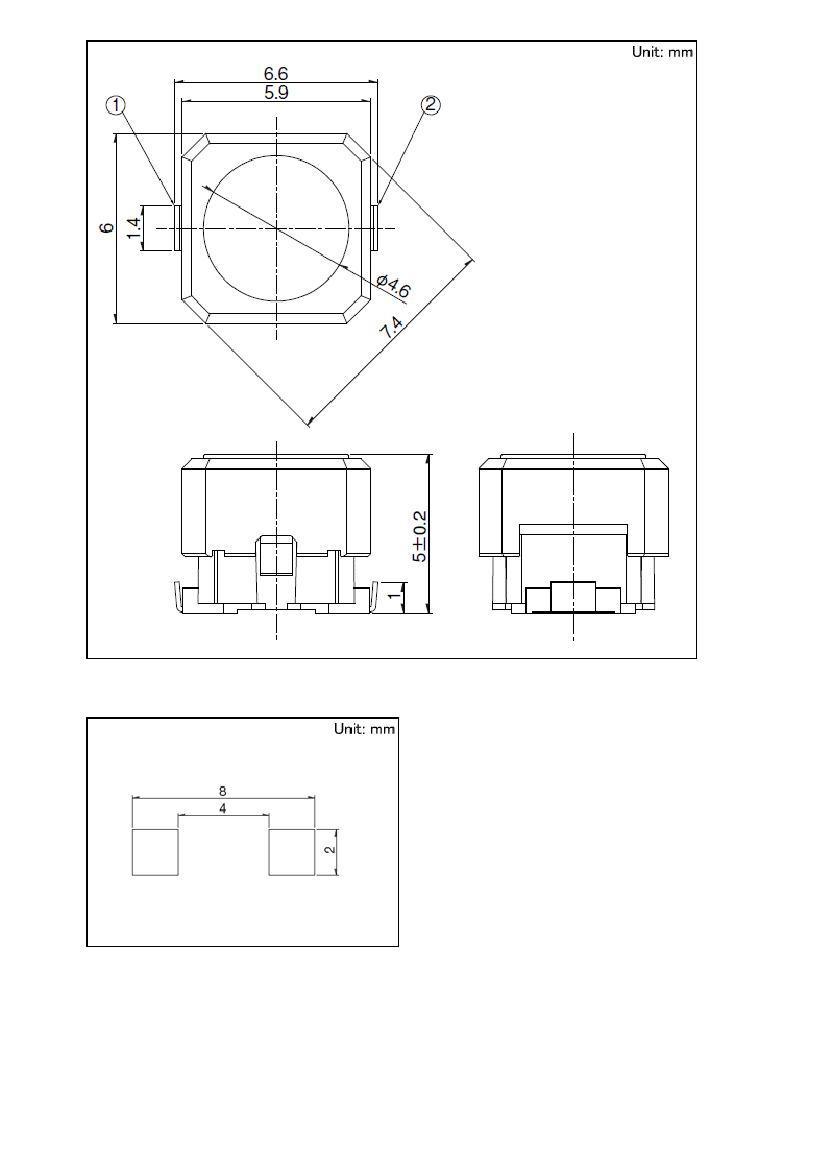

Dimensions
https://www.alps.com/prod/info/E/HTML/Tact/SurfaceMount/SKPS/SKPSACE010.html
1/4
2018/12/27
SKPS Series - Basic information
Packing Specifications
Taping
Number of packages 1 reel
(pcs.)
1 case / Japan
1 case / export
packing
Tape width (mm)
Export package measurements (mm)
2,000
20,000
20,000
12
395×395×205
Soldering Conditions
Condition for Reflow
1. Heating method
Double heating method with infrared heater.
2. Temperature measurement
Thermocouple 0.1 to 0.2 Φ CA(K) or CC(T) at solder joints (copper foil surface). A heat resisting tape
should be used for fix measurement.
3. Temperature profile
https://www.alps.com/prod/info/E/HTML/Tact/SurfaceMount/SKPS/SKPSACE010.html
3/4
2018/12/27
SKPS Series - Basic information
(1) The above temperature shall be measured of the top of switch. There are cases where PC board's
temperature greatly differs from that of the switch, depending on the material, size, thickness of PC
board's and others. Care, should be taken to prevent the switch's surface temperature from exceeding
260℃.
(2) Soldering conditions differ depending on reflow soldering machines. Prior verification of soldering
condition is highly recommended.
Manual Soldering
Items
Soldering temperature
Duration of soldering
Capacity of soldering iron
1.
2.
3.
4.
Condition
350℃ max.
3s max.
15W max.
Do not washing the TACT Switch™.
Prevent flux penetration from the top side of the TACT switch™.
Switch terminals and a PC board should not be coated with flux prior to soldering.
The second soldering should be done after the switch returns to normal temperature.
Notes are common to this series/models.
1. This site catalog shows only outline specifications. When using the products, please obtain formal
specifications for supply.
2. Please place purchase orders for taping products per minimum order unit (1 reel or a case).
3. For φ330mm diameter reel requirements, please contact us.
4. This products can be used in vehicles.
Although these products are designed to perform over a wide operating temperature range, please
ensure that you receive and read the formal delivery specifications before use.
https://www.alps.com/prod/info/E/HTML/Tact/SurfaceMount/SKPS/SKPSACE010.html
4/4
