RKJXM1015004 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > accessories> Multi-function switch> RKJXM1015004

RKJXM1015004: DescriptionEight-directional rocker switch with center push (switch) function, old model RKJXM1015001; Categoryaccessories Multi-function switch; File Size309KB，3 Pages; ManufacturerALPS; Websitehttp://www.alps.com/

Download Datasheet View All

RKJXM1015004 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	RKJXM1015004	-	-	View	Buy Now

RKJXM1015004 Overview

Eight-directional rocker switch with center push (switch) function, old model RKJXM1015001

Preview

Download Datasheet

View All

2018/7/13

RKJXM系列½基本信息

8方向棒式开关(附带中央按钮功½) RKJXM系列

操½½数

½材质

杆式开关部分

接触电阻

动½角度

（8方向）

行程

（中心按动）

½用温度范围

最大额定(电阻负荷)

电性½

方向分辨率

绝缘电阻

耐电压

机械性½

方向动½力

8方向 & 中心按动

1½

金属

1Ω max.

A, B, C, D 方向: 10° max.

AB, BC, CD, DA 方向: 12° max.

0.3±0.2mm

-40℃ to +85℃

10mA 5V DC

8方向

100MΩ min. 250V DC

300V AC for 1 minute or 360V AC for 2s

A, B, C, D方向30±20mN·m

Direction AB, BC, CD, DA 25±20mN·m

3±1.5N

推拉方向

动½方向

100N (Push), 50N (Pull)

0.3N·m

8方向合计 100,000 cycles

100,000 cycles

-40±2℃ for 500h

85±2℃ for 500h

60±2℃, 90 to 95%RH for 500h

1,000

2,000

按动½力

操½部强度

耐久性½

操½寿½

方向

中心按动

耐环境性½

耐寒性½

耐热性½

耐湿性½

最小订货单½(pcs.)

日本

出口

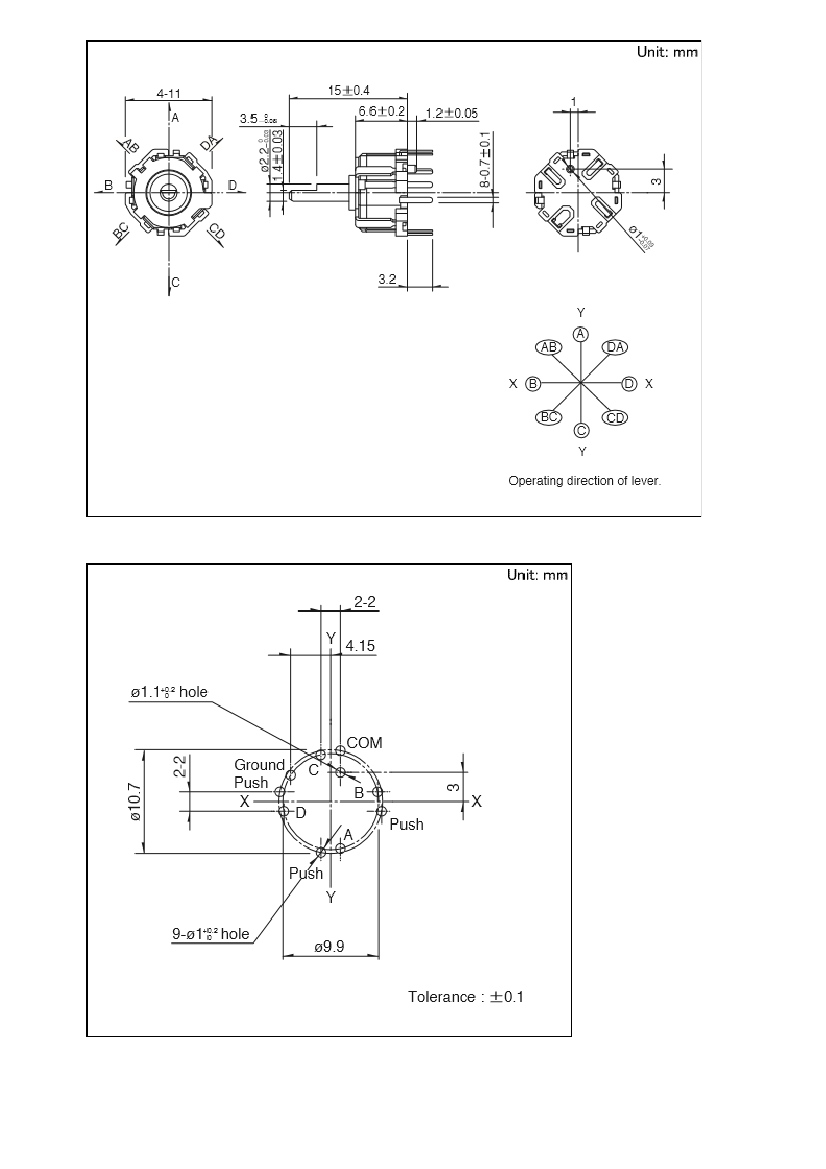

外½图

https://www.alps.com/prod/info/C/HTML/MultiControl/Switch/RKJXM/RKJXM1015004.html

1/3
