SDDJE11200 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > accessories> Ship type switch> SDDJE11200

SDDJE11200: DescriptionCircuit Structure: SPST Actuator Marking: O - Rated Current: 10A (AC) Actuator Type: Concave (Curved) Switching Function: On-Off; Categoryaccessories Ship type switch; File Size557KB，3 Pages; ManufacturerALPS; Websitehttp://www.alps.com/

Download Datasheet Parametric View All

SDDJE11200 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	SDDJE11200	-	-	View	Buy Now

SDDJE11200 Overview

Circuit Structure: SPST Actuator Marking: O - Rated Current: 10A (AC) Actuator Type: Concave (Curved) Switching Function: On-Off

SDDJE11200 Parametric

Parameter Name	Attribute value
Intrusion protection	-
Circuit configuration	SPST
Actuator logo	O -
Color - Actuator/Cap	Black
Rated current	10A (AC)
Installation type	Panel Mount, Snap-In
lighting type, color	-
Rated voltage - AC	125/250V
Rated voltage - DC	-
Actuator type	Concave (Curved)
Terminal type	For Lead
switch function	On-Off

Preview

Download Datasheet

View All

2018/9/5

SDDJE Series - Basic information

10A 250V AC Qualiﬁed Type SDDJE Series

Type

Circuit arrangement

Travel

Operating force

Mounting method

Terminal type

Frame

Marking (knob)

C-UL-US

SEMKO

VDE

Ratings satisfying local electrical appliance and material safety

law

Operating temperature range

Rating

Electrical

performance

Contact resistance

Insulation resistance

Voltage proof

Mechanical

performance

Terminal strength

Rocker

SPST

3.4mm

3±2N

Snap-in

For Lead

Without

-, O mark

10AGP 250V AC

6A/96A 250V~, 10(6)/250~

125V 10A‡

-10℃ to +55℃

10AGP 250V AC, 6A/96A 250V~

100mΩ max.

500MΩ min. 500V DC

2,000V AC for 1 minute

50N for 1 minute (lead terminal)

5N for 1 minute (right-angle terminal)

Operating direction

Perpendicular

direction

25N

Actuator strength

Durability

Operating life

10,000 cycles 10A 250V AC

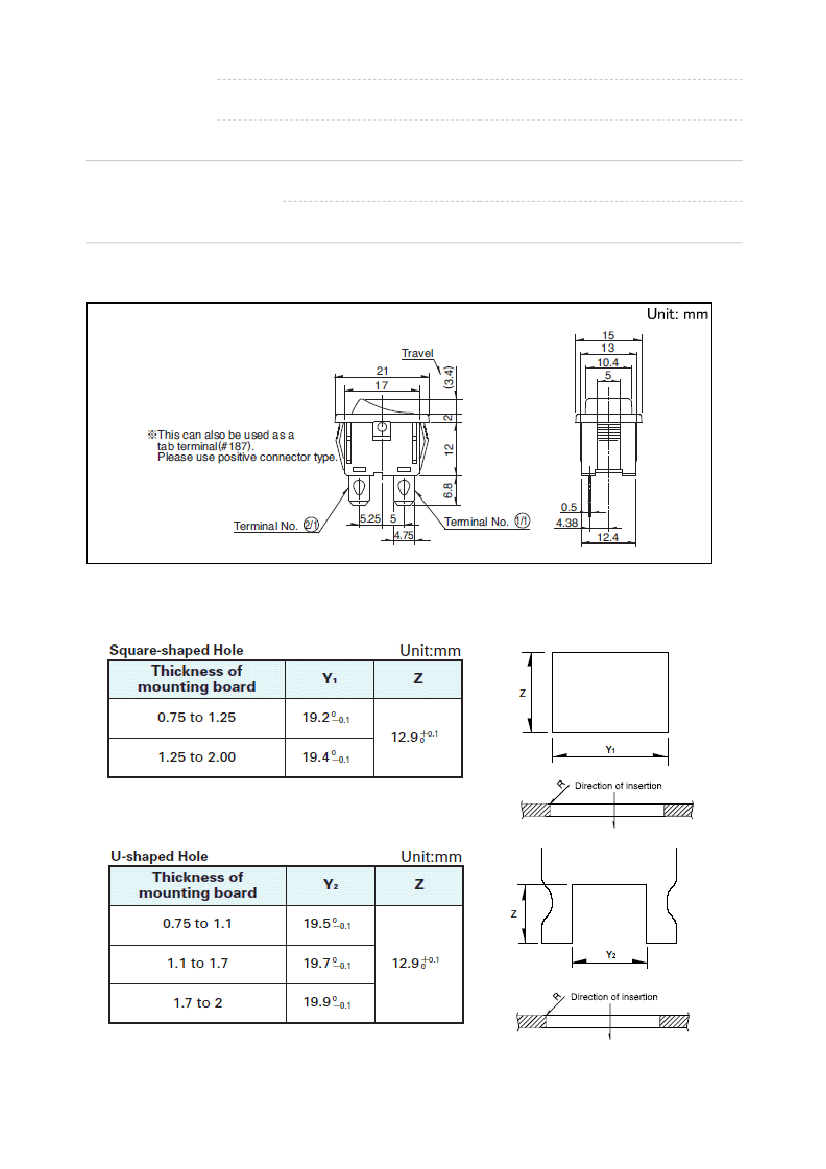

1/3

https://www.alps.com/prod/info/E/HTML/Switch/Power/SDDJE/SDDJE11200.html
