SKRH Series - Basic information
4-direction Type with Center-push Function (Surface
Mount) SKRH Series
Type
Operating force
4-direction
Center push
Travel
4-direction
Center push
Operating life
(5mA 5V DC)
Initial contact resistance
Stem color
Guide bosses
Operating temperature range
Ratings (max.)/(min.) (Resistive load)
Electrical
performance
Directional resolution
Insulation resistance
Voltage proof
Mechanical
performance
Directional operating force
Push operating force
Actuator strength
Durability
Environmental
performance
Operating life
Cold
Dry heat
Damp heat
Minimum order unit (pcs.)
Japan
Operating direction
Center push
Surface mount
1.2N
2.35N
0.25mm
0.15mm
1,000,000 cycles for each direction
100mΩ max.
Natural
Without
-40℃ to +85℃
50mA 12V DC/10µA 1V DC
4-direction
100MΩ min. 100V DC
100V AC for 1 minute
1.2±0.69N
2.35±0.69N
29.4N
1,000,000 cycles
-40±2℃ for 96h
90±2℃ for 96h
60±2℃, 90 to 95%RH for 96h
1,300
http://www.alps.com/prod/info/E/HTML/MultiControl/Switch/SKRH/SKRHACE010.html
1/4
2018/3/30
SKRH Series - Basic information
Export
1,300

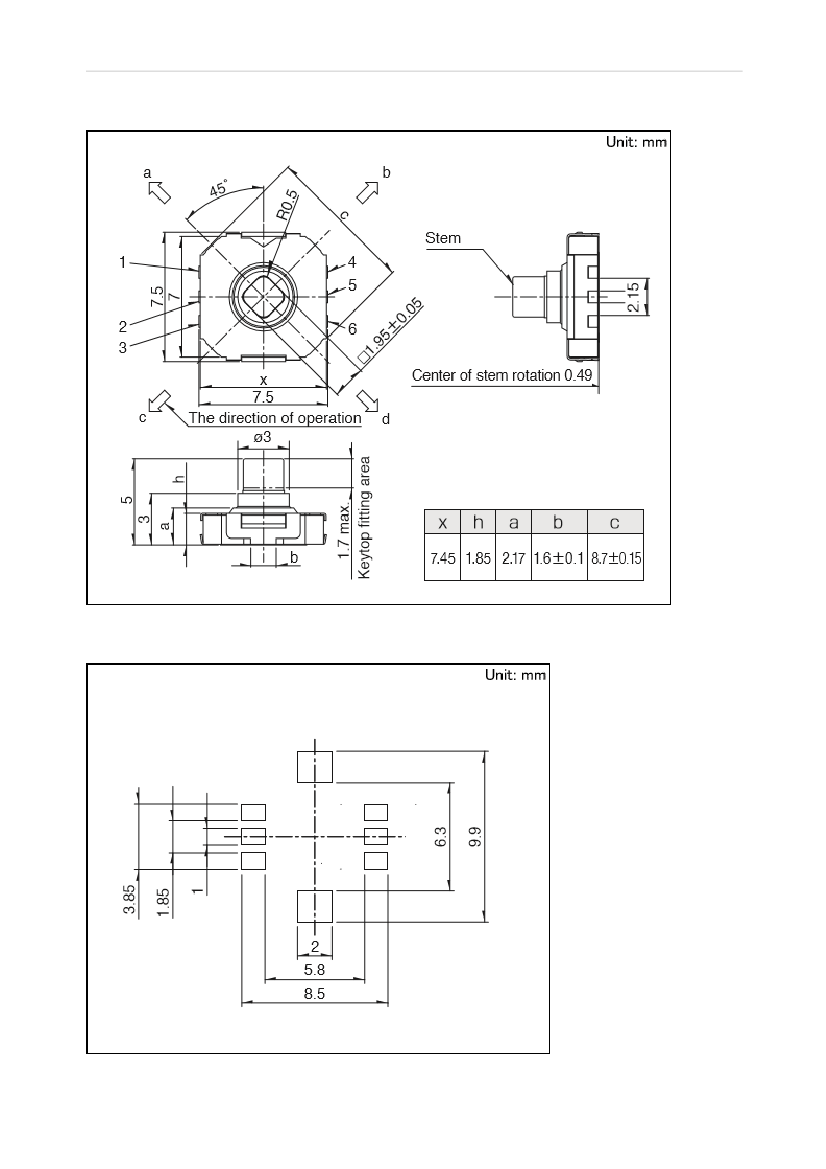

Dimensions
Land Dimensions
Viewed from mounting face
Circuit Diagram
http://www.alps.com/prod/info/E/HTML/MultiControl/Switch/SKRH/SKRHACE010.html
2/4
2018/3/30
SKRH Series - Basic information
Packing Specifications
Taping
Number of packages 1 reel
(pcs.)
1 case / Japan
1 case / export
packing
Tape width (mm)
Export package measurements (mm)
1,300
10,400
10,400
16
401×401×214
Soldering Condition
Example of Reflow Soldering Condition
1. Heating method:
Double heating method with infrared heater.
2. Temperature measurement:
Thermocouple 0.1 to 0.2 Φ CA (K) or CC (T) at solder joints (copper foil surface). A heat resisting tape
should be used to fix thermocouple.
3. Temperature profile
http://www.alps.com/prod/info/E/HTML/MultiControl/Switch/SKRH/SKRHACE010.html
3/4
2018/3/30
SKRH Series - Basic information
A
260℃
B
230℃
C
180℃
D
150℃
E
2 min.
F
-
G
-
H
40s
I
-
No. of reflows
1 time
(1) The condition mentioned above is the temperature on the mounting surface of a PC board. There are
cases where the PC board's temperature greatly differs from that of the switch, depending on the PC
board's material, size, thickness, etc. The above-stated conditions shall also apply to switch surface
temperatures.
(2) Soldering conditions differ depending on reflow soldering machines. Prior verification of soldering
condition is highly recommended.
Reference for Hand Soldering
Tip temperature
Soldering time
No. of solders
350±5℃
3s max.
1 time
Notes are common to this series/models.
1. This site catalog shows only outline specifications. When using the products, please obtain formal
specifications for supply.
2. 4-directional operating force and travel are measured at 4.3mm height from the bottom of the switch.
3. Please place purchase orders for taping products per minimum order unit (1 reel or a case).
http://www.alps.com/prod/info/E/HTML/MultiControl/Switch/SKRH/SKRHACE010.html
4/4
