REVISIONS
REV
B1
ECO
-
DESCRIPTION
RELEASED DRAWING
DATE
BY
APPR
JAN-18-2014 ARROW TOMMY

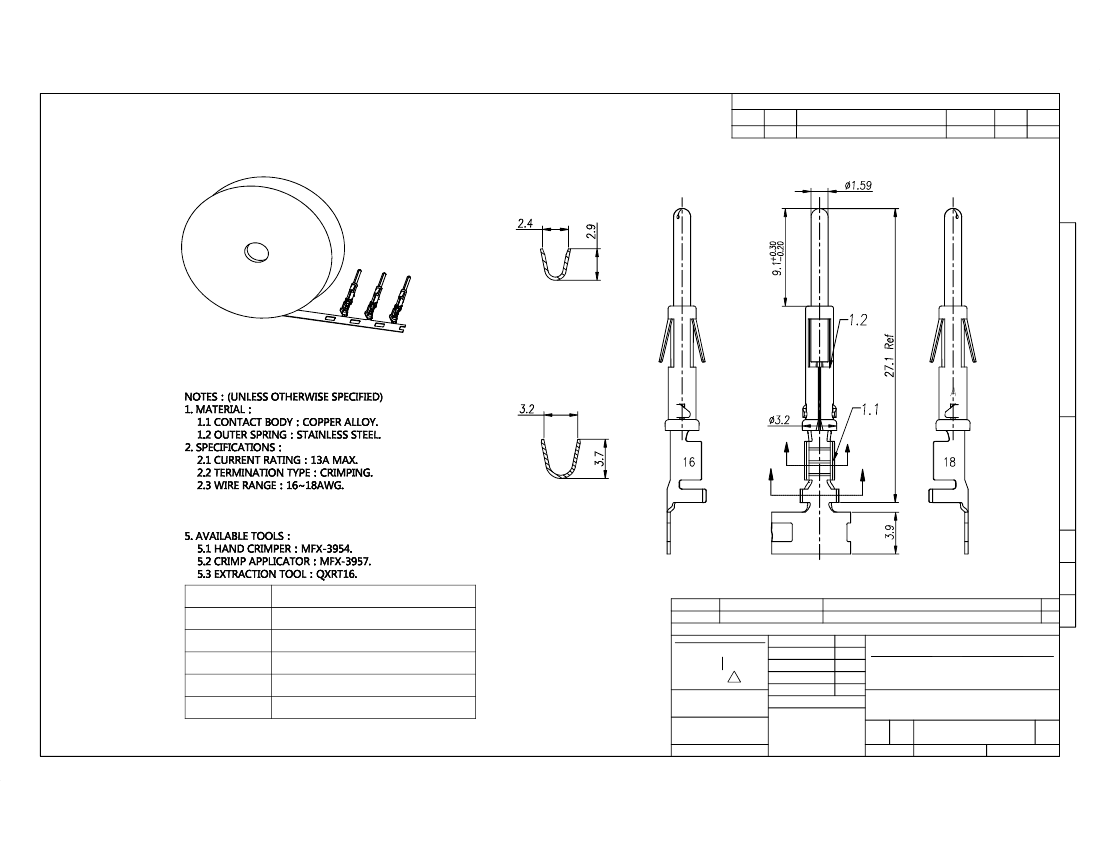

TITLE:
ECO-MATE,PIN CONTACT, STAMPED,16-18AWG, SIZE 16
SECTION A-A
CONTACT ORIENTATION ON ROLL
DWG NO:
A
B
2.4 WIRE INSULATION DIA(MAX):Ø3.2mm.
3. ROHS COMPLIANT.
4. ALL DIMENSIONS ARE FOR REFERENCE USE ONLY.
A
B
SP16M1XX
SECTION B-B
REV:
B1
SH:
1
P/N
SP16M1T
SP16M1F
SP16M1G10
SP16M1G15
SP16M1G30
CONTACT PLATING(MATING AREA)
TIN PLATING OVER NICKEL.
GOLD FLASH PLATING OVER NICKEL.
10μ"GOLD PLATING OVER NICKEL.
15μ"GOLD PLATING OVER NICKEL.
30μ"GOLD PLATING OVER NICKEL.
PROCESS SPECIFICATIONS:
OF:
QUANTITY
DESCRIPTION
PART NUMBER
MATERIALS LIST
SIGNATURES
DRAWN:
CHECKED:
ENGINEER:
APPROVAL:
ITEM
1
UNLESS OTHERWISE SPECIFIED
1)
2)
1
2
3
All dimensions are in metric(mm).
Tolerances are as follows:
PL DEC ±0.30
Fractions ±1/64
PL DEC ±0.15
Angles ±1°
PL DEC ±0.08
DATE
ARROW
JAN-17-2014
Amphenol
Sine Systems - www.amphenol-sine.com
44724 Morley Drive
Clinton Township, MI 48036
3) Note reference =
X
MATERIAL SPECIFICATIONS:
CUSTOMER:
THIS DRAWING IS SUPPLIED FOR
INFORMATION ONLY. DESIGN FEATURES,
SPECIFICATIONS AND PERFORMANCE DATA SIZE
SHOWN HEREON ARE THE PROPERTY OF
THE AMPHENOL CORPORATION. NO RIGHTS
OF REPRODUCTION ARE IMPLIED. ALL
DIMENSIONS ARE SUBJECT TO NORMAL
SCALE:
MANUFACTURING VARIATIONS.
ECO-MATE,PIN CONTACT
STAMPED, 16-18AWG, SIZE 16
TYPE
DWG NO:
REVISION
B
C-
SP16M1XX
SHEET
B1
1
OF
NEXT ASS'Y:
NONE
1
