1
2
3
4
REV.
A
5
ECN NO.
Initial Release
6
DATE
2014/07/31
SIGN
Cary
7
DESCRIPTION
Change To Rev.A
8
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. IT IS CONFIDENTIAL AND A
F
T
A
L
W
CONFIDENTIAL
2014-07-31
R&D DEPT.
E

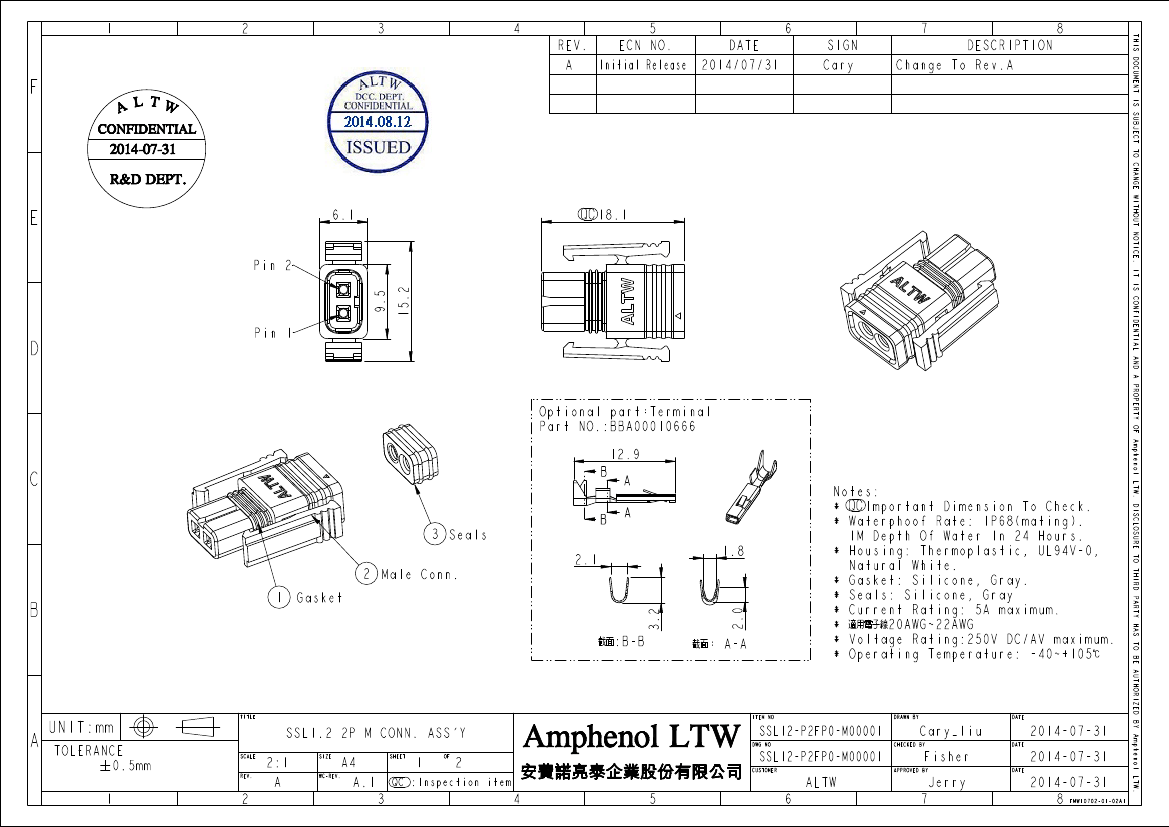

Pin 2
6.1
QC
18.1
D
Pin 1
15.2
9.5
PROPERTY OF Amphenol LTW. DISCLOSURE TO THIRD PARTY HAS TO BE AUTHORIZED BY
Optional part：Terminal
Part NO.:BBA00010666
12.9
C
3 Seals
2.1
2 Male Conn.
1
Gasket
截面:B-B
3.2
2.0
1.8
B
截面： A-A
Notes:
QC
* Important Dimension To Check.
* Waterphoof Rate: IP68(mating).
1M Depth Of Water In 24 Hours.
* Housing: Thermoplastic, UL94V-0,
Natural White.
* Gasket: Silicone, Gray.
* Seals: Silicone, Gray
* Current Rating: 5A maximum.
* 適用電子線20AWG~22AWG
* Voltage Rating:250V DC/AV maximum.
* Operating Temperature: -40~+105℃
A
UNIT:mm
TOLERANCE
# 0.5mm
1
TITLE
SSL1.2 2P M CONN. ASS'Y
SCALE
2:1
A
SIZE
A4
A.1
3
SHEET
1
OF
Amphenol LTW
4
5
ITEM NO
DRAWN BY
DATE
SSL12-P2FP0-M00001
DWG NO
Cary_liu
CHECKED BY
DATE
2014-07-31
2014-07-31
DATE
Amphenol LTW.
2
SSL12-P2FP0-M00001
CUSTOMER
Fisher
APPROVED BY
REV.
WC-REV.
QC :Inspection item
ALTW
6
7
Jerry
2
2014-07-31
8
FMW10702-01-02A1
1
2
3
4
5
6
7
8
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. IT IS CONFIDENTIAL AND A
F

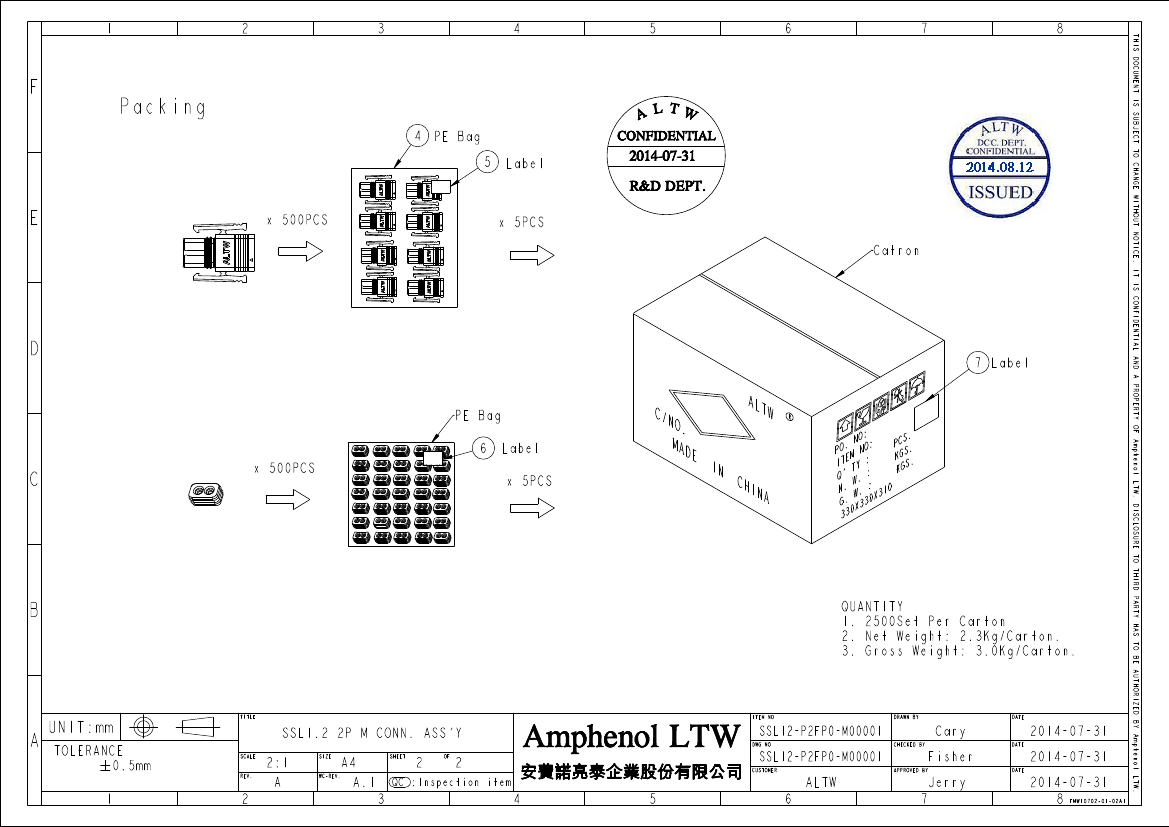

Packing
4
PE Bag
5
Label
T
A
L
W
CONFIDENTIAL
2014-07-31
R&D DEPT.
E
x 500PCS
x 5PCS
Catron
D
7 Label
PROPERTY OF Amphenol LTW. DISCLOSURE TO THIRD PARTY HAS TO BE AUTHORIZED BY
PE Bag
6
Label
x 5PCS
C
x 500PCS
B
QUANTITY
1. 2500Set Per Carton
2. Net Weight: 2.3Kg/Carton.
3. Gross Weight: 3.0Kg/Carton.
A
UNIT:mm
TOLERANCE
# 0.5mm
1
TITLE
SSL1.2 2P M CONN. ASS'Y
SCALE
2:1
A
SIZE
A4
A.1
3
SHEET
2
OF
Amphenol LTW
2
4
5
ITEM NO
DRAWN BY
DATE
SSL12-P2FP0-M00001
DWG NO
CHECKED BY
Cary
DATE
2014-07-31
2014-07-31
DATE
Amphenol LTW.
SSL12-P2FP0-M00001
CUSTOMER
APPROVED BY
Fisher
Jerry
7
REV.
WC-REV.
QC :Inspection item
ALTW
6
2
2014-07-31
8
FMW10702-01-02A1
