High Voltage Safety Lock

www.amphenolpcd.com.cn

TABLE OF CONTENT

ExcEl|MatE Product introduction

….....……..

Excel|Mate Plus (HVSl1200).........................................

2 PIN RECEPTACLE BOX MOUNTED

..........................

2 PIN PLUG

..........……………................………………...

2 PIN PLUG RIGHT ANGLE

...........…...................……...

HOW TO ORDER: HVSL1200

........................................

CHARTS: HVSL1200

......................................................

Excel|Mate Plus (HVSl1000).........................................

1 PIN RECEPTACLE

..............….....................................

1 PIN PLUG

.........................……………………………....

1 PIN RECEPTACLE WITHOUT INTERLOCK

................

1 PIN PLUG RIGHT ANGLE

...........…...................……...

2 PIN RECEPTACLE BOX MOUNTED

...........................

2 PIN PLUG

..........……………................………………...

2 PIN PLUG RIGHT ANGLE

...........…...................……...

3 PIN RECEPTACLE BOX MOUNTED

…....…….……….

3 PIN PLUG

..........................………................................

Excel|Mate Eco

(HVSL600/630/633/280/282/364)

HVSl600

.............................………………………………

RECEPTACLE

...............…………………………………..

PLUG

.............................……………………..……………

HOW TO ORDER: HVSL600

..........................................

CHARTS: HVSL600

........................................................

HVSl630

..............................……………………………...

RECEPTACLE

...............…………………………………..

PLUG

.............................……………………..……………

HOW TO ORDER: HVSL630

..........................................

CHARTS: HVSL630

........................................................

HVSl633

.............................………………………………

RECEPTACLES

...............…………………………………

PLUG

.............................……………………..……………

HOW TO ORDER: HVSL633

..........................................

CHARTS: HVSL633

........................................................

HVSl280

…............................…………………………….

RECEPTACLE

...............…………………………………..

PLUG

.............................……………………..……………

HOW TO ORDER: HVSL280

..........................................

CHARTS: HVSL280

........................................................

HVSl282

.....................................................................…

RECEPTACLES

...............……………………..…………..

PLUG

.............................……………………..……………

HOW TO ORDER: HVSL282

..........................................

CHARTS: HVSL282

........................................................

HVSl362

.....................................................................…

RECEPTACLE

...............…………………………………..

PLUG

.............................……………………..……………

HOW TO ORDER: HVSL362

..........................................

CHARTS: HVSL362

........................................................

HVSl364

.....................................................................…

RECEPTACLE

...............…………………………………..

PLUG

.............................……………………..……………

HOW TO ORDER: HVSL364

..........................................

3 PIN PLUG RIGHT ANGLE

...........…...................……...

ATTACHMENT

...............….............................................

PRODUCT SERIES OVERVIEW

....................................

HOW TO ORDER: HVSL1000

........................................

CHARTS: HVSL1000

......................................................

Excel|Mate S (HVSl800)................................................

2 PIN RECEPTACLE

.................…………………………..

2 PIN STRAIGHT PLUG

...............………………………..

2 PIN RIGHT ANGLE PLUG

..............………………….....

3 PIN RECEPTACLE

.................…………………………..

3 PIN STRAIGHT PLUG

...............………………………..

3 PIN RIGHT ANGLE PLUG

..............………………….....

HOW TO ORDER: HVSL800

..........................................

CHARTS: HVSL800

........................................................

Excel|Mate Metal (HVSlS600).......................................

2 PIN RECEPTACLE

...............……………..……………..

2 PIN STRAIGHT PLUG

..............….……………………..

2 PIN RIGHT ANGLE PLUG

..............………………........

3 PIN RECEPTACLE

...............……………..……………..

3 PIN STRAIGHT PLUG

..............….……………………..

3 PIN RIGHT ANGLE PLUG

..............………………........

HOW TO ORDER: HVSLS600

........................................

CHARTS: HVSLS600

......................................................

Excel|Mate Metal (HVSlS800)

......................................

RECEPTACLE

...............…………………………………..

STRAIGHT PLUG

..............………………………………..

RIGHT ANGLE PLUG

................…..……………..............

HOW TO ORDER: HVSLS800

........................................

Excel|Mate Pt

…................................……….................

1 POSITION

.......................…………..............................

2 POSITION

.......................…………..............................

3 POSITION

.......................…………..............................

HVPt B

................………................................................

2 POSITION

.......................…………..............................

3 POSITION

.......................…………..............................

HVPt B 2a..................……….........................................

101

103

105

106

107

108

HVPc

..........................……….........................................

109

HVPc 800

..........................………..................................

112

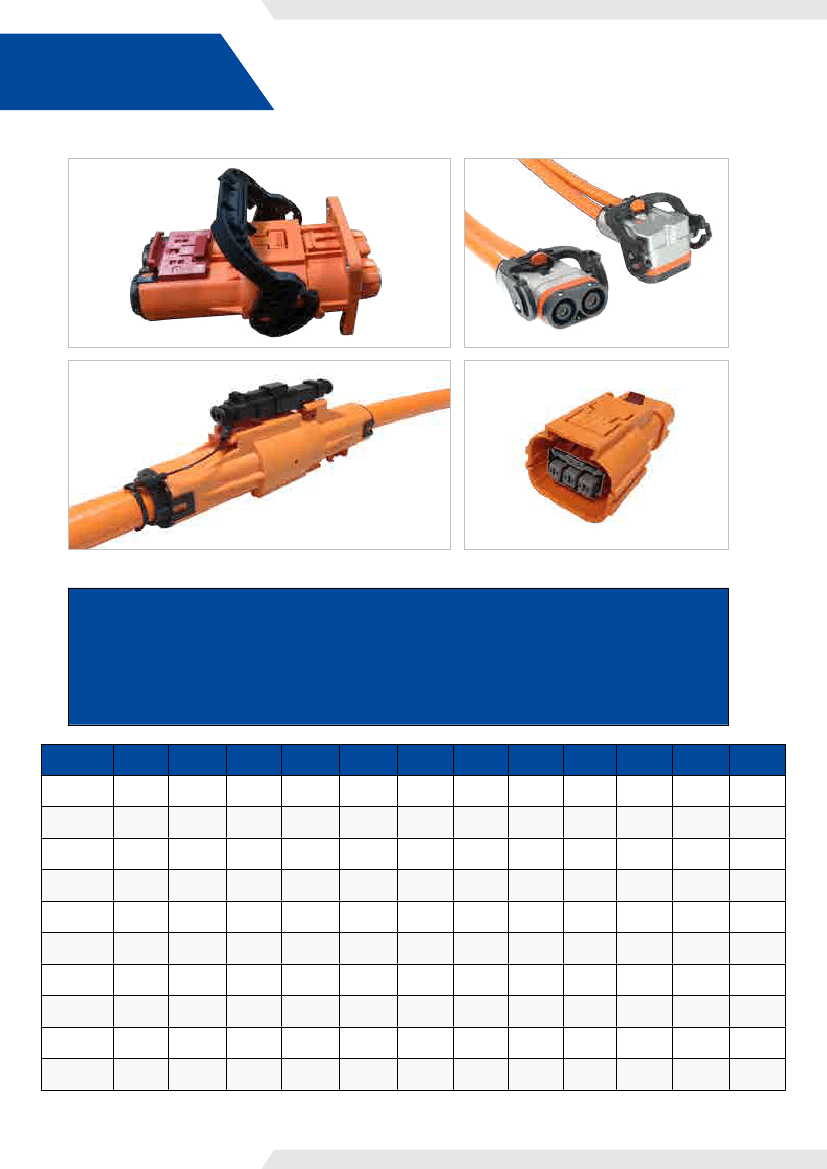

PRODUCT

INTRODUCTION

When high-performance and increased safety are required in xEV, Amphenol PCD's

Excel|Mate

connectors fulfil the challenge.

HVSL Series is designed to meet AK standards for various xEV applications, including power and

signal interconnect solutions. Different versions are available, from 1 position to 4 positions and a

rated current from 23A to 350A.

Product

Position

Rated Voltage

Rated Current

HVIL

Shielding

Shell

IP67,IP6K9K

Touch-Proof

IP2XB

Cable size

Cable type

shielded wire

HVSL1200 HVSL1000

1000V

350A

√

Plastic

√

70 to 95

1, 2, 3

1000V

250A

√

Plastic

√

25 to 70

HVSL800

2, 3

1000V

180A

√

Plastic

√

25 to 50

HVSLS800

1000V

180A

√

Metal

√

25 to 50

HVSLS600

2, 3

1000V

120A

√

Metal

√

16 to 25

HVSL600

800V

120A

√

Plastic

√

HVSL630

800V

40A

√

Plastic

√

4 to 6

Multicore

HVSL633

800V

40A

√

Plastic

√

2.5 to 6

Individually

HVSL280

800V

23A

√

Plastic

√

2.5 to 4

Multicore

HVSL282

800V

32A

√

Plastic

√

2.5 to 4

HVSL362

800V

60A

√

Plastic

√

6 to 10

HVSL364

800V

46A

√

Plastic

√

2.5 to 6

Individually Individually Individually Individually

Individually Individually

Individually Individually Individually

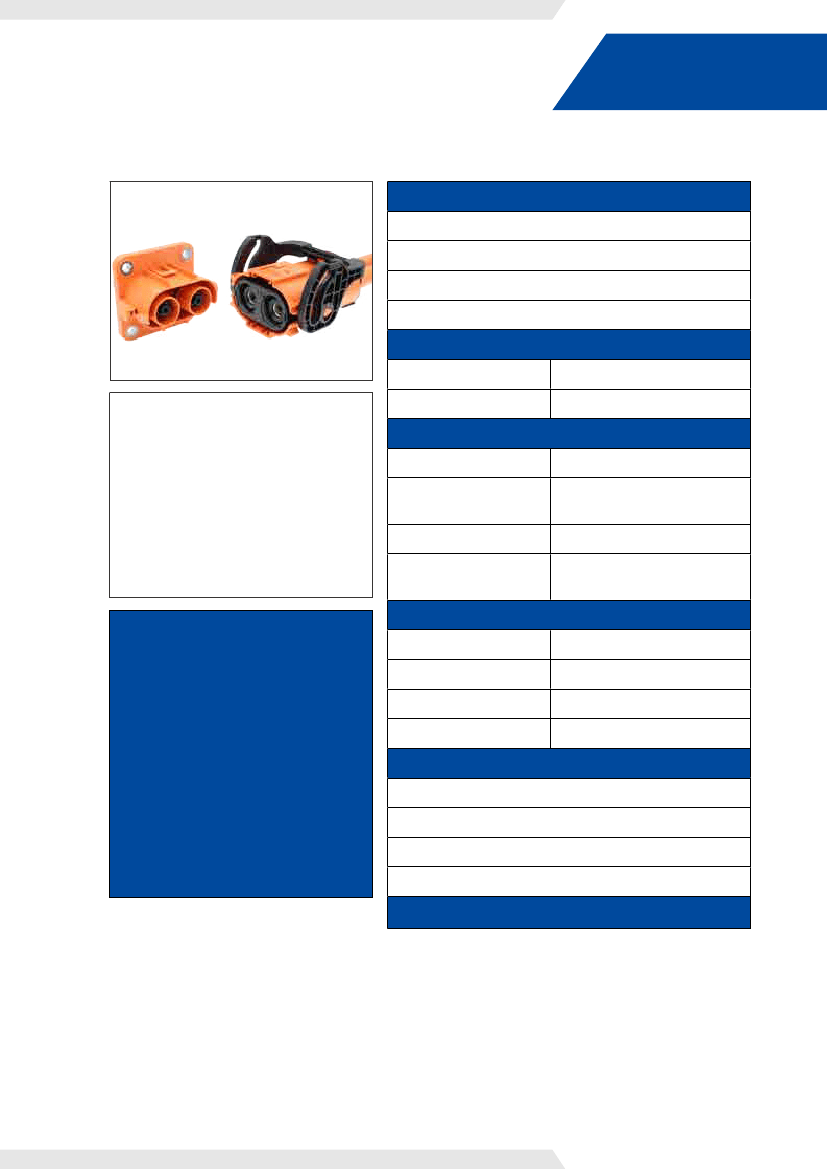

Excel|Mate Max

(HVSL 1200)

Excel|Mate (HVSL1200)

APPLICATIONS

xEV Battery

Inverters

Junction boxes

Power distribution boxes

MECHANICAL

Durability

High Voltage Safety Lock

HVSL1200, which is the latest

generation of the Excel|Mate series, has

been specially designed for use in xEV

applications.

The RADSOK® Technology R4 version

12mm and an interlock solution ensure a

safe and reliable connection.

Wire range

≥ 50 mating cycles

70mm

to 95mm

ELECTRICAL

Rated voltage

Rated current

Insulator resistance

Dielectric withstand

voltage

1000V DC

350A Max @ ambient

temperature 70°C

> 200MΩ

3000V AC

ENVIRONMENTAL

KEY FEATURES

With interlock solution

RADSOK® Technology R4 version

12mm

Shielding performance: EMI/RFI

60DB

Sealing, IP67 (mated), IP6K9K

Touch-proof, IP2XB

Multiple coding positions

USCAR-2

USCAR37

LV-215

RoHS

Sealing

Touch-proof

Temperature range

Inflammability

IP67, IP6K9K (mated)

IP2XB

-40°C to 125°C

UL94V0

STANDARDS

Excel|Mate Max

(HVSL 1200)

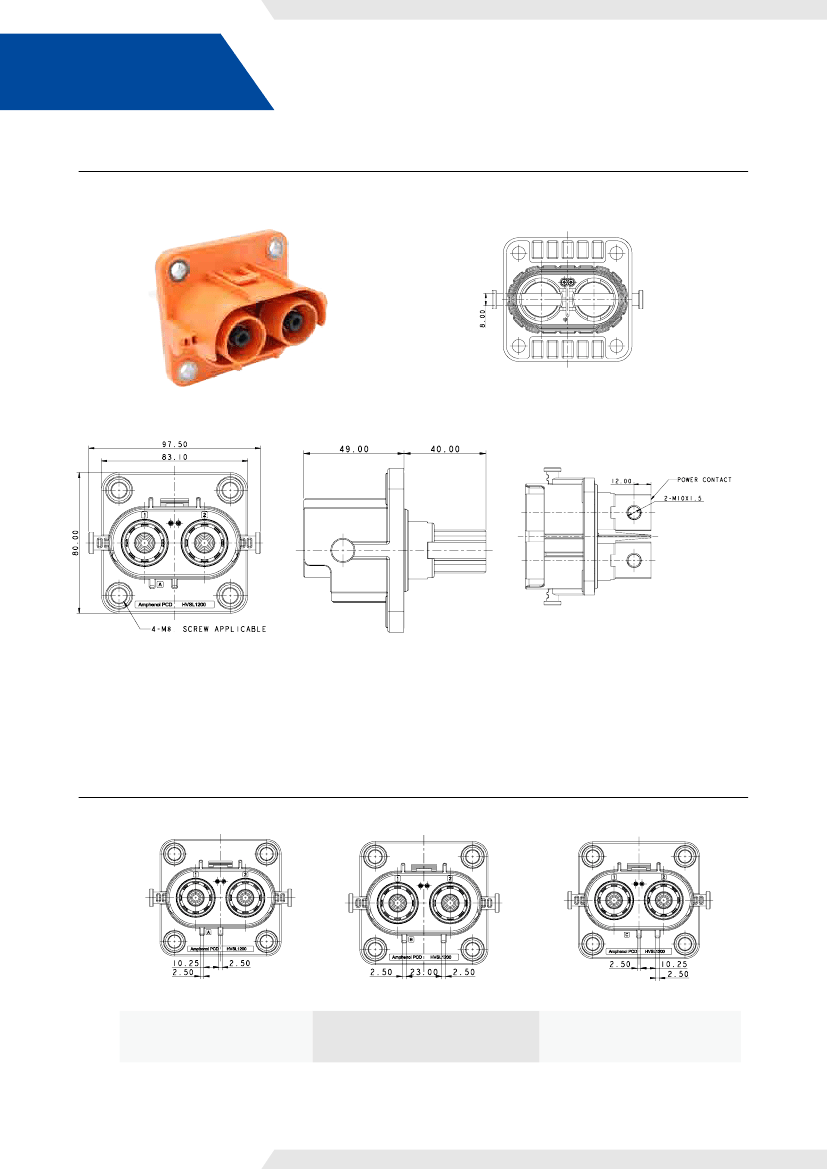

2 PIN RECEPTACLE BOX MOUNTED

INSERT ORIENTATIONS

P/N

HVSL1200 02 2 A

HVSL1200 02 2 B

HVSL1200 02 2 C

Recommended Resources
