HCPL-7860/HCPL-786J
Optically Isolated Sigma-Delta (S-D) Modulator
Data Sheet
Lead (Pb) Free
RoHS 6 fully
compliant
RoHS 6 fully compliant options available;
-xxxE denotes a lead-free product
Description
The HCPL-7860/HCPL-786J Optically Isolated Modulator
and HCPL-0872 Digital Interface IC or digital filter together
form an isolated programmable two-chip analog-to-digital
converter. The isolated modulator allows direct measure-
ment of motor phase currents in power inverters.
In operation, the HCPL-7860/HCPL-786J Isolated Modula-
tor converts a low-bandwidth analog input into a high-
speed one-bit data stream by means of a Sigma-Delta
(Σ−∆) over-sampling modulator. This modulation provides
for high noise margins and excellent immunity against
isolation-mode transients. The modulator data and on-
chip sampling clock are encoded and transmitted across
the isolation boundary where they are recovered and de-
coded into separate high-speed clock and data channels.
Features
•
12-bit Linearity
•
200 ns Conversion Time
(Pre-Trigger Mode 2 with HCPL-0872)
•
12-bit Effective Resolution with 5
µs
Signal Delay
(14-bit with 102
µs)
(with HCPL-0872)
•
Fast 3
µs
Over-Range Detection (with HCPL-0872)
•
± 200 mV Input Range with Single 5 V Supply
•
1% Internal Reference Voltage Matching
•
Offset Calibration (with HCPL-0872)
•
-40°C to +85°C Operating Temperature Range
•
15 kV/µs Isolation Transient Immunity
•
Safety Approval: UL 1577, CSA and IEC/EN/DIN EN
60747-5-5
Applications
•
Motor Phase and Rail Current Sensing
•
Data Acquisition Systems
•
Industrial Process Control
•
Inverter Current Sensing
•
General Purpose Current Sensing and Monitoring
1
2
3
4
HCPL-7860
SIGMA
DELTA
MOD./
ENCODE
8
7
DECODE
6
5
Input
Current
HCPL-0872
or
Digital Filter
MCU
or
DSP
NOTE: A 0.1 μF bypass capacitor must be connected between pins VDD1 and GND1 and between pins VDD2 and GND2.
CAUTION:
It is advised that normal static precautions be taken in handling and assembly of this
component to prevent damage and/or degradation which may be induced by ESD.
The components
featured in this datasheet are not to be used in military or aerospace applications or environments.
Pin Description
ISOLATION
BOUNDARY
V
DD1
V
IN+
V
DD1
1
SIGMA-
DELTA
MOD./
ENCODE
8
7
DECODE
6
5
MDAT
GND2
V
DD2
MCLK
V
IN-
NC
NC
NC
NC
GND1
1
2
3
4
5
6
7
8
SIGMA-
DELTA
MOD./
ENCODER
DECODER
16
15
14
13
12
11
10
9
GND2
NC
V
DD2
MCLK
NC
MDAT
NC
GND2
V
IN+
2
V
IN-
3
GND1 4
SHIELD
HCPL-7860
Symbol
V
DD1
V
IN+
V
IN-
GND1
HCPL-786J
Symbol
V
DD2
MCLK
MDAT
GND2
Description
Supply voltage input (4.5 V to 5.5 V)
Positive input (± 200 mV recommended)
Negative input (normally connected to GND1)
Input ground
Description
Supply voltage input (4.5 V to 5.5 V)
Clock output (10 MHz typical)
Serial data output
Output ground
Note: NC = No connection. Leave floating.
Ordering Information
HCPL-7860 is UL Recognized with 3750 Vrms for 1 minute per UL1577. HCPL-786J is UL Recognized with 5000 Vrms for
1 minute per UL1577.
Option
Part number
HCPL-7860
RoHS
Compliant
-000E
-300E
-500E
Non-RoHS
Compliant
No option
#300
#500
No option
#500
Package
300 mil
DIP-8
Surface
Mount
X
X
Gull
Wing
X
X
Tape
& Reel
IEC/EN/DIN EN
60747-5-5
X
X
Quantity
50 per tube
50 per tube
1000 per reel
45 per tube
850 per reel
X
X
X
X
X
HCPL-786J
-000E
-500E
SO-16
X
To order, choose a part number from the part number column and combine with the desired option from the option
column to form an order entry.
Example 1:
HCPL-7860-500E to order product of Gull Wing Surface Mount package in Tape and Reel packaging with IEC/EN/DIN
EN 60747-5-5 Safety Approval in RoHS compliant.
Example 2:
HCPL-786J to order product of SO-16 package in tube packaging and non-RoHS compliant.
Option datasheets are available. Contact your Avago sales representative or authorized distributor for information.
Remarks: The notation ‘#XXX’ is used for existing products, while (new) products launched since 15th July 2001 and RoHS
compliant option will use ‘-XXXE’.
2

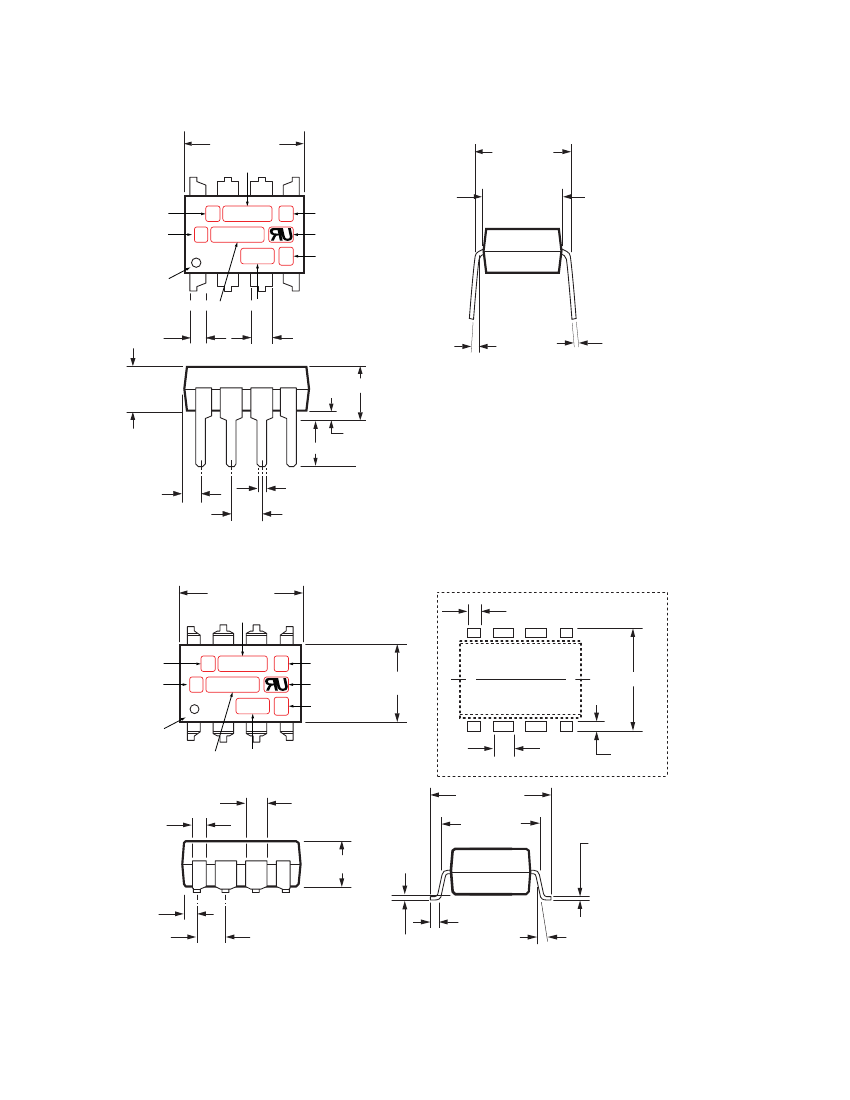

Package Outline Drawings
8-pin DIP Package
9.80 ± 0.25
(0.386 ± 0.010)
7.62 ± 0.25
(0.300 ± 0.010)
6.35 ± 0.25
(0.250 ± 0.010)
Device Part Number
8
7
6
5
Avago
Lead Free
Pin 1 Dot
•
1
A NNNN Z
YYWW
EEE P
2
3
4
Test Rating Code
UL Logo
Special Program
Code
Date Code
1.19 (0.047) MAX.
Lot ID
1.78 (0.070) MAX.
5 TYP.
+ 0.076
0.254 - 0.051
+ 0.003)
(0.010 - 0.002)
3.56 ± 0.13
(0.140 ± 0.005)
4.70 (0.185) MAX.
0.51 (0.020) MIN.
2.92 (0.115) MIN.
1.080 ± 0.320
(0.043 ± 0.013)
0.65 (0.025) MAX.
2.54 ± 0.25
(0.100 ± 0.010)
DIMENSIONS IN MILLIMETERS AND (INCHES).
OPTION NUMBERS 300 AND 500 NOT MARKED.
NOTE: FLOATING LEAD PROTRUSION IS 0.25 mm (10 mils) MAX.
8-pin Gull Wing Surface Mount Option 300
9.80 ± 0.25
(0.386 ± 0.010)
LAND PATTERN RECOMMENDATION
1.016 (0.040)
5
Device Part Number
8
7
6
Avago
Lead Free
Pin 1 Dot
•
1
A NNNN Z
YYWW
EEE P
2
3
4
Test Rating Code
UL Logo
Special Program
Code
6.350 ± 0.25
(0.250 ± 0.010)
10.9 (0.430)
Date Code
Lot ID
1.780
(0.070)
MAX.
1.27 (0.050)
9.65 ± 0.25
(0.380 ± 0.010)
7.62 ± 0.25
(0.300 ± 0.010)
2.0 (0.080)
1.19
(0.047)
MAX.
3.56 ± 0.13
(0.140 ± 0.005)
1.080 ± 0.320
(0.043 ± 0.013)
2.54
(0.100)
BSC
DIMENSIONS IN MILLIMETERS (INCHES).
LEAD COPLANARITY = 0.10 mm (0.004 INCHES).
NOTE: FLOATING LEAD PROTRUSION IS 0.5 mm (20 mils) MAX.
0.635 ± 0.130
(0.025 ± 0.005)
+ 0.076
0.254 - 0.051
+ 0.003)
(0.010 - 0.002)
0.635 ± 0.25
(0.025 ± 0.010)
12 ° NOM.
3
Package Outline Drawing
16-Lead Surface Mount Package
0.457
(0.018)
16 15 14 13 12 11 10
9
TYPE NUMBER
AVAGO
LEAD-FREE
PIN 1 DOT
1.270
(0.050)
LAND PATTERN RECOMMENDATION
0.64 (0.025)
A XXXX
YYWW
EEE
DATE CODE
7.493 ± 0.254
(0.295 ± 0.010)
LOT ID
2.16 (0.085)
11.63 (0.458)
1
2
3
4
5
6
7
8
8.763 ± 0.254
(0.345 ± 0.010)
10.312 ± 0.254
(0.406 ± 0.10)
9°
ALL LEADS TO
BE COPLANAR
± 0.05 (0.002)
0.457
(0.018)
Dimensions in Millimeters (Inches)
Floating lead protrusion is 0.25 mm (10 mils) Max.
3.505 ± 0.127
(0.138 ± 0.005)
0-8°
0.64 (0.025) MIN.
10.363 ± 0.254
(0.408 ± 0.010)
0.203 ± 0.076
(0.008 ± 0.003)
STANDOFF
Note: Initial and continued variation in color of the white mold compound is normal and does not a ect performance or reliability of the device
4
Recommended Pb-Free IR Profile
Recommended reflow condition as per JEDEC Standard, J-STD-020 (latest revision). Non-Halide Flux should be used.
Regulatory Information
The HCPL-7860/HCPL-786J has been approved by the following organizations:
IEC/EN/DIN EN 60747-5-5
UL
CSA
Approved under: DIN EN 60747-5-5(VDE 0884-5):2011-11
Approval under UL 1577, component recognition program. File E55361.
Approval under CSA Component Acceptance Notice #5, File CA 88324.
IEC/EN/DIN EN 60747-5-5 Insulation Characteristics
[1]
Description
Installation classification per DIN VDE 0110/1.89, Table 1
for rated mains voltage
≤
300 Vrms
for rated mains voltage
≤
450 Vrms
for rated mains voltage
≤
600 Vrms
for rated mains voltage
≤
1000 Vrms
Climatic Classification
Pollution Degree (DIN VDE 0110/1.89)
Maximum Working Insulation Voltage
Input to Output Test Voltage, Method b
[2]
V
IORM
x 1.875=V
PR
, 100% Production Test with t
m
=1 sec,
Partial discharge < 5 pC
Input to Output Test Voltage, Method a
[2]
V
IORM
x 1.6=V
PR
, Type and Sample Test, t
m
=10 sec,
Partial discharge < 5 pC
Highest Allowable Overvoltage(Transient Overvoltage t
ini
= 60 sec)
Safety-limiting values - maximum values allowed in the event of a failure.
Case Temperature
Input Current
[3]
Output Power
[3]
Insulation Resistance at T
S
, V
IO
= 500 V
V
IORM
V
PR
Symbol
HCPL-7860
I - IV
I - III
I - III
I - II
40/85/21
2
891
1670
HCPL-786J
I - IV
I - IV
I - IV
I - III
40/85/21
2
1414
2652
Unit
Vpeak
Vpeak
V
PR
1425
2262
Vpeak
V
IOTM
T
S
I
S, INPUT
P
S, OUTPUT
R
S
6000
175
400
600
>10
9
8000
175
400
600
>10
9
Vpeak
°C
mA
mW
W
Notes:
1. Insulation characteristics are guaranteed only within the safety maximum ratings, which must be ensured by protective circuits within the applica-
tion. Surface Mount Classifications is Class A in accordance with CECC00802.
2. Refer to IEC/EN/DIN EN 60747-5-5 Optoisolator Safety Standard section of the Avago Regulatory Guide to Isolation Circuits, AV02-2041EN for a
detailed description of Method a and Method b partial discharge test profiles.
3. Refer to the following figure for dependence of P
S
and I
S
on ambient temperature.
800
OUTPUT POWER - P
S
, INPUT CURRENT - I
S
700
600
500
400
300
200
100
0
0
25
50 75 100 125 150 175
T
S
- CASE TEMPERATURE -
o
C
200
P
S
(mW)
I
S
(mA)
5
