Bridgelux Gen2 SMD 2835 1w 9V Product Data Sheet DS58 Rev. B (10/2016) - PRELIMINARY
BXEN-27E 30E 35E 40E 50E 57E 65E
| | | | | |
Introduction
The Bridgelux SMD 2835 high power LED is hot-color targeted which ensures that the LEDs fall within their specified
color bin at the typical application conditions of 85°C. With its broad lumen coverage and wide range of CCT options, the
SMD 2835 provides unparalleled design-in flexibility for indoor and outdoor lighting applications. The SMD 2835 is ideal
as a drop in replacement for emitters with an industry standard 2.8mm x 3.5mm footprint.
Features
• Industry-standard 2835 footprint
• 9 bin color control enables tight color control
• Hot-color targeting ensures that color is within the
ANSI bin at the typical application conditions of 85°C
• Enables 3- and 5-step MacAdam ellipse custom
binning kits
• RoHS compliant and lead free
• Multiple CCT configurations for a wide range of
lighting applications
Benefits
• Lower operating and manufacturing cost
• Ease of design and rapid go-to-market
• Uniform consistent white light
• Reliable and constant white point
• Environmentally friendly, complies with standards
• Design flexibility
Bridgelux Gen2 SMD 2835 1w 9V Product Data Sheet DS58 Rev. B (10/2016) - PRELIMINARY
SMD 2835
Contents
Product Feature Map
Product Nomenclature
Product Test Conditions
Product Selection Guide
Electrical Characteristics
Absolute Maximum Ratings
Product Bin Definitions
Performance Curves
Typical Radiation Pattern
Mechanical Dimensions
Reliability
Reflowing Characteristics
Packaging
Design Resources
Precautions
Disclaimers
About Bridgelux
2
2
2
3
4
5
6
9
10
11
12
13
14
16
16
16
17
Bridgelux Gen2 SMD 2835 1w 9V Product Data Sheet DS58 Rev. B (10/2016) - PRELIMINARY
1 - Preliminary
Product Feature Map
Bridgelux SMD LED products come in industry standard package sizes and follow ANSI binning standards. These LEDs
are optimized for cost and performance, helping to ensure highly competitive system lumen per dollar performance
while addressing the stringent efficacy and reliability standards required for modern lighting applications.

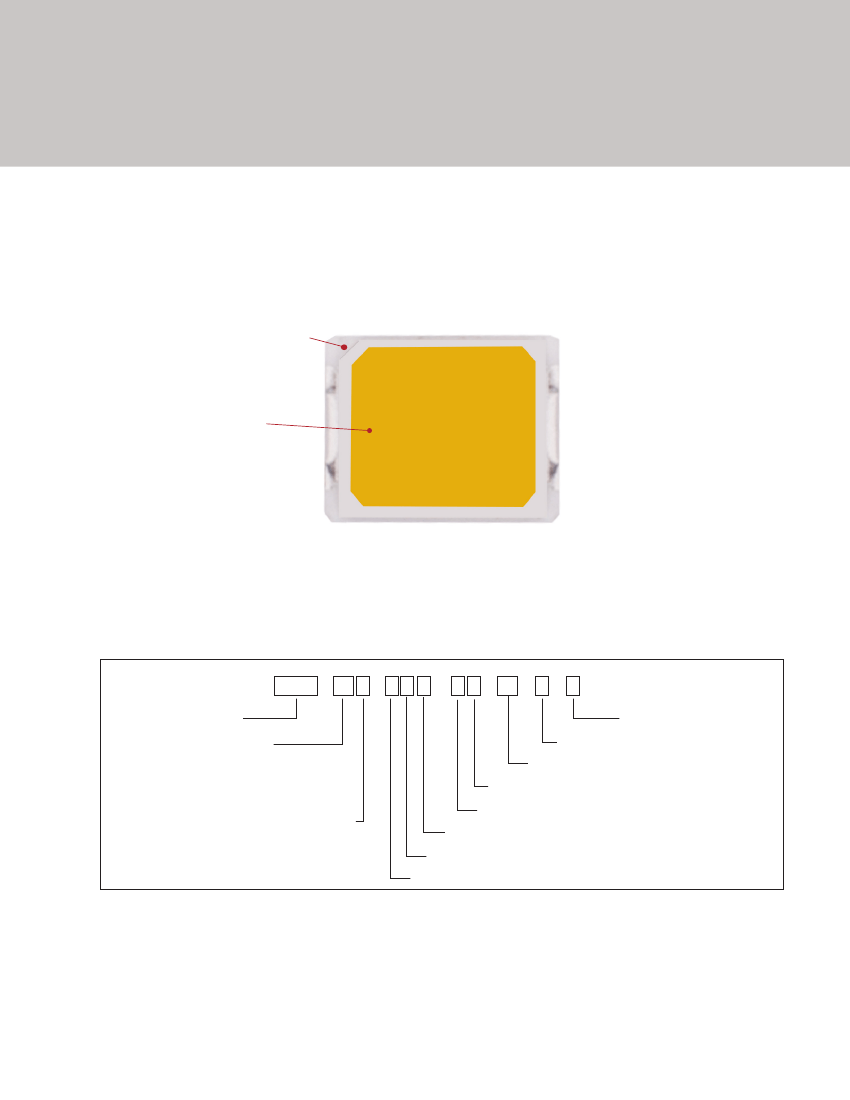

Cathode Mark
Yellow phosphor Light
Emitting Surface (LES)
Product Nomenclature
The part number designation for Bridgelux SMD 2835 is explained as follows:
1 2 3 4
56 7
8
9 10
11 12
1314
15
16
BXEN – 30 E – 1 3 H – 9 B – 00 – 0 – 0
Product Family
Nominal CCT
27 = 2,700K
30 = 3,000K
35 = 3,500K
40 = 4,000K
50 = 5,000K
57 = 5,700K
65 = 6,500K
Color Bin Options
Forward Voltage Bins
Flux Bins
Product Version
Minimum CRI
E = 80 CRI
Typical Forward Voltage
High Power
Die count in series
Die count in parallel
Product Test Conditions
Bridgelux SMD 2835 LEDs are tested and binned with a 10ms pulse of 100mA at T
j
(junction temperature)=T
sp
(solder point temperature)
=25°C. Forward voltage and luminous flux are binned at a T
j
=T
sp
=25°C, while color is hot targeted at a T
sp
of 85°C.
Bridgelux Gen2 SMD 2835 1w 9V Product Data Sheet DS58 Rev. B (10/2016) - PRELIMINARY
2 - Preliminary
Product Selection Guide
The following product configurations are available:
Table 1:
Selection Guide, Pulsed Measurement Data at 100mA (T
j
=T
sp
=25°C)
Part Number
1,6
Nominal CCT
2
(K)
CRI
3, 5
Nominal
Drive Current
(mA)
Forward Voltage
4, 5
(V)
Min
Typical
Max
Typical Pulsed
Flux (lm)
4, 5
Typical Power
(W)
Typical Efficacy
(lm/W)
BXEN-27E-13H-9B-00-0-0
BXEN-30E-13H-9B-00-0-0
BXEN-35E-13H-9B-00-0-0
BXEN-40E-13H-9B-00-0-0
BXEN-50E-13H-9B-00-0-0
BXEN-57E-13H-9B-00-0-0
BXEN-65E-13H-9B-00-0-0
2700
3000
3500
4000
5000
5700
6500
80
80
80
80
80
80
80
100
100
100
100
100
100
100
8.6
8.6
8.6
8.6
8.6
8.6
8.6
9.5
9.5
9.5
9.5
9.5
9.5
9.5
9.8
9.8
9.8
9.8
9.8
9.8
9.8
115
120
123
127
127
127
125
1.0
1.0
1.0
1.0
1.0
1.0
1.0
121
126
129
134
134
134
132
Table 2:
Selection Guide, Stabilized DC Performance (T
sp
= 85°C)
7,8
Part Number
1,6
Nominal CCT
2
(K)
CRI
3, 5
Nominal Drive
Current
(mA)
Forward Voltage
5
(V)
Min
Typical
Max
Typical DC Flux
(lm)
5
Typical Power
(W)
Typical Efficacy
(lm/W)
BXEN-27E-13H-9B-00-0-0
BXEN-30E-13H-9B-00-0-0
BXEN-35E-13H-9B-00-0-0
BXEN-40E-13H-9B-00-0-0
BXEN-50E-13H-9B-00-0-0
BXEN-57E-13H-9B-00-0-0
BXEN-65E-13H-9B-00-0-0
Notes for Table 1 & 2:
2700
3000
3500
4000
5000
5700
6500
80
80
80
80
80
80
80
100
100
100
100
100
100
100
8.3
8.3
8.3
8.3
8.3
8.3
8.3
9.2
9.2
9.2
9.2
9.2
9.2
9.2
9.5
9.5
9.5
9.5
9.5
9.5
9.5
101
106
108
112
112
112
110
0.9
0.9
0.9
0.9
0.9
0.9
0.9
110
115
118
122
122
122
120
1. The last 6 characters (including hyphens ‘-’) refer to flux bins, forward voltage bins, and color bin options, respectively. “00-0-0” denotes the full
distribution of flux, forward voltage, and 7 SDCM color.
Example: BXEN-30E-13H-9B-00-0-0
refers to the full distribution of flux, forward voltage, and color within a 3000K 7-step ANSI standard chromaticity
region with a minimum of 80CRI, 1x3 die configuration, high power, 9.5V typical forward voltage.
2. Product CCT is hot targeted at T
sp
= 85°C. Nominal CCT as defined by ANSI C78.377-2011.
3. Listed CRIs are minimum values and include test tolerance.
4. Products tested under pulsed condition (10ms pulse width) at nominal drive current where T
j
=T
sp
=25°C.
5. Bridgelux maintains a ±7.5% tolerance on luminous flux measurements, ±0.1V tolerance on forward voltage measurements, and ±2 tolerance on CRI
measurements for the SMD 2835.
6. Refer to Table 5 and Table 6 for Bridgelux SMD 2835 Luminous Flux Binning and Forward Voltage Binning information.
7. Typical stabilized DC performance values are provided as reference only and are not a guarantee of performance.
8. Typical performance is estimated based on operation under DC (direct current) with LED emitter mounted onto a heat sink with thermal interface
material and the solder point temperature maintained at 85°C. Based on Bridgelux test setup, values may vary depending on the thermal design of the
luminaire and/or the exposed environment to which the product is subjected.
Bridgelux Gen2 SMD 2835 1w 9V Product Data Sheet DS58 Rev. B (10/2016) - PRELIMINARY
3 - Preliminary
BXEN-27E-13H-9B-00-0-0(115-120/9.4-9.6V) Related Products
