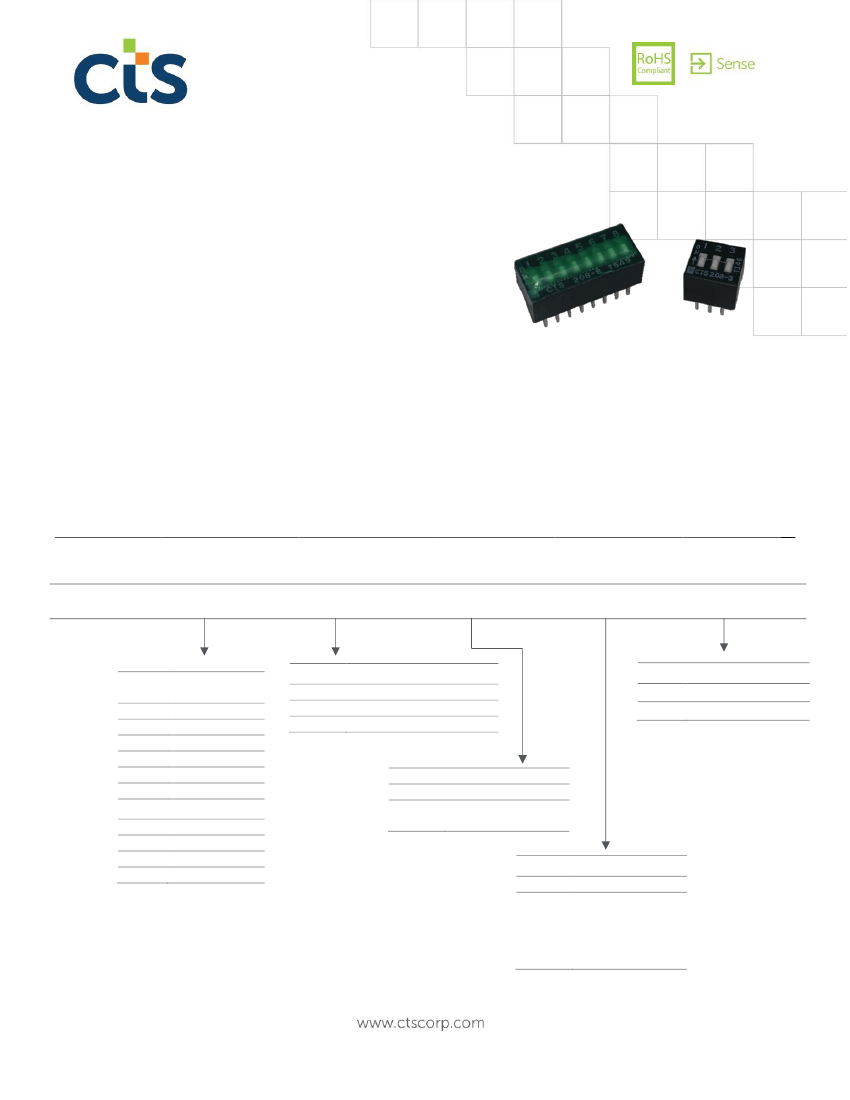

Series 208
Through-Hole DIP Switch
▪
Available with SPST circuit choices
▪
Available with low profile, standard, or extended actuator
heights. Consult the ordering information for options.
▪
Black housing
▪
RoHS compliant
▪
Optional top tape seal for board spray washing
Description
The terminals are molded into the thermoset base and provide an electrostatic discharge shield rating to 22KV
when front row of terminals are connected to ground. Tin plated contact design incorporates a dimple-to-flat
surface wiping interface for contact corrosion resistance, making it the economical choice for many applications.
Ordering Information
Series
208-
Number of
S Switch Positions
1
Actuator
Height
E
Bottom
Epoxy Seal
S
Top Tape
Seal
T
Actuation
Preset
N
No. of switch
Code positions
1
2
3
4
5
6
7
8
9
10
12
1 position
2 positions
3 positions
4 positions
5 positions
6 positions
7 positions
8 positions
9 positions
10 positions
12 positions
Code
Blank
E
LP
Spec.
Standard (0.89mm/.035”)
Extended (3.43mm/.135”)
Low profile (Flush)
Code
BLANK
N
Spec.
Ship at OFF position
Ship at ON position
Code
Blank
S
Bottom epoxy seal
No epoxy seal
Epoxy seal
(Required for 208-1S)
Code
Blank
Top tape seal
No top tape seal
Top tape seal
(Not available for
extended actuator
or 1-position SPST
DIP switch)
T
Notes:
1.Contact CTS for other common features not listed.
2019-3-25 Rev. A
Page 1 of 4
©2019 CTS® Corporation. Information/product(s) subject to change. No warranty that product(s) will meet the stated specifications for customer specific applications or test
equipment. Visit www.ctscorp.com for list of applicable patent(s), more information, or to request a quote.
Series 208
Through-Hole DIP Switch
Electrical Specifications
Parameter
Contact Resistance
Insulation Resistance
Dielectric Strength
Switch Capacitance
Nonswitching Rating
Circuit
SPST
1
Conditions & Remarks
Initial
At end of life
Between insulated terminals
500 VAC between
adjacent switches
Between adjacent
closed switches
Min
1000
1
5.0
100
or
50
12
Max
100
500
Unit
milliohms
Megohms
minute
pF
mA
or
VDC
Position
Mechanical and Environmental
Actuation Life
Soldering
Shock
Vibration
Seal
Marking
Packaging:
Operating Temperature
Range
Storage Temperature
Range
2,000 cycles switching 50mA @ 24VDC
Maximum wave temperature, 260°C for 5 seconds
Per MIL-STD-202F, method 213B, condition A(50G’s)
with no contact inconsistencies greater than 1 microsecond
Per MIL-STD-202F, method 204D, condition B (.06”
or 15G’s between 10 HZ to 2K HZ) with
no contact inconsistencies greater than 1 microsecond
Bottom epoxy seal optional
Optional top tape seal for board spray washing
Special side or top marking available-consult CTS
Standard anti-static tube packaging
-55°C to +85°C
-55°C to +85°C
2019-3-25 Rev. A
Page 2 of 4
©2019 CTS® Corporation. Information/product(s) subject to change. No warranty that product(s) will meet the stated specifications for customer specific applications or test
equipment. Visit www.ctscorp.com for list of applicable patent(s), more information, or to request a quote.
Series 208
Through-Hole DIP Switch

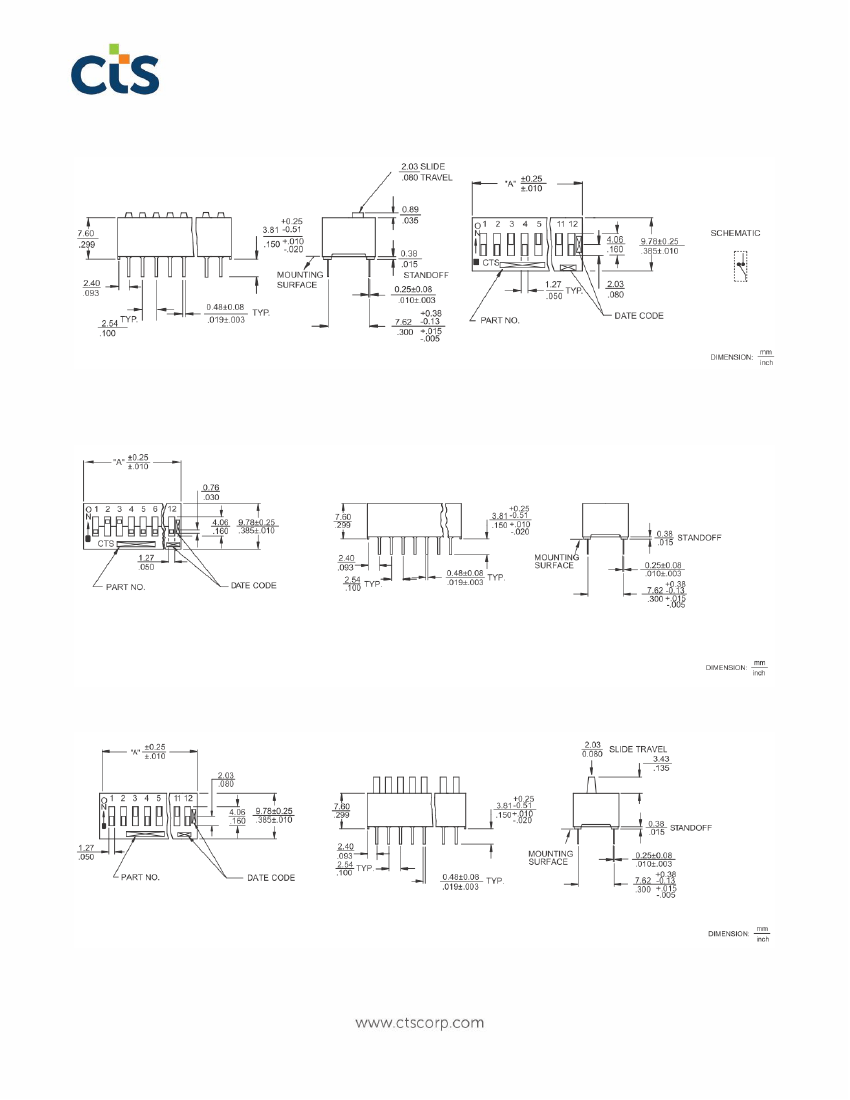

Mechanical Specifications
Figure 1 - SPST
Figure 2
–
Low Profile Actuators
Figure 3
–
Extended Actuators
2019-3-25 Rev. A
Page 3 of 4
©2019 CTS® Corporation. Information/product(s) subject to change. No warranty that product(s) will meet the stated specifications for customer specific applications or test
equipment. Visit www.ctscorp.com for list of applicable patent(s), more information, or to request a quote.
Series 208
Through-Hole DIP Switch

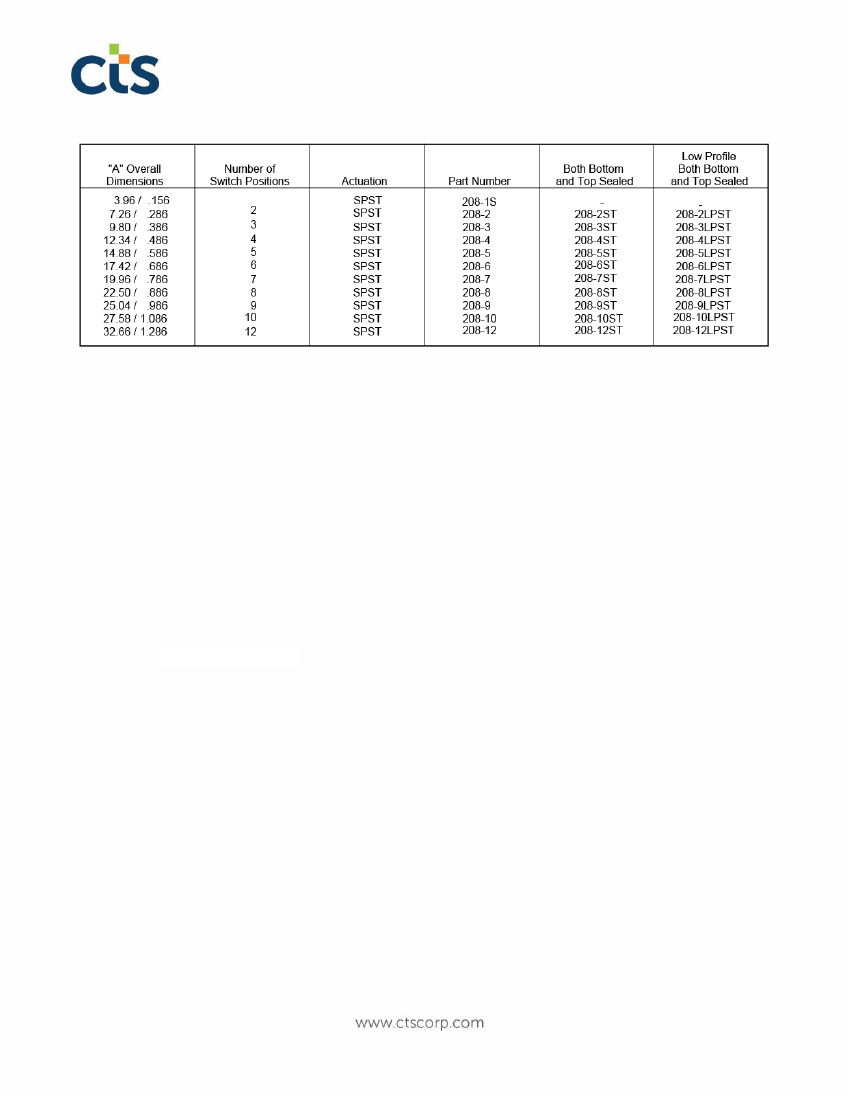

2019-3-25 Rev. A
Page 4 of 4
©2019 CTS® Corporation. Information/product(s) subject to change. No warranty that product(s) will meet the stated specifications for customer specific applications or test
equipment. Visit www.ctscorp.com for list of applicable patent(s), more information, or to request a quote.
