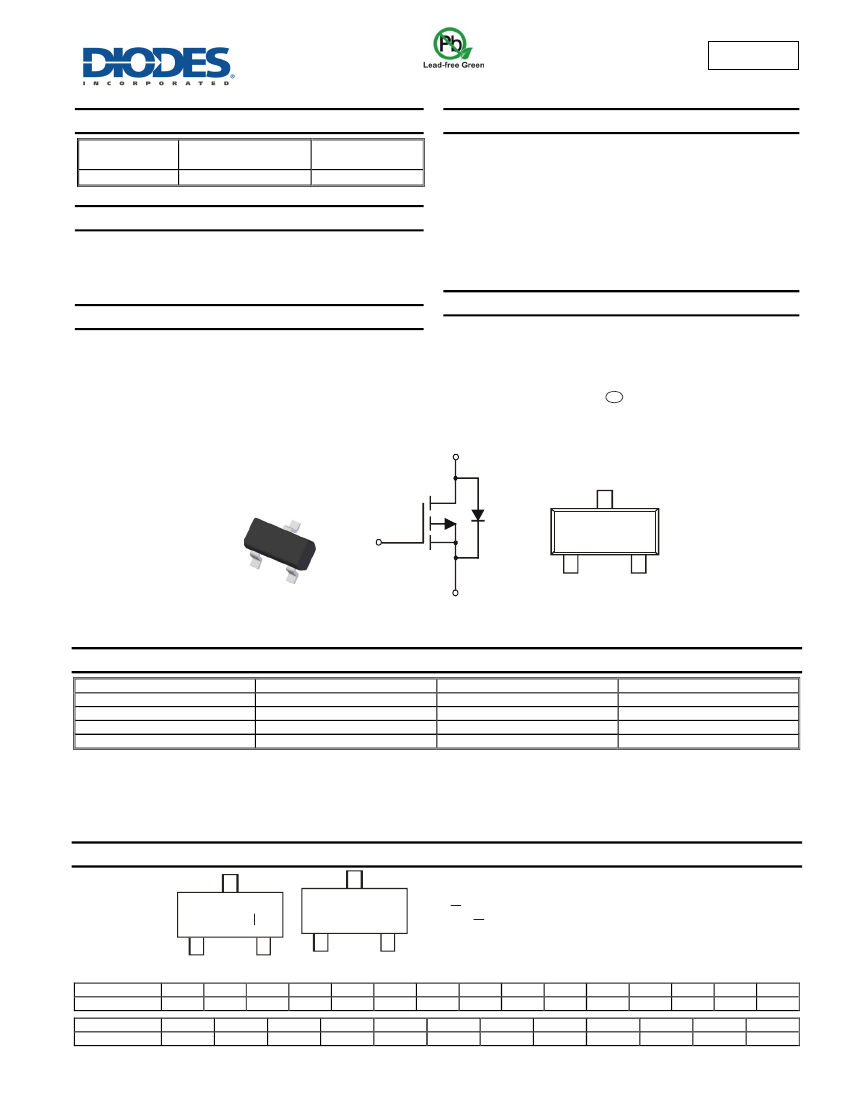

BSS84
P-CHANNEL ENHANCEMENT MODE MOSFET
Product Summary
V
(BR)DSS
-50V
R
DS(on) max
10 @ V
GS
= -5V
I
D
T
A
= +25°C
-130mA
Features and Benefits
Low On-Resistance
Low Gate Threshold Voltage
Low Input Capacitance
Fast Switching Speed
Low Input/Output Leakage
Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
Halogen and Antimony Free. “Green” Device (Note 3)
Qualified to AEC-Q101 Standards for High Reliability
Description
This MOSFET has been designed to minimize the on-state resistance
(R
DS(on)
) and yet maintain superior switching performance, making it
ideal for high efficiency power management applications.
Applications
General Purpose Interfacing Switch
Power Management Functions
Analog Switch
Mechanical Data
Drain
Case: SOT23
Case Material: UL Flammability Classification Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020
Terminals: Matte Tin Finish (Lead Free Plating) Solderable per
MIL-STD-202, Method 208
e3
Terminal Connections: See Diagram
Weight: 0.008 grams (approximate)
SOT23
D
Gate
G
Source
S
Top View
Equivalent Circuit
Top View
Ordering Information
(Note 4)
Part Number
BSS84-7-F
BSS84Q-7-F
BSS84-13-F
BSS84Q-13-F
Notes:
Qualification
Commercial
Automotive
Commercial
Automotive
Case
SOT23
SOT23
SOT23
SOT23
Packaging
3000/Tape & Reel
3000/Tape & Reel
10000/Tape & Reel
10000/Tape & Reel
1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.
2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"
and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. For packaging details, go to our website at http://www.diodes.com/products/packages.html
Marking Information
K84
YM
K84
K84 = Product Type Marking Code
YM = Date Code Marking for SAT (Shanghai Assembly/ Test site)
YM
= Date Code Marking for CAT (Chengdu Assembly/ Test site)
Y or
Y
= Year (ex: A = 2013)
M = Month (ex: 9 = September)
Chengdu A/T Site
Date Code Key
Year
Code
Month
Code
1998
J
Jan
1
1999
K
Feb
2
2000
L
Shanghai A/T Site
2001
M
Mar
3
2002
N
Apr
4
2003
P
May
5
2004
R
Jun
6
…
…
2011
Y
Jul
7
2012
Z
Aug
8
2013
A
Sep
9
2014
B
Oct
O
2015
C
2016
D
Nov
N
2017
E
Dec
D
August 2013
© Diodes Incorporated
YM
BSS84
Document number: DS30149 Rev. 20 - 2
1 of 5
www.diodes.com
BSS84
Maximum Ratings
(@T
A
= +25°C, unless otherwise specified.)
Characteristic
Drain-Source Voltage
Drain-Gate Voltage R
GS
20K
Gate-Source Voltage
Drain Current (Note 5)
Pulsed Drain Current
Symbol
V
DSS
V
DGR
V
GSS
I
D
I
DM
Value
-50
-50
20
-130
-1.2
Units
V
V
V
mA
A
Continuous
Continuous
Thermal Characteristics
(@T
A
= +25°C, unless otherwise specified.)
Symbol
P
D
R
JA
T
J
, T
STG
Value
300
417
-55 to +150
Units
mW
C/W
C
Characteristic
Total Power Dissipation (Note 5)
Thermal Resistance, Junction to Ambient
Operating and Storage Temperature Range
Electrical Characteristics
(@T
A
= +25°C, unless otherwise specified.)
Characteristic
OFF CHARACTERISTICS (Note 6)
Drain-Source Breakdown Voltage
Zero Gate Voltage Drain Current
Gate-Body Leakage
ON CHARACTERISTICS (Note 6)
Gate Threshold Voltage
Static Drain-Source On-Resistance
Forward Transconductance
DYNAMIC CHARACTERISTICS (Note 7)
Input Capacitance
Output Capacitance
Reverse Transfer Capacitance
SWITCHING CHARACTERISTICS (Note 7)
Turn-On Delay Time
Turn-Off Delay Time
Notes:
Symbol
BV
DSS
I
DSS
I
GSS
V
GS(th)
R
DS (ON)
g
FS
C
iss
C
oss
C
rss
t
D(ON)
t
D(OFF)
Min
-50
-0.8
0.05
Typ
10
18
Max
-1
-2
-100
10
-2.0
10
45
25
12
Unit
V
µA
µA
nA
nA
V
S
pF
pF
pF
ns
ns
Test Condition
V
GS
= 0V, I
D
= -250µA
V
DS
= -50V, V
GS
= 0V, T
J
= +25°C
V
DS
= -50V, V
GS
= 0V, T
J
= +125°C
V
DS
= -25V, V
GS
= 0V, T
J
= +25°C
V
GS
=
20V,
V
DS
= 0V
V
DS
= V
GS
, I
D
= -1mA
V
GS
= -5V, I
D
= -0.100A
V
DS
= -25V, I
D
= -0.1A
V
DS
= -25V, V
GS
= 0V, f = 1.0MHz
V
DD
= -30V, I
D
= -0.27A,
R
GEN
= 50, V
GS
= -10V
5. Device mounted on FR-4 PCB, 1 inch x 0.85 inch x 0.062 inch; pad layout as shown on Diodes Inc. suggested pad layout document AP02001,
which can be found on our website at http://www.diodes.com.
6. Short duration pulse test used to minimize self-heating effect.
7. Guaranteed by design. Not subject to production testing
BSS84
Document number: DS30149 Rev. 20 - 2
2 of 5
www.diodes.com
August 2013
© Diodes Incorporated

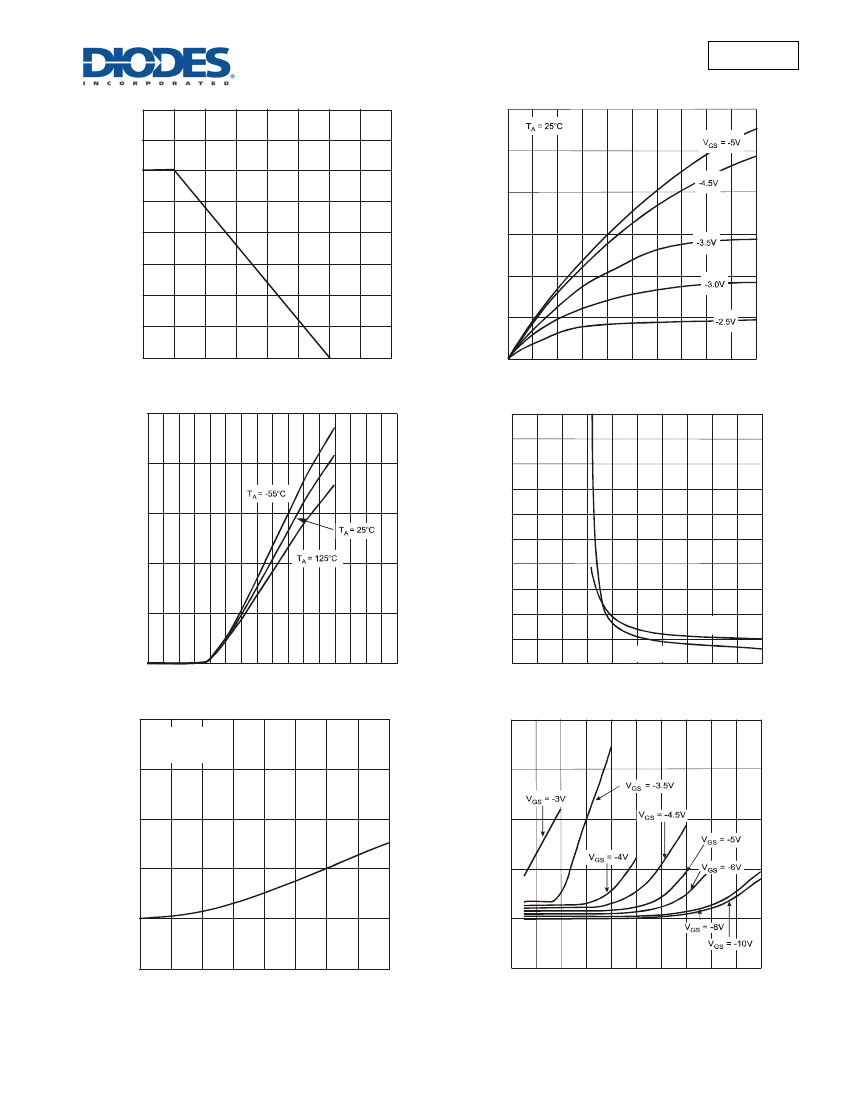

BSS84
400
I
D
, DRAIN-SOURCE CURRENT (mA)
-600
-500
350
P
D
, POWER DISSIPATION (mW)
300
250
200
150
100
50
0
50
75 100 125 150 175 200
T
A
, AMBIENT TEMPERATURE (°C)
Fig. 1 Max Power Dissipation vs. Ambient Temperature
0
25
-400
-300
-200
-100
0
0
-1
-2
-3
-4
-5
V
DS
, DRAIN-SOURCE VOLTAGE (V)
Fig. 2 Drain-Source Current vs. Drain-Source Voltage
-1.0
10
R
DS(ON)
, NORMALIZED DRAIN-SOURCE
ON-RESISTANCE (
)
9
8
7
6
5
4
3
2
T
A
= 125
°
C
-0.8
I
D
, DRAIN-CURRENT (A)
-0.6
-0.4
-0.2
1
0
T
A
= 25
°
C
0.0
0
-2
-3
-4
-5
-6
-7
-8
V
GS
, GATE-SOURCE VOLTAGE (V)
Fig. 3 Drain-Current vs. Gate-Source Voltage
-1
0
-2
-3
-4
-5
V
GS
, GATE-SOURCE (V)
Fig. 4 On-Resistance vs. Gate-Source Voltage
-1
15
V
GS
= -10V
I
D
= -0.13A
25.0
R
DS(ON)
, ON-RESISTANCE (
)
R
DS(ON)
, ON-RESISTANCE (
)
12
20.0
9
15.0
6
10.0
3
5.0
0
-50
-25
0
25
50
75 100 125 150
T
J
, JUNCTION TEMPERATURE (°C)
Fig. 5 On-Resistance vs. Junction Temperature
0.0
0.0
-0.4
-0.6
-0.8
I
D
, DRAIN-CURRENT (A)
Fig. 6 On-Resistance vs. Drain-Current
-0.2
-1.0
BSS84
Document number: DS30149 Rev. 20 - 2
3 of 5
www.diodes.com
August 2013
© Diodes Incorporated
BSS84
Package Outline Dimensions
Please see AP02002 at http://www.diodes.com/datasheets/ap02002.pdf for latest version.
A
B C
H
K
J
F
D
G
L
K1
M
SOT23
Dim
Min
Max
Typ
A
0.37
0.51
0.40
B
1.20
1.40
1.30
C
2.30
2.50
2.40
D
0.89
1.03 0.915
F
0.45
0.60 0.535
G
1.78
2.05
1.83
H
2.80
3.00
2.90
J
0.013 0.10
0.05
K
0.903 1.10
1.00
K1
-
-
0.400
L
0.45
0.61
0.55
M
0.085 0.18
0.11
0°
8°
-
All Dimensions in mm
Suggested Pad Layout
Please see AP02001 at http://www.diodes.com/datasheets/ap02001.pdf for the latest version.
Y
Z
C
Dimensions Value (in mm)
Z
2.9
X
0.8
Y
0.9
C
2.0
E
1.35
X
E
BSS84
Document number: DS30149 Rev. 20 - 2
4 of 5
www.diodes.com
August 2013
© Diodes Incorporated
BSS84
