BC856BW-7-F datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> triode> BC856BW-7-F

BC856BW-7-F: DescriptionRated power: 200mW Collector current Ic: 100mA Collector-emitter breakdown voltage Vce: 65V Transistor type: PNP PNP, Vceo=-65V, Ic=-100mA; CategoryDiscrete semiconductor triode; File Size204KB，5 Pages; ManufacturerDiodes; Websitehttp://www.diodes.com/

Download Datasheet Parametric Compare View All

BC856BW-7-F Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	BC856BW-7-F	-	-	View	Buy Now

BC856BW-7-F Overview

Rated power: 200mW Collector current Ic: 100mA Collector-emitter breakdown voltage Vce: 65V Transistor type: PNP PNP, Vceo=-65V, Ic=-100mA

BC856BW-7-F Parametric

Parameter Name	Attribute value
rated power	200mW
Collector current Ic	100mA
Collector-emitter breakdown voltage Vce	65V
Transistor type	PNP

Preview

Download Datasheet

View All

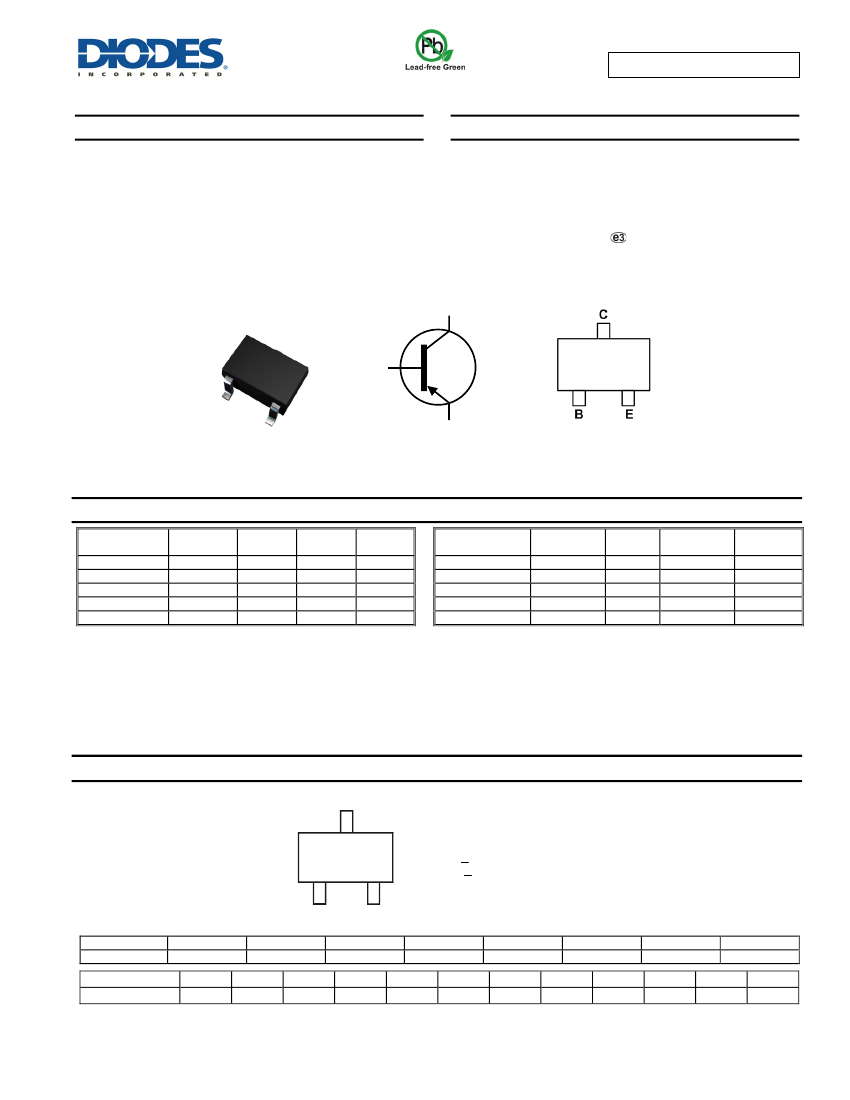

BC856AW-BC858CW

PNP SMALL SIGNAL TRANSISTOR IN SOT323

Features



Ideally Suited for Automatic Insertion

Complementary NPN Types Available (BC846AW – BC848CW)

For switching and AF Amplifier Applications

Totally Lead-Free & Fully RoHS compliant (Notes 1 & 2)

Halogen and Antimony Free. "Green" Device (Note 3)

Qualified to AEC-Q101 Standards for High Reliability

PPAP capable (Note 4)

Mechanical Data



Case: SOT323

Case material: molded plastic, “Green” molding compound

UL Flammability Classification Rating 94V-0

Moisture Sensitivity: Level 1 per J-STD-020

Terminals: Finish – Matte Tin Plated Leads, Solderable per

MIL-STD-202, Method 208

Weight: 0.006 grams (Approximate)

SOT323

Top View

Device Symbol

Top View

Pin-Out

Ordering Information

(Notes 4 & 5)

Product

BC856AW-7-F

BC856BW-7-F

BC856BW-13-F

BC857AW-7-F

BC857BW-7-F

Notes:

Compliance

AEC-Q101

Marking

K3A

K3B

K3A

K3B

Reel Size

(inches)

Quantity

per Reel

3,000

10,000

3,000

Product

BC857BWQ-13-F

BC857CW-7-F

BC858AW-7-F

BC858BW-7-F

BC858CW-7-F

Compliance

Automotive

AEC-Q101

Marking

K3B

K3G

K3A

K3B

K3G

Reel Size

(inches)

Quantity

per Reel

10,000

3,000

1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.

2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"

and Lead-free.

3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and

<1000ppm antimony compounds.

4. Automotive products are AEC-Q101 qualified and are PPAP capable. Automotive, AEC-Q101 and standard products are electrically and thermally

the same, except where specified. For more information, please refer to http://www.diodes.com/quality/product_compliance_definitions/.

5. Tape width is 8mm. For packaging details, go to our website at http://www.diodes.com/products/packages.html

Marking Information

xxx

xxx = Product Type Marking Code (See Ordering Information)

YM = Date Code Marking

Y or Y = Year (ex: A = 2013)

M or M = Month (ex: 9 = September)

Date Code Key

Year

Code

Month

Code

2010

Jan

Feb

2011

Mar

2012

Apr

May

2013

Jun

2014

Jul

Aug

2015

Sep

2016

Oct

Nov

2017

Dec

BC856AW – BC858CW

Document Number: DS30251 Rev. 10 - 2

1 of 5

www.diodes.com

November 2013

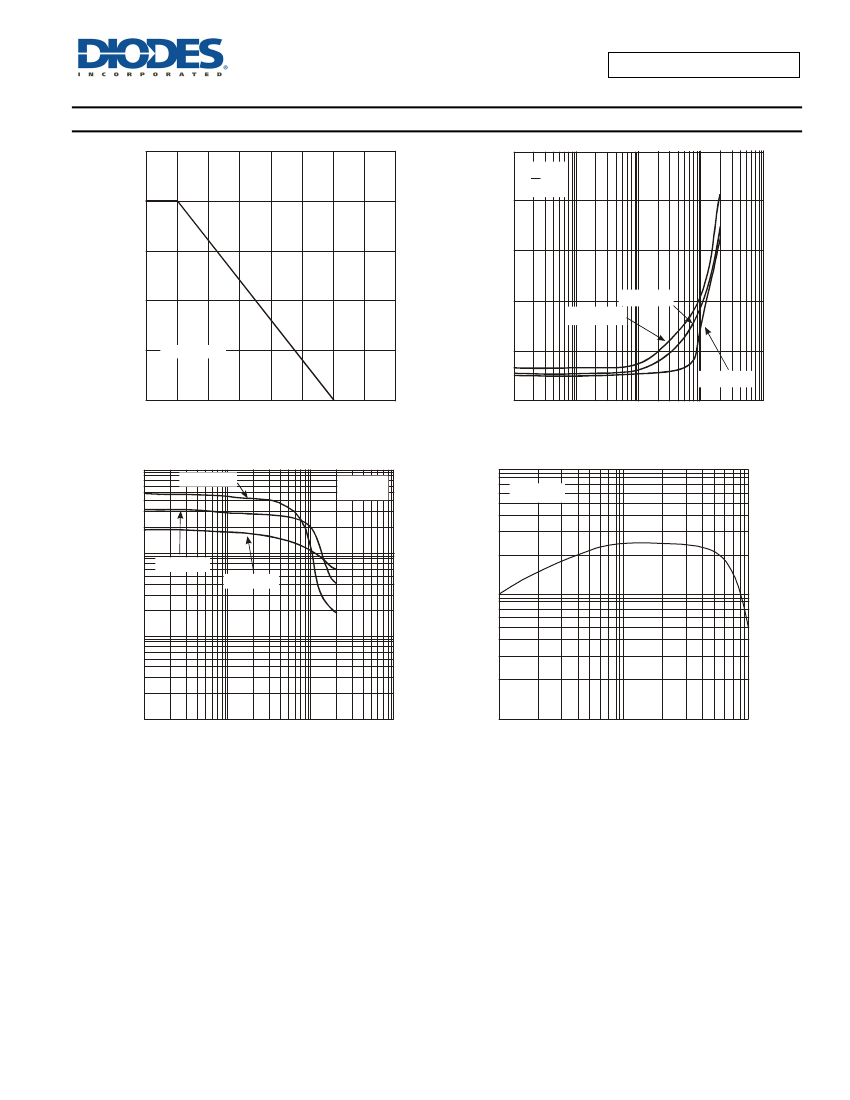

BC856AW-BC858CW

IMPORTANT NOTICE

DIODES INCORPORATED MAKES NO WARRANTY OF ANY KIND, EXPRESS OR IMPLIED, WITH REGARDS TO THIS DOCUMENT,

INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE

(AND THEIR EQUIVALENTS UNDER THE LAWS OF ANY JURISDICTION).

Diodes Incorporated and its subsidiaries reserve the right to make modifications, enhancements, improvements, corrections or other changes

without further notice to this document and any product described herein. Diodes Incorporated does not assume any liability arising out of the

application or use of this document or any product described herein; neither does Diodes Incorporated convey any license under its patent or

trademark rights, nor the rights of others. Any Customer or user of this document or products described herein in such applications shall assume

all risks of such use and will agree to hold Diodes Incorporated and all the companies whose products are represented on Diodes Incorporated

website, harmless against all damages.

Diodes Incorporated does not warrant or accept any liability whatsoever in respect of any products purchased through unauthorized sales channel.

Should Customers purchase or use Diodes Incorporated products for any unintended or unauthorized application, Customers shall indemnify and

hold Diodes Incorporated and its representatives harmless against all claims, damages, expenses, and attorney fees arising out of, directly or

indirectly, any claim of personal injury or death associated with such unintended or unauthorized application.

Products described herein may be covered by one or more United States, international or foreign patents pending. Product names and markings

noted herein may also be covered by one or more United States, international or foreign trademarks.

This document is written in English but may be translated into multiple languages for reference. Only the English version of this document is the

final and determinative format released by Diodes Incorporated.

LIFE SUPPORT

Diodes Incorporated products are specifically not authorized for use as critical components in life support devices or systems without the express

written approval of the Chief Executive Officer of Diodes Incorporated. As used herein:

A. Life support devices or systems are devices or systems which:

1. are intended to implant into the body, or

2. support or sustain life and whose failure to perform when properly used in accordance with instructions for use provided in the

labeling can be reasonably expected to result in significant injury to the user.

B. A critical component is any component in a life support device or system whose failure to perform can be reasonably expected to cause the

failure of the life support device or to affect its safety or effectiveness.

Customers represent that they have all necessary expertise in the safety and regulatory ramifications of their life support devices or systems, and

acknowledge and agree that they are solely responsible for all legal, regulatory and safety-related requirements concerning their products and any

use of Diodes Incorporated products in such safety-critical, life support devices or systems, notwithstanding any devices- or systems-related

information or support that may be provided by Diodes Incorporated. Further, Customers must fully indemnify Diodes Incorporated and its

representatives against any damages arising out of the use of Diodes Incorporated products in such safety-critical, life support devices or systems.

www.diodes.com

BC856AW – BC858CW

Document Number: DS30251 Rev. 10 - 2

5 of 5

www.diodes.com

November 2013
