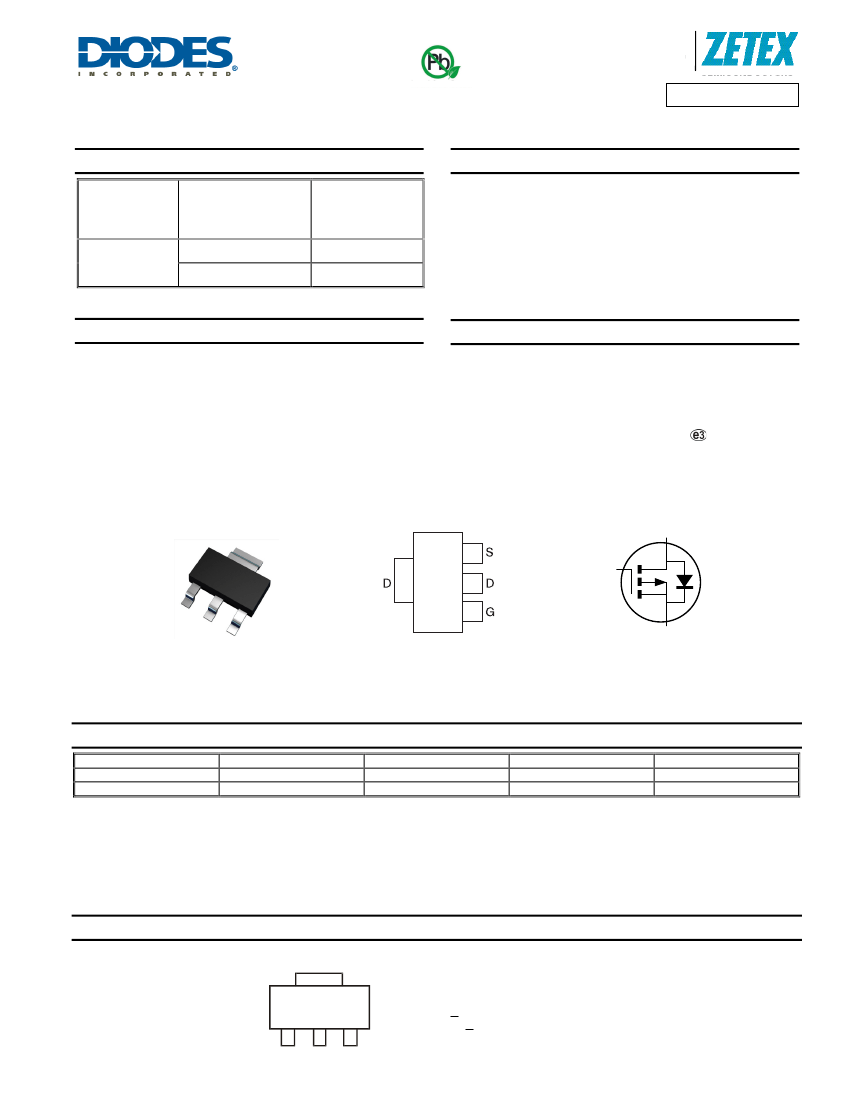

Qualified to AEC-Q101 Standards for High Reliability
Description and Applications

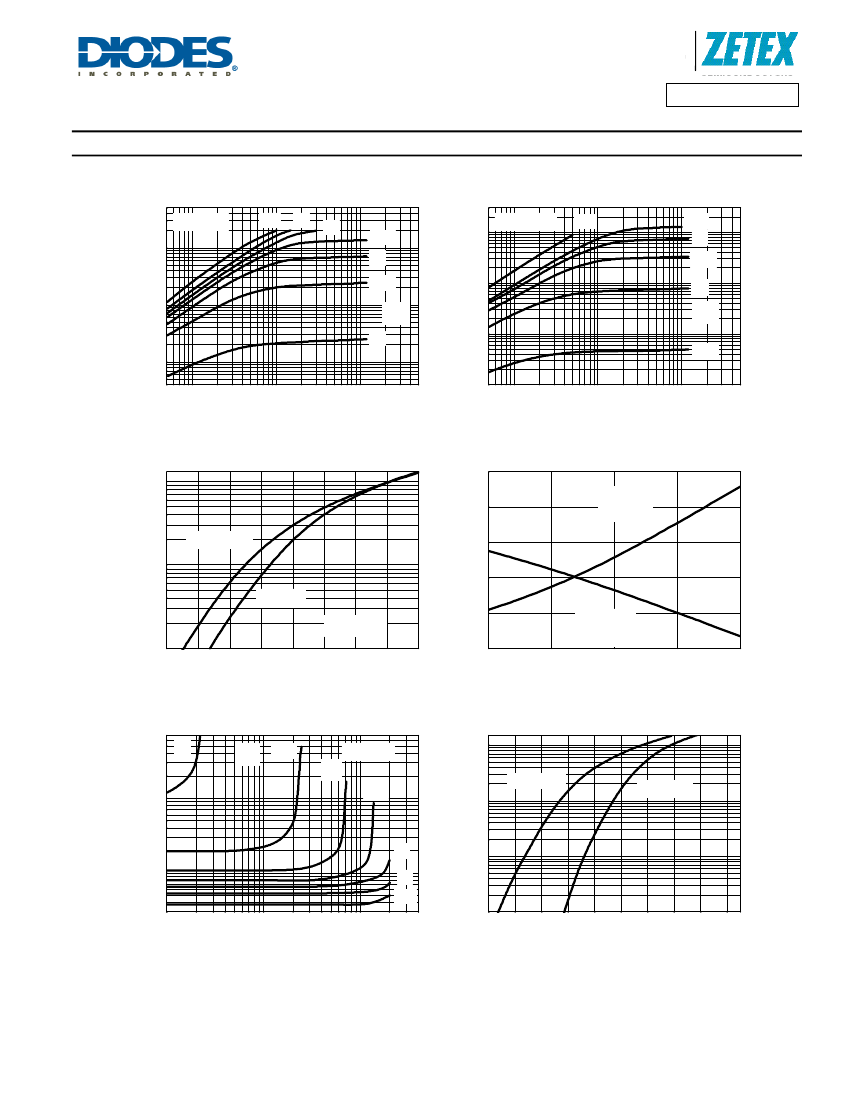

This MOSFET is designed to minimize the on-state resistance and yet
maintain superior switching performance, making it ideal for high-
efficiency power management applications.
•
•
•
•
Motor Control
DC-DC Converters
Power Management Functions
Relay and Solenoid Driving
Mechanical Data
•
•
•
•
•
Case: SOT223
Case Material: Molded Plastic, UL Flammability Classification
Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020
Terminals: Finish - Matte Tin Annealed over Copper Leadframe.
Solderable per MIL-STD-202, Method 208
Weight: 0.112 grams (Approximate)
SOT223
D
G
S
Top View
Pin Out - Top View
Equivalent Circuit
Ordering Information
(Note 4)
Product
ZXMP3A16GTA
ZXMP3A16GTC
Notes:
Marking
ZXMP3A16
ZXMP3A16
Reel size (inches)
7
13
Tape width (mm)
12
12
Quantity per reel
1,000
4,000
1. EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant. All applicable RoHS exemptions applied.
2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"
and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. Diodes, Inc. defines “Green” products as those which are RoHS compliant and contain no halogens or antimony compounds. All applicable RoHS
exemptions applied. Further information about Diodes Inc.’s “Green” Policy can be found on our website.

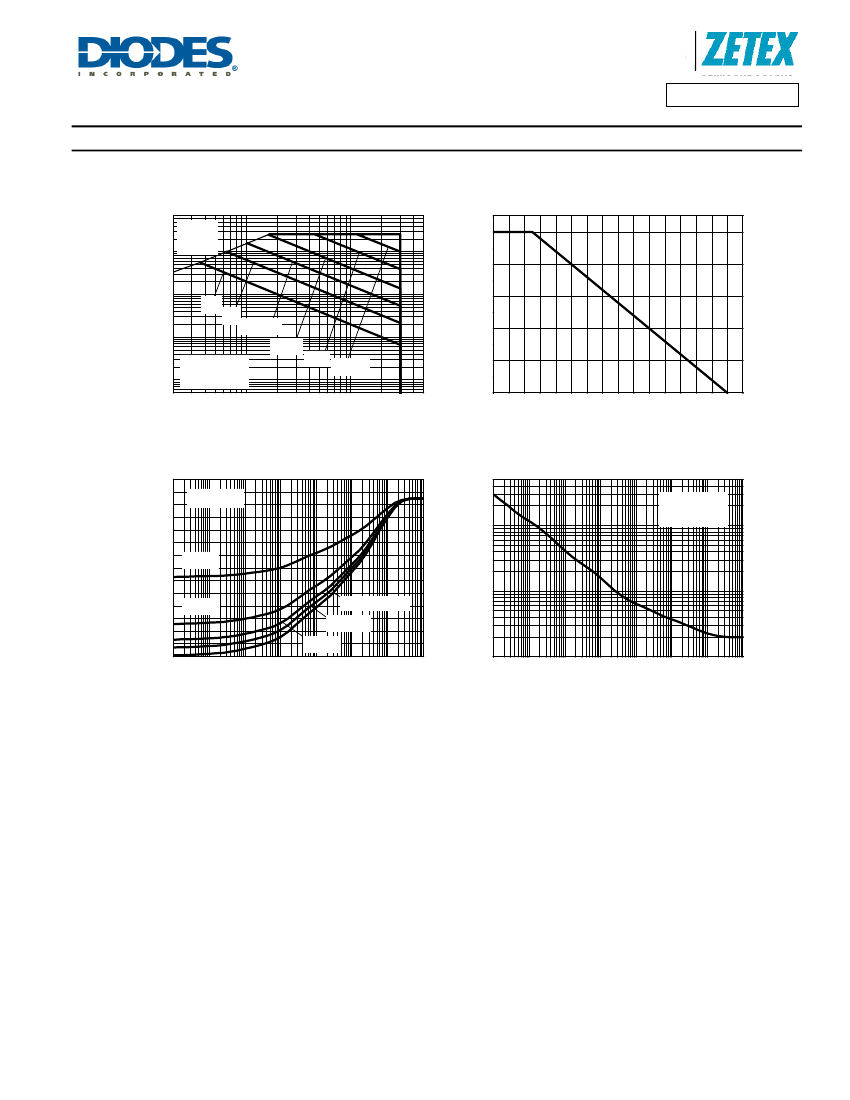

5. For a device surface mounted on 25mm x 25mm x 1.6mm FR4 PCB with high coverage of single sided 1oz copper, in still air conditions; the device is
measured when operating in a steady-state condition.
6. Same as Note (5), except the device is measured at t
≤
10 sec.
7. Same as Note (5), except the device is pulsed with D= 0.02 and pulse width 300 µs. The pulse current is limited by the maximum junction temperature.
8. Thermal resistance from junction to solder-point (at the end of the drain lead).
