74LVC1G34

SINGLE BUFFER GATE

Description

The 74LVC1G34 is a single buffer gate with a standard push-pull

output. The device is designed for operation with a power supply

range of 1.65V to 5.5V. The inputs are tolerant to 5.5V allowing this

device to be used in a mixed voltage environment. The device is fully

specified for partial power down applications using I

OFF

. The I

OFF

circuitry disables the output preventing damaging current backflow

when the device is powered down.

The gate performs the positive Boolean function:

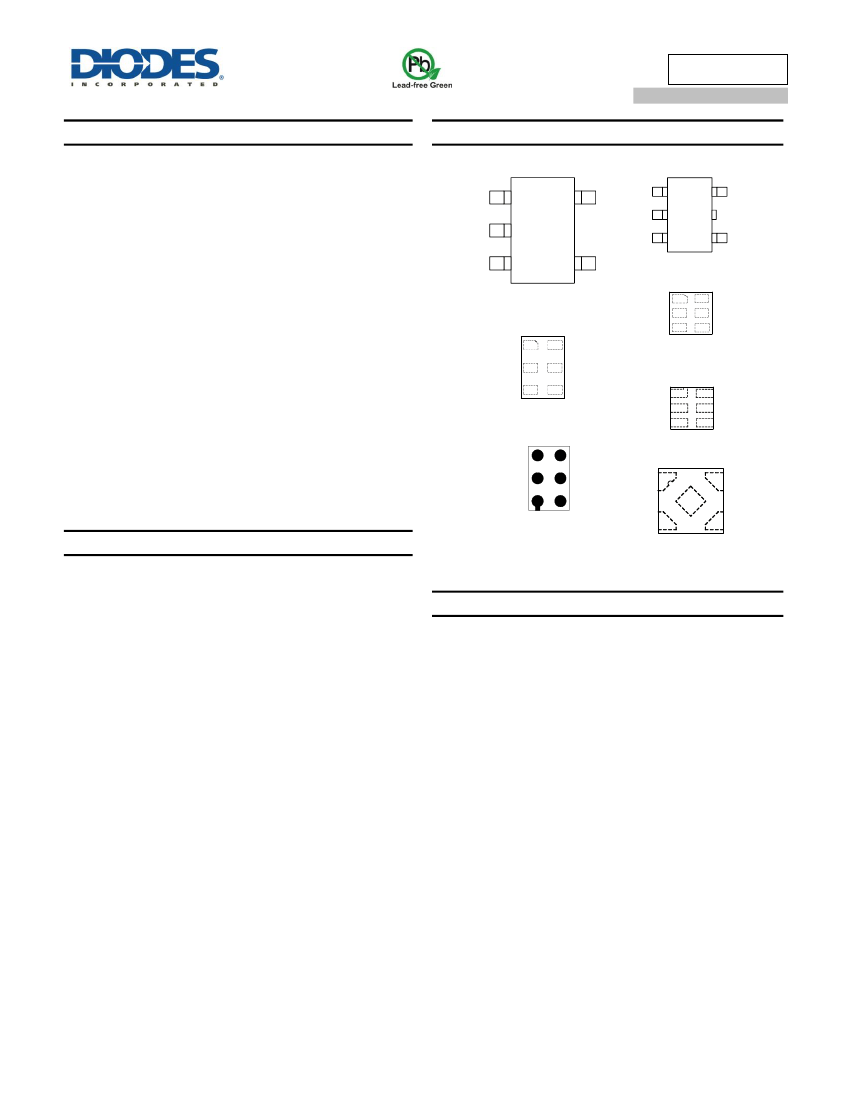

Pin Assignments

( Top View )

Vcc

( Top View )

GND

Vcc

GND

SOT25 / SOT353

( Top View )

SOT553

(Top View )

Y=A

GND

Vcc

X1-DFN1010-6

(Type B)

(Top View )

X2-DFN1410-6

( Bottom View )

GND

Vcc

X2-DFN1010-6

Vcc

(Top View)

GND

Vcc

Features



Wide Supply Voltage Range from 1.65 to 5.5V

± 24mA Output Drive at 3.3V

CMOS Low Power Consumption

OFF

Supports Partial-Power-Down Mode Operation

Inputs Accept Up to 5.5V

ESD Protection Tested per JESD 22



Exceeds 200-V Machine Model (A115)



Exceeds 2000-V Human Body Model (A114)



Exceeds 1000-V Charged Device Model (C101)

Latch-Up Exceeds 100mA per JESD 78, Class I

Range of Package Options

Direct Interface with TTL Levels

Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)

Halogen and Antimony Free. “Green” Device (Note 3)

X2-DFN1409-6

Chip Scale

Alternative

X2-DFN0808-4

Packages not to scale

Applications



Voltage Level Shifting

General Purpose Logic

Power Down Signal Isolation

Wide array of products such as:



PCs, Networking, Notebooks, Netbooks, PDAs



Tablet Computers, E-Readers



Computer Peripherals, Hard Drives, CD/DVD ROMs



TVs, DVDs, DVRs, Set-Top Boxes



Cell Phones, Personal Navigation / GPS



MP3 Players, Cameras, Video Recorders



Notes:

1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.

2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"

and Lead-free.

3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and

<1000ppm antimony compounds.

74LVC1G34

Document number: DS36108 Rev. 8 - 2

1 of 15

www.diodes.com

April 2016
