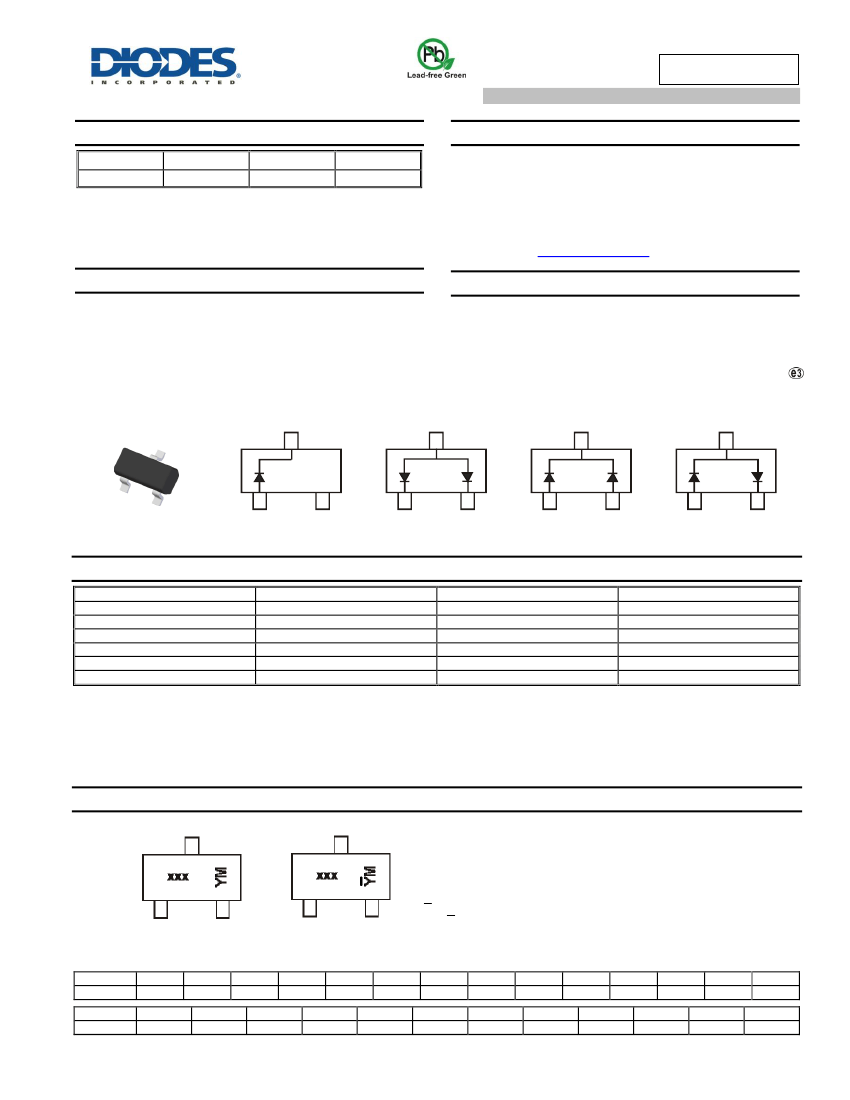

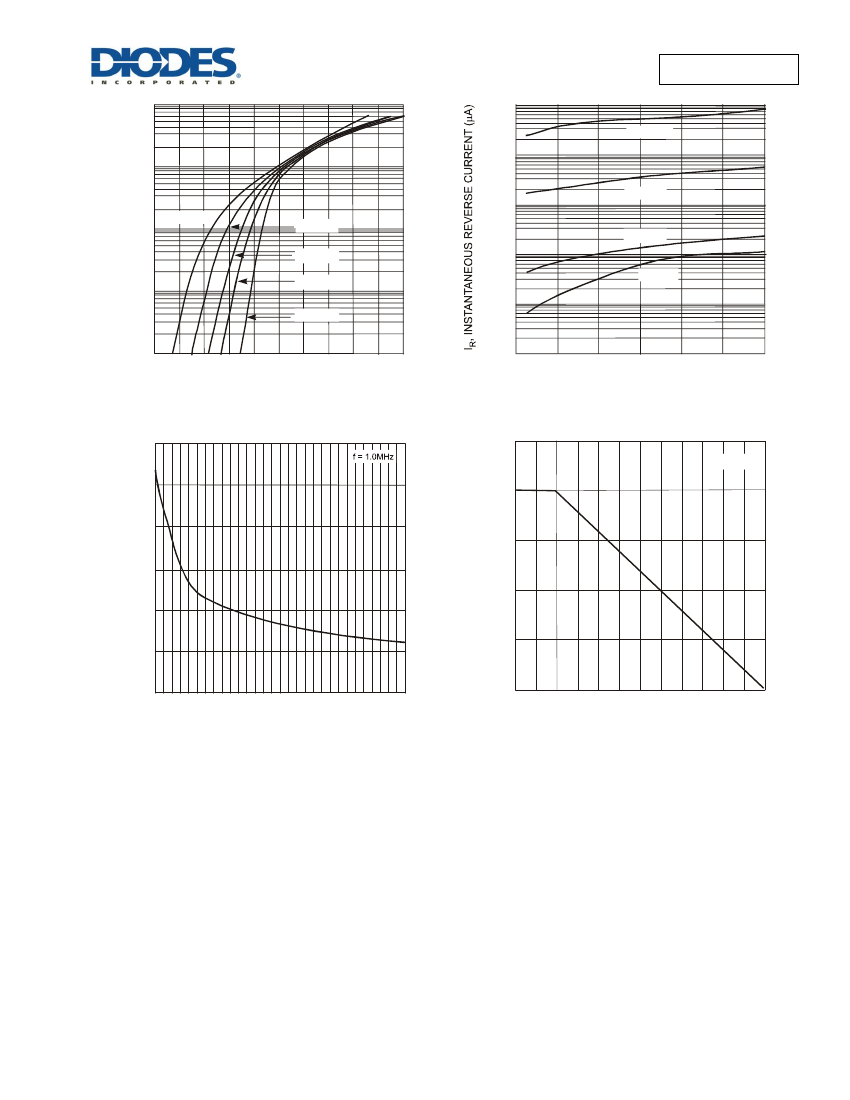

BAT54 /A /C /S

SURFACE MOUNT SCHOTTKY BARRIER DIODE

Product Summary

(@T

= +25°

RRM

(V)

(mA)

200

Fmax

(V)

0.8

Rmax

(μA)

Features and Benefits



Low Turn-on Voltage

Fast Switching

PN Junction Guard Ring for Transient and ESD Protection

Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)

Halogen and Antimony Free. “Green” Device (Note 3)

Qualified to AEC-Q101 Standards for High Reliability

An Automotive-Compliant Part is Available Under Separate

Datasheet (BAT54Q_AQ_CQ_SQ)

Description

200mA surface mount Schottky Barrier Diode in SOT23 package,

offers low turn-on voltage and fast switching capability, designed with

PN Junction Guard Ring for Transient and ESD Protection, totally

lead-free finish and RoHS compliant, ”Green” device.

Mechanical Data



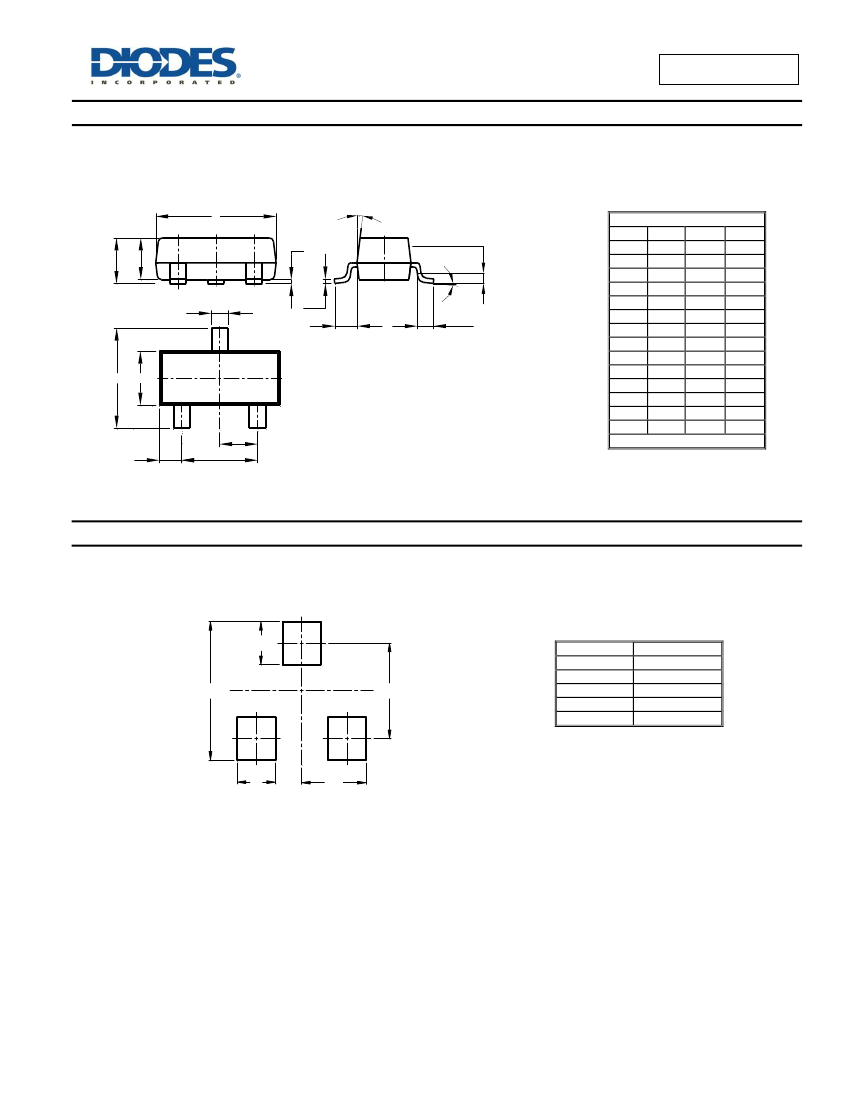

Case: SOT23

Case Material: Molded Plastic, “Green” Molding Compound.

UL Flammability Classification Rating 94V-0

Moisture Sensitivity: Level 1 per J-STD-020

Terminals: Matte Tin Finish Annealed over Alloy 42 Leadframe

(Lead Free Plating). Solderable per MIL-STD-202, Method 208

Polarity: See Diagrams Below

Weight: 0.008 grams (Approximate)

Top View

BAT54

BAT54A

BAT54C

BAT54S

Ordering Information

(Note 4)

Part Number

BAT54-7-F

BAT54A-7-F

BAT54C-7-F

BAT54S-7-F

BAT54-13-F

BAT54A-13-F

Notes:

Compliance

Standard

Case

SOT23

Packaging

3000/Tape & Reel

10,000/Tape & Reel

1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.

2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"

and Lead-free.

3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and

<1000ppm antimony compounds.

4. For packaging details, go to our website at http://www.diodes.com/products/packages.html.

Marking Information

xxx = Product Type Marking Code

KL1 = BAT54

KL2 = BAT54A

KL3 = BAT54C

KL4 = BAT54S

YM = Date Code Marking for SAT (Shanghai Assembly/ Test site)

YM = Date Code Marking for CAT (Chengdu Assembly/ Test site)

Y or Y = Year (ex: D = 2016)

M = Month (ex: 9 = September)

Shanghai A/T Site

Date Code Key

Year

2010

Code

Month

Code

Jan

Chengdu A/T Site

2011

Feb

2012

Mar

2013

2014

Apr

2015

May

2016

Jun

2017

Jul

2018

Aug

2019

Sep

2020

2021

Oct

2022

Nov

2023

Dec

BAT54 /A /C /S

Document number: DS11005 Rev. 32 - 2

1 of 5

www.diodes.com

November 2016
