ZXRE125
SOT23 MICROPOWER 1.22V VOLTAGE REFERENCE
Description
The ZXRE125 is a bandgap circuit designed to achieve a
precision micropower voltage reference of 1.22 volts. The
device is available in the small outline SOT23 surface mount
package which is ideal for applications where space saving
is important.
SOT23 tolerance is available to 0.5% for precision
applications. Excellent performance is maintained over the
8µA to 20mA operating current range with a typical
temperature coefficient of only 20ppm/°C. The device has
been designed to be highly tolerant of capacitive loads so
maintaining excellent stability.
This device offers a SOT23 pin for pin compatible
replacement of the ZRA124 and ZRA125 series of voltage
references.
Pin Assignments
(Top View)
Pin 1 floating or connected to pin 2
Features
•
•
•
•
•
•
•
High performance 1.220V reference
Small outline SOT23
4μA knee current
20ppm/°C typical temperature coefficient
Unconditionally stable
0.5%, 1%, 2%, and 3% tolerance
Green molding compound (No Br, Sb)
OBSOLETE
(Bottom View)
Pin 3 floating or connected to pin 1
Applications
•
•
•
•
•
Battery powered equipment
Precision power supplies
Portable instrumentation
Portable communication devices
Data acquisition systems

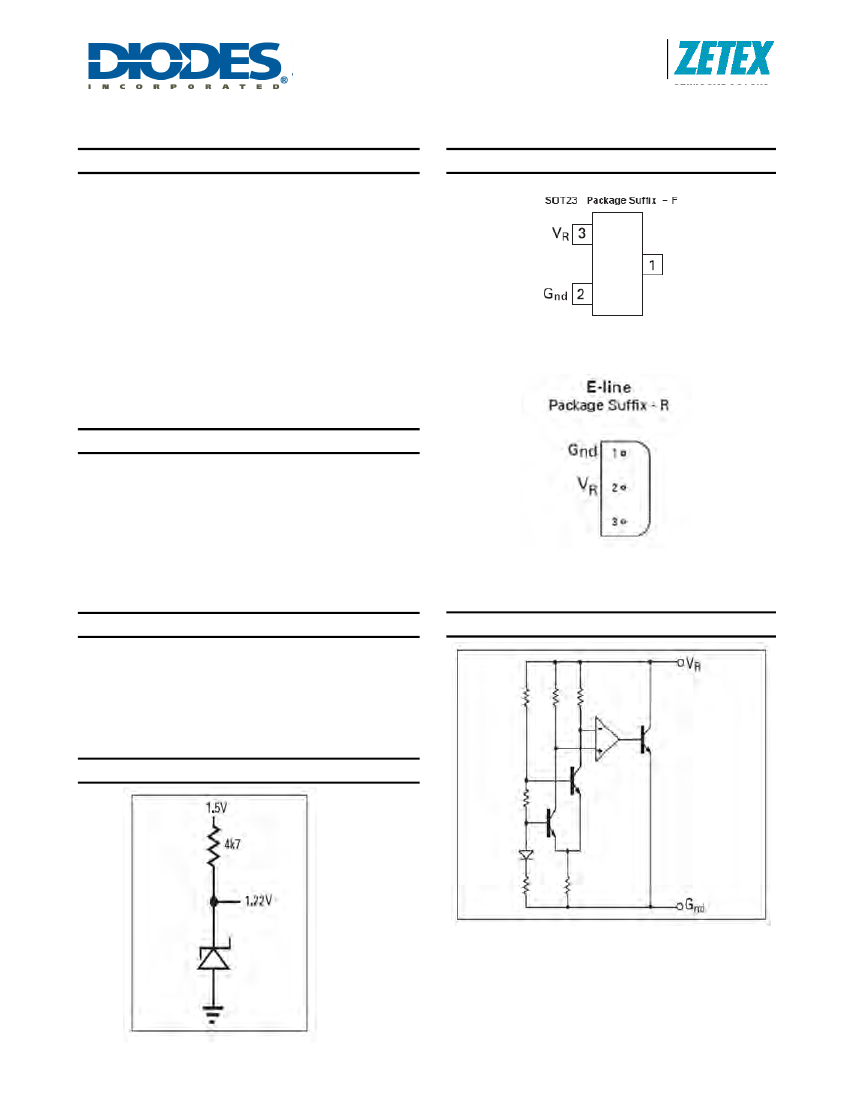

Schematic Diagram
Application Circuit
ZXRE125
Document number: DS32170 Rev. 8 - 2
1 of 5
www.diodes.com
June 2010
© Diodes Incorporated
