BC847BW-7-F: DescriptionTransistor type: NPN Collector current Ic: 100mA Collector-emitter breakdown voltage Vce: 45V Rated power: 200mW NPN 45V 100mA; CategoryDiscrete semiconductor triode; File Size187KB，6 Pages; ManufacturerDiodes; Websitehttp://www.diodes.com/

Download Datasheet Parametric Compare View All

BC847BW-7-F Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	BC847BW-7-F	-	-	View	Buy Now

BC847BW-7-F Overview

Transistor type: NPN Collector current Ic: 100mA Collector-emitter breakdown voltage Vce: 45V Rated power: 200mW NPN 45V 100mA

BC847BW-7-F Parametric

Parameter Name	Attribute value
Transistor type	NPN
Collector current Ic	100mA
Collector-emitter breakdown voltage Vce	45V
rated power	200mW

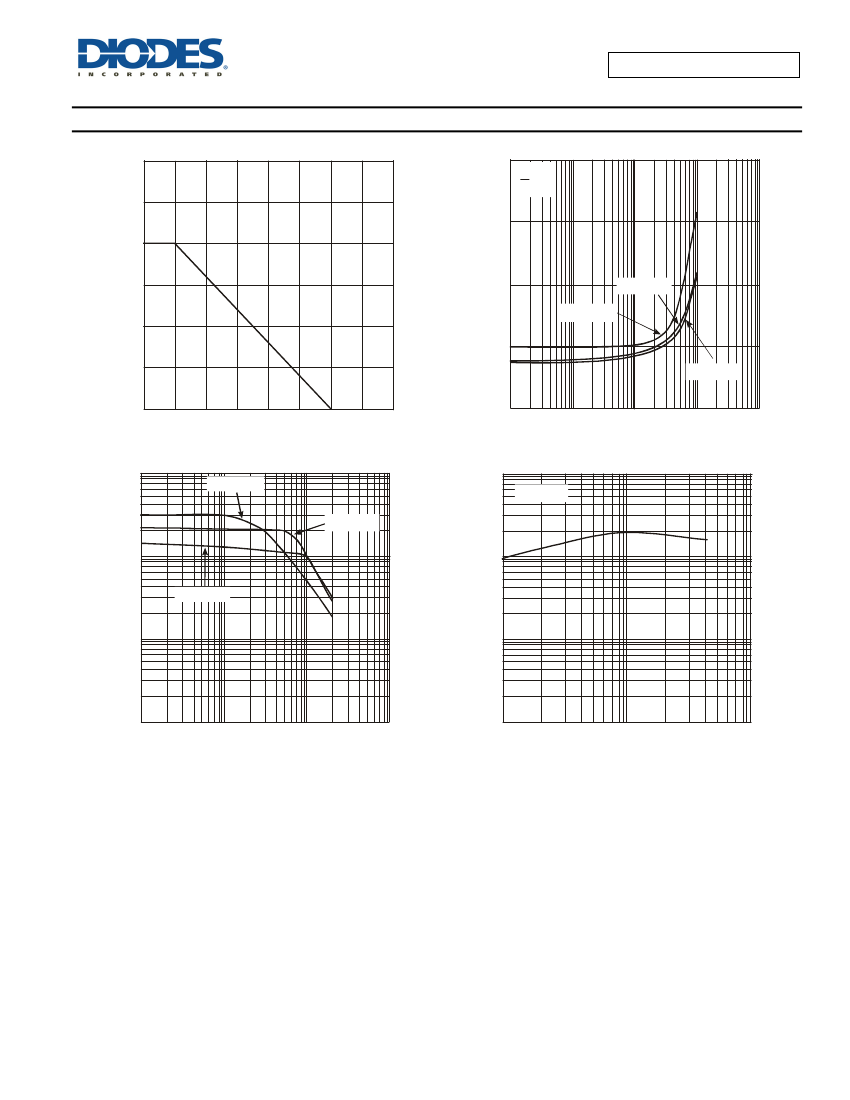

Preview

Download Datasheet

View All

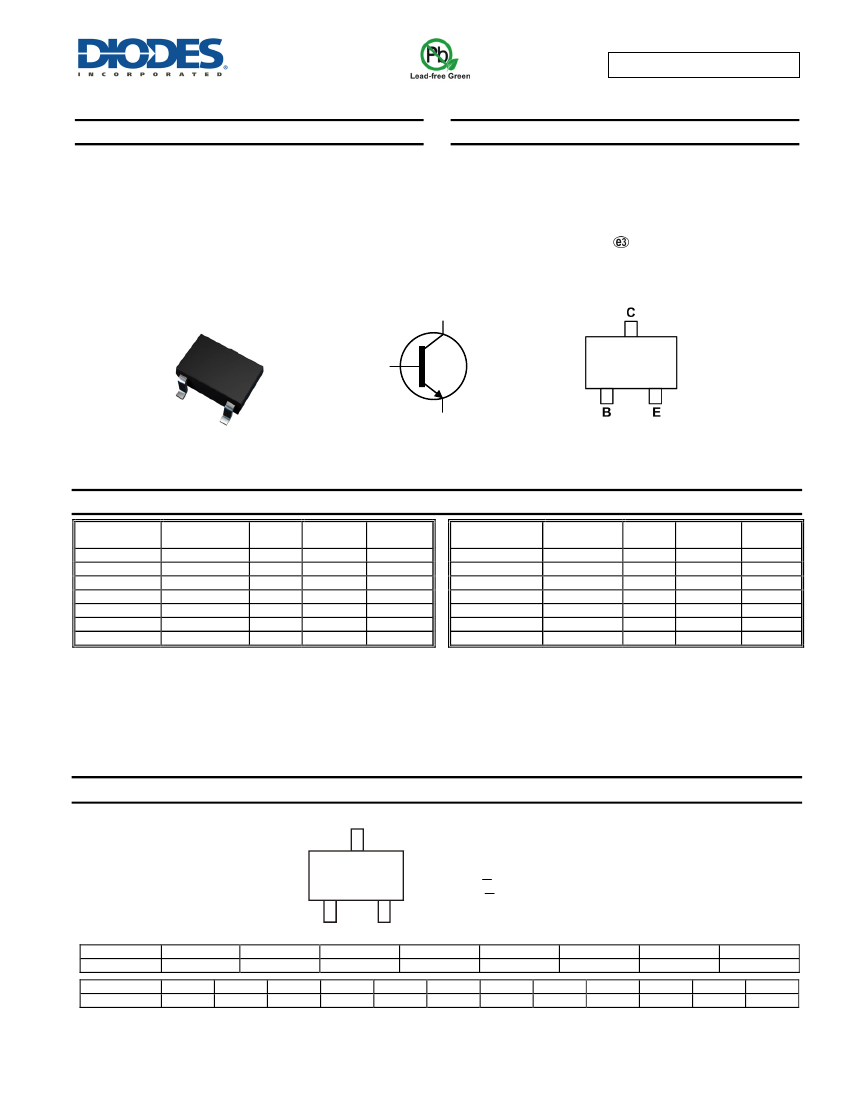

BC846AW-BC848CW

NPN SMALL SIGNAL TRANSISTOR IN SOT323

Features



Ideally Suited for Automatic Insertion

Complementary PNP Types: BC856W – BC858W

For Switching and AF Amplifier Applications

Totally Lead-Free & Fully RoHS compliant (Notes 1 & 2)

Halogen and Antimony Free. "Green" Device (Note 3)

Qualified to AEC-Q101 Standards for High Reliability

PPAP capable (Note 4)

Mechanical Data



Case: SOT323

Case material: molded plastic, “Green” molding compound

UL Flammability Classification Rating 94V-0

Moisture Sensitivity: Level 1 per J-STD-020

Terminals: Finish – Matte Tin Plated Leads, Solderable per

MIL-STD-202, Method 208

Weight: 0.006 grams (Approximate)

SOT323

Top View

Device Symbol

Top View

Pin-Out

Ordering Information

(Notes 4 & 5)

Product

BC846AW-7-F

BC846BW-7-F

BC846BWQ-7-F

BC846BW-13-F

BC847AW-7-F

BC847BW-7-F

BC847BW-13-F

Notes:

Compliance

AEC-Q101

Automotive

AEC-Q101

Marking

K1Q

K1R

K1Q

K1R

Reel Size

(inches)

Quantity

per Reel

3,000

10,000

3,000

10,000

Product

BC847BWQ-13-F

BC847CW-7-F

BC847CW-13-F

BC847CWQ-7-F

BC848AW-7-F

BC848BW-7-F

BC848CW-7-F

Compliance

Automotive

AEC-Q101

Automotive

AEC-Q101

Marking

K1R

K1M

K1Q

K1R

K1M

Reel Size

(inches)

Quantity

per Reel

10,000

3,000

10,000

3,000

1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.

2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"

and Lead-free.

3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and

<1000ppm antimony compounds.

4. Automotive products are AEC-Q101 qualified and are PPAP capable. Automotive, AEC-Q101 and standard products are electrically and thermally

the same, except where specified. For more information, please refer to http://www.diodes.com/quality/product_compliance_definitions/.

5. Tape width is 8mm. For packaging details, go to our website at http://www.diodes.com/products/packages.html

Marking Information

xxx = Product Type Marking Code

(Please see Ordering Information)

YM = Date Code Marking

Y or Y = Year (ex: A = 2013)

M or M = Month (ex: 9 = September)

xxx

Date Code Key

Year

Code

Month

Code

2010

Jan

Feb

2011

Mar

2012

Apr

May

2013

2014

Jul

Aug

2015

Sep

2016

Oct

Nov

2017

Dec

Jun

BC846AW – BC848CW

Document Number: DS30250 Rev. 13 - 2

1 of 6

www.diodes.com

December 2013
