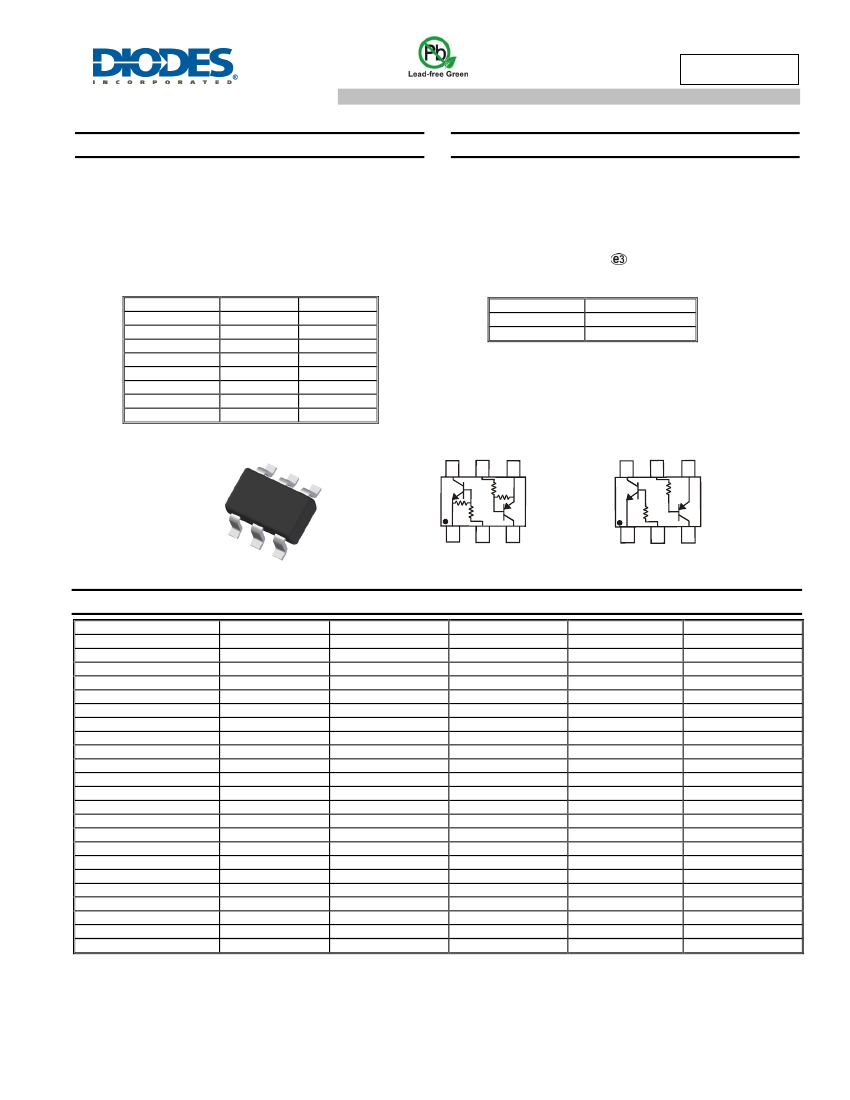

DCX(xxxx)U

SMALL SIGNAL COMPLEMENTARY PRE-BIASED DUAL TRANSISTOR

Features



Epitaxial Planar Die Construction

Built-In Biasing Resistors

Surface Mount Package Suited for Automated Assembly

Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)

Halogen and Antimony Free. “Green” Device (Note 3)

Qualified to AEC-Q101 Standards for High Reliability

PPAP Capable (Note 4)

Part Number

DCX124EU

DCX144EU

DCX114YU

DCX123JU

DCX114EU

DCX143EU

DCX143ZU

DCX115EU

R1(NOM)

22kΩ

47kΩ

10kΩ

2.2kΩ

10kΩ

4.7kΩ

100kΩ

SOT363

R2(NOM)

22kΩ

47kΩ

10kΩ

4.7kΩ

47kΩ

100kΩ

Mechanical Data



Case: SOT363

Case Material: Molded Plastic, “Green” Molding Compound;

UL Flammability Classification Rating 94V-0

Moisture Sensitivity: Level 1 per J-STD-020

Terminals: Finish – Matte Tin Plated Leads, Solderable per

MIL-STD-202, Method 208

Weight: 0.006 grams (Approximate)

Part Number

DCX143TU

DCX114TU

R1 Only

4.7kΩ

10kΩ

CQ1

BQ2

EQ2

CQ1

BQ2

EQ2

CQ2

EQ1

BQ1

EQ1

BQ1

Top View

R1, R2

Device Schematic

R1 Only

Ordering Information

(Notes 4 & 5)

Product

DCX124EU-7-F

DCX124EUQ-7-F

DCX124EUQ-13-F

DCX124EUQ-13R-F

DCX144EU-7-F

DCX144EU-7R-F

DCX144EUQ-7-F

DCX114YU-7-F

DCX114YUQ-7-F

DCX114YUQ-13-F

DCX114YUQ-13R-F

DCX123JU-7-F

DCX123JUQ-7-F

DCX114EU-7-F

DCX114EU-13R-F

DCX114EUQ-7-F

DCX114EUQ-13-F

DCX114EUQ-13R-F

DCX143TU-7-F

DCX143EU-7-F

DCX114TU-7-F

DCX143ZU-7-F

DCX115EU-7-F

Notes:

Compliance

AEC-Q101

Automotive

AEC-Q101

Automotive

AEC-Q101

Automotive

AEC-Q101

Automotive

AEC-Q101

Automotive

AEC-Q101

Marking

C17

C20

C14

C06

C13

C07

C08

C12

C02

C01

Reel Size (inches)

Tape Width (mm)

Quantity per Reel

3,000

10,000

3,000

10,000

3,000

10,000

3,000

10,000

3,000

1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.

2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"

and Lead-free.

3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and

<1000ppm antimony compounds.

4. Automotive products are AEC-Q101 qualified and are PPAP capable. Automotive, AEC-Q101 and standard products are electrically and thermally the

same, except where specified. For more information, please refer to http://www.diodes.com/quality/product_compliance_definitions/.

5. -7R and -13R are parts rotated in the pocket tape by +180° For packaging details, go to our website at http://www.diodes.com/products/packages.html.

DCX(xxxx)U

Document number: DS30347 Rev. 18 - 2

1 of 13

www.diodes.com

January 2016
