ZXTN4006Z
200V NPN LED DRIVING TRANSISTOR IN SOT89
Features
•
•
•
•
•
•
BV
CEO
> 200V
Max continuous current I
C
= 1A
h
FE
> 100 @ I
C
= 150mA, V
CE
= 320mV
Lead Free, RoHS Compliant (Note 1)
Halogen and Antimony Free "Green" Device (Note 2)
Qualified to AEC-Q101 Standards for High Reliability
Mechanical Data
•
•
•
•
•
•
Case: SOT89
Case material: molded Plastic. “Green” molding Compound.
UL Flammability Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020
Terminals: Matte Tin Finish
Weight: 0.052 grams (Approximate)
Applications
•
LED TV backlight

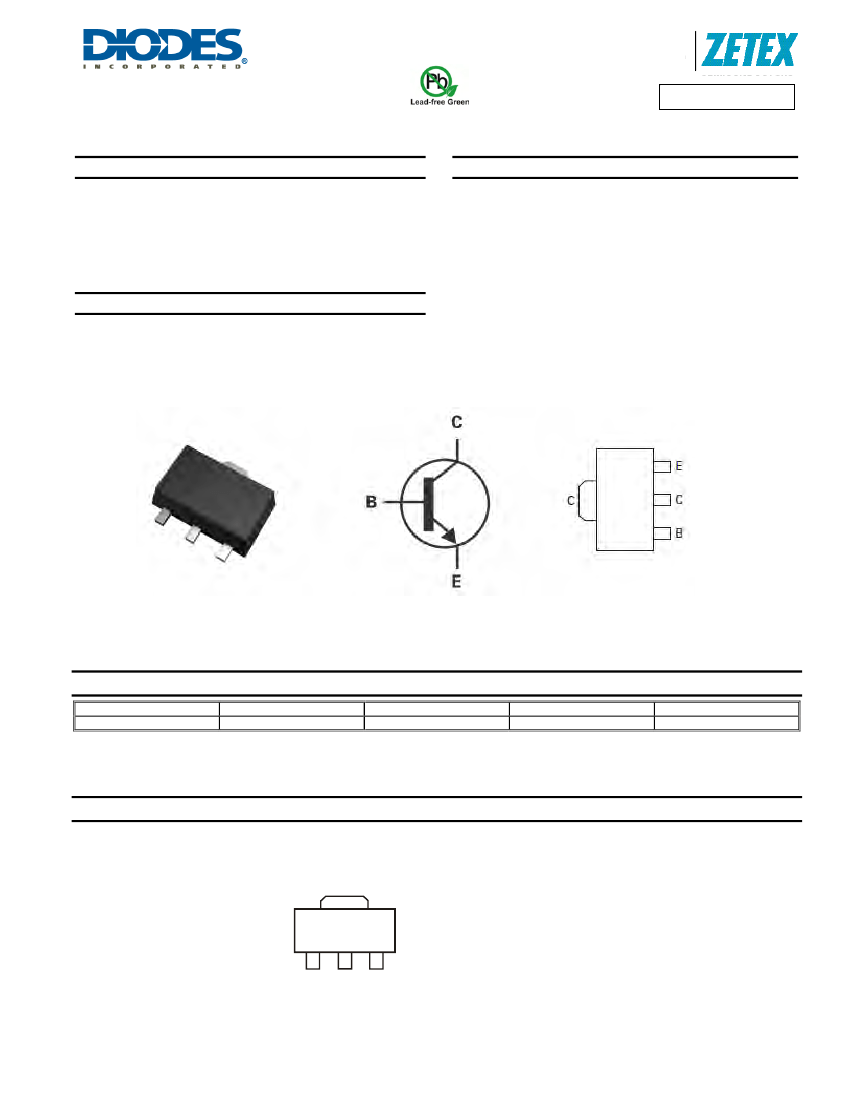

SOT89
Top View
Device symbol
Top View
Pin Out
Ordering Information
(Note 3)
Product
ZXTN4006ZTA
Notes:
Marking
1S5
Reel size (inches)
7
Tape width (mm)
12
Quantity per reel
1000 units
1. No purposefully added lead.
2. Diodes Inc’s “Green” Policy can be found on our website at http://www.diodes.com
3. For Packaging Details, go to our website at http://www.diodes.com.
Marking Information
1S5
1S5 = Product type Marking Code
ZXTN4006Z
Datasheet Number: DS35609 Rev. 1 - 2
1 of 5
www.diodes.com
January 2012
© Diodes Incorporated
A Product Line of
Diodes Incorporated
ZXTN4006Z
Maximum Ratings
@T
A
= 25°C unless otherwise specified
Characteristic
Collector-Base Voltage
Collector-Emitter Voltage
Emitter-Base Voltage
Continuous Collector Current
Peak Pulse Current (Note 4)
Base Current
Symbol
V
CBO
V
CEO
V
EBO
I
C
I
CM
I
B
Value
200
200
7
1
3
500
Unit
V
V
V
A
A
mA
Thermal Characteristics
@T
A
= 25°C unless otherwise specified
Characteristic
Power Dissipation (Note 5)
Thermal Resistance, Junction to Ambient (Note 5)
Thermal Resistance, Junction to Leads (Note 6)
Operating and Storage Temperature Range
Notes:
Symbol
P
D
R
θJA
R
θJL
T
J,
T
STG
Value
1.5
83
16.7
-55 to +150
Unit
W
°C/W
°C/W
°C
4. Measured under pulsed conditions. Pulse width = 300µs. Duty cycle
≤
2%.
5. For a device surface mounted on 25mm X 25mm FR4 PCB with high coverage of single sided 1 oz copper, in still air conditions
6. Thermal resistance from junction to solder-point (at the end of the collector lead).

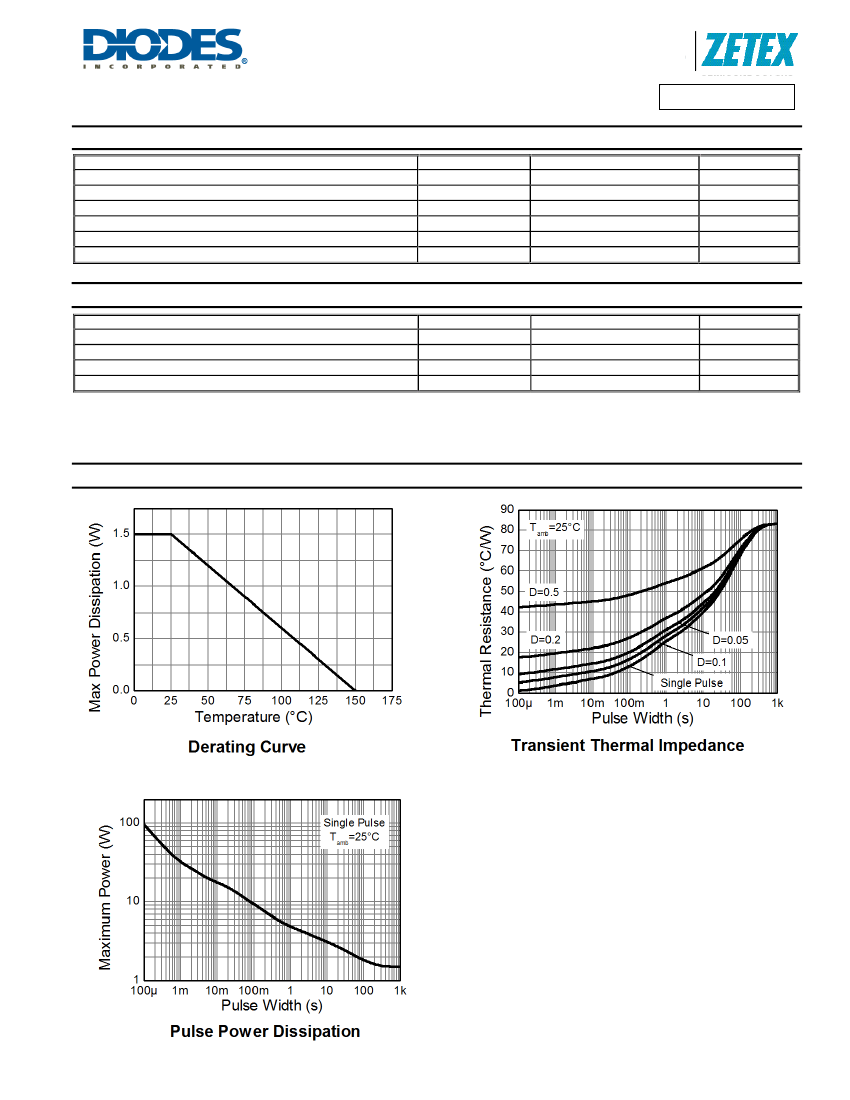

Thermal Characteristics and Derating information
ZXTN4006Z
Datasheet Number: DS35609 Rev. 1 - 2
2 of 5
www.diodes.com
January 2012
© Diodes Incorporated
A Product Line of
Diodes Incorporated
ZXTN4006Z
Electrical Characteristics
@T
A
= 25°C unless otherwise specified
Characteristic
Collector-Emitter Breakdown Voltage (Note 7)
Collector Cut-off Current
Emitter Cut-off Current
Static Forward Current Transfer Ratio (Note 7)
Base-Emitter Turn-On Voltage (Note 7)
Delay Time
Rise Time
Storage Time
Fall Time
Storage Time
Fall Time
Notes:
Symbol
BV
CEO
I
CBO
I
EBO
h
FE
V
BE(on)
t
(d)
t
(r)
t
(s)
t
(f)
t
(s)
t
(f)
Min
200
-
-
60
100
-
-
-
-
-
-
-
Typ
-
-
-
-
-
Max
-
50
50
-
-
Unit
V
nA
nA
-
V
ns
ns
ns
ns
ns
ns
0.72
600
496
2730
293
56
243
0.95
-
-
-
-
-
-
Test Condition
I
C
= 10mA
V
CB
= 200V
V
EB
= 7V
I
C
= 85mA, V
CE
= 0.25V
I
C
= 150mA, V
CE
= 0.32V
I
C
= 150mA, V
CE
= 0.32V
V
CC
= 160V, I
C
= 150mA,
-I
B2
= 1.5mA, V
CE(ON)
= 0.32V
V
CC
= 80V, I
C
= 150mA,
I
B1
= -I
B2
= 1.5mA, V
CE(ON)
= 4V
7. Measured under pulsed conditions. Pulse width = 300µs. Duty cycle
≤
2%

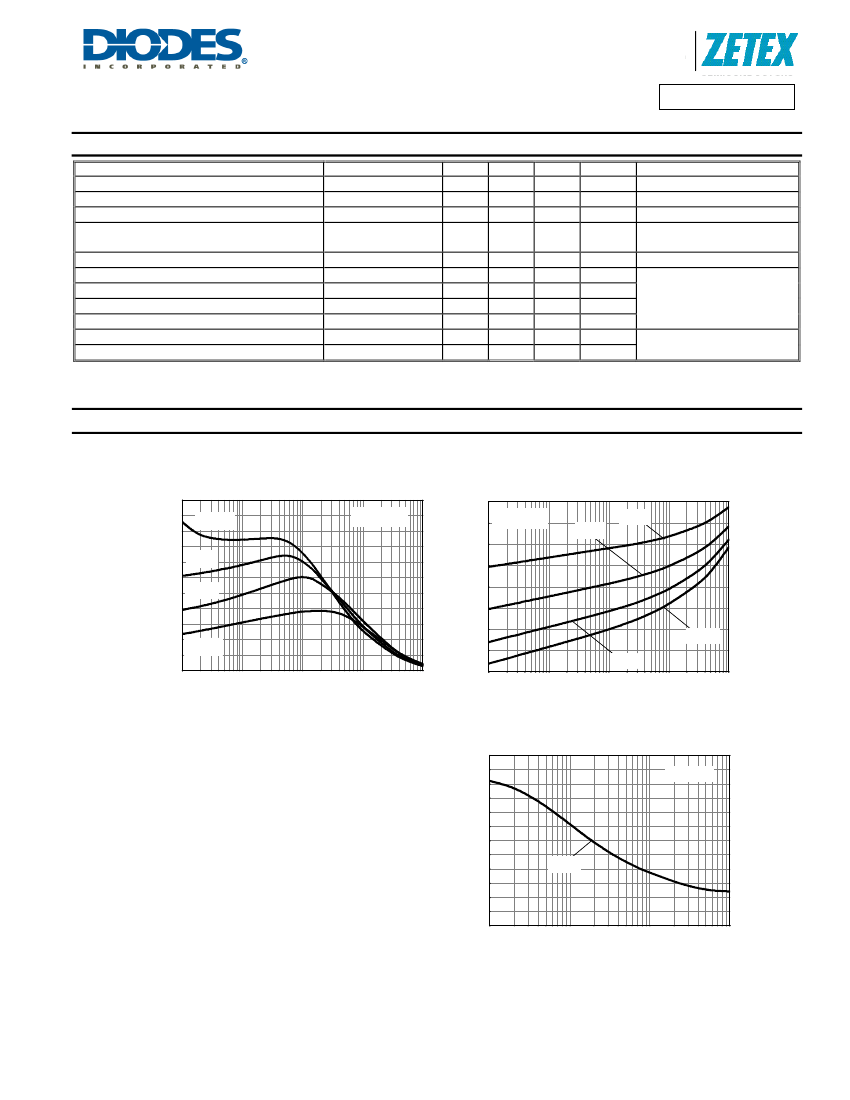

Electrical Characteristics
1.0
500
125°C
V
CE
=0.32V
V
CE
=0.32V
25°C
-55°C
Typical Gain (h
FE
)
400
85°C
0.8
300
25°C
V
BE(on)
(V)
0.6
200
100
-55°C
0.4
85°C
125°C
0
100µ
1m
10m
100m
1
0.2
100µ
1m
10m
100m
1
I
C
Collector Current (A)
I
C
Collector Current (A)
h
FE
v I
C
30
25
V
BE(on)
v I
C
f = 1MHz
Capacitance (pF)
20
15
10
5
0
100m
1
10
100
Cobo
Voltage(V)
Capacitance v Voltage
ZXTN4006Z
Datasheet Number: DS35609 Rev. 1 - 2
3 of 5
www.diodes.com
January 2012
© Diodes Incorporated
A Product Line of
Diodes Incorporated
ZXTN4006Z
