BAV16W/1N4148W
SURFACE MOUNT FAST SWITCHING DIODE
Features
Fast Switching Speed
Low Forward Voltage: Maximum of 0.715V at 1mA
Fast Reverse Recovery: Maximum of 4ns
Low Capacitance: Maximum of 2pF
Surface Mount Package Ideally Suited for Automated Insertion
For General Purpose Switching Applications
Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
Halogen and Antimony Free. “Green” Device (Note 3)
Qualified to AEC-Q101 Standards for High Reliability
PPAP Capable (Note 4)
Mechanical Data
Case: SOD123
Case Material: Molded Plastic, “Green” Molding Compound;
UL Flammability Classification Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020
Terminals: Matte Tin Finish Annealed over Alloy 42 Leadframe.
(Lead-Free Plating). Solderable per MIL-STD-202, Method 208
Polarity: Cathode Band
Weight: 0.01 grams (Approximate)
SOD123
Top View
Ordering Information
(Note 4 & 5)
Part Number
BAV16W-7-F
1N4148W-7-F
1N4148WQ-7-F
1N4148W-13-F
1N4148WQ-13-F
Notes:
Compliance
Standard
Standard
Automotive
Standard
Automotive
Case
SOD123
SOD123
SOD123
SOD123
SOD123
Packaging
3,000/Tape & Reel
3,000/Tape & Reel
3,000/Tape & Reel
10,000/Tape & Reel
10,000/Tape & Reel
1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.
2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"
and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4.
Automotive products are AEC-Q101 qualified and are PPAP capable. Automotive, AEC-Q10x and standard products are electrically and thermally the
same, except where specified. For more information, please refer to http://www.diodes.com/quality/product_compliance_definitions/.
5. For packaging details, go to our website at http://www.diodes.com/package-outlines.html.
Marking Information
SOD123
xx = Product Type Marking Code (T4)
YM = Date Code Marking
Y or Y = Year (ex: E = 2017)
M = Month (ex: 9 = September)
Date Code Key
Year
2001
Code
M
Month
Code
Jan
1
2002
N
Feb
2
2003
P
Mar
3
…..
…..
Apr
4
2012
Z
May
5
2013
A
Jun
6
2014
B
Jul
7
2015
C
2016
D
Aug
8
2017
E
Sep
9
2018
F
Oct
O
2019
G
Nov
N
2020
H
Dec
D
BAV16W/1N4148W
Document number: DS30086 Rev. 28 - 2
1 of 4
www.diodes.com
January 2017
© Diodes Incorporated
BAV16W/1N4148W
Maximum Ratings
(@T
A
= +25°C, unless otherwise specified.)
Characteristic
Peak Repetitive Reverse Voltage
Working Peak Reverse Voltage
DC Blocking Voltage
RMS Reverse Voltage
Forward Continuous Current
Non-Repetitive Peak Forward Surge Current
@ t = 1.0µs
@ t = 1.0s
Symbol
V
RRM
V
RWM
V
R
V
R(RMS)
I
FM
I
FSM
Value
100
71
300
2.0
1.0
Unit
V
V
mA
A
Thermal Characteristics
Characteristic
Power Dissipation (Note 6)
Thermal Resistance Junction to Ambient Air (Note 6)
Operating and Storage Temperature Range
Symbol
P
D
R
JA
T
J
, T
STG
Value
400
315
-65 to +150
Unit
mW
°C/W
°C
Electrical Characteristics
(@T
A
= +25°C, unless otherwise specified.)
Symbol
V
(BR)R
V
FM
Min
100
Max
0.715
0.855
1.0
1.25
1.0
50
30
25
2.0
4.0
Unit
V
V
Test Condition
I
R
= 1.0µA
I
F
= 1.0mA
I
F
= 10mA
I
F
= 50mA
I
F
= 150mA
V
R
= 75V
V
R
= 75V, T
J
= +150°C
V
R
= 25V, T
J
= +150°C
V
R
= 20V
V
R
= 0, f = 1.0MHz
I
F
= I
R
= 10mA,
I
rr
= 0.1 x I
R
, R
L
= 100Ω
Characteristic
Reverse Breakdown Voltage (Note 7)
Forward Voltage
Peak Reverse Current (Note 7)
Total Capacitance
Reverse Recovery Time
Notes:
6.
7.
I
RM
C
T
t
rr
µA
µA
µA
nA
pF
ns
Part mounted on FR-4 PC board, double-sided, with 3oz copper plating and with anode and cathode terminal pad dimensions of 2" x 2".
Short duration pulse test used to minimize self-heating effect.
Note 6
400
I
F
, INSTANTANEOUS FORWARD CURRENT (A)
500
1
P
D
, POWER DISSIPATION (mW)
0.1
300
200
0.01
100
0
0
25
50
75
100
125
T
A
, AMBIENT TEMPERATURE (°C)
Figure 1 Power Derating Curve
150
0.001
1.0
0.5
0
1.5
V
F
, INSTANTANEOUS FORWARD VOLTAGE (V)
Figure 2 Typical Forward Characteristics
BAV16W/1N4148W
Document number: DS30086 Rev. 28 - 2
2 of 4
www.diodes.com
January 2017
© Diodes Incorporated
BAV16W/1N4148W
I
R
, INSTANTANEOUS REVERSE CURRENT (nA)
10,000
2.0
1.8
C
T
, TOTAL CAPACITANCE (pF)
1,000
1.6
1.4
1.2
1.0
0.8
0.6
0.4
0.2
100
10
1
0.1
0
60
80
100
20
40
V
R
, INSTANTANEOUS REVERSE VOLTAGE (V)
Figure 3 Typical Reverse Characteristics
0.0
0
10
30
40
20
V
R
, DC REVERSE VOLTAGE (V)
Figure 4 Total Capacitance vs. Reverse Voltage

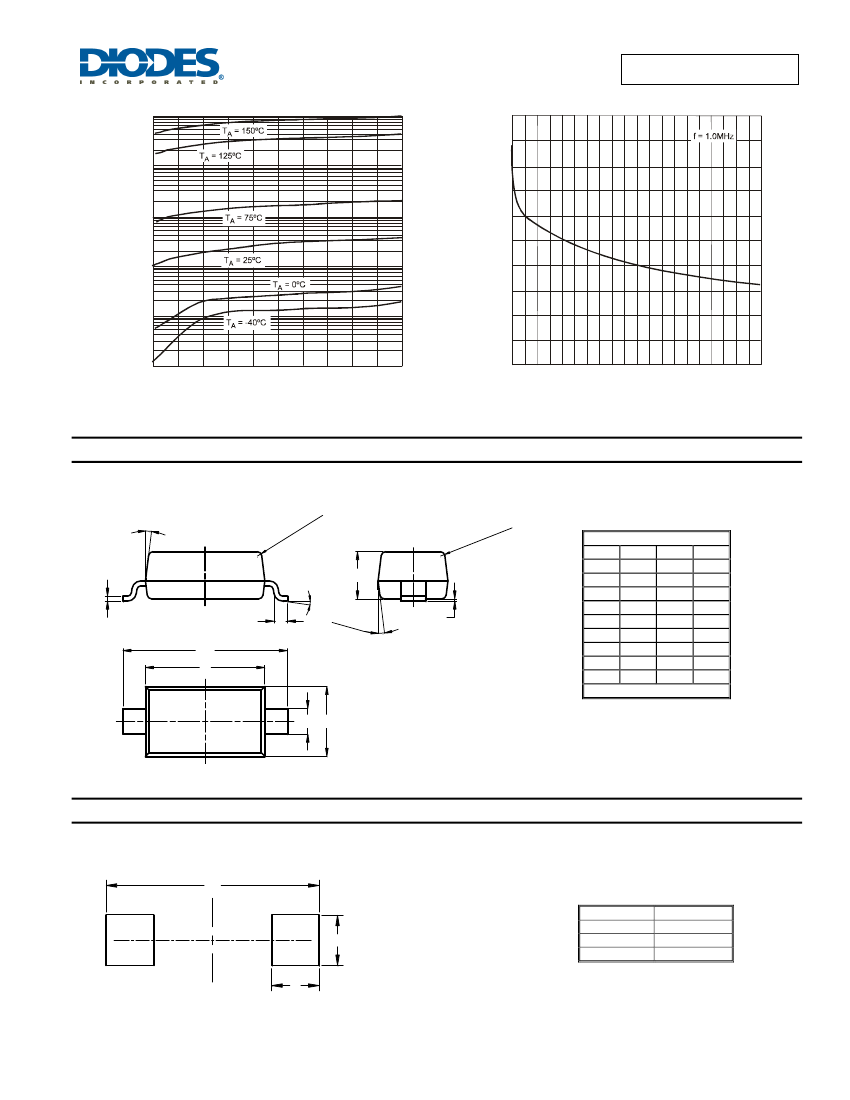

Package Outline Dimensions
Please see http://www.diodes.com/package-outlines.html for the latest version.
l
Al
7°
All
.1
R0
00
R0
All
A
0
.10
c
He
E
L
All 7
°
A1
SOD123
Dim Min Max Typ
A
1.00 1.35 1.05
A1
0.00 0.10 0.05
b
0.52 0.62 0.57
c
0.10 0.15 0.11
D
1.40 1.70 1.55
E
2.55 2.85 2.65
He
3.55 3.85 3.65
L
0.25 0.40 0.30
a
0°
8°
--
All Dimensions in mm
a
b D
Suggested Pad Layout
Please see http://www.diodes.com/package-outlines.html for the latest version.
X1
Dimensions Value (in mm)
X
0.900
X1
4.050
Y
0.950
Y
X
BAV16W/1N4148W
Document number: DS30086 Rev. 28 - 2
3 of 4
www.diodes.com
January 2017
© Diodes Incorporated
BAV16W/1N4148W
IMPORTANT NOTICE
DIODES INCORPORATED MAKES NO WARRANTY OF ANY KIND, EXPRESS OR IMPLIED, WITH REGARDS TO THIS DOCUMENT,
INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE
(AND THEIR EQUIVALENTS UNDER THE LAWS OF ANY JURISDICTION).
Diodes Incorporated and its subsidiaries reserve the right to make modifications, enhancements, improvements, corrections or other changes
without further notice to this document and any product described herein. Diodes Incorporated does not assume any liability arising out of the
application or use of this document or any product described herein; neither does Diodes Incorporated convey any license under its patent or
trademark rights, nor the rights of others. Any Customer or user of this document or products described herein in such applications shall assume
all risks of such use and will agree to hold Diodes Incorporated and all the companies whose products are represented on Diodes Incorporated
website, harmless against all damages.
Diodes Incorporated does not warrant or accept any liability whatsoever in respect of any products purchased through unauthorized sales channel.
Should Customers purchase or use Diodes Incorporated products for any unintended or unauthorized application, Customers shall indemnify and
hold Diodes Incorporated and its representatives harmless against all claims, damages, expenses, and attorney fees arising out of, directly or
indirectly, any claim of personal injury or death associated with such unintended or unauthorized application.
Products described herein may be covered by one or more United States, international or foreign patents pending. Product names and markings
noted herein may also be covered by one or more United States, international or foreign trademarks.
This document is written in English but may be translated into multiple languages for reference. Only the English version of this document is the
final and determinative format released by Diodes Incorporated.
LIFE SUPPORT
Diodes Incorporated products are specifically not authorized for use as critical components in life support devices or systems without the express
written approval of the Chief Executive Officer of Diodes Incorporated. As used herein:
A. Life support devices or systems are devices or systems which:
1. are intended to implant into the body, or
2. support or sustain life and whose failure to perform when properly used in accordance with instructions for use provided in the
labeling can be reasonably expected to result in significant injury to the user.
B. A critical component is any component in a life support device or system whose failure to perform can be reasonably expected to cause the
failure of the life support device or to affect its safety or effectiveness.
Customers represent that they have all necessary expertise in the safety and regulatory ramifications of their life support devices or systems, and
acknowledge and agree that they are solely responsible for all legal, regulatory and safety-related requirements concerning their products and any
use of Diodes Incorporated products in such safety-critical, life support devices or systems, notwithstanding any devices- or systems-related
information or support that may be provided by Diodes Incorporated. Further, Customers must fully indemnify Diodes Incorporated and its
representatives against any damages arising out of the use of Diodes Incorporated products in such safety-critical, life support devices or systems.
Copyright © 2017, Diodes Incorporated
www.diodes.com
BAV16W/1N4148W
Document number: DS30086 Rev. 28 - 2
4 of 4
www.diodes.com
January 2017
© Diodes Incorporated
