FZT951
Green
60V PNP MEDIUM POWER TRANSISTOR IN SOT223
Features
BV
CEO
> -60V
I
C
= -5A High Continuous Collector Current
I
CM
= -15A Peak Pulse Current
Low Saturation Voltage V
CE(SAT)
< -140mV @ -1A
R
CE(SAT)
= 55mΩ for a Low Equivalent On-Resistance
h
FE
Specified up to -10A for a High Gain Hold-Up
Complementary NPN Type: FZT851
Lead-Free Finish; RoHS Compliant (Notes 1 & 2)
Halogen and Antimony Free. “Green” Device (Note 3)
Qualified to AEC-Q101 Standards for High Reliability
PPAP Capable (Note 4)
Mechanical Data
Case: SOT223
Case Material: Molded Plastic. “Green” Molding Compound.
UL Flammability Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020
Terminals: Finish - Matte Tin Plated Leads, Solderable per
MIL-STD-202, Method 208
Weight: 0.112 grams (Approximate)

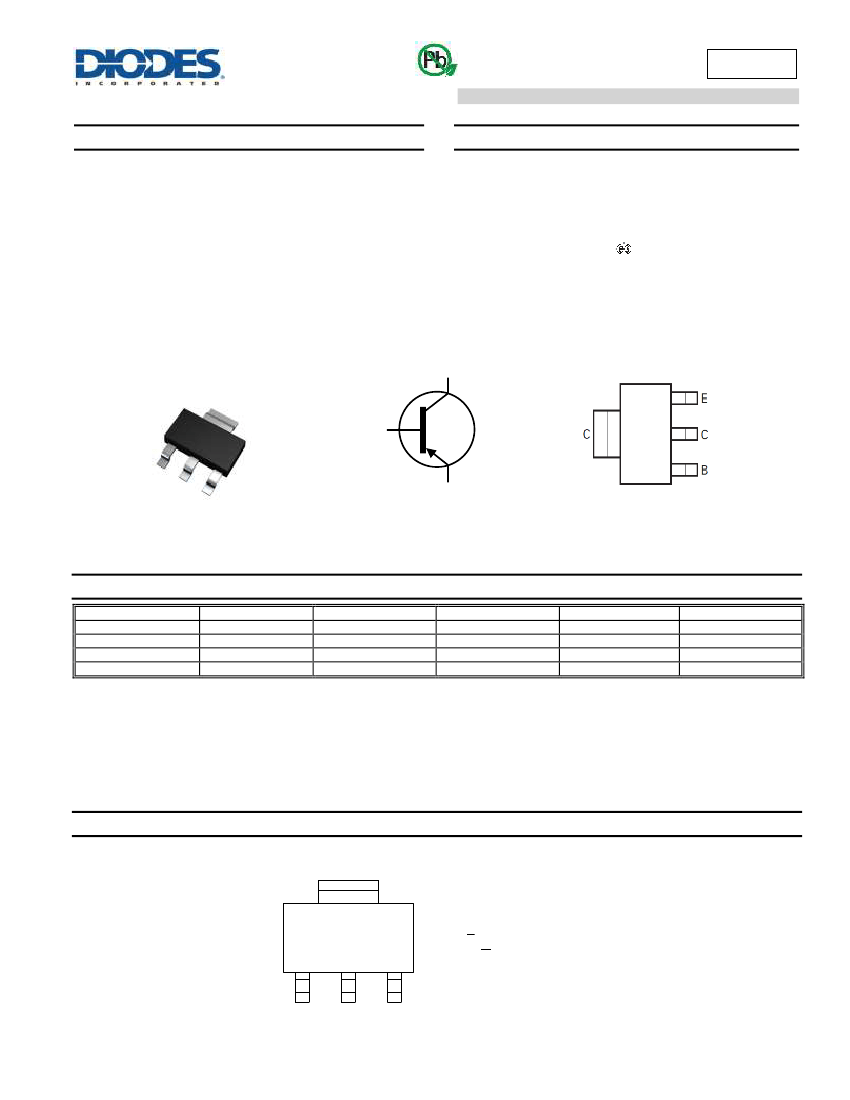

SOT223
C
B
E
Top View
Device Symbol
Top View
Pin-Out
Ordering Information
(Notes 4 & 5)
Product
FZT951TA
FZT951TC
FZT951QTA
FZT951QTC
Notes:
Compliance
AEC-Q101
AEC-Q101
Automotive
Automotive
Marking
FZT951
FZT951
FZT951
FZT951
Reel Size (inches)
7
13
7
13
Tape Width (mm)
12
12
12
12
Quantity per Reel
1,000
4,000
1,000
4,000
1. EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant. All applicable RoHS exemptions applied.
2. See https://www.diodes.com/quality/lead-free/for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green" and
Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. Automotive products are AEC-Q101 qualified and are PPAP capable. Automotive, AEC-Q101 and standard products are electrically and thermally
the same, except where specified. For more information, please refer to https://www.diodes.com/quality/.
5. For packaging details, go to our website at https://www.diodes.com/design/support/packaging/diodes-packaging/.
Marking Information
SOT223
FZT
951
FZT 951 = Product Type Marking Code
YWW = Date Code Marking
Y or Y = Last Digit of Year (ex: 7 = 2017)
WW or WW = Week Code (01–53)
FZT951
Da
tasheet Number: DS33179 Rev. 6 - 2
YWW
1 of 7
www.diodes.com
March 2017
© Diodes Incorporated
FZT951
Absolute Maximum Ratings
(@T
A
= +25°C, unless otherwise specified.)
Characteristic
Collector-Base Voltage
Collector-Emitter Voltage
Emitter-Base Voltage
Continuous Collector Current
Peak Pulse Current
Symbol
V
CBO
V
CEO
V
EBO
I
C
I
CM
Value
-100
-60
-7
-5
-15
Unit
V
V
V
A
A
Thermal Characteristics
(@T
A
= +25°C, unless otherwise specified.)
Characteristic
Power Dissipation
Linear Derating Factor
Thermal Resistance, Junction to Ambient
Thermal Resistance Junction to Lead
Operating and Storage Temperature Range
(Note 6)
P
D
(Note 7)
(Note 6)
(Note 7)
(Note 8)
R
θJA
R
θJA
R
θJL
T
J,
T
STG
Symbol
Value
3.0
24
1.6
12.8
42
78
8.8
-55 to +150
Unit
W
mW/°C
°C/W
°C
ESD Ratings
(Note 9)
Characteristic
Electrostatic Discharge - Human Body Model
Electrostatic Discharge - Machine Model
Notes:
Symbol
ESD HBM
ESD MM
Value
8,000
400
Unit
V
V
JEDEC Class
3B
C
6. For a device mounted with the collector lead on 52mm x 52mm 2oz copper that is on a single-sided 1.6mm FR4 PCB; device is measured under still air
conditions whilst operating in steady-state.
7. Same as Note 6, except the device is mounted on 25mm x 25mm 1oz copper.
8. Thermal resistance from junction to solder-point (at the end of the collector lead).
9. Refer to JEDEC specification JESD22-A114 and JESD22-A115.
FZT951
Da
tasheet Number: DS33179 Rev. 6 - 2
2 of 7
www.diodes.com
March 2017
© Diodes Incorporated
FZT951

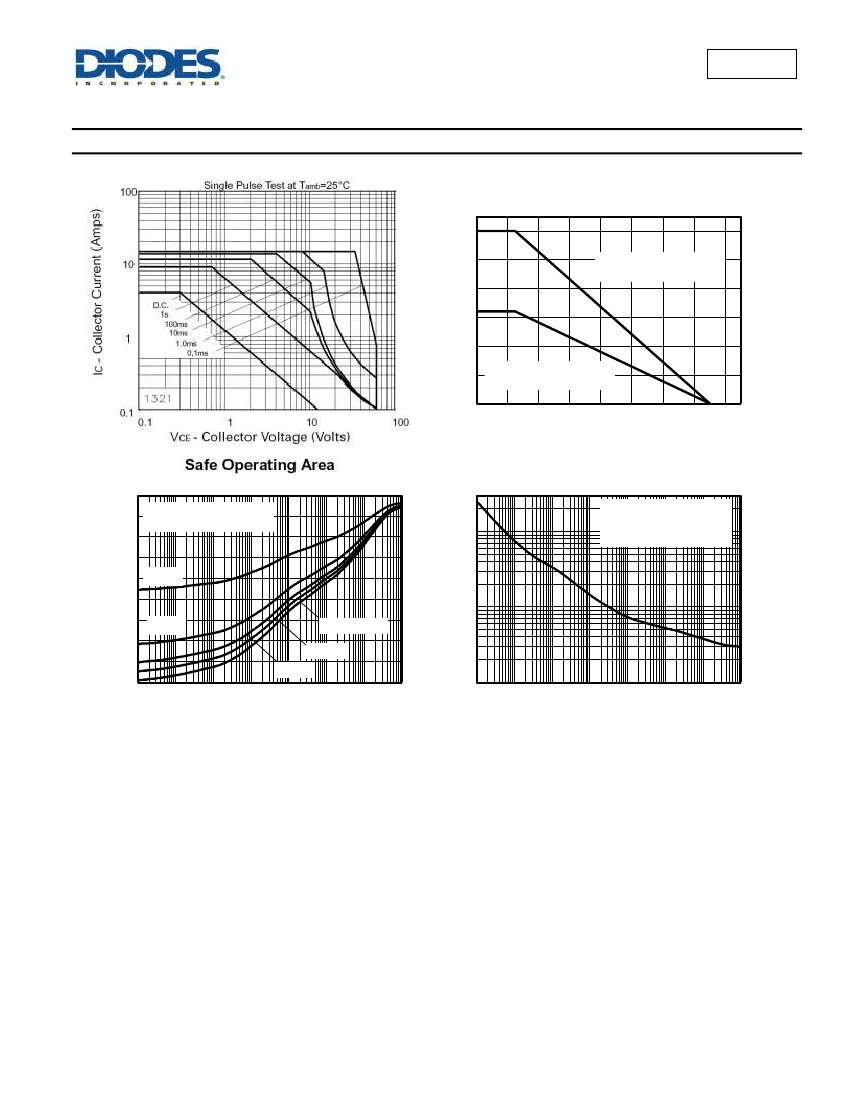

Thermal Characteristics and Derating Information
Limit
Max Power Dissipation (W)
-I
C
Collector Current (A)
10
V
CE(sat)
3.0
2.5
2.0
1.5
1.0
0.5
0.0
0
25mmX25mm
single sided 1 oz Cu
52mmX52mm
single sided 2 oz Cu
1
DC
1s
100ms
10ms
Single Pulse. T
amb
=25°C
52mmX52mm
single sided 2oz Cu
1ms
100µs
100m
10m
100m
1
10
100
20
40
60
80
100 120 140 160
-V
CE
Collector-Emitter Voltage (V)
Temperature (°C)
Safe Operating Area
Derating Curve
Single Pulse. T
amb
=25°C
Thermal Resistance (°C/W)
40
30
Max Power Dissipation (W)
52mmX52mm
single sided 2 oz Cu
100
52mmX52mm
single sided 2oz Cu
D=0.5
20
D=0.2
Single Pulse
D=0.05
D=0.1
10
10
0
100µ
1m
10m 100m
1
10
100
1k
1
100µ
1m
10m 100m
1
10
100
1k
Pulse Width (s)
Pulse Width (s)
Transient Thermal Impedance
Pulse Power Dissipation
FZT951
Da
tasheet Number: DS33179 Rev. 6 - 2
3 of 7
www.diodes.com
March 2017
© Diodes Incorporated
FZT951
Electrical Characteristics
(@T
A
= +25°C, unless otherwise specified.)
Characteristic
Collector-Base Breakdown Voltage
Collector-Emitter Breakdown Voltage (Note 10)
Collector-Emitter Breakdown Voltage (Note 10)
Emitter-Base Breakdown Voltage
Collector Cut-Off Current
Collector Cut-Off Current
Emitter Cut-Off Current
Symbol
BV
CBO
BV
CER
BV
CEO
BV
EBO
I
CBO
I
CER
I
EBO
h
FE
Min
-100
-100
-60
-7
—
—
Typ.
-140
-140
-90
-8
<-1
—
Max
—
—
—
—
-50
-1
-50
-1
-10
—
Unit
V
V
V
V
nA
µA
nA
µ
A
nA
—
<-1
—
DC Current Transfer Static Ratio (Note 10)
—
100
100
75
10
—
—
—
—
Collector-Emitter Saturation Voltage (Note 10)
V
CE(SAT)
V
BE(SAT)
V
BE(ON)
f
T
C
OBO
t
ON
t
OFF
Base-Emitter Saturation Voltage (Note 10)
Base-Emitter Turn-On Voltage (Note 10)
Transitional Frequency (Note 10)
Output Capacitance
Switching Time
Note:
—
—
—
—
—
—
<1
200
200
90
25
-20
-85
-155
-370
-1,080
-935
120
74
82
350
300
—
—
-50
-140
-210
-460
-1,240
-1,070
—
—
—
—
mV
mV
mV
MHz
pF
ns
Test Condition
I
C
= -100µA
I
C
= -1µA, R
B
≤
1kΩ
I
C
= -10mA
I
E
= -100µA
V
CB
= -80V
V
CB
= -80V, T
A
= +100°C
V
CE
= -80V, R
≤
1kΩ
V
CE
= -80V, T
A
= +100°C
V
EB
= -6V
I
C
= -10mA, V
CE
= -1V
I
C
= -2A, V
CE
= -1V
I
C
= -5A, V
CE
= -1V
I
C
= -10A, V
CE
= -1V
I
C
= -100mA, I
B
= -10mA
I
C
= -1A, I
B
= -100mA
I
C
= -2A, I
B
= -200mA
I
C
= -5A, I
B
= -500mA
I
C
= -5A, I
B
= -500mA
I
C
= -5A, V
CE
= -1V
I
C
= -100mA, V
CE
= -10V,
f = 50MHz
V
CB
= -10V, f = 1MHz
V
CC
= -10V, I
C
= -2A,
-I
B1
= I
B2
= -200mA
10. Measured under pulsed conditions. Pulse width ≤ 300μs. Duty cycle ≤ 2%.
FZT951
Da
tasheet Number: DS33179 Rev. 6 - 2
4 of 7
www.diodes.com
March 2017
© Diodes Incorporated
FZT951

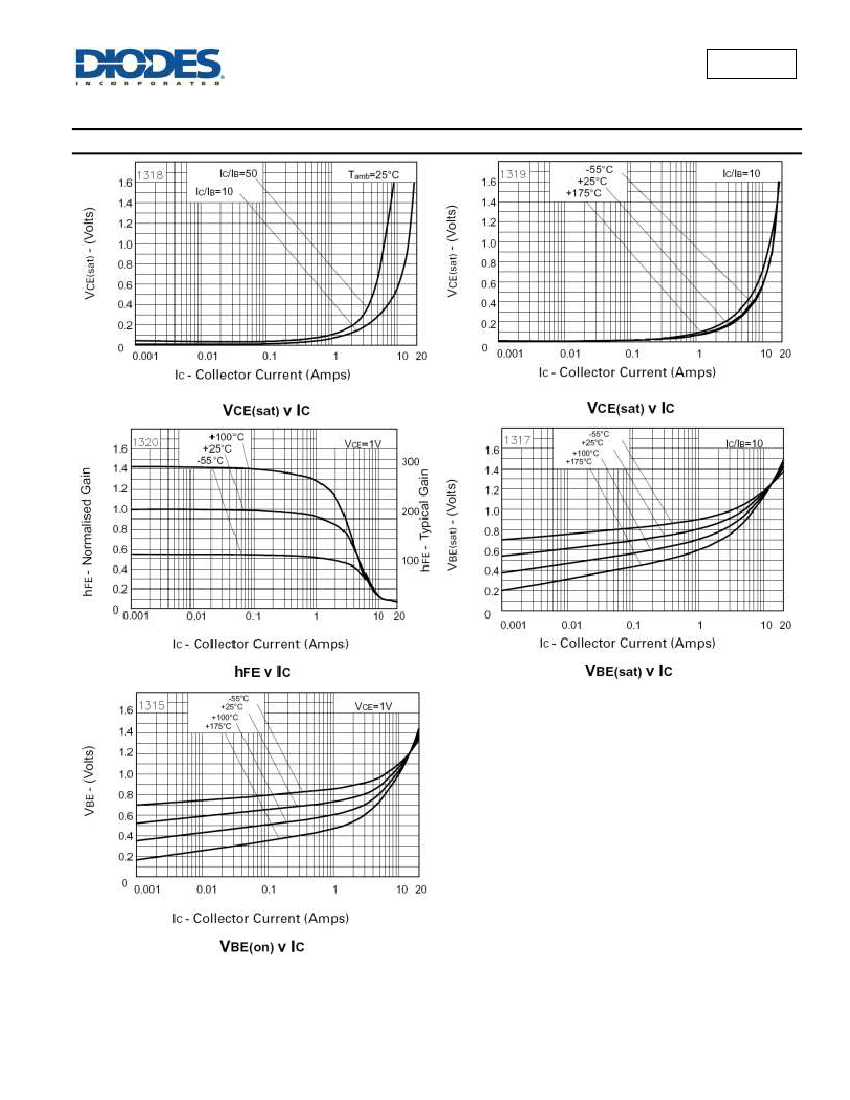

Typical Electrical Characteristics
(@T
A
= +25°C, unless otherwise specified.)
FZT951
Da
tasheet Number: DS33179 Rev. 6 - 2
5 of 7
www.diodes.com
March 2017
© Diodes Incorporated
