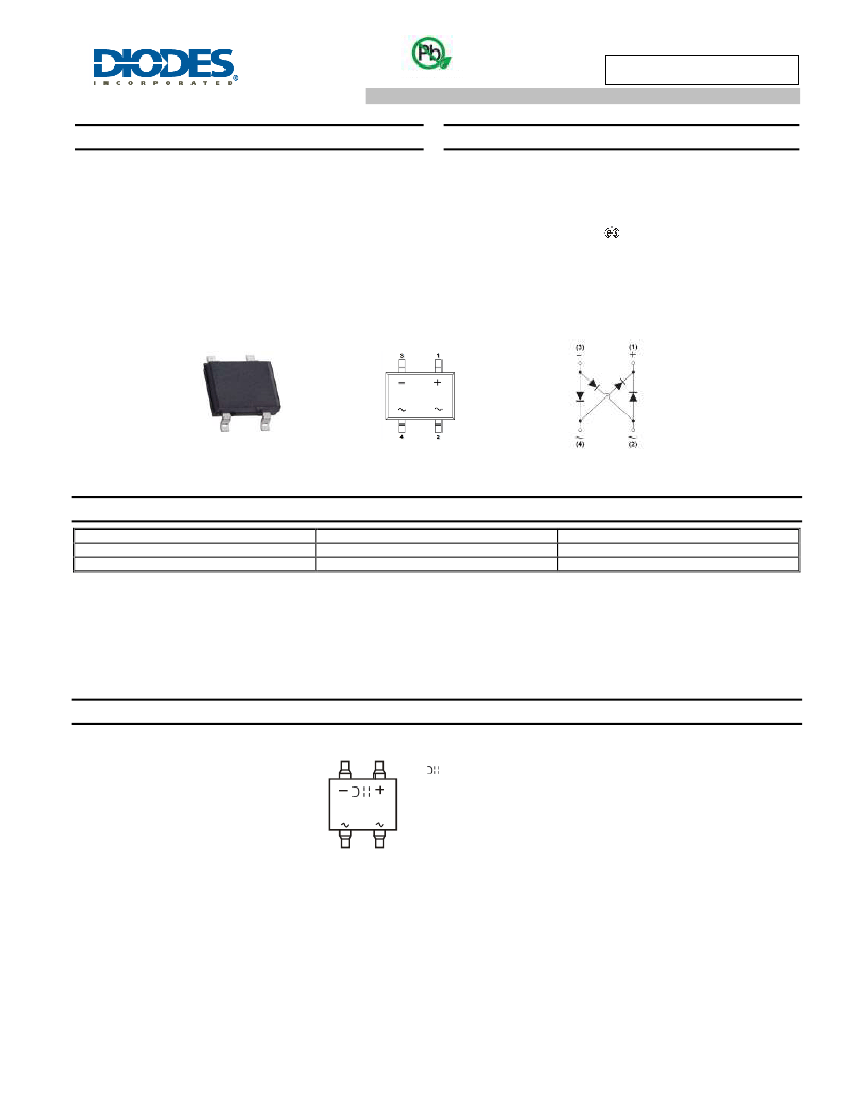

Green
DF15005S – DF1510S
1.5A SURFACE MOUNT GLASS PASSIVATED BRIDGE RECTIFIER
Features and Benefits
Glass Passivated Die Construction
Low Forward Voltage Drop, High Current Capability
Surge Overload Rating to 50A Peak
Designed for Surface Mount Applications
UL Listed Under Recognized Component Index, File Number
E94661
Lead-Free Finish; RoHS Compliant (Notes 1 & 2)
Halogen and Antimony Free. “Green” Device (Note 3)
Mechanical Data
Case: DF-S
Case Material: Molded Plastic. UL Flammability Classification
Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020
Terminals: Finish - Tin. Solder Plated Leads, Solderable per
MIL-STD-202, Method 208
Polarity: As Marked on Case
Marking: Type Number
Weight: 0.38 grams (Approximate)
Top View
Pin Diagram
Internal Schematic
Ordering Information
(Note 4)
Device
DF15xxxS-T
DF15xxxS
Notes:
Packaging
DF-S
DF-S
Shipping
1500/Tape & Reel
50/Tube
1. EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant. All applicable RoHS exemptions applied.
2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"
and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. For packaging details, go to our website at http://www.diodes.com/products/packages.html.
.
Marking Information
DF15xxxS
YWW
= Manufacturers’ Code Marking
DF15xxxS = Product Type Marking Code
ex: DF1510S
YWW = Date Code Marking
Y = Last Digit of Year (ex: 6 for 2016)
WW = Week Code (01 to 53)
DF15005S – DF1510S
Document number: DS17002 Rev. 11 - 2
1 of 5
www.diodes.com
November 2016
© Diodes Incorporated
DF15005S – DF1510S
Maximum Ratings and Electrical Characteristics
Single phase, half wave, 60Hz, resistive or inductive load.
For capacitive load, derate current by 20%.
Characteristic
Peak Repetitive Reverse Voltage
Working Peak Reverse Voltage
DC Blocking Voltage
Symbol
V
RRM
V
RWM
V
R
V
R(RMS)
I
O
DF
DF
DF
DF
DF
DF
DF
15005S 1501S 1502S 1504S 1506S 1508S 1510S
50
35
100
70
200
140
400
280
1.5
50
1.1
10
500
10.4
25
40
-65 to +150
600
420
800
580
1000
700
Unit
V
V
A
A
V
µA
A
2
s
pF
C/W
C
(@T
A
= +25°C, unless otherwise specified.)
RMS Reverse Voltage
Average Forward Rectified Current
@ T
A
= +40C
Non-Repetitive Peak Forward Surge Current, 8.3 ms
I
FSM
Single Half Sine-Wave Superimposed on Rated Load
Forward Voltage (Per Element)
@ I
F
= 1.5A
V
FM
Peak Reverse Current at Rated
@ T
A
= +25C
I
RM
DC Blocking Voltage (Per Element)
@ T
A
= +125C
I
2
t Rating for Fusing (t<8.3ms)
I
2
t
Typical Total Capacitance per Element (Note 5)
C
T
Typical Thermal Resistance, Junction to Ambient
R
JA
(Note 6)
Operating and Storage Temperature Range
T
J
, T
STG
5. Measured at 1.0 MHz and applied reverse voltage of 4.0V DC.
2
6. Thermal resistance, junction to ambient, measured on PC board with 5.0mm (0.03mm thick) land areas.
2.0
1.5
I
F
, INSTANTANEOUS FORWARD CURRENT (A)
40
60
80
100
120
140
10
I
O
, AVERAGE FORWARD CURRENT (A)
1.0
1.0
0.1
0.5
0
0.01
0.4
0.6
0.8
1.0
1.2
1.4
V
F
, INSTANTANEOUS FORWARD VOLTAGE (V)
Fig. 2 Typical Forward Characteristics (per element)
(C)
T
A
, AMBIENT TEMPERATURE (°C)
Fig. 1 Output Current Derating Curve
DF15005S – DF1510S
Document number: DS17002 Rev. 11 - 2
2 of 5
www.diodes.com
November 2016
© Diodes Incorporated
DF15005S – DF1510S
I
FSM
, PEAK FORWARD SURGE CURRENT (A)
60
100
50
C
T
, CAPACITANCE (pF)
40
30
10
20
10
1
0
10
100
NUMBER OF CYCLES AT 60 Hz
Fig. 3 Max Non-Repetitive Peak Forward Surge Current
100
1
1
10
100
V
R
, REVERSE VOLTAGE (V)
Fig. 4 Typical Total Capacitance (per element)
10
1.0
0.1
0.01
0
20
40
60
80
100
120
140
PERCENT OF RATED PEAK REVERSE VOLTAGE (%)
Fig. 5 Typical Reverse Characteristics (per element)
DF15005S – DF1510S
Document number: DS17002 Rev. 11 - 2
3 of 5
www.diodes.com
November 2016
© Diodes Incorporated
DF15005S – DF1510S
Package Outline Dimensions
Please see http://www.diodes.com/package-outlines.html for the latest version.
DF-S
L
G
A
B
D
E
H
J
C
DF-S
Dim
Min
Max
A
7.40
7.90
B
6.20
6.50
C
0.22
0.30
D
0.076
0.33
E
10.40
G
1.02
1.53
H
8.13
8.51
J
2.40
2.60
K
5.00
5.20
L
1.00
1.20
All Dimensions in mm
K
Suggested Pad Layout
Please see http://www.diodes.com/package-outlines.html for the latest version.
DF-S
X
Dimensions
Z
Y
C
Z
X
Y
C
Value
(in mm)
10.26
1.2
1.52
5.2
DF15005S – DF1510S
Document number: DS17002 Rev. 11 - 2
4 of 5
www.diodes.com
November 2016
© Diodes Incorporated
DF15005S – DF1510S
