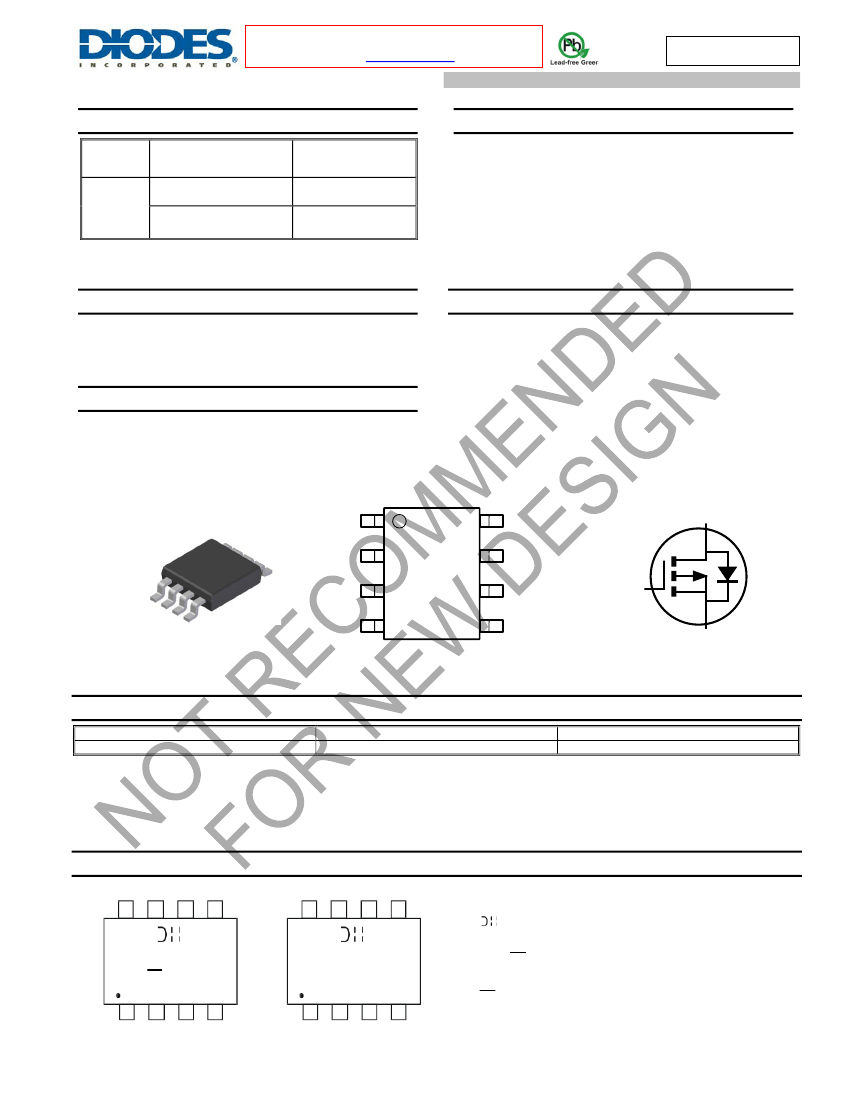

Halogen and Antimony Free. “Green” Device (Note 3)
Qualified to AEC-Q101 Standards for High Reliability
Description
This MOSFET is designed to minimize the on-state resistance
(R
DS(on)
) yet maintain superior switching performance, making it
ideal for high-efficiency power management applications.
Mechanical Data
•
•
•
•
•
•
Case: SO-8
Case Material: Molded Plastic, “Green” Molding Compound.
UL Flammability Classification Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020D
Terminals Connections: See Diagram
Terminals: Finish—Matte Tin Annealed over Copper
Leadframe. Solderable per MIL-STD-202, Method 208
Weight: 0.074g (Approximate)
Applications
•
•
•
Backlighting
Power Management Functions
DC-DC Converters
SO-8
S
S
S
D
D
D
D
Top View
Internal Schematic
D
G
S
Top View
G
Equivalent Circuit
Ordering Information
(Note 4)
Part Number
DMP3015LSS-13
Notes:
Case
SO-8
Packaging
2500/Tape & Reel
1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS), 2011/65/EU (RoHS 2) & 2015/863/EU (RoHS 3) compliant.
2. See https://www.diodes.com/quality/lead-free/ for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green" and
Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. For packaging details, go to our website at http://www.diodes.com/products/packages.html.
Marking Information
8
5
8
5
P3015LS
YY WW
P3015LS
YY WW
= Manufacturer’s Marking
P3015LS = Product Type Marking Code
YYWW = Date Code Marking
YY or YY = Year (ex: 13 = 2013)
WW = Week (01 - 53)
YY = Date Code Marking for SAT (Shanghai Assembly/ Test site)
YY = Date Code Marking for CAT (Chengdu Assembly/ Test site)
