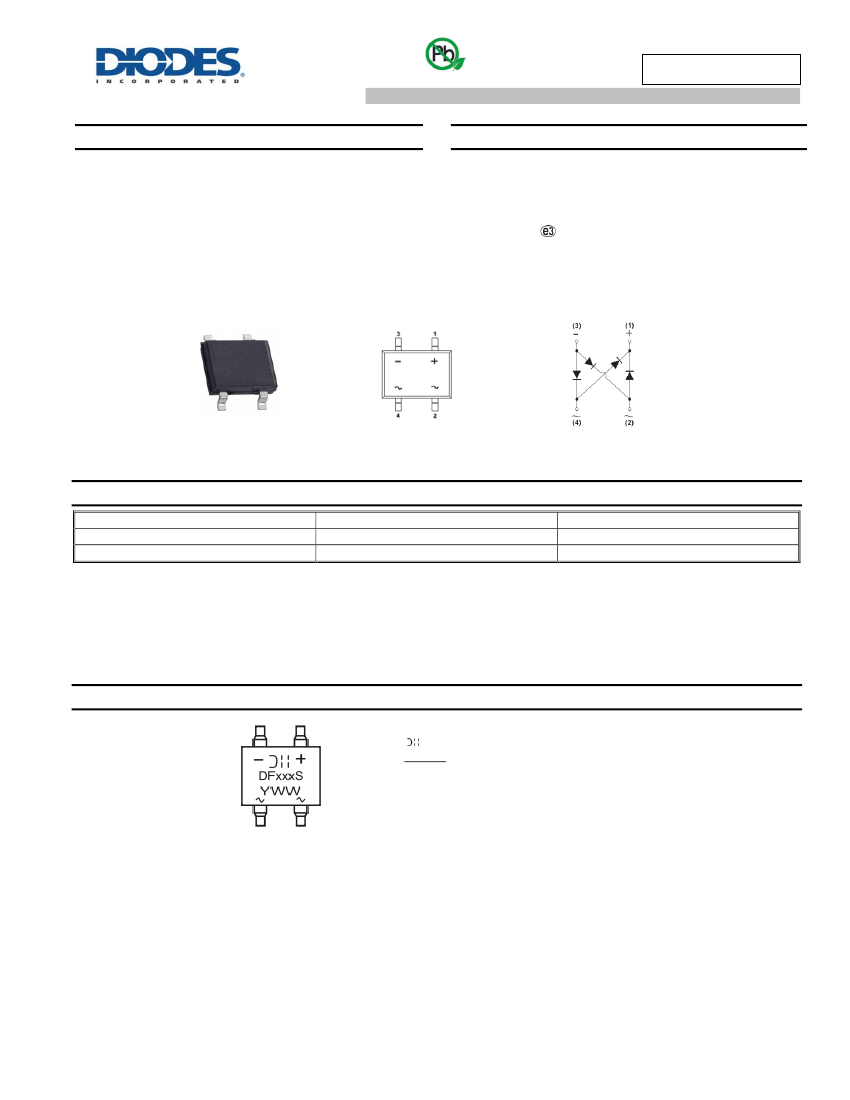

DF005S – DF10S
1.0A SURFACE MOUNT GLASS PASSIVATED BRIDGE RECTIFIER
Features
Glass Passivated Die Construction
Low Forward Voltage Drop, High Current Capability
Surge Overload Rating to 50A Peak
Designed for Surface Mount Application
UL Listed Under Recognized Component Index, File
Number E94661
Lead-Free Finish; RoHS Compliant (Notes 1 & 2)
Halogen and Antimony Free. “Green” Device (Note 3)
Mechanical Data
Case: DF-S
Case Material: Molded Plastic. UL Flammability
Classification Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020
Terminals: Finish - Tin. Solderable per MIL-STD-202,
Method 208
Polarity: As Marked on Case
Weight: 0.38 grams (Approximate)
Top View
Pin Diagram
Internal Schematic
Ordering Information
Part Number
DFxS
DFxS-T
Notes:
(Note 4)
Case
DF-S
DF-S
Packaging
50/Tube
1500/Tape & Reel, 13-inch
1. EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant. All applicable RoHS exemptions applied.
2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"
and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. For packaging details, go to our website at http://www.diodes.com/products/packages.html.
Marking Information
= Manufacturers’ Code Marking
DFxxxS = Product Type Marking Code,ex:DF10S
YWW = Date Code Marking
Y = Last Digit of Year (ex: 6 for 2016)
WW =Week Code (01 to 52)
Marking Information
Image Here
DF005S – DF10S
Document number: DS17001 Rev. 17 - 2
1 of 5
www.diodes.com
November 2016
© Diodes Incorporated
DF005S – DF10S
Maximum Ratings
(@T
A
= +25° unless otherwise specified.)
C,
Single phase, half wave, 60Hz, resistive or inductive load.
For capacitive load, derate current by 20%.
Characteristic
Peak Repetitive Reverse Voltage
Working Peak Reverse Voltage
DC Blocking Voltage
RMS Reverse Voltage
Average Forward Rectified Current
@ T
A
= +40°
C
Non-Repetitive Peak Forward Surge Current, 8.3 ms
Single Half Sine-Wave Superimposed on Rated Load
Symbol
V
RMM
V
RWM
V
R
V
RMS
I
O
I
FSM
DF
005S
50
35
DF
01S
100
70
DF
02S
200
140
DF
04S
400
280
1.0
50
DF
06S
600
420
DF
08S
800
560
DF
10S
1000
700
Unit
V
V
A
A
Thermal Characteristics
Characteristic
Typical Thermal Resistance, Junction to Ambient (Note 6)
Operating and Storage Temperature Range
Symbol
R
Θ
JA
T
J
, T
STG
DF
005S
DF
01S
DF
02S
DF
04S
40
-65 to +150
DF
06S
DF
08S
DF
10S
Unit
°
C/W
°
C
Electrical Characteristics
Characteristic
Forward Voltage (Per Element)
Peak Reverse Current at Rated
DC Blocking Voltage (Per Element)
I
2
t Rating for Fusing (t<8.3ms)
(@T
A
= +25° unless otherwise specified.)
C,
Symbol
@ I
F
= 1.0A
@ T
A
= +25°
C
@ T
A
= +125°
C
V
FM
I
RM
I
2
t
C
T
DF
005S
DF
01S
DF
02S
DF
04S
1.1
10
500
10.4
25
DF
06S
DF
08S
DF
10S
Unit
V
µA
A
2
s
pF
Typical Total Capacitance (Per Element) (Note 5)
Notes:
5. Measured at 1.0 MHz and applied reverse voltage of 4.0V DC.
6. Thermal resistance, junction to ambient, measured on PC board with 5.0mm
2
(0.03mm thick) land areas.
DF005S – DF10S
Document number: DS17001 Rev. 17 - 2
2 of 5
www.diodes.com
November 2016
© Diodes Incorporated
DF005S – DF10S
I
F
, INSTANTANEOUS FORWARD CURRENT (A)
40
100
120
140
1.0
I
(AV)
, AVERAGE FORWARD CURRENT (A)
10
1.0
0.5
0.1
0
60
80
0.01
0.4
0.6
0.8
1.0
1.2
1.4
V
F
, INSTANTANEOUS FORWARD VOLTAGE (V)

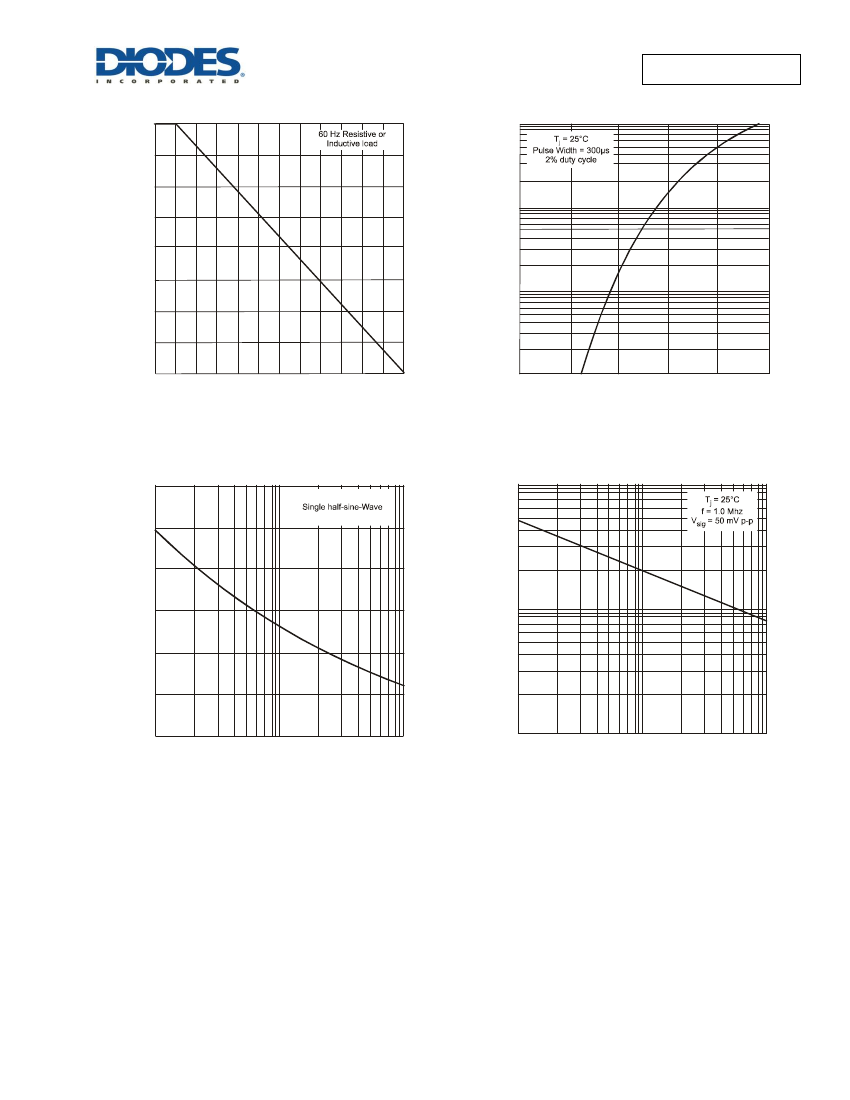

Fig. 2 Typical Forward Characteristics (per element)
(C)
T
A
, AMBIENT TEMPERATURE (癈 )
Fig. 1 Output Current Derating Curve
I
FSM
, PEAK FORWARD SURGE CURRENT (A)
60
100
50
40
C
T
, TOTAL CAPACITANCE (pF)
30
10
20
10
0
1
10
100
1
1
10
100
V
R
, REVERSE VOLTAGE (V)
Fig. 4 Typical Total Capacitance (per element)
NUMBER OF CYCLES AT 60 Hz
Fig. 3 Max Non-Repetitive Peak Forward Surge Current
DF005S – DF10S
Document number: DS17001 Rev. 17 - 2
3 of 5
www.diodes.com
November 2016
© Diodes Incorporated
DF005S – DF10S
100
T
J
=125C
10
T
j
= 125癈
1.0
T
J
=25C
0.1
T
j
= 25癈
0.01
0
20
40
60
80
100
120
140
PERCENT OF RATED PEAK REVERSE VOLTAGE (%)
Fig. 5 Typical Reverse Characteristics (per element)

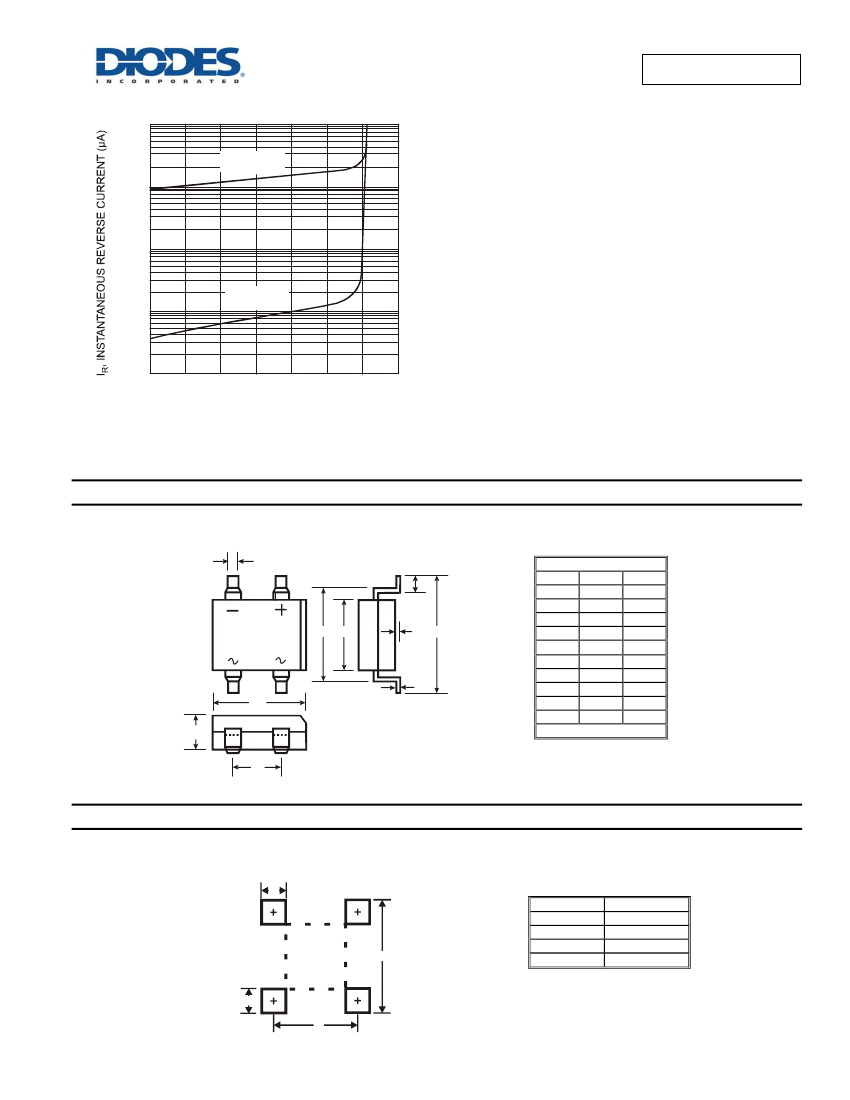

Package Outline Dimensions
Please see http://www.diodes.com/package-outlines.html for the latest version.
DF-S
L
G
A
B
D
E
H
J
C
DF-S
Dim
Min
Max
A
7.40
7.90
B
6.20
6.50
C
0.22
0.30
D
0.076
0.33
E
10.40
G
1.02
1.53
H
8.13
8.51
J
2.40
2.60
K
5.00
5.20
L
1.00
1.20
All Dimensions in mm
K
Suggested Pad Layout
Please see http://www.diodes.com/package-outlines.html for the latest version.
DF-S
X
Dimensions
Z
X
Y
Z
C
Value (in mm)
10.26
1.2
1.52
5.2
Y
C
DF005S – DF10S
Document number: DS17001 Rev. 17 - 2
4 of 5
www.diodes.com
November 2016
© Diodes Incorporated
DF005S – DF10S
IMPORTANT NOTICE
DIODES INCORPORATED MAKES NO WARRANTY OF ANY KIND, EXPRESS OR IMPLIED, WITH REGARDS TO THIS DOCUMENT,
INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE
(AND THEIR EQUIVALENTS UNDER THE LAWS OF ANY JURISDICTION).
Diodes Incorporated and its subsidiaries reserve the right to make modifications, enhancements, improvements, corrections or other changes
without further notice to this document and any product described herein. Diodes Incorporated does not assume any liability arising out of the
application or use of this document or any product described herein; neither does Diodes Incorporated convey any license under its patent or
trademark rights, nor the rights of others. Any Customer or user of this document or products described herein in such applications shall assume
all risks of such use and will agree to hold Diodes Incorporated and all the companies whose products are represented on Diodes Incorporated
website, harmless against all damages.
Diodes Incorporated does not warrant or accept any liability whatsoever in respect of any products purchased through unauthorized sales channel.
Should Customers purchase or use Diodes Incorporated products for any unintended or unauthorized application, Customers shall indemnify and
hold Diodes Incorporated and its representatives harmless against all claims, damages, expenses, and attorney fees arising out of, directly or
indirectly, any claim of personal injury or death associated with such unintended or unauthorized application.
Products described herein may be covered by one or more United States, international or foreign patents pending. Product names and markings
noted herein may also be covered by one or more United States, international or foreign trademarks.
This document is written in English but may be translated into multiple languages for reference. Only the English version of this document is the
final and determinative format released by Diodes Incorporated.
LIFE SUPPORT
Diodes Incorporated products are specifically not authorized for use as critical components in life support devices or systems without the express
written approval of the Chief Executive Officer of Diodes Incorporated. As used herein:
A. Life support devices or systems are devices or systems which:
1. are intended to implant into the body, or
2. support or sustain life and whose failure to perform when properly used in accordance with instructions for use provided in the
labeling can be reasonably expected to result in significant injury to the user.
B. A critical component is any component in a life support device or system whose failure to perform can be reasonably expected to cause the
failure of the life support device or to affect its safety or effectiveness.
Customers represent that they have all necessary expertise in the safety and regulatory ramifications of their life support devices or systems, and
acknowledge and agree that they are solely responsible for all legal, regulatory and safety-related requirements concerning their products and any
use of Diodes Incorporated products in such safety-critical, life support devices or systems, notwithstanding any devices- or systems-related
information or support that may be provided by Diodes Incorporated. Further, Customers must fully indemnify Diodes Incorporated and its
representatives against any damages arising out of the use of Diodes Incorporated products in such safety-critical, life support devices or systems.
Copyright © 2016, Diodes Incorporated
www.diodes.com
DF005S – DF10S
Document number: DS17001 Rev. 17 - 2
5 of 5
www.diodes.com
November 2016
© Diodes Incorporated
