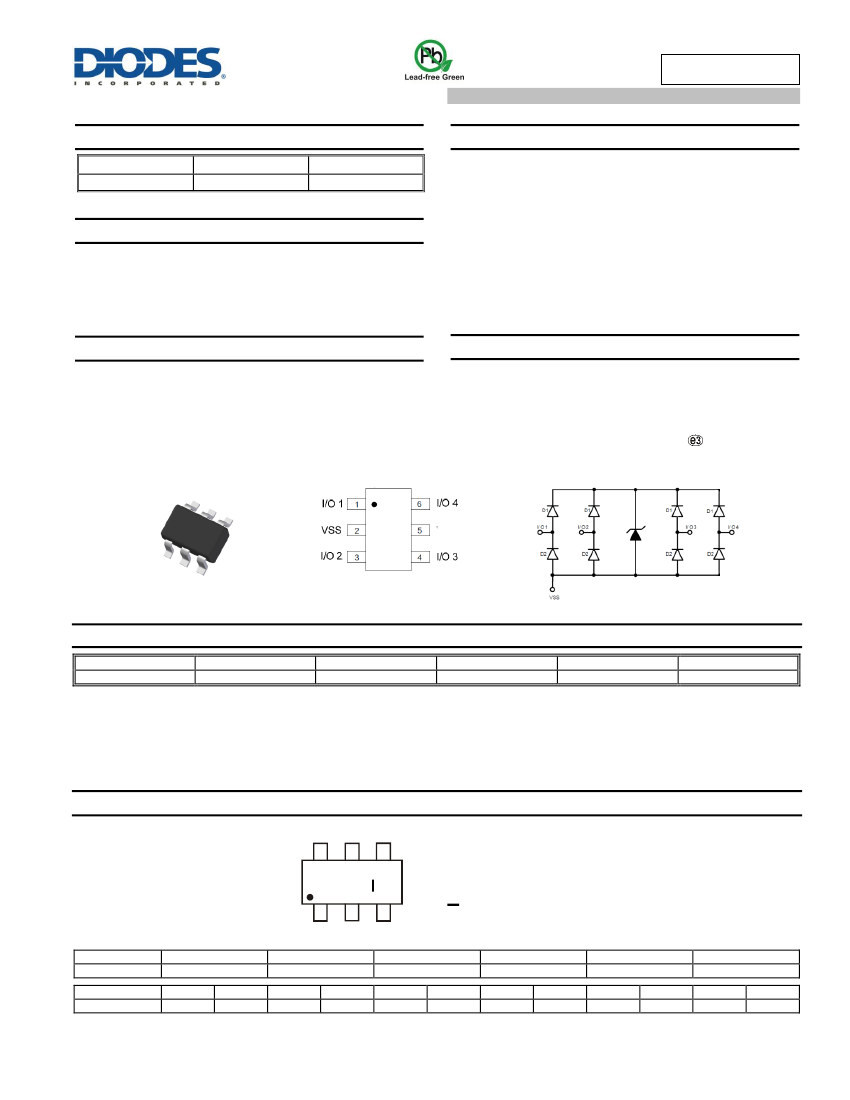

4 CHANNEL LOW CAPACITANCE TVS DIODE ARRAY
Product Summary
V
BR
(Min)
4.5V
I
PP
(Max)
20A
C
T
(Typ)
2.4pF
Features
Clamping Voltage: 7.5V at 12A 100ns, TLP 6V at 5A 8μs/20μs
IEC 61000-4-2 (ESD): Air – 30kV, Contact – 30kV
IEC 61000-4-4 (EFT): 80A (5/50ns)
IEC 61000-4-5 (Lighting): 20A (8/20µs)
4 Channels of ESD Protection
Low Channel Input Capacitance of 2.4pF Typical
TLP Dynamic Resistance: 0.15Ω
Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
Halogen and Antimony Free. “Green” Device (Note 3)
ADVANCE INFORMATION
Description
The D5V0P4URL6SO is a high performance device suitable for
protecting four high-speed I/Os. These devices are assembled in
SOT26 packages and have high ESD surge capability and low
capacitance.
Applications
Typically used at high-speed ports such as USB 2.0, IEEE1394
®
(FireWire , iLink™), Serial ATA, DVI, HDMI and PCI.
Mechanical Data
SOT26
Case: SOT26
Moisture Sensitivity: Level 1 per J-STD-020
Terminal Connections: See Schematic
Terminals – Finish – Matte Tin Pleated Leadframe.
Solderable per MIL-STD-202, Method 208
Weight: 0.016 grams (Approximate)
N/A
Top View
Device Schematic
Circuit Schematic
Ordering Information
(Note 4)
Product
D5V0P4URL6SO-7
Notes:
Compliance
Standard
Marking
DE2
Reel Size (inches)
7
Tape Width (mm)
8
Quantity per Reel
3,000/Tape & Reel
1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.
2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"
and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. For packaging details, go to our website at http://www.diodes.com/products/packages.html.
Marking Information
DE2 = Product Type Marking Code
YM = Date Code Marking
Y = Year (ex: A = 2015)
M = Month (ex: 9 = September)
Note: “ ” Represents Internal Code
DE2
A17
Date Code Key
Year
Code
Month
Code
Jan
1
2015
C
Feb
2
Mar
3
2016
D
Apr
4
May
5
YM
2017
E
Jun
6
Jul
7
2018
F
Aug
8
Sep
9
2019
G
Oct
O
Nov
N
2020
H
Dec
D
FireWire is a registered trademark of Apple Computer, Inc.
iLink is a trademark of CEM Corporation.
D5V0P4URL6SO
Document number: DS38234 Rev. 1 - 2
1 of 5
www.diodes.com
May 2016
© Diodes Incorporated
D5V0P4URL6SO
Maximum Ratings
(@T
A
= +25°C, unless otherwise specified.)
Characteristic
Peak Pulse Current, per IEC 61000-4-5
Peak Pulse Power, per IEC 61000-4-5
Symbol
I
PP
P
PP
V
ESD_CONTACT
V
ESD_AIR
T
OP
T
STG
Value
20
180
30
30
-55 to +85
-55 to +150
Unit
A
W
kV
kV
°C
°C
Conditions
I/O to V
SS
, 8/20µs
I/O to V
SS
, 8/20µs
I/O to V
SS
I/O to V
SS
—
—
ADVANCE INFORMATION
ESD Protection – Contact Discharge, per IEC 61000-4-2
ESD Protection – Air Discharge, per IEC 61000-4-2
Operating Temperature
Storage Temperature
Thermal Characteristics
Characteristic
Power Dissipation Typical (Note 5)
Thermal Resistance, Junction to Ambient Typical (Note 5)
Symbol
P
D
R
θJA
Value
300
417
Unit
mW
°C/W
Electrical Characteristics
Characteristic
Reverse Working Voltage
Reverse Current (Note 6)
Reverse Breakdown Voltage
Forward Clamping Voltage
Reverse Clamping Voltage (Note7)
ESD Clamping Voltage
Dynamic Reverse Resistance
Channel Input Capacitance
Delta C
I/O
Notes:
(@T
A
= +25°C, unless otherwise specified.)
Symbol
V
RWM
I
R
V
BR
V
F
V
C
V
ESD
R
DIF-R
C
I/O
C
I/OMAX
–C
I/OMIN
Min
—
—
4.5
—
—
—
—
—
—
Typ
—
—
—
0.8
6
7.5
0.15
2.4
55
0.04
Max
3.3
1
8.0
1.2
—
—
—
3
—
Unit
V
μA
V
V
V
V
Ω
pF
pF
Test Conditions
I
R
=1mA, I/O to V
SS
V
R
= 3.3V, I/O to V
SS
I
R
= 1mA, I/O to V
SS
I
F
= 15mA, V
SS
to I/O
I
PP
= 5A, I/O to V
SS
, 8/20µs
TLP, 12A, t
P
= 100ns, I/O to V
SS
TLP, 12A, t
P
= 100ns, I/O to V
SS
V
I/O
= 1.65V, V
SS
= 0V, f = 1MHz
C
I/OMAX
–C
I/OMIN
5. Device mounted on FR-4 PCB pad layout (2oz copper) as shown on Diodes, Inc. website at http://www.diodes.com/package-outlines.html.
6. Short duration pulse test used to minimize self-heating effect.
7. Clamping voltage value is based on an 8x20µs peak pulse current (I
PP
) waveform.
D5V0P4URL6SO
Document number: DS38234 Rev. 1 - 2
2 of 5
www.diodes.com
May 2016
© Diodes Incorporated
D5V0P4URL6SO

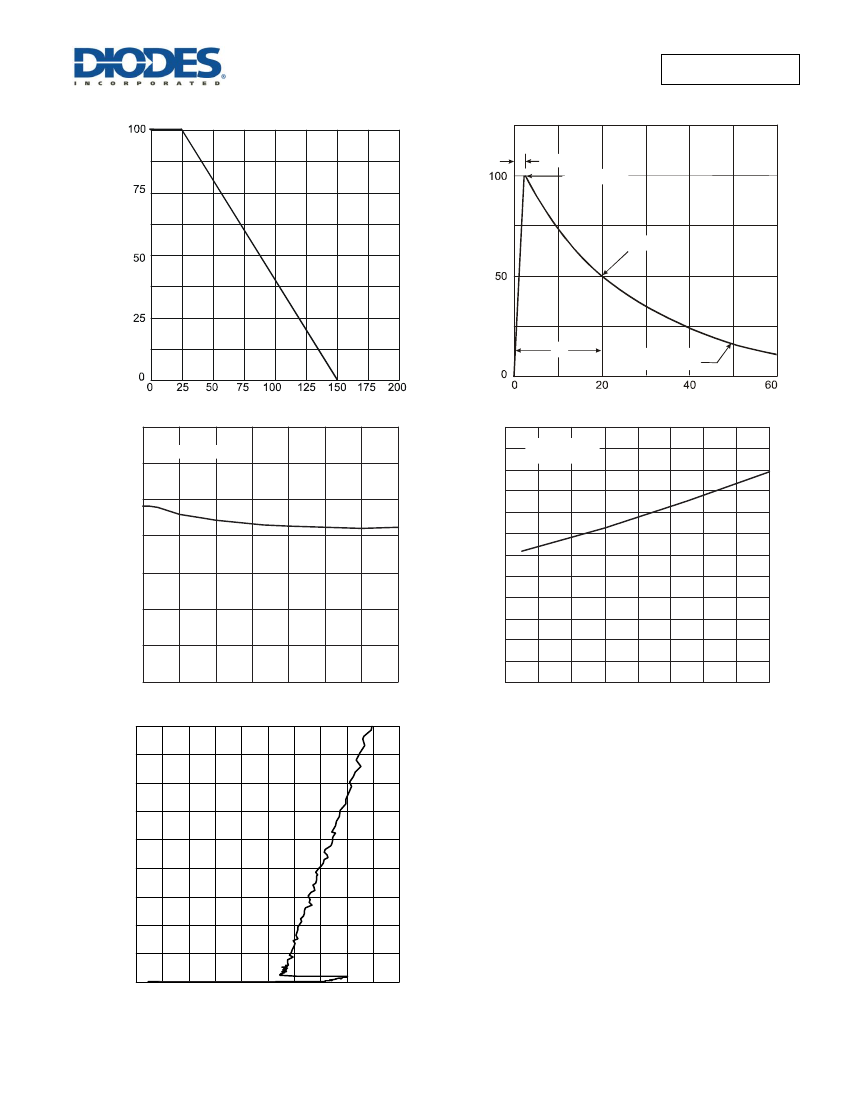

PEAK PULSE DERATING IN % OF
PEAK POWER OR CURRENT
I
PP
, PEAK PULSE CURRENT (%I
p p
)
t
R
= 8µS
Peak Value I
PP
ADVANCE INFORMATION
Half Value I
PP
/2
t
p
8x20 Waveform
as defined by R.E.A.
T
A
, AMBIENT TEMPERATURE (°C)
Figure 1 Pulse Derating Curve
t, TIME (µS)
Figure 2 Pulse Waveform
12
11
IEC61000-4-5
(Lighting)
3.5
I/O to V
SS
, f=1MHz
C
I/O
, INPUT CAPACITANCE (pF)
3.0
V
C
, CLAMPING VOLTAGE (V)
1.0
1.5
2.0
2.5
3.0
V
I/O
, INPUT VOLTAGE (V)
Figure 3 Input Capacitance vs. Input Voltage
0.5
3.5
10
9
8
7
6
5
4
3
2
1
2.5
2.0
1.5
1.0
0.5
0.0
0.0
0
4
8
10
12
14
16
18
CURRENT FROM I/O TO V
SS
(A)
Figure 4 Clamping Voltage Characteristic
6
20
18
CURRENT FROM I/O TO V
SS
(A)
16
14
12
10
8
6
4
2
0
0
1
2
3
4
5
6
7
8
9
VOLTAGE FROM I/O TO V
SS
(V)
Figure 5 Current vs. Voltage
10
D5V0P4URL6SO
Document number: DS38234 Rev. 1 - 2
3 of 5
www.diodes.com
May 2016
© Diodes Incorporated
D5V0P4URL6SO

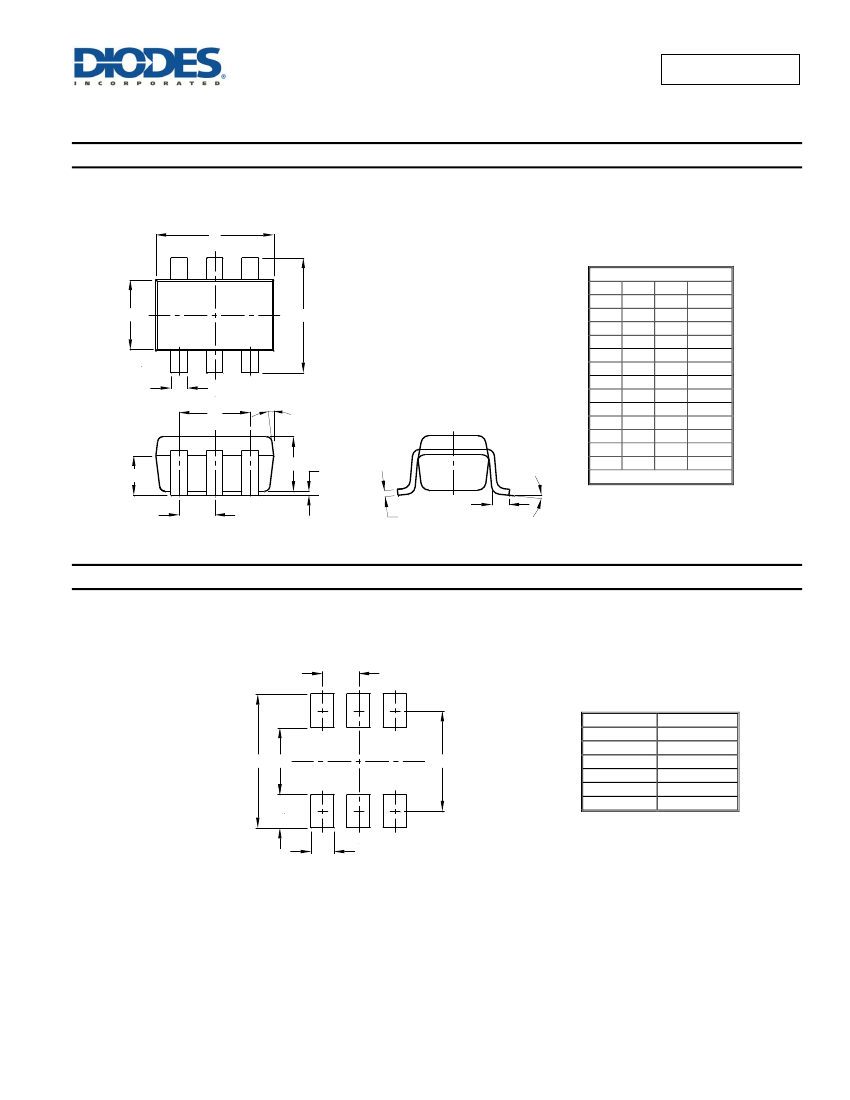

Package Outline Dimensions
Please see http://www.diodes.com/package-outlines.html for the latest version.
ADVANCE INFORMATION
SOT26
D
E1
E
b
e1
a1
A3
A2
A1
Seating Plane
SOT26
Dim Min Max
Typ
A1
0.013 0.10
0.05
A2
1.00 1.30
1.10
A3
0.70 0.80
0.75
b
0.35 0.50
0.38
c
0.10 0.20
0.15
D
2.90 3.10
3.00
e
–
–
0.95
e1
–
–
1.90
E
2.70 3.00
2.80
E1
1.50 1.70
1.60
L
0.35 0.55
0.40
a
–
–
8°
a1
–
–
7°
All Dimensions in mm
c
L
a
e
Suggested Pad Layout
Please see http://www.diodes.com/package-outlines.html for the latest version.
SOT26
C1
Y1
G
C
Y
Dimensions Value (in mm)
C
2.40
C1
0.95
G
1.60
X
0.55
Y
0.80
Y1
3.20
X
D5V0P4URL6SO
Document number: DS38234 Rev. 1 - 2
4 of 5
www.diodes.com
May 2016
© Diodes Incorporated
D5V0P4URL6SO
