Halogen and Antimony Free. “Green” Device (Note 3)
Qualified to AEC-Q101 Standards for High Reliability
Description
The ZXMS6004SG is a self protected low side MOSFET with logic
level input. It integrates over-temperature, over-current, over-voltage
(active clamp) and ESD protected logic level functionality. The
ZXMS6004SG is ideal as a general purpose switch driven from 3.3V
or 5V microcontrollers in harsh environments where standard
MOSFETs are not rugged enough.
Applications
•
•
•
•
•
•
Especially suited for loads with a high in-rush current such as
lamps and motors.
All types of resistive, inductive and capacitive loads in switching
applications.
µC compatible power switch for 12V and 24V DC applications
Automotive rated.
Replaces electromechanical relays and discrete circuits.
Linear Mode capability - the current-limiting protection circuitry is
designed to de-activate at low V
DS
to minimize on state power
dissipation. The maximum DC operating current is therefore
determined by the thermal capability of the package/board
combination, rather than by the protection circuitry. This does not
compromise the product’s ability to self-protect at low V
DS.
Mechanical Data
•
•
•
•
•
Case: SOT223
Case Material: Molded Plastic, “Green” Molding Compound.
UL Flammability Classification Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020
Terminals: Matte Tin Finish
Weight: 0.112 grams (approximate)
Top View
SOT223
Ordering Information
(Note 4)
Product
ZXMS6004SGTA
Note:
Marking
ZXMS6004S
Reel size (inches)
7
Tape width (mm)
12
Quantity per reel
1,000
1. EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant. All applicable RoHS exemptions applied.
2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"
and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. For packaging details, go to our website at http”//www.diodes.com/products/packages.html.

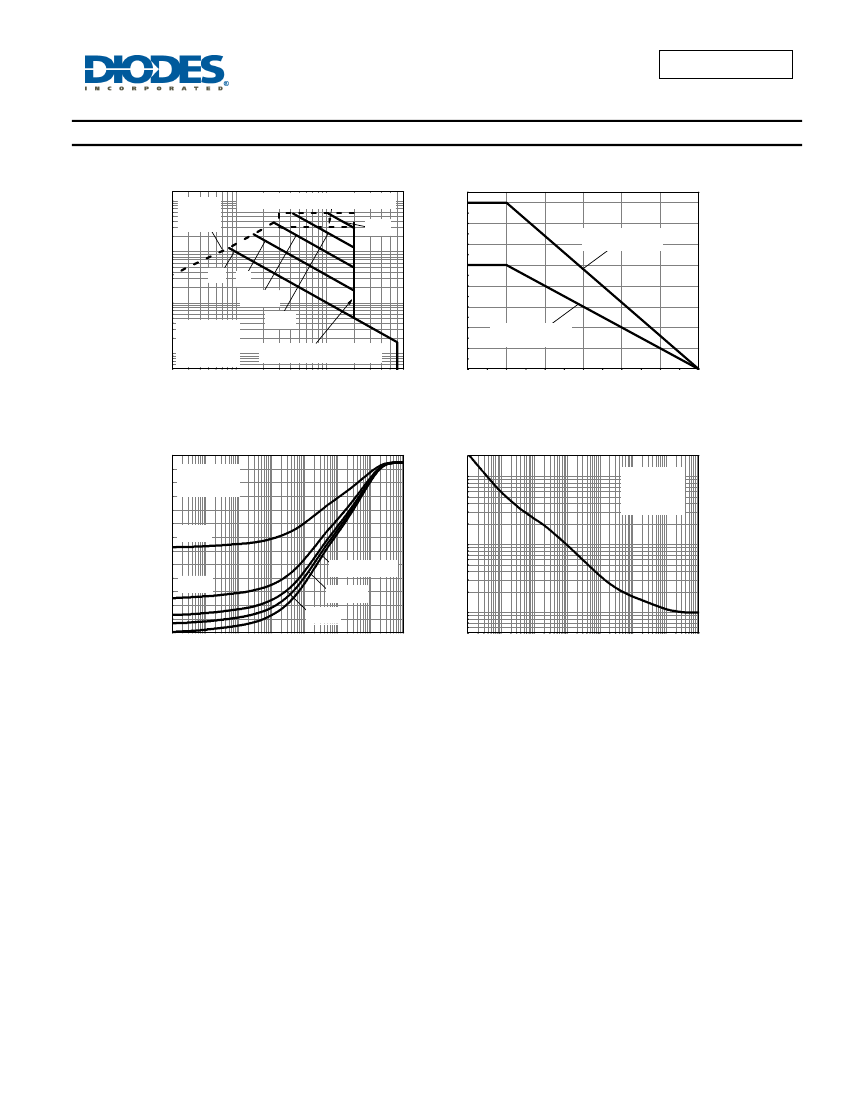

7. The drain current is restricted only when the device is in saturation (see graph ‘typical output characteristic’). This allows the device to be used in the fully
on state without interference from the current limit. The device is fully protected at all drain currents, as the low power dissipation generated outside
saturation makes current limit unnecessary.
8. Over-temperature protection is designed to prevent device destruction under fault conditions. Fault conditions are considered as “outside” normal
operating range, so this part is not designed to withstand over-temperature for extended periods.
