DT1042-04SO-7 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> TVS diode> DT1042-04SO-7

DT1042-04SO-7: DescriptionReverse shutdown voltage (typ): 5V Breakdown voltage (min): 6.2V Polarity: - Clamping voltage: 9V @ 6A Peak pulse current (10/1000us): 6A (8/20us) VBR=6.2 V,Vc=9V,Ipp=6A unidirectional; CategoryDiscrete semiconductor TVS diode; File Size200KB，5 Pages; ManufacturerDiodes; Websitehttp://www.diodes.com/

Download Datasheet Parametric View All

DT1042-04SO-7 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	DT1042-04SO-7	-	-	View	Buy Now

DT1042-04SO-7 Overview

Reverse shutdown voltage (typ): 5V Breakdown voltage (min): 6.2V Polarity: - Clamping voltage: 9V @ 6A Peak pulse current (10/1000us): 6A (8/20us) VBR=6.2 V,Vc=9V,Ipp=6A unidirectional

DT1042-04SO-7 Parametric

Parameter Name	Attribute value
Reverse shutdown voltage (typ)	5V
Breakdown voltage (minimum value)	6.2V
polarity	-
clamping voltage	9V @ 6A
Peak pulse current (10/1000us)	6A (8/20us)

Preview

Download Datasheet

View All

DT1042-04SO

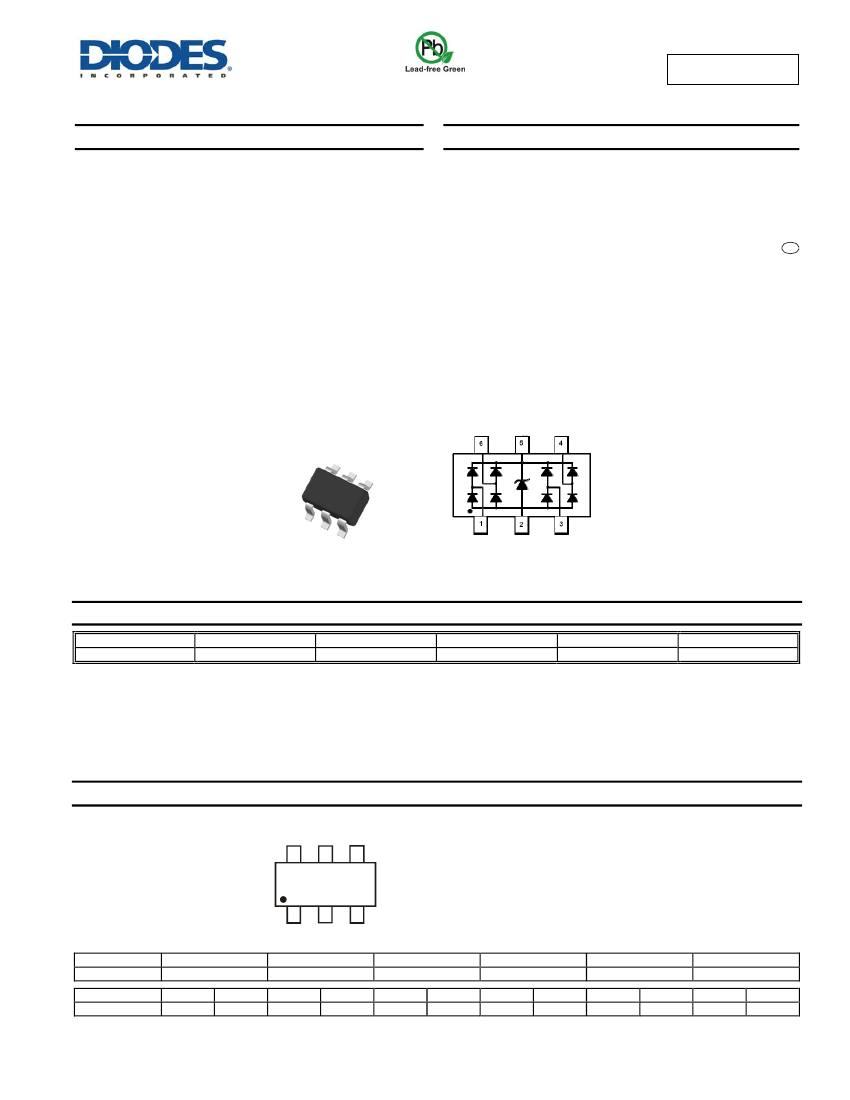

4 CHANNEL LOW CAPACITANCE TVS DIODE ARRAY

Features



Low Clamping Voltage, I/O to V



Typical 9V at 10A 100ns, TLP

Typical 7.7V at 6A 8μs/20μs

IEC 61000-4-2 (ESD): Air – +27/-19kV, Contact – ±16kV

IEC 61000-4-4 (EFT): Level-4

IEC 61000-4-5 (Lightning): ±6A

4 Channels of ESD protection

Low Channel Input Capacitance of 0.65pF Typical

TLP Dynamic Resistance: 0.25Ω

Typically Used for High Speed Ports such as USB 2.0,

IEEE1394, HDMI, Laptop and Personal Computers, Flat Panel

Displays, Video Graphics Displays, SIM Ports



Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)

Halogen and Antimony Free. “Green” Device (Note 3)

Mechanical Data



Case: SOT26

Case Material: Molded Plastic, “Green” Molding Compound.

UL Flammability Classification Rating 94V-0

Moisture Sensitivity: Level 1 per J-STD-020

Terminals: Matte Tin Finish annealed over Copper leadframe

(Lead Free Plating). Solderable per MIL-STD-202, Method 208

Weight: 0.016 grams (approximate)

ADVANCE INFORMATION



I/O4

Vcc

I/O3

SOT26

I/O1

Vss

I/O2

Top View

Device Schematic

Ordering Information

(Note 4)

Product

DT1042-04SO-7

Notes:

Compliance

Standard

Marking

BC1

Reel Size (inches)

Tape Width (mm)

Quantity per Reel

3,000/Tape & Reel

1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.

2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"

and Lead-free.

3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and

<1000ppm antimony compounds.

4. For packaging details, go to our website at http://www.diodes.com/products/packages.html.

Marking Information

BC1

A17

BC1 = Product Type Marking Code

YM = Date Code Marking

Y = Year (ex: A = 2013)

M = Month (ex: 9 = September)

Date Code Key

Year

Code

Month

Code

Jan

2013

Feb

Mar

2014

Apr

May

2015

Jun

Jul

2016

Aug

Sep

2017

Oct

Nov

2018

Dec

DT1042-04SO

Document number: DS36292 Rev. 2 - 2

1 of 5

www.diodes.com

September 2013

DT1042-04SO

IMPORTANT NOTICE

DIODES INCORPORATED MAKES NO WARRANTY OF ANY KIND, EXPRESS OR IMPLIED, WITH REGARDS TO THIS DOCUMENT,

INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE

(AND THEIR EQUIVALENTS UNDER THE LAWS OF ANY JURISDICTION).

Diodes Incorporated and its subsidiaries reserve the right to make modifications, enhancements, improvements, corrections or other changes

without further notice to this document and any product described herein. Diodes Incorporated does not assume any liability arising out of the

application or use of this document or any product described herein; neither does Diodes Incorporated convey any license under its patent or

trademark rights, nor the rights of others. Any Customer or user of this document or products described herein in such applications shall assume

all risks of such use and will agree to hold Diodes Incorporated and all the companies whose products are represented on Diodes Incorporated

website, harmless against all damages.

Diodes Incorporated does not warrant or accept any liability whatsoever in respect of any products purchased through unauthorized sales channel.

Should Customers purchase or use Diodes Incorporated products for any unintended or unauthorized application, Customers shall indemnify and

hold Diodes Incorporated and its representatives harmless against all claims, damages, expenses, and attorney fees arising out of, directly or

indirectly, any claim of personal injury or death associated with such unintended or unauthorized application.

Products described herein may be covered by one or more United States, international or foreign patents pending. Product names and markings

noted herein may also be covered by one or more United States, international or foreign trademarks.

This document is written in English but may be translated into multiple languages for reference. Only the English version of this document is the

final and determinative format released by Diodes Incorporated.

LIFE SUPPORT

Diodes Incorporated products are specifically not authorized for use as critical components in life support devices or systems without the express

written approval of the Chief Executive Officer of Diodes Incorporated. As used herein:

A. Life support devices or systems are devices or systems which:

1. are intended to implant into the body, or

2. support or sustain life and whose failure to perform when properly used in accordance with instructions for use provided in the

labeling can be reasonably expected to result in significant injury to the user.

B. A critical component is any component in a life support device or system whose failure to perform can be reasonably expected to cause the

failure of the life support device or to affect its safety or effectiveness.

Customers represent that they have all necessary expertise in the safety and regulatory ramifications of their life support devices or systems, and

acknowledge and agree that they are solely responsible for all legal, regulatory and safety-related requirements concerning their products and any

use of Diodes Incorporated products in such safety-critical, life support devices or systems, notwithstanding any devices- or systems-related

information or support that may be provided by Diodes Incorporated. Further, Customers must fully indemnify Diodes Incorporated and its

representatives against any damages arising out of the use of Diodes Incorporated products in such safety-critical, life support devices or systems.

www.diodes.com

ADVANCE INFORMATION

DT1042-04SO

Document number: DS36292 Rev. 2 - 2

5 of 5

www.diodes.com

September 2013
