Rated to +175° – Ideal for High Ambient Temperature
C
Environments
100% Unclamped Inductive Switching – Ensures More Reliable
and Robust End Application
High Conversion Efficiency
Low R
DS(ON)
– Minimizes On State Losses
Low Input Capacitance
Fast Switching Speed
Additional Tin-plated on Sidewall Pads for Optical Solder
Inspection
Lead-Free Finish; RoHS Compliant (Notes 1 & 2)
Halogen and Antimony Free. “Green” Device (Note 3)
Qualified to AEC-Q101 Standards for High Reliability
Description and Applications
This MOSFET is designed to minimize the on-state resistance
(R
DS(ON)
) and yet maintain superior switching performance, making it
ideal for high efficiency power management applications.
Synchronous Rectifier
Backlighting
Power Management Functions
DC-DC Converters
Mechanical Data

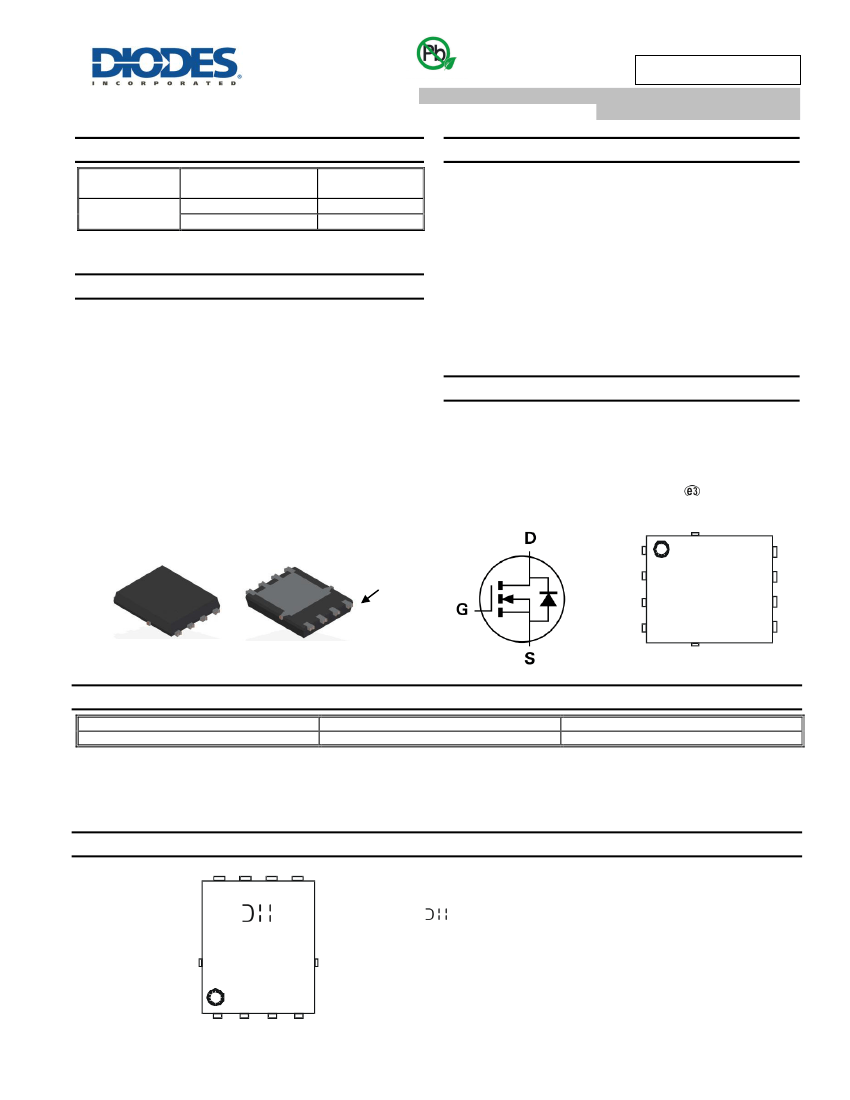

Case: PowerDI 5060-8 (SWP) (Type Q)
Case Material: Molded Plastic, “Green” Molding Compound. UL
Flammability Classification Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020
Terminal Finish - Matte Tin Annealed over Copper Leadframe;
Solderable per MIL-STD-202, Method 208
Weight: 0.097 grams (Approximate)
®
PowerDI5060-8 (SWP) (Type Q)
S
S
S
G
D
D
D
D
Pin1
Top View
Bottom View
Internal Schematic
Top View
Pin Configuration
Ordering Information
(Note 4)
Part Number
DMTH8012LPSW-13
Notes:
Case
PowerDI5060-8 (SWP) (Type Q)
Packaging
2,500 / Tape & Reel
1. EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant. All applicable RoHS exemptions applied.
2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"
and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. For packaging details, go to our website at https://www.diodes.com/design/support/packaging/diodes-packaging/.
