DF005M - DF10M
1.0A GLASS PASSIVATED BRIDGE RECTIFIERS
Features
•
•
•
•
•
•
Glass Passivated Die Construction
Low Forward Voltage Drop, High Current Capability
Surge Overload Rating to 50A Peak
Designed for Printed Circuit Board Applications
UL Listed Under Recognized Component Index, File
Number E94661
Lead Free Finish, RoHS Compliant (Date Code 0532+)
(Note 3)
C
Dim
A
DF-M
Min
7.40
6.20
0.22
1.27
7.60
3.81
8.13
2.40
5.00
0.46
Max
7.90
6.50
0.30
2.03
8.90
4.69
8.51
3.40
5.20
0.58
B A
E
B
C
D
Mechanical Data
•
•
•
•
•
•
•
Case: DF-M
Case Material: Molded Plastic. UL Flammability
Classification Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020C
Terminals: Finish - Tin. Solder Plated Leads,
Solderable per MIL-STD-202, Method 208
Polarity: As Marked on Case
Marking Information: Type Number, See Page 3
Weight: 0.38 grams (approximate)
H
J
L
K
D
G
E
G
H
J
K
L
All Dimensions in mm
Maximum Ratings and Electrical Characteristics
Single phase, half wave, 60Hz, resistive or inductive load.
For capacitive load, derate current by 20%.
Characteristic
Peak Repetitive Reverse Voltage
Working Peak Reverse Voltage
DC Blocking Voltage
RMS Reverse Voltage
Average Rectified Output Current
Non-Repetitive Peak Forward Surge Current, 8.3 ms
Single Half Sine-Wave Superimposed on Rated Load
Forward Voltage (per element)
Peak Reverse Current
at Rated DC Blocking Voltage (per element)
I t Rating for Fusing (t<8.3ms)
Typical Total Capacitance per element
Typical Thermal Resistance, Junction to Ambient
Operating and Storage Temperature Range
Notes:
2
@T
A
= 25°C unless otherwise specified
Symbol
V
RMM
V
RWM
V
R
V
RMS
@ T
A
= 40°C
I
O
I
FSM
@ I
F
= 1.0 A
@ T
A
= 25°C
@ T
A
= 125°C
V
FM
I
RM
It
(Note 1)
(Note 2)
C
T
R
θ
JA
T
j
, T
STG
2
DF
005M
50
35
DF
01M
100
70
DF
02M
200
140
DF
04M
400
280
1.0
50
1.1
10
500
10.4
25
40
-65 to +150
DF
06M
600
420
DF
08M
800
580
DF
10M
1000
700
Unit
V
V
A
A
V
µA
As
pF
°C/W
°C
2
1. Measured at 1.0MHz and applied reverse voltage of 4.0V DC.
2. Thermal Resistance, junction to ambient, measured on PC board with 5.0mm
2
(0.03mm thick) land areas.
3. RοHS revision 13.2.2003. Glass and high temperature solder exemptions applied, see
EU Directive Annex Notes 5 and 7.
DS21201 Rev. 15 - 2
1 of 3
www.diodes.com
DF005M-DF10M
© Diodes Incorporated
I
F
, INSTANTANEOUS FORWARD CURRENT (A)
1.0
I
(AV)
, AVERAGE FORWARD CURRENT (A)
10
1.0
0.5
0.1
0
40
100
120
140
60
80
T
A
, AMBIENT TEMPERATURE (°C)

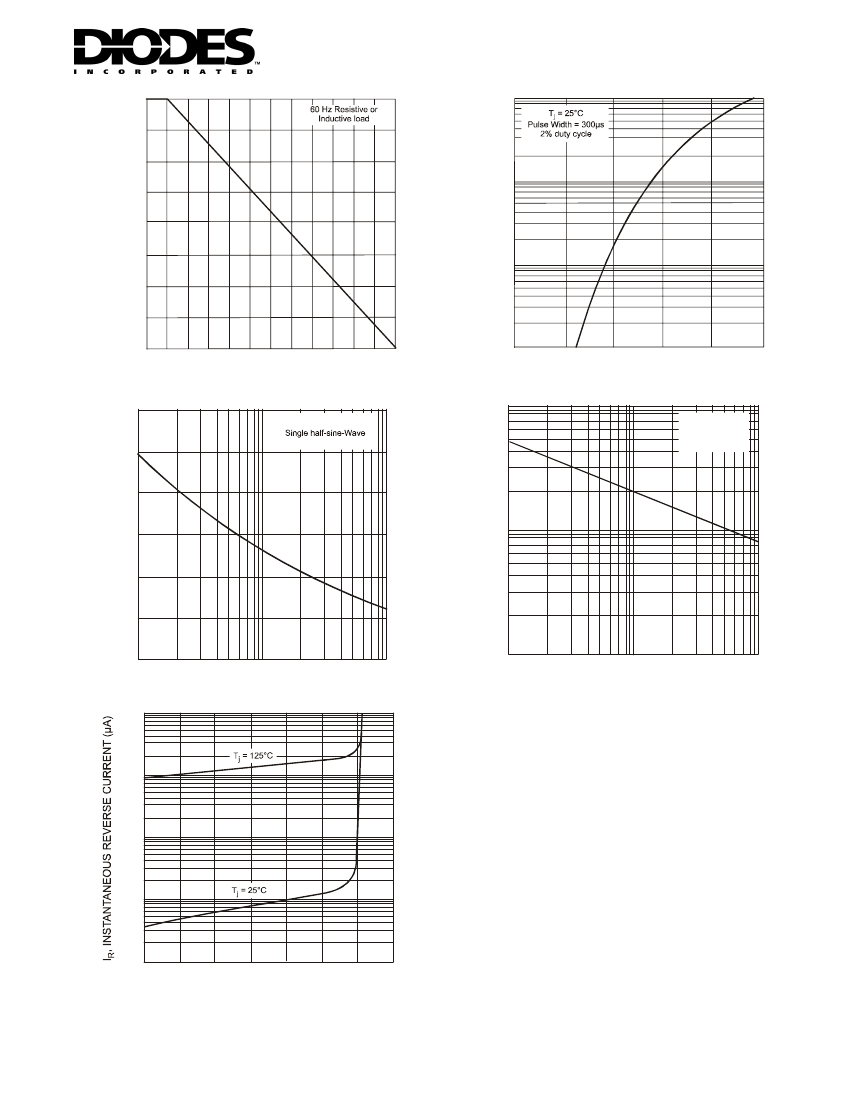

Fig. 1 Output Current Derating Curve
0.01
0.6
1.2
0.4
0.8
1.0
1.4
V
F
, INSTANTANEOUS FORWARD VOLTAGE (V)
Fig. 2 Typical Forward Characteristics (per element)
100
T
j
= 25°C
f = 1.0 Mhz
V
sig
= 50 mV p-p
60
I
FSM
, PEAK FORWARD SURGE CURRENT (A)
50
40
30
20
10
0
100
10
NUMBER OF CYCLES AT 60 Hz
Fig. 3 Max Non-Repetitive Peak Forward Surge Current
1
100
1
1
100
10
V
R
, REVERSE VOLTAGE (V)
Fig. 4 Typical Total Capacitance (per element)
10
1.0
0.1
0.01
0
20
40
60
100
120
140
80
PERCENT OF RATED PEAK REVERSE VOLTAGE (%)
Fig. 5 Typ Reverse Characteristics (per element)
C
T
, TOTAL CAPACITANCE (pF)
10
DS21201 Rev. 15 - 2
2 of 3
www.diodes.com
DF005M-DF10M
© Diodes Incorporated
Ordering Information
(Note 4)
Device*
DFxM
* x = Device type, e.g. DF005M or DF10M, etc.
Notes:
4. For packaging details, visit our website at http://www.diodes.com/datasheets/ap02007.pdf.
Packaging
DF-M
Shipping
Tube
Marking Information
XXXXX
YWW
= Manufacturers’ code marking
XXXXX = Product type marking code, ex: DF10M
YWW = Date code marking
Y = Last digit of year ex: 2 for 2002
WW = Week code 01 to 52
IMPORTANT NOTICE
Diodes Incorporated and its subsidiaries reserve the right to make modifications, enhancements, improvements, corrections or other changes
without further notice to any product herein. Diodes Incorporated does not assume any liability arising out of the application or use of any product
described herein; neither does it convey any license under its patent rights, nor the rights of others. The user of products in such applications shall
assume all risks of such use and will agree to hold Diodes Incorporated and all the companies whose products are represented on our website,
harmless against all damages.
LIFE SUPPORT
Diodes Incorporated products are not authorized for use as critical components in life support devices or systems without the expressed written
approval of the President of Diodes Incorporated.
DS21201 Rev. 15 - 2
3 of 3
www.diodes.com
DF005M-DF10M
© Diodes Incorporated
