DMP2002UPS-13

Description
Drain-source voltage (Vdss): 20V Continuous drain current (Id) (at 25°C): 60A Gate-source threshold voltage: 1.4V @ 250uA Drain-source on-resistance: 1.9mΩ @ 25A, 10V Maximum power dissipation ( Ta=25°C): 2.3W Type: P channel P channel, -20V, -60A, 1.9mΩ@-10V
CategoryDiscrete semiconductor    MOS (field effect tube)
File Size342KB,8 Pages
ManufacturerDiodes
Websitehttp://www.diodes.com/
Download Datasheet Parametric View All

DMP2002UPS-13 Online Shopping

Suppliers Part Number Price MOQ In stock
DMP2002UPS-13 - - View Buy Now

DMP2002UPS-13 Overview

Drain-source voltage (Vdss): 20V Continuous drain current (Id) (at 25°C): 60A Gate-source threshold voltage: 1.4V @ 250uA Drain-source on-resistance: 1.9mΩ @ 25A, 10V Maximum power dissipation ( Ta=25°C): 2.3W Type: P channel P channel, -20V, -60A, 1.9mΩ@-10V

DMP2002UPS-13 Parametric

Parameter NameAttribute value
Drain-source voltage (Vdss)20V
Continuous drain current (Id) at 25°C60A
Gate-source threshold voltage1.4V @ 250uA
Drain-source on-resistance1.9mΩ @ 25A,10V
Maximum power dissipation (Ta=25°C)2.3W
typeP channel
Green
DMP2002UPS

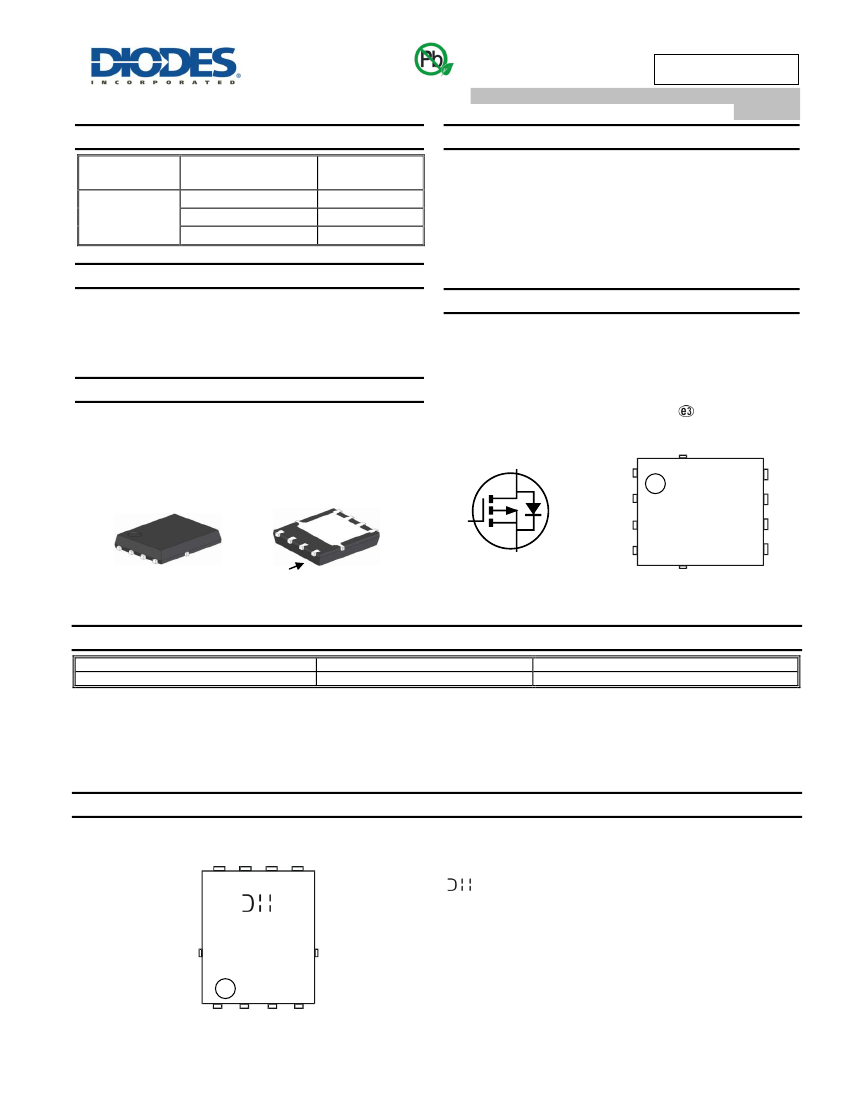

20V P-CHANNEL ENHANCEMENT MODE MOSFET
POWERDI
Product Summary
BV
DSS
R
DS(ON)
1.9mΩ @ V
GS
= -10V
-20V
2.4mΩ @ V
GS
= -4.5V
3.8mΩ @ V
GS
= -2.5V
I
D
T
C
= +25°
C
-60A
-60A
-60A
Features
Thermally Efficient Package-Cooler Running Applications
High Conversion Efficiency
Low R
DS(ON)
– Minimizes On State Losses
<1.1mm Package Profile – Ideal for Thin Applications
Lead-Free Finish; RoHS Compliant (Notes 1 & 2)
Halogen and Antimony Free. “Green” Device (Note 3)
Qualified to AEC-Q101 Standards for High Reliability
Description
This new generation P-Channel Enhancement Mode MOSFET is
designed to minimize R
DS(ON)
and yet maintain superior switching
performance. This device is ideal for use in notebook battery power
management and load switch.
Mechanical Data
Case: PowerDI5060-8 (Type K)
Case Material: Molded Plastic, ―Green‖ Molding Compound;
UL Flammability Classification Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020
Terminal Finish - Matte Tin Annealed over Copper Leadframe;
Solderable per MIL-STD-202, Method 208
Weight: 0.097 grams (Approximate)
Applications
Switch
PowerDI5060-8 (Type K)
D
S
S
D
D
D
D
G
S
Bottom View
Internal Schematic
S
G
Pin1
Top View
Top View
Pin Configuration
Ordering Information
(Note 4)
Part Number
DMP2002UPS-13
Notes:
Case
PowerDI5060-8 (Type K)
Packaging
2,500 / Tape & Reel
1. EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant. All applicable RoHS exemptions applied.
2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"
and Lead-free.
3. Halogen- and Antimony-free "Green‖ products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. For packaging details, go to our website at http://www.diodes.com/products/packages.html.
Marking Information
PowerDI5060-8 (Type K)
D
D
D
D
= Manufacturer’s Marking
P2002US = Product Type Marking Code
YYWW = Date Code Marking
YY = Last Two Digits of Year (ex: 16 = 2016)
WW = Week Code (01 to 53)
P2002US
YY WW
S
S
S
G
PowerDI is a registered trademark of Diodes Incorporated.
DMP2002UPS
Document number: DS37192 Rev. 5 - 2
1 of 8
www.diodes.com
July 2016
© Diodes Incorporated
